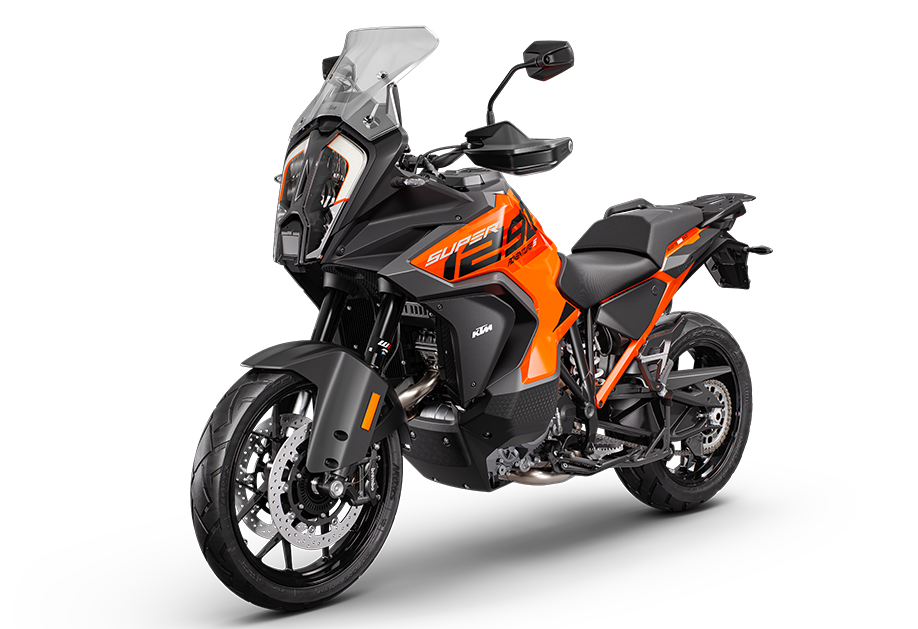

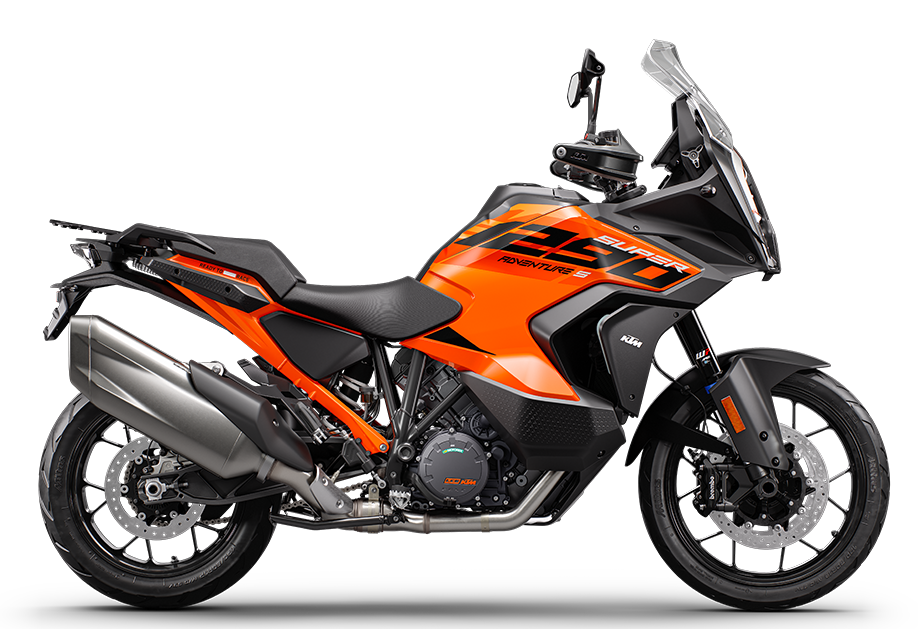

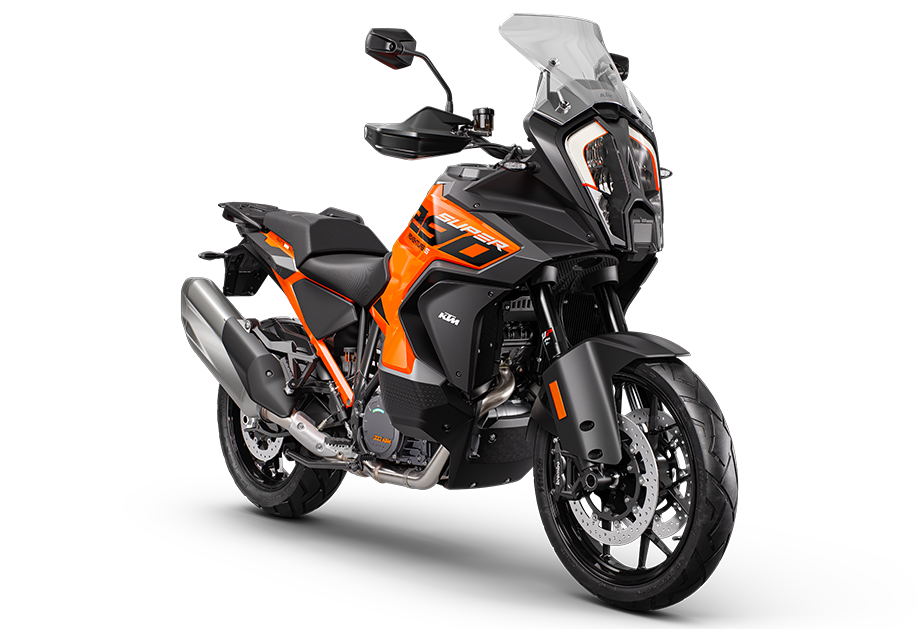

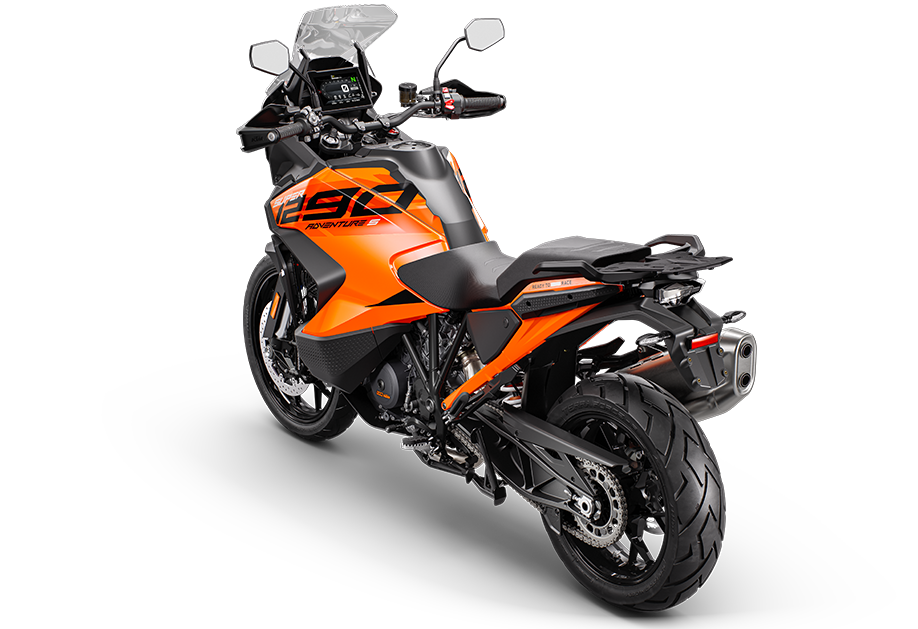

2023 KTM 1290 SUPER ADVENTURE S
2023 KTM 1290 SUPER ADVENTURE S
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
Inquiring for 2023 KTM 1290 SUPER ADVENTURE S
Fill out the form below and one of our friendly sales team will be in touch.
THE WORLD JUST GOT SMALLER
Covering ground quickly and effortlessly is what the KTM 1290 SUPER ADVENTURE S is made for. An Adventure-specced V-Twin with 160 hp & 138 Nm means that entire cross-country journeys are dispatched easily, while Adaptive Cruise Control and Semi-active Suspension together with reworked rider-focussed ergonomics and technology bring agility and long distance comfort to an entirely new level. It's a bold claim, but we'll make it - the KTM 1290 SUPER ADVENTURE S is the new benchmark.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Drive typeCombustion |
| Torque138 Nm |
| Transmission6-speed |
| CoolingLiquid cooled |
| Power in KW118 kW |
| StarterElectric starter |
| Stroke71 mm |
| Traction controlMTC (lean-angle sensitive, 4 Mode disengageable) |
| Bore108 mm |
| ClutchPASC (TM) slipper clutch, hydraulically actuated |
| CO2 emissions134 g/km |
| Compression ratio13.1 |
| Displacement1301 cm³ |
| EMSKeihin EMS with RBW and cruise control, double ignition |
| Engine oilMotorex, SAE 10W-50 |
| Design2-cylinder, 4-stroke, V 75° |
| Fuel consumption5.7 l/100 km |
| Fuel-mixture generationKeihin EFI (throttle body 52 mm) |
| LubricationForced oil lubrication with 3 oil pumps |
| Weight (without fuel)227 kg |
| Tank capacity (approx.)23 l |
| Wheelbase1557 mm |
| ABSBosch 10.3ME Combined-ABS (incl. Cornering-ABS and offroad mode) |
| Front brake disc diameter320 mm |
| Rear brake disc diameter267 mm |
| Chain525 X-Ring |
| dry weight220 kg |
| Frame designChrome-moly tubular space frame, powder-coated |
| Front suspensionWP SAT (semi-active technology) Upside-Down Ø 48 mm |
| Ground clearance223 mm |
| HandlebarAluminium, tapered Ø 28/22 mm |
| Rear suspensionWP SAT (semi-active technology) shock absorber |
| Seat height849 mm |
| Seat height 2869 mm |
| SilencerStainless steel primary and secondary silencer with two catalytic converters |
| Steering head angle65.3 ° |
| Rear subframe designAluminium, powder-coated |
| Suspension travel (front)200 mm |
| Suspension travel (rear)200 mm |
| Trail109.2 mm |
| Weight (without fuel)227 kg |
| Ground clearance223 mm |
| Seat height849 mm |
| Suspension travel (front)200 mm |
| Suspension travel (rear)200 mm |
| Front wheel diameter19 " |
| Rear wheel diameter17 " |
| Front wheel width3.5 " |
| Rear wheel width5.0 " |
| Wheelbase tolerance15 mm |
| WheelsCast aluminium wheels |
