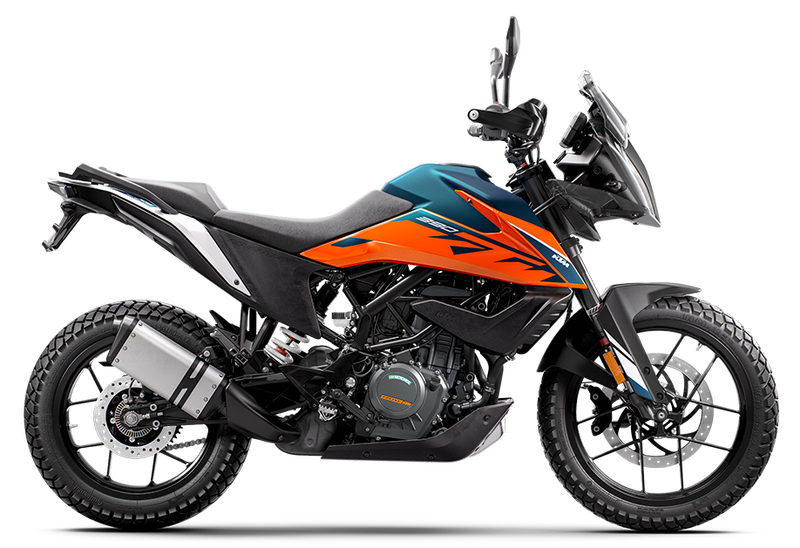

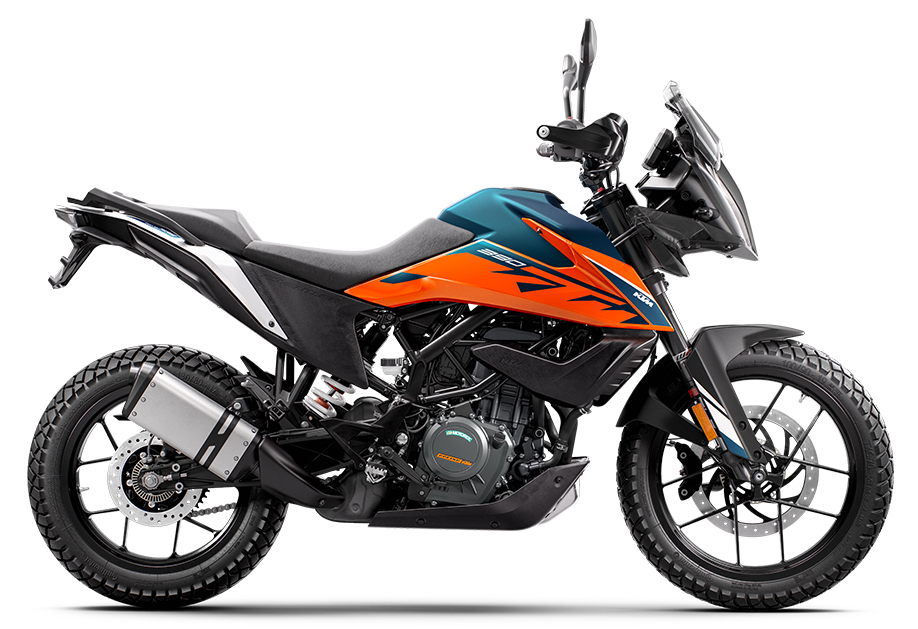

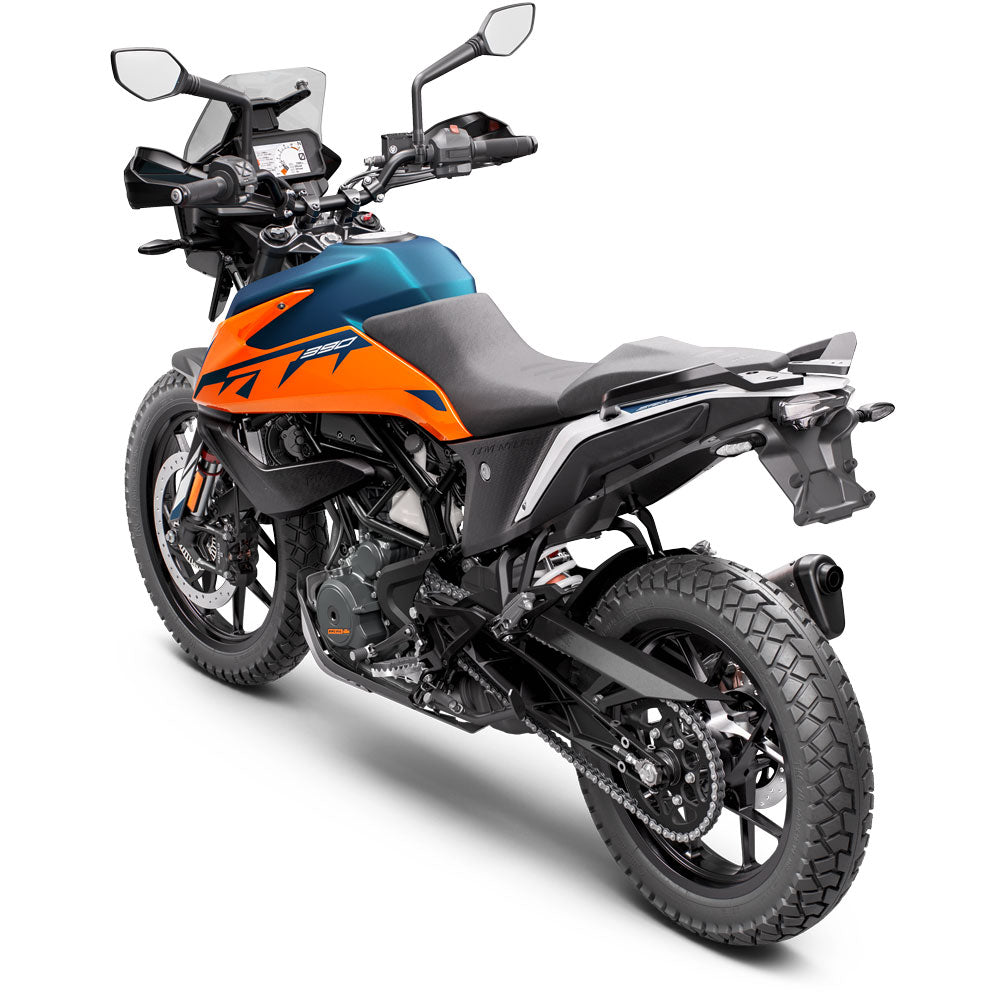

2023 KTM 390 ADVENTURE
2023 KTM 390 ADVENTURE
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
Inquiring for 2023 KTM 390 ADVENTURE
Fill out the form below and one of our friendly sales team will be in touch.
MAKE LIFE A DARING ADVENTURE
Gone are the days when going from A to B. The 2023 KTM 390 ADVENTURE rewrites the rulebook on what the daily commute needs to be. Merging all-road versatility and proven reliability with real-world performance, a proven 373 cc powerplant, and a class-leading chassis, the KTM 390 ADVENTURE not only seeks out new adventures - it leaves no path unexplored.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Drive typeCombustion |
| Torque37 Nm |
| Transmission6-speed |
| CoolingLiquid cooled |
| Power in KW32 kW |
| StarterElectric starter |
| Stroke60 mm |
| Bore89 mm |
| ClutchPASC™ antihopping clutch, mechanically operated |
| CO2 emissions78 g/km |
| Compression ratio12.6 |
| Displacement373.2 cm³ |
| EMSBosch EMS with RBW |
| Engine oilMotorex Formula 4T 15W/50 |
| Design1-cylinder, 4-stroke engine |
| Fuel consumption3.37 l/100 km |
| Fuel-mixture generationBosch EFI (throttle valve 46 mm) |
| LubricationWet sump |
| Tank capacity (approx.)14.5 l |
| ABSBosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable) |
| Front brake disc diameter320 mm |
| Rear brake disc diameter230 mm |
| Front brakeFour-piston radial fixed calliper |
| Rear brakeSingle-piston floating calliper, brake disc |
| Chain520 X-Ring |
| Frame designSteel trellis frame, powder coated |
| Front suspensionWP APEX 43 |
| HandlebarAluminium, tapered Ø 28/22 mm |
| Rear suspensionWP APEX - Monoshock |
| SilencerStainless steel primary and secondary silencer |
| Steering head angle63.5 ° |
| Rear subframe designSteel trellis frame, powder coated |
| Trail98 mm |
| dry weight161 kg |
| Seat height855 mm |
| Wheelbase1430 mm |
| Front wheel diameter19 " |
| Rear wheel diameter17 " |
| Front wheel width2.5 " |
| Rear wheel width3.5 " |
| WheelsCast aluminium wheels |
