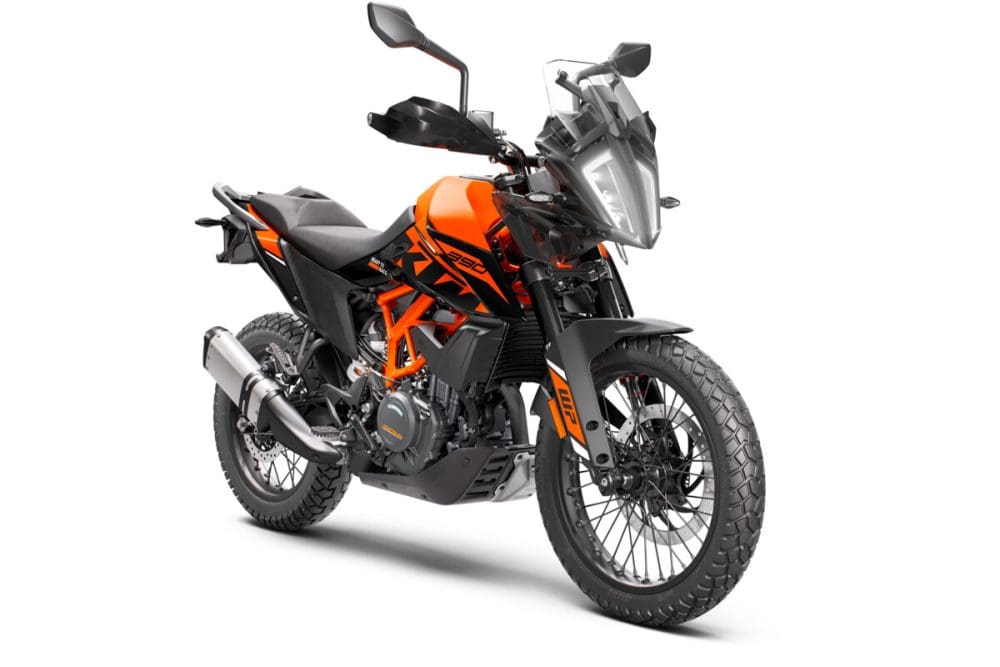

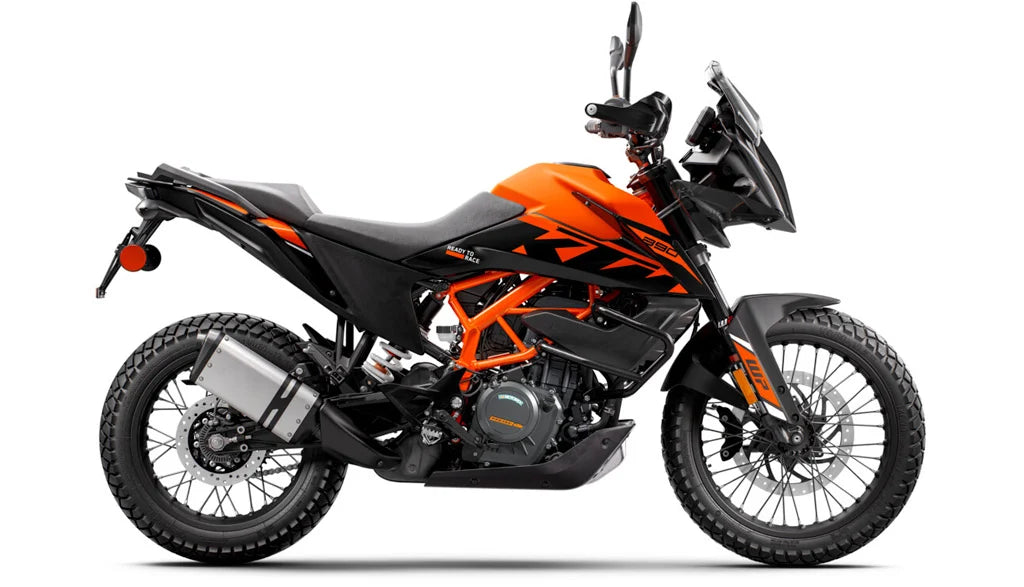

2023 KTM 390 ADVENTURE SPOKED WHEEL
2023 KTM 390 ADVENTURE SPOKED WHEEL
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
The 2023 KTM 390 Adventure Spoked Wheel edition blends lightweight agility with rugged adventure capability. With a punchy 373 cc single-cylinder engine producing 43 hp, adjustable WP APEX suspension, and 19"/17" spoked wheels, it’s ready for road or trail. Ride modes, cornering ABS, traction control, and a TFT display give it big-bike tech in a nimble, go-anywhere package.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Type1-cylinder, 4-stroke engine |
| Displacement373 cm³ |
| Power32 kW (43 hp) |
| Torque37 Nm |
| Bore x Stroke89 mm x 60 mm |
| Compression Ratio12.6:1 |
| CoolingLiquid cooled |
| Fuel SystemBosch EFI (Electronic Fuel Injection) |
| EMSBosch EMS with Ride-by-Wire |
| LubricationWet sump |
| ClutchPASC™ antihopping clutch, mechanically operated |
| Transmission6-speed |
| Final Drive520 X-Ring Chain |
| StarterElectric starter |
| FrameSteel trellis frame, powder-coated |
| SubframeBolt-on subframe |
| Front SuspensionWP APEX 43 mm USD fork |
| Rear SuspensionWP APEX shock absorber |
| Suspension Travel (Front)170 mm |
| Suspension Travel (Rear)177 mm |
| Front Brake320 mm disc with 4-piston radial caliper |
| Rear Brake230 mm disc with 1-piston floating caliper |
| ABSBosch 9.1 MP (Cornering ABS and Offroad ABS) |
| Front Wheel19” spoked |
| Rear Wheel17” spoked |
| Front Tyre100/90-19 |
| Rear Tyre130/80-17 |
| Steering Head Angle63.5° |
| Wheelbase1430 mm |
| Seat Height855 mm |
| Ground Clearance200 mm |
| Dry Weight172 kg |
| Fuel Tank Capacity14.5 liters |
