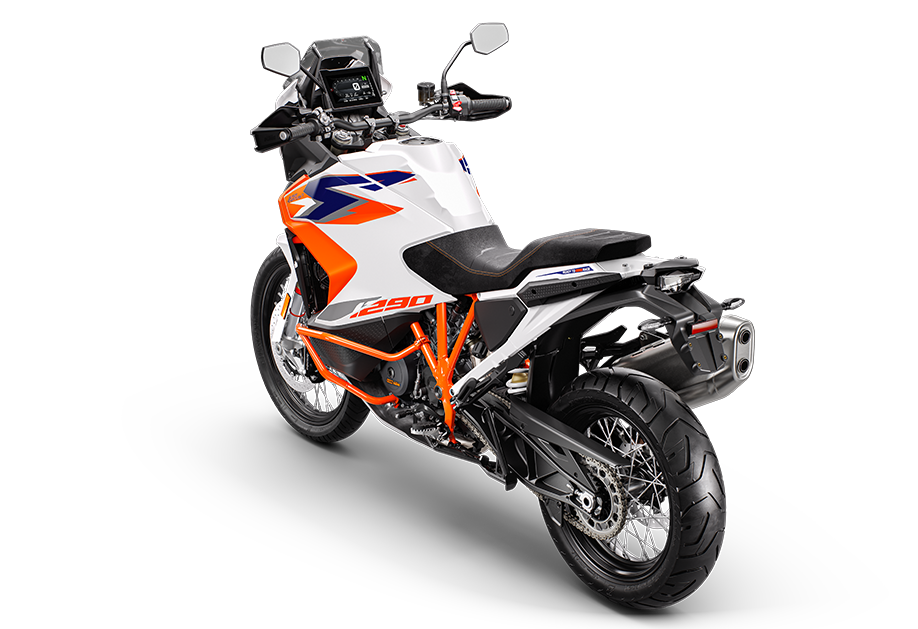

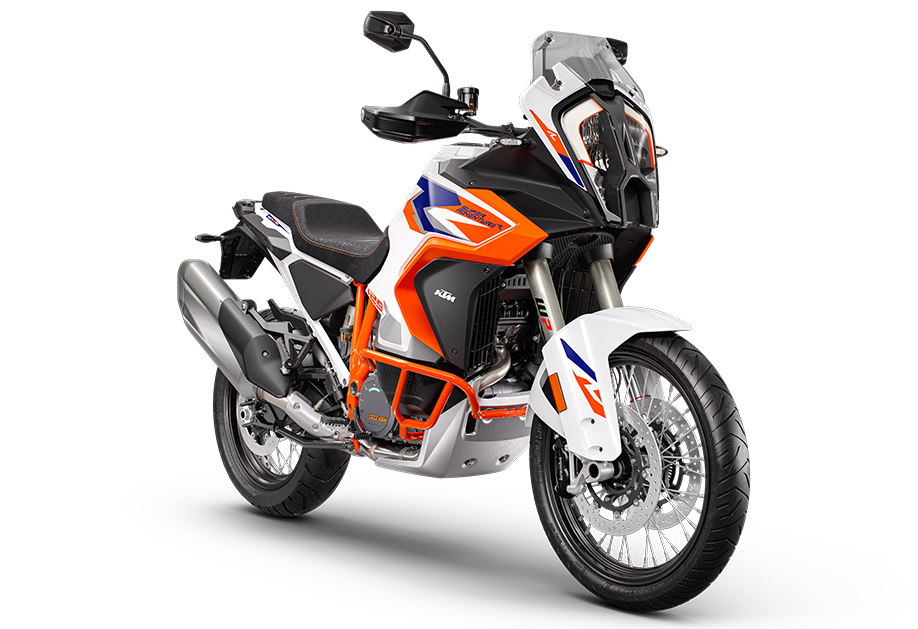

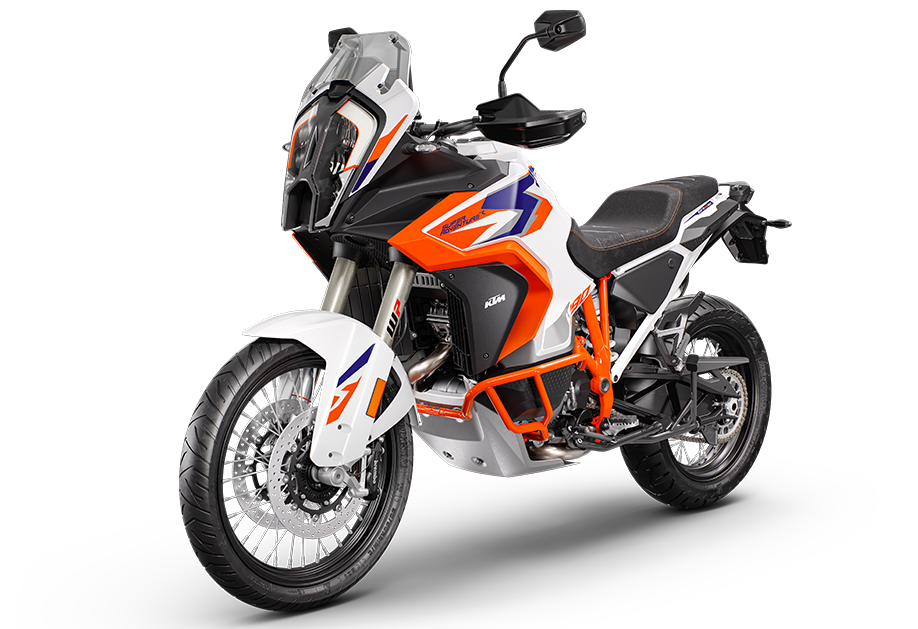

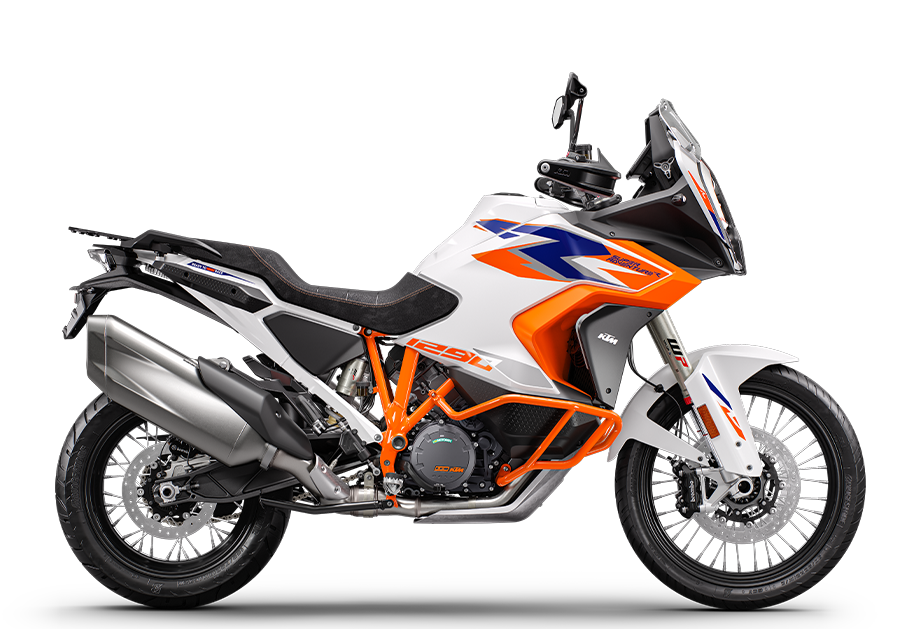

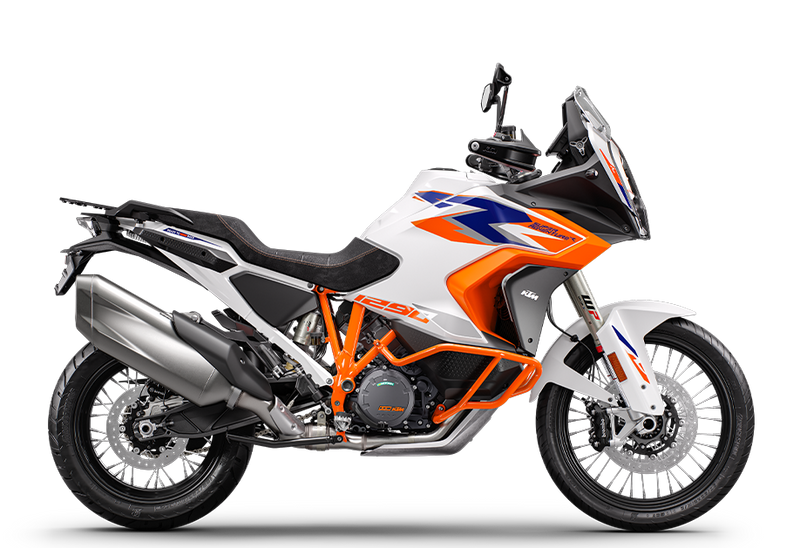

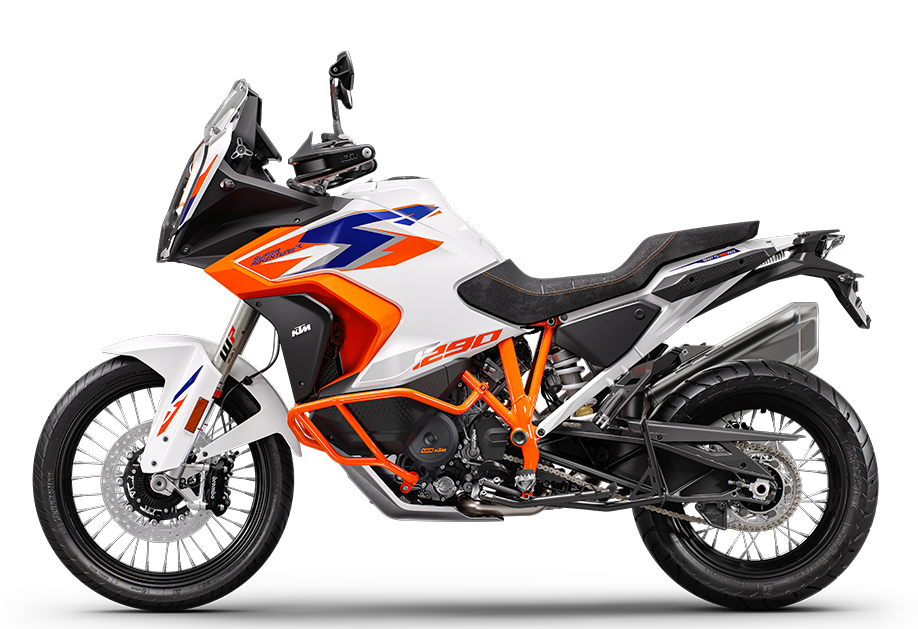

2024 KTM 1290 SUPER ADVENTURE R
2024 KTM 1290 SUPER ADVENTURE R
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
SEEK UNCHARTED TERRITORY
From the Skeleton Coast to the Himalayas, the 1290 SUPER ADVENTURE R is engineered to cross the wildest, most challenging terrain with unmatched ability and class-leading performance. Not only has it proven itself to be without peers in the large-capacity extreme adventure segment, but it also remains the ultimate READY TO RACE choice in travel machines for hardened cross-country nomads.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Transmission6-speed |
| StarterElectric starter |
| Stroke71 mm |
| Bore108 mm |
| Compression Ratio13.1 |
| Displacement1301 cm³ |
| EMSKeihin EMS with RBW and cruise control, double ignition |
| Design2-cylinder, 4-stroke, V 75° |
| Fuel-Mixture GenerationKeihin EFI (throttle body 52 mm) |
| Tank Capacity (Approx.)23 l |
| Front Brake Disc Diameter320 mm |
| Rear Brake Disc Diameter267 mm |
| Chain525 X-Ring |
| Frame DesignChrome-moly tubular space frame, powder-coated |
| Front SuspensionWP XPLOR-USD, Ø 48 mm |
| HandlebarAluminium, tapered Ø 28/22 mm |
| Rear SuspensionWP Xplor PDS shock absorber |
| Steering Head Angle64.7 ° |
| Rear Subframe DesignAluminium, powder-coated |
| Suspension Travel (Front)220 mm |
| Suspension Travel (Rear)220 mm |
| Weight (Without Fuel)228 kg |
| Wheelbase1577 mm |
| Ground Clearance242 mm |
| Seat Height880 mm |
| Wheels["Spoked wheels with aluminium rims"] |
