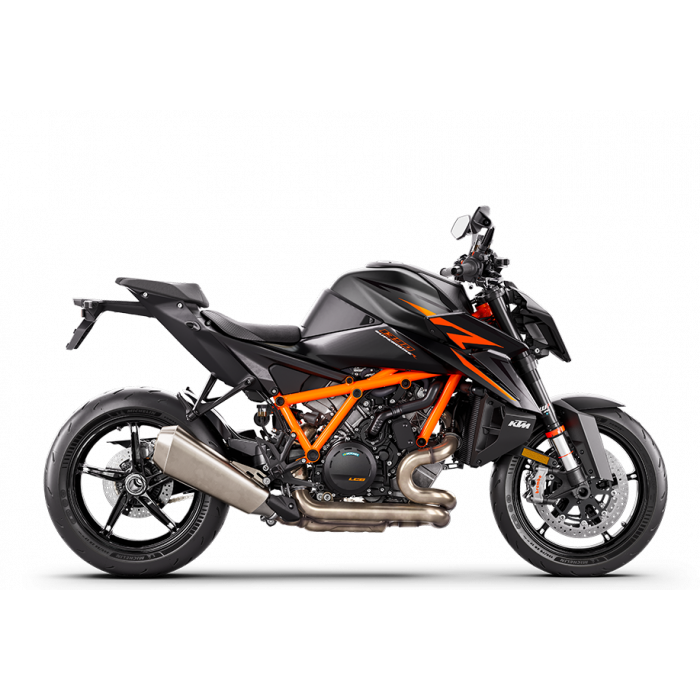

2024 KTM 1390 SUPER DUKE R
2024 KTM 1390 SUPER DUKE R
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
Fill out the form below and one of our friendly sales team will be in touch.
The 2024 KTM 1390 Super Duke R is a formidable naked sportbike, boasting a 1350 cc V-twin engine that delivers 190 hp and 145 Nm of torque. Its advanced electronics suite includes multiple ride modes, traction and wheelie control, and a 5-inch TFT display with smartphone connectivity. The bike's lightweight chassis, premium WP suspension, and Brembo brakes ensure exceptional handling and stopping power. With aggressive styling and cutting-edge technology, the 1390 Super Duke R offers an exhilarating riding experience for enthusiasts seeking performance and versatility.
TECHNICAL SPECIFICATION
| Type75° V-twin, 4-stroke, DOHC, 4 valves per cylinder |
| Displacement1350 cc |
| Bore x Stroke110 mm x 71 mm |
| Compression Ratio13.5:1 |
| Power190 hp @ 10,000 rpm |
| Torque145 Nm @ 8,000 rpm |
| EMSKeihin EMS with RBW and cruise control, double ignition |
| CoolingLiquid cooled with water/oil heat exchanger |
| LubricationForced oil lubrication with 3 oil pumps |
| ClutchPASC™ slipper clutch, hydraulically actuated |
| Transmission6-speed |
| Final Drive525 X-Ring chain |
| ExhaustAkrapovič slip-on line, titanium with carbon fiber end cap |
| EmissionEURO 5+ compliant |
| FrameChrome-moly tubular space frame, powder-coated |
| SubframeCarbon fiber |
| Front SuspensionWP APEX open cartridge forks, fully adjustable |
| Front Suspension Travel125 mm |
| Rear SuspensionWP APEX PRO Monoshock, fully adjustable |
| Rear Suspension Travel140 mm |
| Front BrakeBrembo Stylema monoblock 4-piston calipers, 320 mm discs |
| Rear BrakeBrembo 2-piston caliper, 240 mm disc |
| Front Wheel3.50 x 17" |
| Rear Wheel6.00 x 17" |
| Front Tyre120/70 ZR17 |
| Rear Tyre200/55 ZR17 |
| Seat Height834 mm |
| Ground Clearance140 mm |
| Wheelbase1,491 mm |
| Dry Weight200.5 kg |
| Fuel Tank Capacity17.5 liters |
