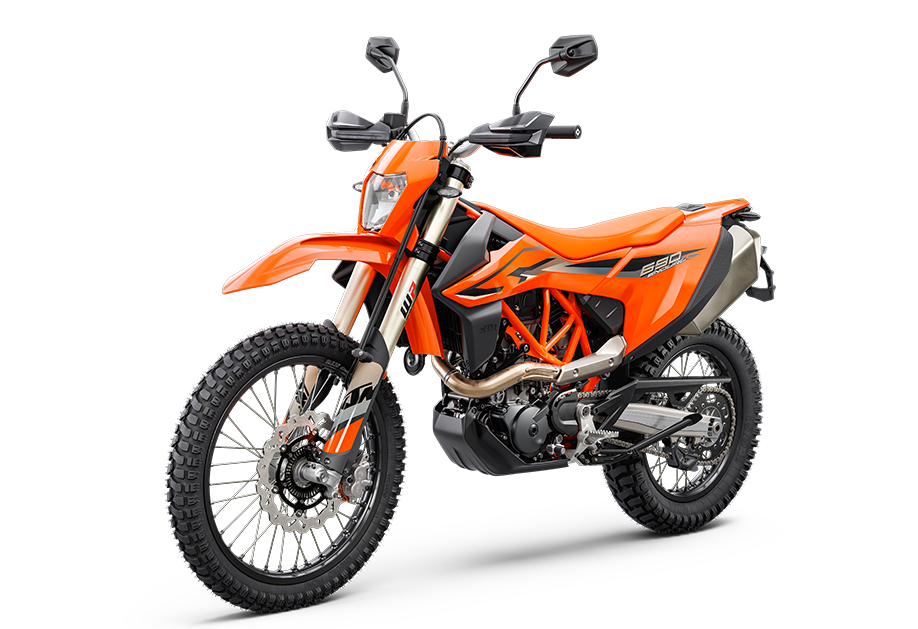

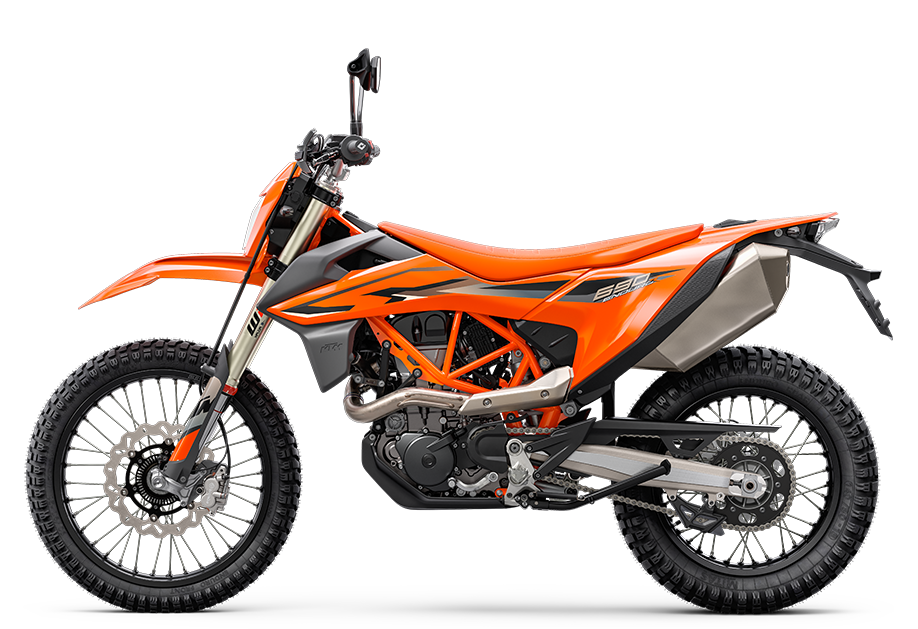

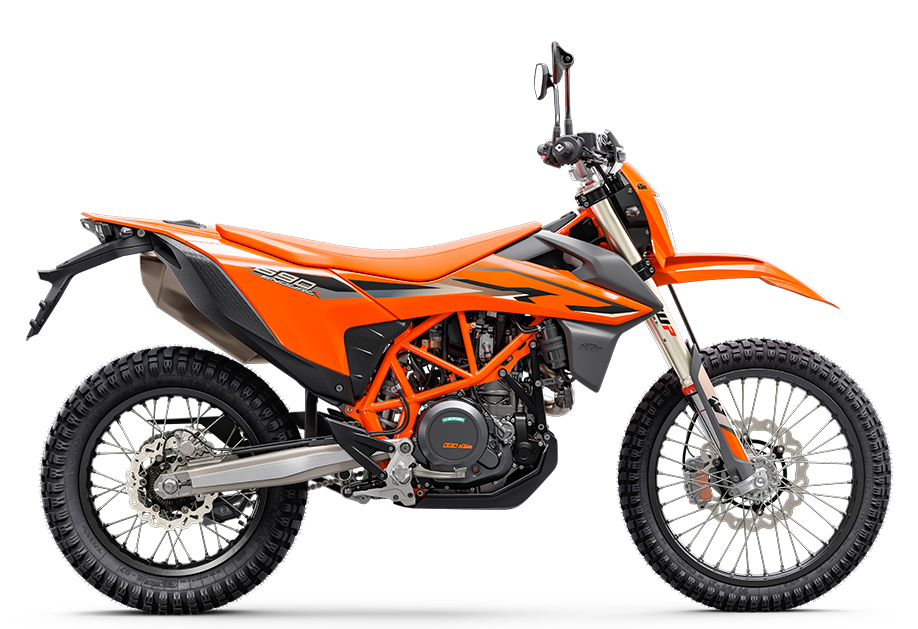

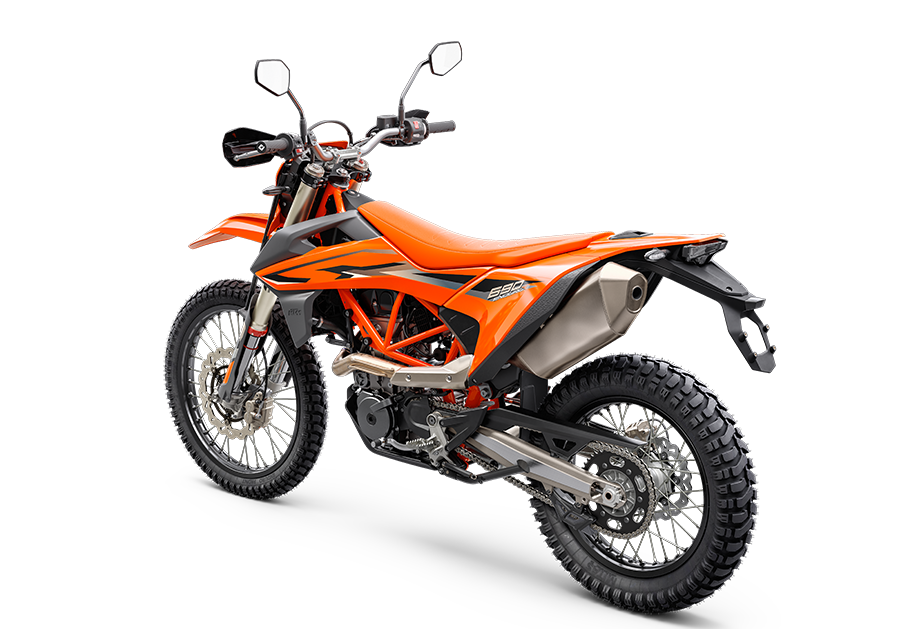

2024 KTM 690 ENDURO R
2024 KTM 690 ENDURO R
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
ACE OF ALL SURFACES
Ride from home and feel the adrenaline build while chasing tarmac curves towards your favourite offroad location. No trailer required just twist the throttle of the KTM 690 ENDURO R, which really comes into its own when the dirt begins and the trail gets more extreme. Its lightweight chassis, aggressive styling, and trusted 690 LC4 motor, are enhanced by the latest electronics and WP XPLOR suspension. Master more challenging terrain on this lightweight, high-performance king of versatility.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Drive Type Combustion |
| Torque 73.5 Nm |
| Transmission6-speed |
| CoolingLiquid cooled |
| StarterElectric starter |
| Stroke80 mm |
| Traction ControlMTC (2-mode, disengageable) |
| Bore105 mm |
| ClutchPASC (TM) slipper clutch, hydraulically actuated |
| CO2 emissions99 g/km |
| Compression ratio12.7 |
| Displacement692.7 cm³ |
| EMSKeihin EMS with RBW, twin ignition |
| Engine oilMotorex Power Synth SAE 10W-50 |
| Design1-cylinder, 4-stroke engine |
| Fuel consumption4.3 l/100 km |
| Fuel-Mixture GenerationKeihin EFI (throttle body 50 mm) |
| LubricationForced oil lubrication with 2 oil pumps |
| Tank Capacity (Approx.)13.5 l |
| ABSBosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable) |
| Front Brake Disc Diameter300 mm |
| Rear Brake Disc Diameter240 mm |
| Front BrakeBrembo twin-piston floating calliper, brake disc |
| Rear BrakeBrembo single-piston floating calliper, brake disc |
| Chain520 X-Ring |
| Frame DesignChrome-moly tubular space frame, powder-coated |
| Front SuspensionWP XPLOR-USD, Ø 48 mm |
| HandlebarAluminium, tapered Ø 28/22 mm |
| Rear SuspensionWP XPLOR with Pro-Lever linkage |
| SilencerStainless steel primary and secondary silencer |
| Steering Head Angle62.3° |
| Rear Subframe DesignSelf-supporting plastic tank |
| Suspension Travel (Front)250 mm |
| Suspension Travel (Rear)250 mm |
| Trail120 mm |
| Weight (Without Fuel)149 kg |
| Wheelbase1506 mm |
| Ground clearance269 mm |
| Seat Height929 mm |
| WheelsSpoked wheels with aluminium rims |
| Wheelbase Tolerance15 mm |
| Front Wheel Diameter21 |
| Rear Wheel Diameter18 |
| Front Wheel Width1.85 |
| Rear Wheel Width2.50 |
