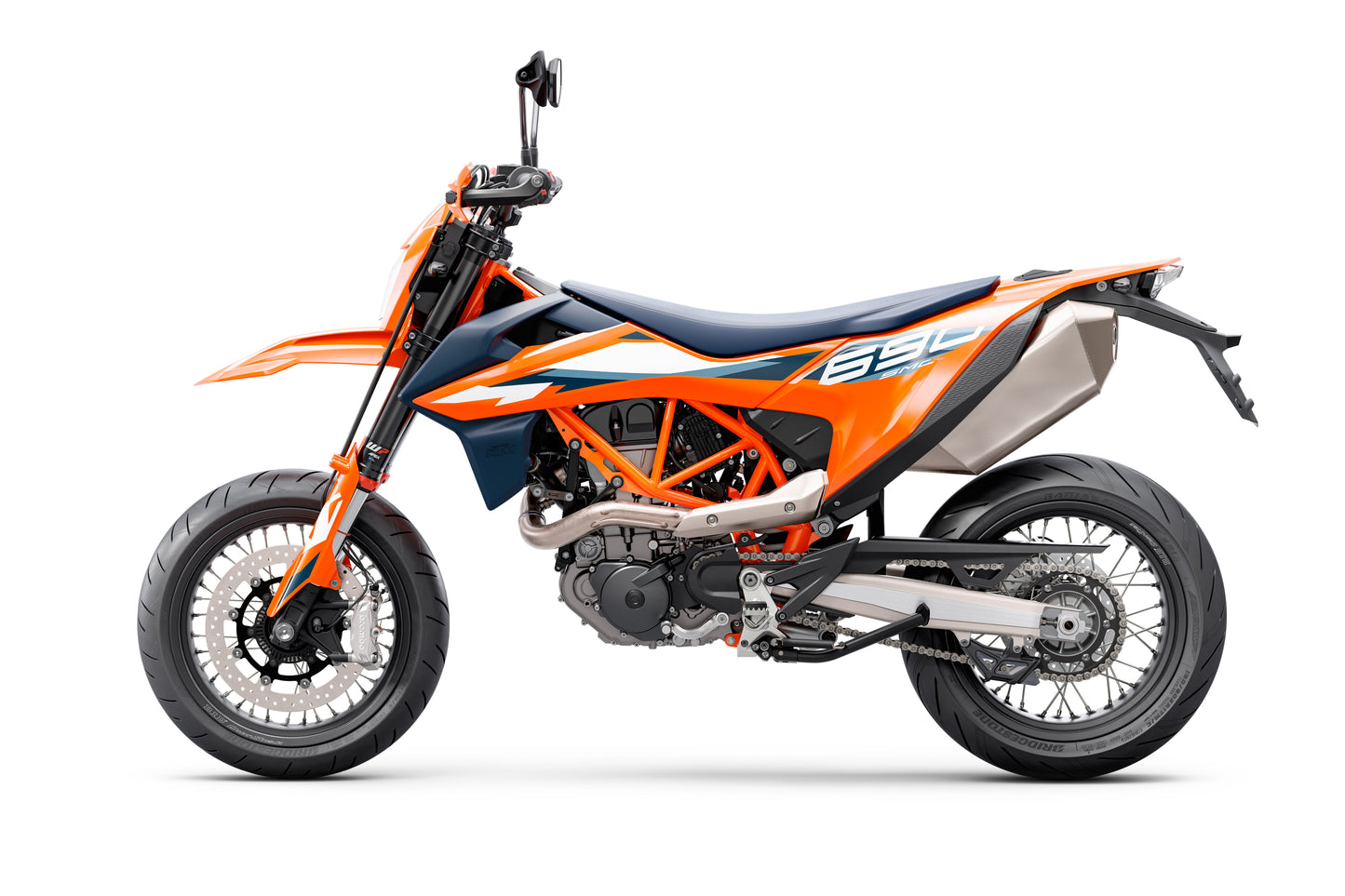

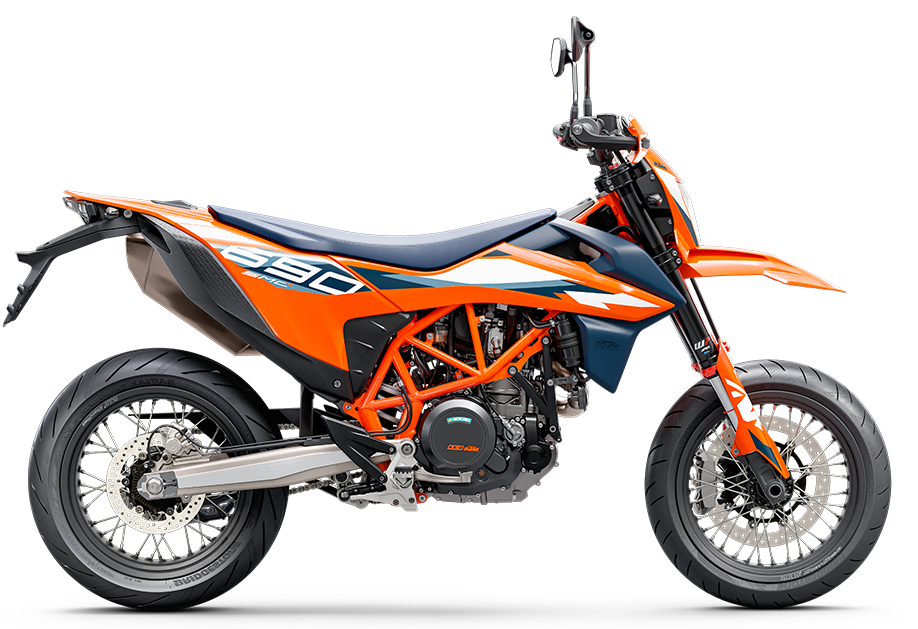

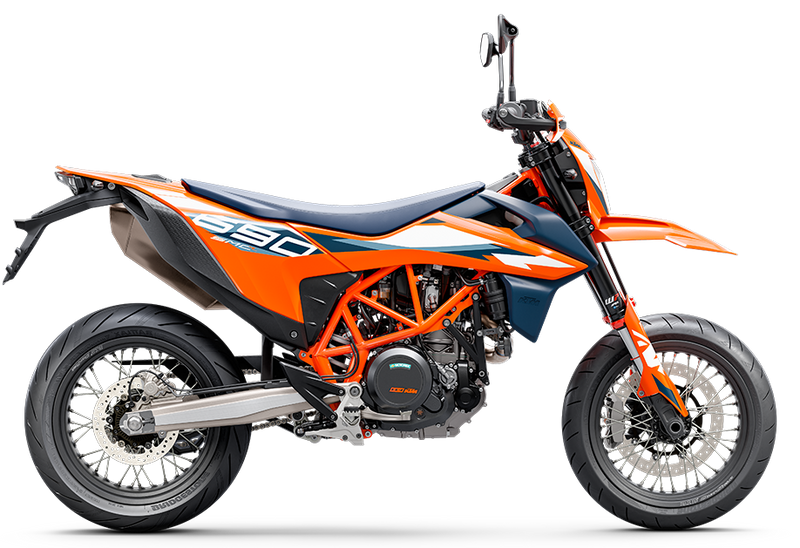

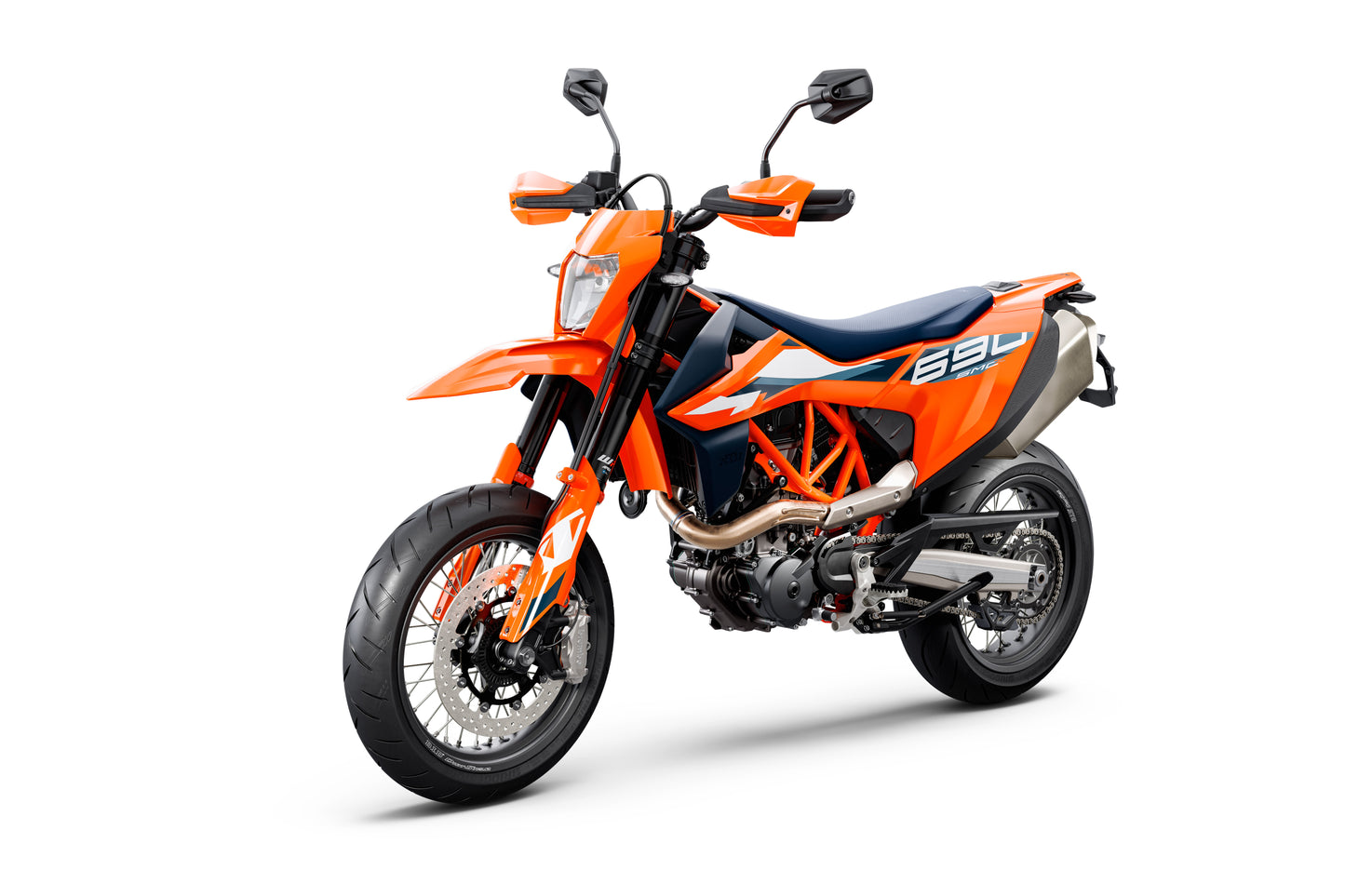

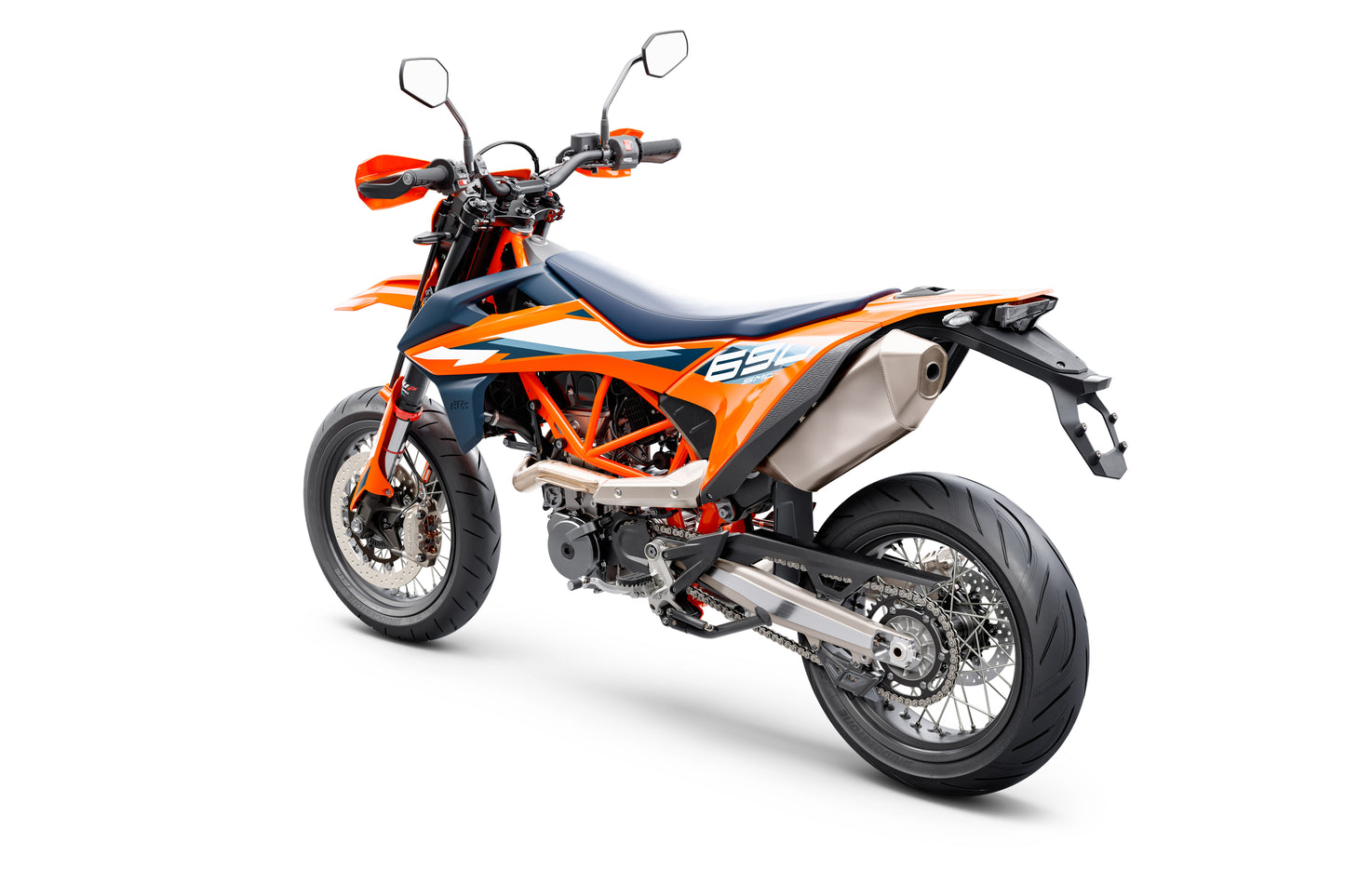

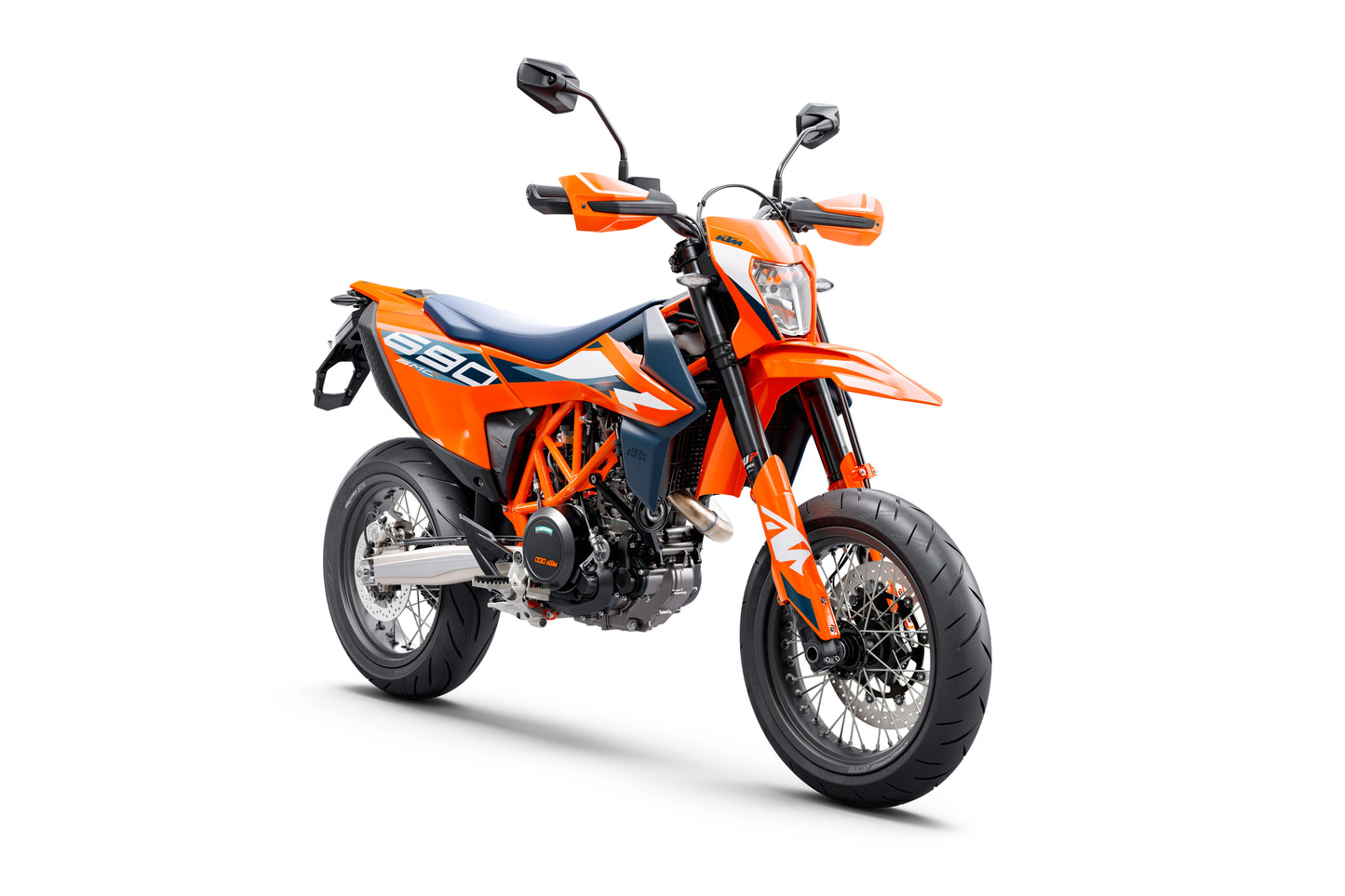

2024 KTM 690 SMC R
2024 KTM 690 SMC R
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
STREET SLAYER
The KTM 690 SMC R raises the bar in the supermotos stakes, thanks in part to a lightweight chassis, a legendary 690 LC4 motor and a sophisticated electronics package. Whether you express your tarmac-sliding talent on mountain roads or on the apexes of your favourite track, you'll be drifting into the future with a maxed-out grin and your veins coursing with adrenaline. Handling is enhanced by the latest fully-adjustable WP APEX suspension, so all you have to worry about is focusing on the road ahead and twisting the throttle to the stoppers.
MODEL
YEAR

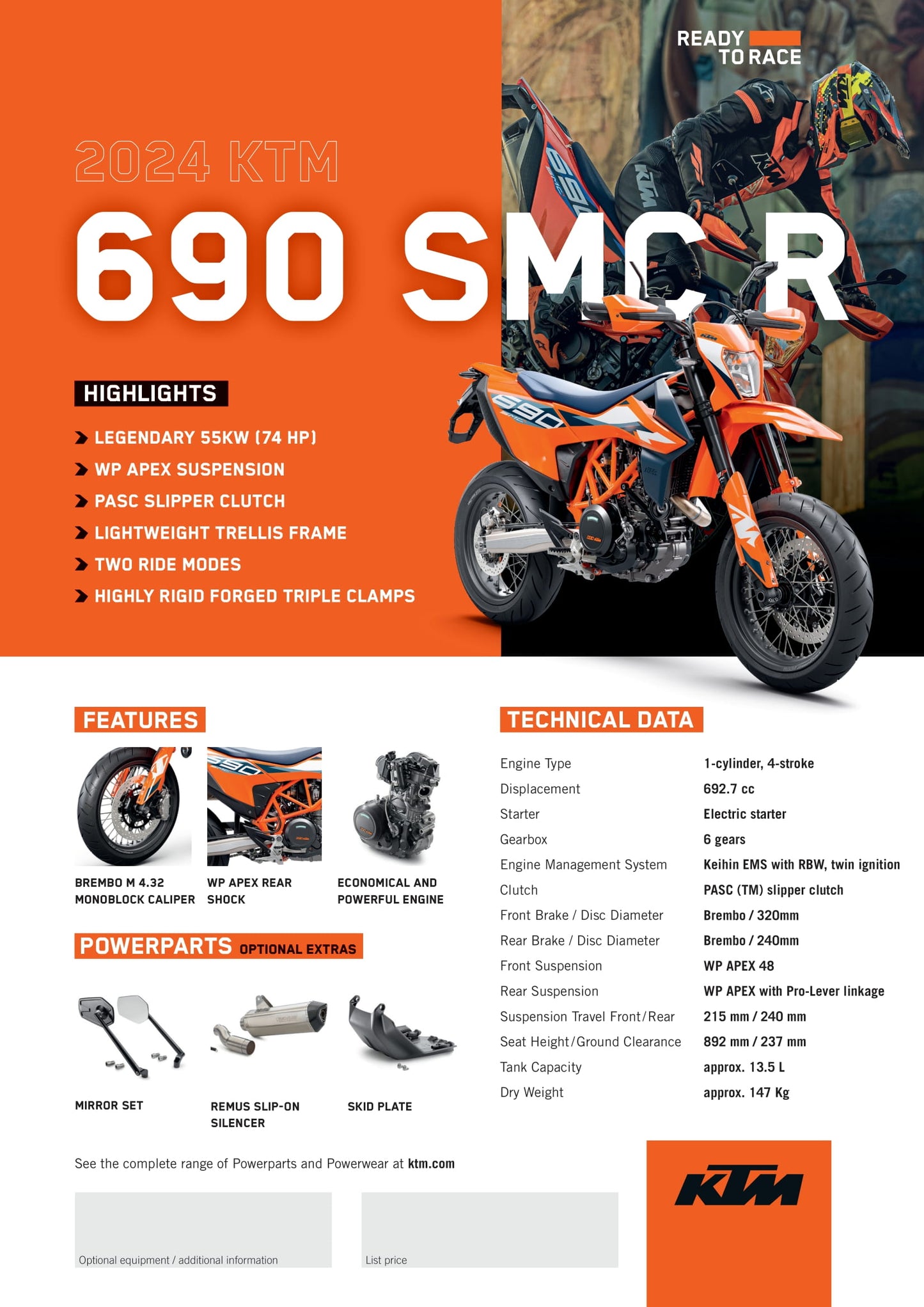

TECHNICAL SPECIFICATION
| Drive TypeCombustion |
| Torque 73.5 Nm |
| Transmission6-speed |
| CoolingLiquid cooled |
| StarterElectric starter |
| Stroke80 mm |
| Traction controlMTC (2-mode, disengageable) |
| Bore105 mm |
| ClutchPASC (TM) slipper clutch, hydraulically actuated |
| CO2 emissions96 g/km |
| Compression ratio12.7 |
| Displacement692.7 cm³ |
| EMSKeihin EMS with RBW, twin ignition |
| Engine oilMotorex Power Synth SAE 10W-50 |
| Design1-cylinder, 4-stroke engine |
| Fuel consumption4.1 l/100 km |
| Fuel-Mixture GenerationKeihin EFI, 50 mm throttle body |
| LubricationForced oil lubrication with 2 oil pumps |
| Tank Capacity (Approx.)13.5 l |
| ABSBosch 9.1 MP (incl. Cornering-ABS and super moto mode) |
| Front Brake Disc Diameter320 mm |
| Rear Brake Disc Diameter240 mm |
| Front BrakeBrembo four-piston radial fixed calliper, brake disc |
| Rear BrakeBrembo single-piston floating calliper, brake disc |
| Chain520 X-Ring |
| Frame DesignChrome-moly tubular space frame, powder-coated |
| Front SuspensionWP APEX 48 |
| HandlebarAluminium, tapered Ø 28/22 mm |
| Rear SuspensionWP APEX with Pro-Lever linkage |
| Steering Head Angle63.6° |
| Rear Subframe DesignSelf-supporting plastic tank |
| Suspension Travel (Front)215 mm |
| Suspension Travel (Rear)240 mm |
| Trail111 mm |
| Weight (Without Fuel)150 kg |
| Wheelbase1476 mm |
| Ground clearance237 mm |
| Seat Height892 mm |
| SilencerStainless steel primary and secondary silencer |
| WheelsSpoked wheels with aluminium tubeless rims |
| Wheelbase tolerance15 mm |
| Front Wheel Diameter17 |
| Rear Wheel Diameter17 |
| Front Wheel Width3.5 |
| Rear Wheel Width5 |
