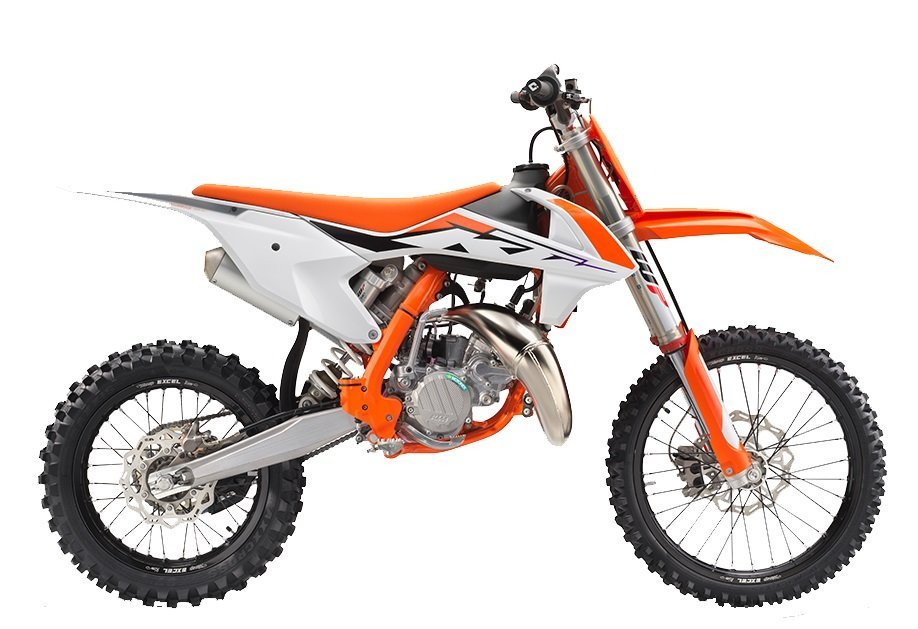

2024 KTM 85 SX 17/14 – Big Performance, Small Package
The 2024 KTM 85 SX 17/14 is built for aspiring young racers, delivering sharp power from its 84.9cc 2-stroke engine and a slick 6-speed transmission. A lightweight frame, WP XACT suspension, and Maxxis tyres ensure confident handling and control on any track.
With race-ready features like a hydraulic clutch, Excel rims, and premium braking, this small-wheel motocrosser is the perfect step up for future pros.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Transmission6-speed |
| StarterKickstarter |
| Stroke48.95 mm |
| Bore47 mm |
| Displacement84.9 cm³ |
| EMSMEDJ digital engine management |
| Design1-cylinder, 2-stroke engine |
| Fuel-Mixture GenerationMikuni TMX 38 mm carburetor |
| ClutchWet, multi-disc clutch, FORMULA hydraulics |
| CoolingLiquid cooled |
| LubricationPremix 40:1 |
| Tank Capacity (Approx.)5.2 l |
| Front Brake Disc Diameter240 mm |
| Rear Brake Disc Diameter220 mm |
| Front BrakeHydraulic disc brake, floating caliper |
| Rear BrakeHydraulic disc brake, floating caliper |
| Chain1/2 x 5/16 in |
| Frame DesignCentral double-cradle-type 25CrMo4 steel |
| Front SuspensionWP XACT 43 mm USD fork, 278 mm travel |
| HandlebarTapered aluminum handlebar with ODI lock-on grips |
| Rear SuspensionWP XACT PDS mono shock, 305 mm travel |
| SilencerAluminium |
| Steering Head Angle66° |
| Rear Subframe DesignAluminium |
| Suspension Travel (Front)278 mm |
| Suspension Travel (Rear)305 mm |
| Weight (Without Fuel)67 kg |
| Wheelbase1290 mm |
| Ground Clearance336 mm |
| Seat Height850 mm |
| WheelsExcel black anodized rims with CNC-machined hubs |
| Front Wheel17 x 1.60 in |
| Rear Wheel14 x 1.85 in |
| Front TyreMaxxis MX-ST 70/100-17 |
| Rear TyreMaxxis MX-ST 90/100-14 |
