2024 Viking

2024 Viking

$22,249.00*
$24,249.00 $22,249.00*

*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.

Apply for Finance
CLICK HERE FOR CLEARANCE BIKES ON SALE!
SHARE:
View full details

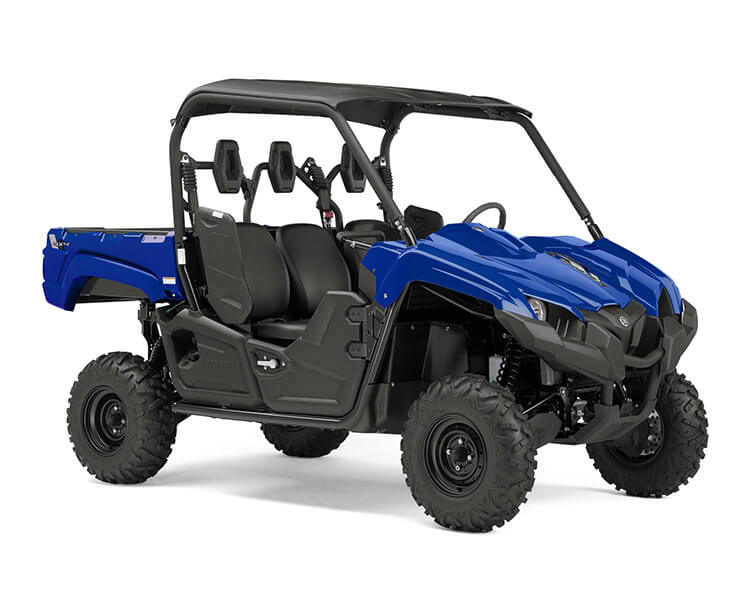

Viking offers workplace solutions – you need to access remote areas with two colleagues? Viking is your best option. Viking is equipped with our unique Ultramatic On Command drive system with 2WD, 4WD and 4WD Diff Lock and downhill engine braking plus a torquey donk that pulls like a mule.

Viking enhancements include automotive-style two-stage door latches and a parking brake warning buzzer. Noise and vibration reduction features include rubber damper plates, a rigid chassis, sound dampening materials and an engine-mounted torque rod for a more relaxing ride at any engine RPM. A reinforced rear steel cargo bed now incorporates mounting points on the bed rails and a rubber cargo bed mat further reduces sound and vibration.

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale

MODEL
YEAR

FEATURES

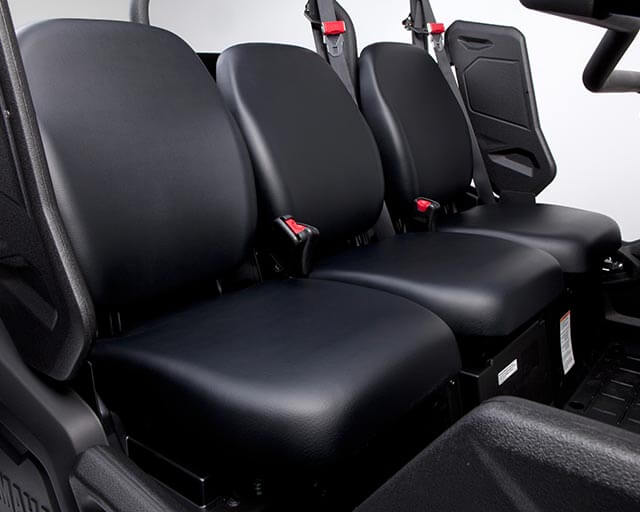

Spacious 3-seat layout

Spacious 3-seat layout

This true 3-passenger machine achieves driver and passenger comfort with a handhold, padded head rests, and 3-point seat belts for all riders. Extensive noise and vibration reduction measures provide a smooth and quiet ride. The superior seating position, adjustable driver’s seat,  a standard sun top and an offset middle seat all provide unmatched comfort that riders will appreciate.

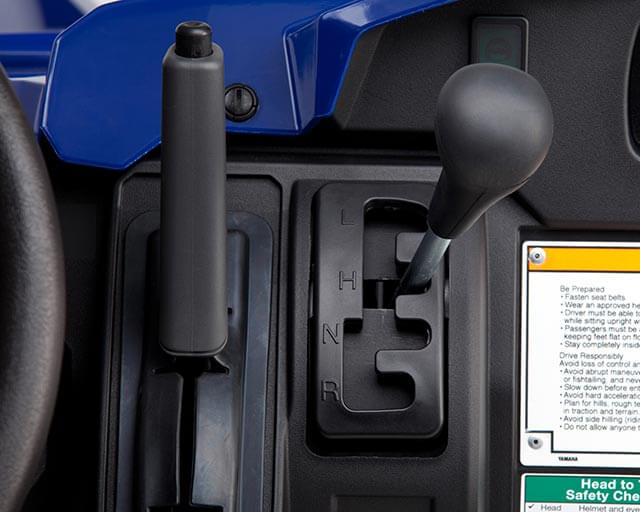

Ultramatic Transmission

Ultramatic Transmission

Ultramatic® transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and the system features a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.

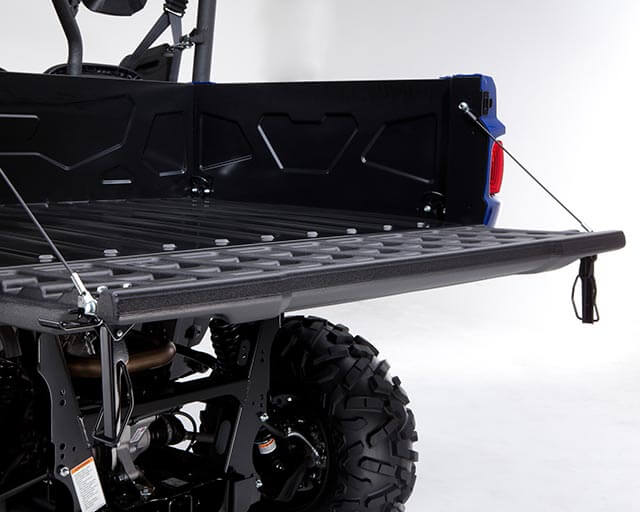

Pallet-sized rear cargo bed

Pallet-sized rear cargo bed

To underline its serious commercial, industrial and farming applications, the new Viking is equipped with a full-sized cargo bed which can accommodate a pallet. The tough steel-lined bed measures 1380mm wide x 925mm long x 315mm deep, and has a useful carrying capacity of 272kg – and to secure the load, the cargo bed is equipped with four tie-down hooks.

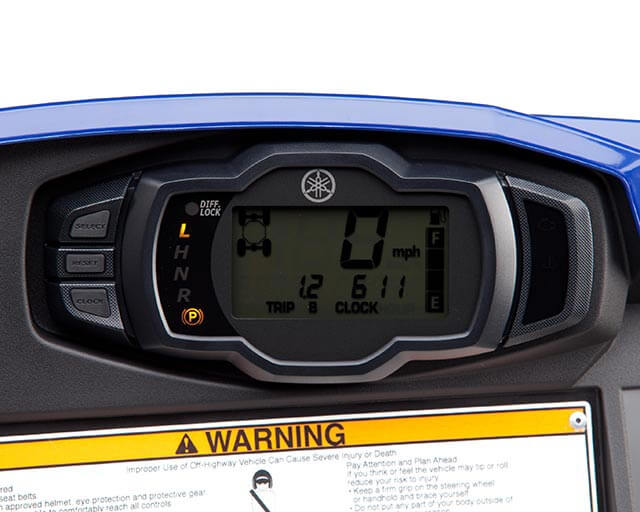

Digital Instrumentation

Digital Instrumentation

Digital instrument panel boasts multifunction LCD display with speedometer, odometer, dual trip meters, hour meter, 4WD status, transmission position, clock and a fuel gauge.

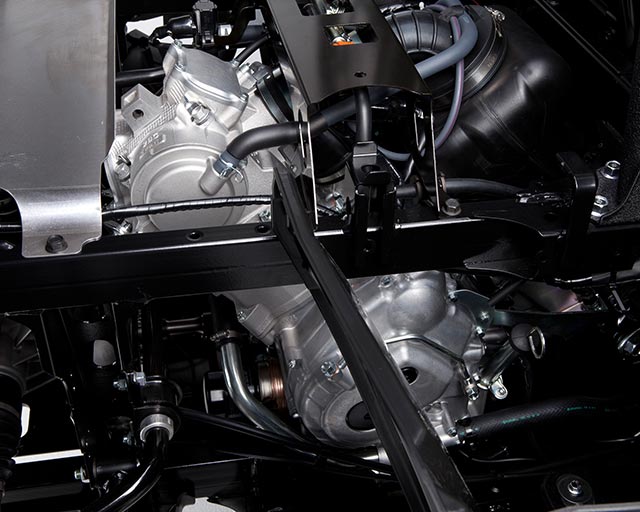

Service Accessibility

Service Accessibility

The engine is located under the cargo bed and can be easily accessed when the bed is lifted. Centre hood access for battery and other electrical components eases maintenance. Under-seat, tool-free air filter is a snap to service.

TECHNICAL SPECIFICATION

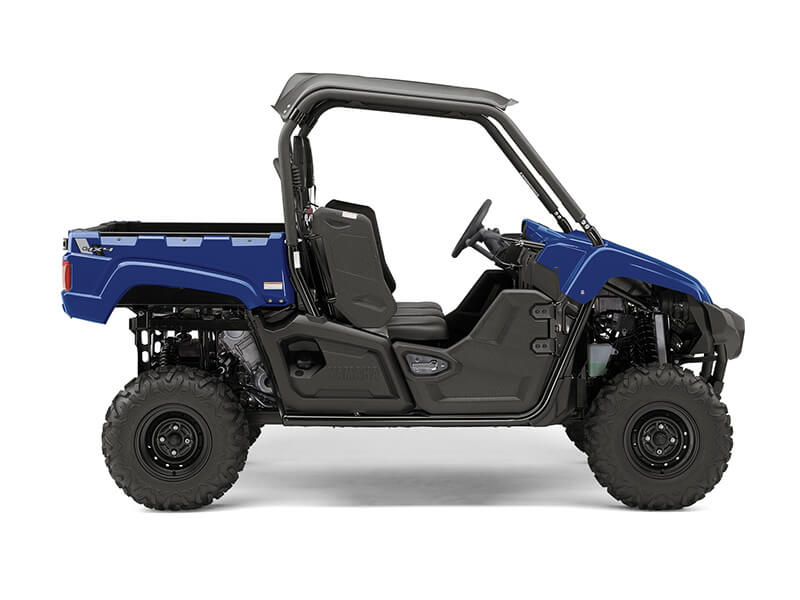

Steel Blue
Engine TypeLiquid-cooled, 4-stroke, SOHC, 4 valve, single cylinder
Displacement (cc)686.0
Bore x Stroke (mm)102.0 x 84.0
Compression Ratio10.0 : 1
Lubrication SystemWet Sump
Fuel ManagementFuel Injection
IgnitionTCI
Starter SystemElectric
Fuel Capacity (L)36.7
Final TransmissionShaft
TransmissionUltramatic® V-belt with all-wheel engine braking; H, L, N, R, P
Frame TypeSteel tube
Suspension FrontIndependent double wishbone, 205mm travel
Suspension RearIndependent double wishbone, 205mm travel
Brakes FrontHydraulic dual discs
Brakes RearHydraulic dual discs
Tyres Front25 × 8-12NHS
Tyres Rear25 × 10-12NHS
Length (mm)3100
Width (mm)1570 Height (mm)1925
Seat Height (mm)793
Wheelbase (mm)2135
Ground Clearance (mm)300
Wet Weight (kg)649
