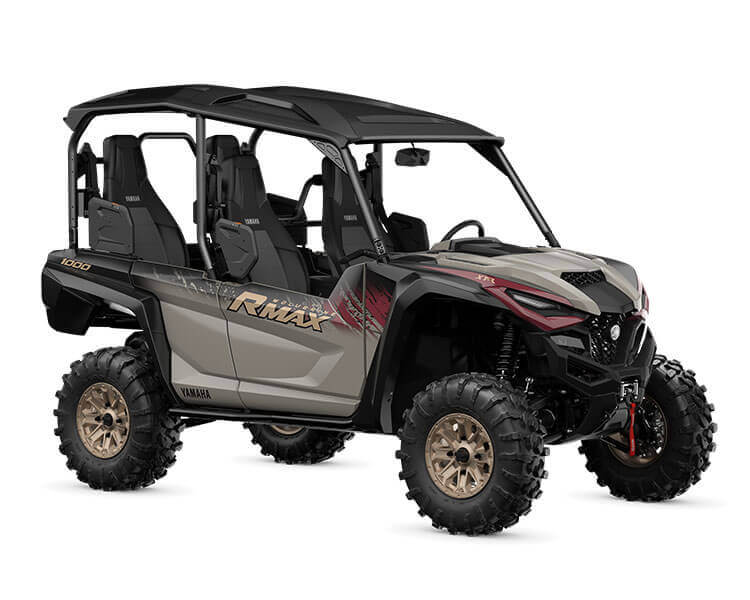

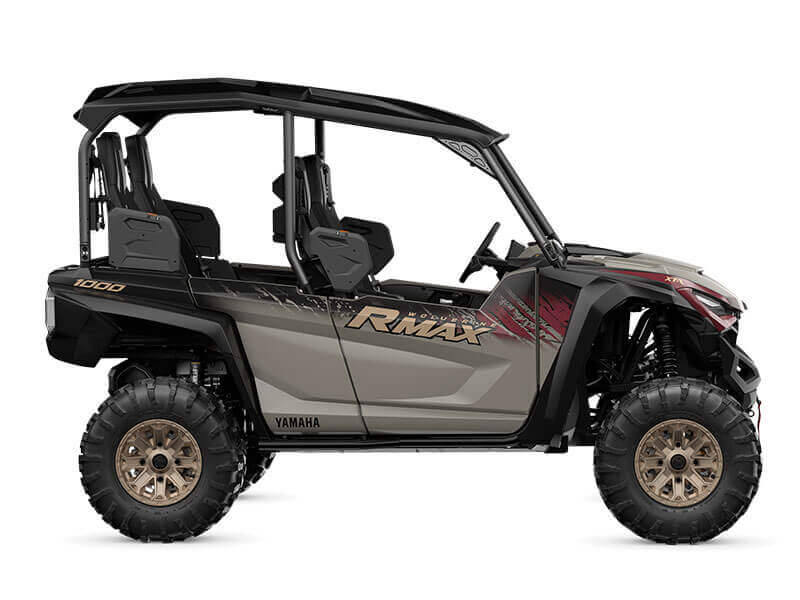

2024 Wolverine RMAX4 1000 XT-R

Name: 2024 Wolverine RMAX4 1000 XT-R
Brand: YAMAHA MOTOR AUSTRALIA PTY LTD
SKU: YXF1000PSER
Price: 32949.0 AUD
Availability: InStock

$32,949.00*

~~$38,949.00~~ $32,949.00*

Sale

*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.

Apply for Finance Enquire Now

View full details

PRODUCT DESCRIPTION MODEL / YEAR

This incredible four-seat powerhouse is designed to venture into terrain you never thought possible – with automotive-style comfort and confidence-boosting control.

Smooth power is produced by the class-leading 999cc twin engine and push-button D-mode control with three drive positions – Sport, Trail and Crawl. The plush ride comes courtesy of long travel, high-performance Fox 2.0 QS3 shocks. Automotive-style luxuries will be familiar to car drivers while XT-R paint, a factory-fitted Warn winch, colour-matched wheels and aggressive Maxxis tyres combine to offer a unique, sophisticated ride.

RMAX 4 conquers the toughest terrain in comfort.

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale

MODEL

YEAR

FEATURES

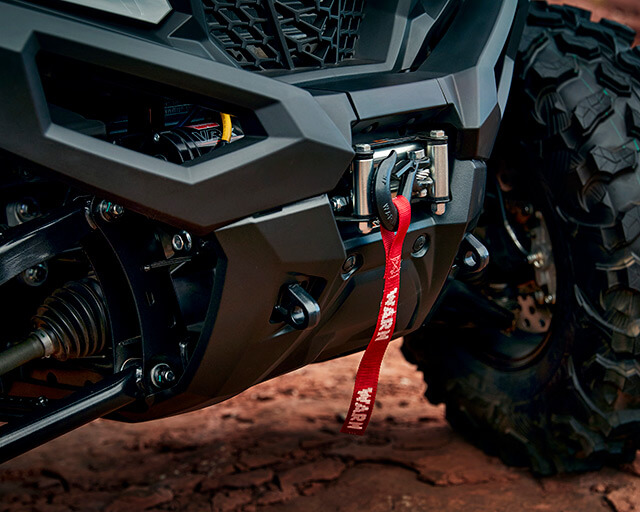

Premium Front Bumper

A multi-piece front bumper gives the Wolverine RMAX 1000 XT-R a stylish look. With two welded steel trailering tie-down points, factory-installed WARN® VRX 4500lb winch, accessory brush guard, and accessory pod light-mounting brackets, you'll confidently be able to take on the toughest terrain.

Max Comfort for Driver and Passengers

Driver and passenger comfort features include a tilt steering wheel with 17 degrees of adjustment, and an adjustable passenger handhold with a robust design that won't get clogged with mud or dirt. Furthering driver comfort, the throttle and brake pedals have been optimised for comfort, while a strategically-designed brake master cylinder cover helps keep the mud and water off the driver's feet.

Automotive-Style Soft Touchpoints

Featuring the most automotive-style driver and passenger soft touchpoints in its class, the Wolverine RMAX 1000 XT-R provides a more relaxed experience even over rough terrain. The steering wheel and passenger handhold have the best shape and soft-touch in the market while providing a quality feel way beyond the competitors' hard plastic. Additional comfort points have been strategically placed in locations where knees and arms frequently contact interior components. Chrome inlays are also embedded in the shifter and hand brake for added styling.

Maximum Storage

Large storage optimised to provide protection from the elements, the Wolverine RMAX 1000 XT-R features a sealed 2.7L centre console, a 5.5L sealed glove box, and centre console cubbies. Both occupants can also quickly access their belongings with driver and passenger storage shelves containing secure rubber mats to keep items in place and two easy-to-reach cup holders.

Automotive-Inspired Cockpit

For extra comfort, the Wolverine RMAX 1000 XT-R features a light-effort shift lever and natural-feeling parking brake lever, both of which designed with colour-matching accents and chrome inlays for the ultimate finish. And from charging your electronics with a powered USB port to seeing what's behind with the easily adjustable centre-mount mirror, ride in comfort and take on the terrain as long as you'd like.

On-Command 2WD/4WD/Diff Lock

Yamaha’s industry-leading On-Command system is recognised as the best 4WD system available in its class. It puts the driver in control, not the machine, via three selectable drive modes, 2WD, 4WD Limited Slip, and Full Diff Lock all available at the turn of a dash-mounted dial. Competitor systems require some wheel spin before diff lock is activated, losing precious traction and time.

Advanced FOX 2.0 QS3 Suspension

The advanced and heavy-duty suspension is designed to provide maximum articulation in low speed situations and a balanced feeling when trail riding. Wide-arc A-arms paired with high performance long travel FOX 2.0 QS3 shocks provide incredible bottoming resistance with smooth high speed damping. These units can be switched between three custom positions tool-free to enhance comfort during relaxed driving, increase damping for normal trail riding and maximise damping during sport driving.

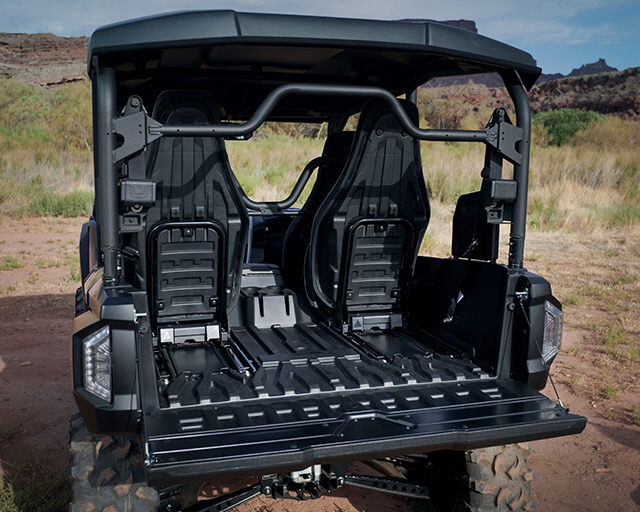

Cargo Flexibility

The Wolverine RMAX4 1000 XT-R is one of the most versatile machines in the two-row side-by-side market. In addition to its ability to comfortably seat one, two, three or four adults, including cargo, the Wolverine RMAX4 1000 XT-R features an ingenious storage system for cargo flexibility. By folding and sliding the rear seats forward, the rear area expands and securely transports up to 272kg of cargo with its multiple steel tie-down points. The Wolverine RMAX4 1000 XT-R also features a built in 2-inch receiver to tow a full 907kg when needed.

Interior Lighting

For accessibility in low light conditions, the Wolverine RMAX 1000 XT-R features an interior light package to easily navigate controls. The blue LED lighted switches, floor lights, and console lighting complement the automotive-inspired cockpit and are colour-matched to the blue backlit meter for a high-quality feel and premium look.

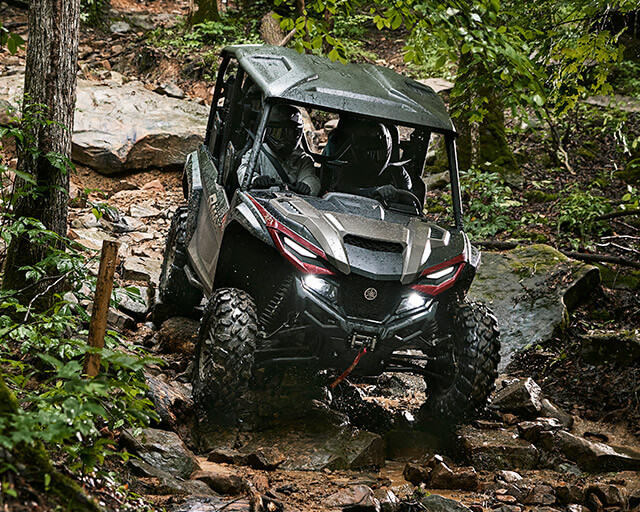

Proven Transmission

The Proven Off-Road technology of Yamaha’s Ultramatic® system is unmatched in the industry. The CVT system utilises a centrifugal wet clutch purpose-built to withstand the power from the 999cc engine, and a constant tension belt system for tackling obstacles in high rev range without fear of damaging the belt. When more torque is needed, the low gear is perfect for challenging conditions. The robust CVT system means less time switching gears and more fun taking on any terrain.

Best Braking System

The one-way sprag clutch offers natural and predictable engine braking at all speeds. Maximising traction and reducing wear on the vehicle's brake system helps descend hills with confidence. The all-wheel engine braking combined with the Wolverine RMAX 1000 XT-R brake calipers and rotors results in excellent feel and feedback for confidence-inspiring stopping power. With 255mm rotors and 32mm dual piston calipers up front and 244.5mm rotors and 27mm dual piston calipers in the rear, the perfectly-matched master cylinder and steel braided brake lines bring the RMAX to a stop, even in the toughest of terrains.

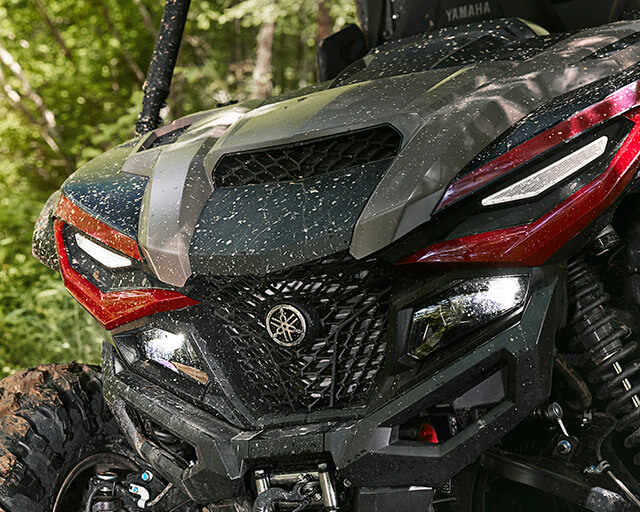

Advanced LED Lights

Stealthy, advanced LED headlights with lo and hi beam provide wide coverage for confidence-inspiring nighttime driving. LED marker lights showcase the XT-R's unique, sleek style while integrated LED taillight, brake light and reverse light keep you visible on the trail and enhance visibility when reversing.

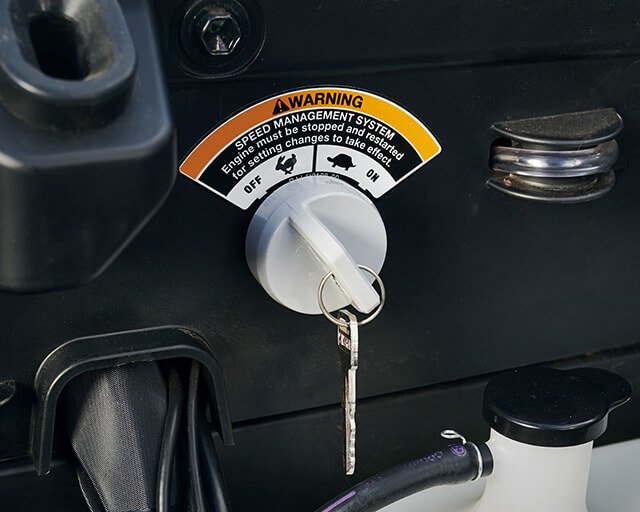

Speed Management System

The Wolverine RMAX4 is equipped with Yamaha's Speed Management System which uses the YCC-T to limit the vehicle to a top speed of 40 kph without sacrificing the full power of the 999cc engine. Speed is governed by a removeable key which makes the system ideal for work sites or other special operating conditions.

Legendary Durability

Yamaha's proven durability is highlighted by the durable surface treatments and carbon steel construction of the front differential and rear gear case. It is can also be seen in the large 62mm front and 72mm rear DAC (Double Angular Contact) wheel bearings, forged sway bar links, wide pitch A-arms and single stamped A-arms, and large vehicle-specific ball joints.

Built Real World Tough

Like all of Yamaha's Side-by-Sides and full-size ATVs, the Wolverine RMAX 1000 XT-R is assembled with pride in the USA at Yamaha's state-of-the-art factory in Newnan, Georgia. This is one of the reasons that Yamaha Motor Australia specifies a three year factory warranty on RMAX and all other four-wheeled utility vehicles.

Powerful 999cc Parallel Twin Engine

The Wolverine RMAX 1000 XT-R delivers class-leading power and smooth performance, thanks to its powerful 999cc, DOHC, eight-valve, parallel twin engine with an aggressive 8,500 rpm redline and legendary Yamaha durability.

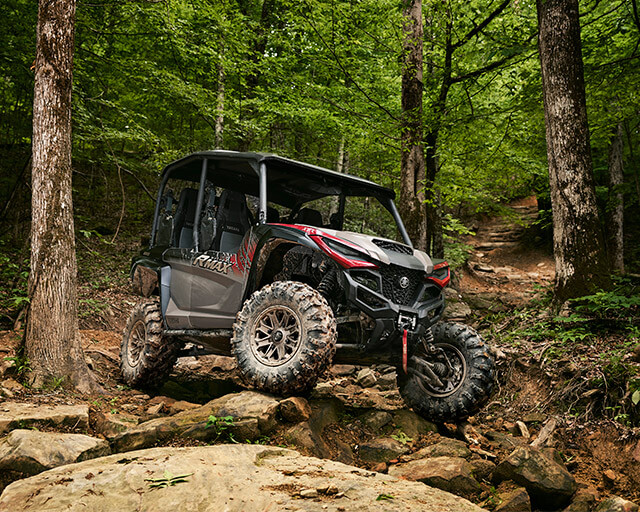

Maximum Versatility

Available in two or four-seat options, the RMAX features a solid, durable frame, class-leading suspension, big tyres and an optimised wheelbase for a balanced contact-to-ground feel in extreme terrain. Both models are equally capable at work or play and boast Yamaha’s legendary durability.

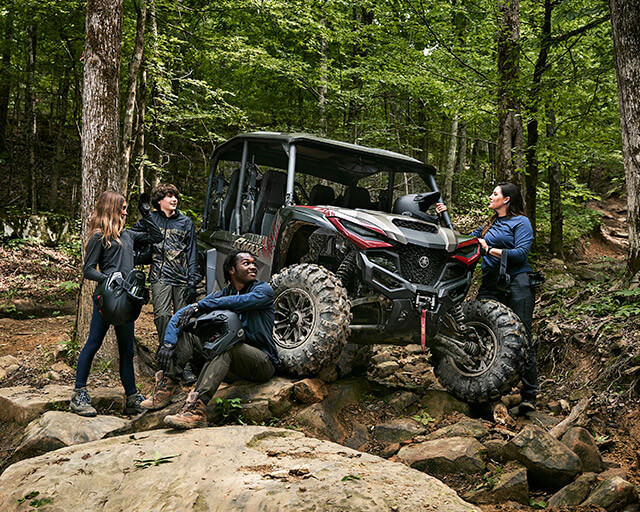

Roomy Four-Person Cabin

The Wolverine RMAX4 1000 XT-R offers comfortable, secure seating for four full-sized adults with comfortable handholds and six-position seat belts for each seat. The second row is raised for excellent visibility, so everyone gets a great view of their surroundings.

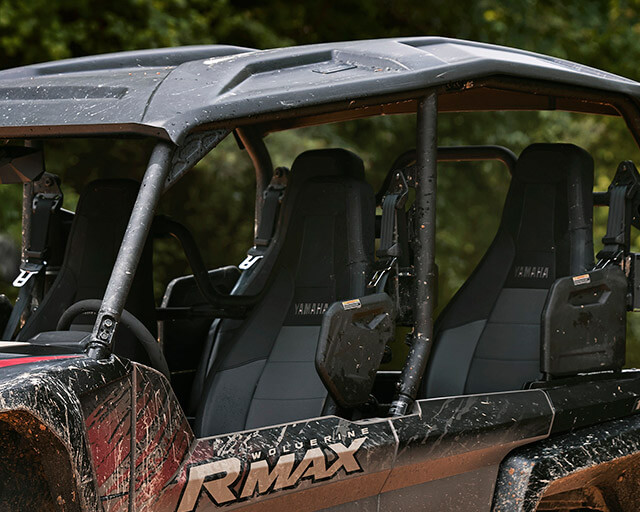

Comfortable Secure Seats

An exceptional seating position provides a planted feel and reduces fatigue, which is essential for occupants to enjoy the driving experience. The Wolverine RMAX 1000 XT-R keeps occupants comfortable and secure with its wide bolstering and additional leg room for larger occupants. The driver's seat has increased adjustability compared to previous Wolverine models, combined with a new no-tool, easy-to-adjust, six-position seat belt for added comfort.

Heavy-Duty Three-Piece Door Design

A three piece, easy-to-open door design features a steel inner structure, a moulded outer door skin and inner door panel for a high quality feel. The robust inner door handles keep the mud out to operate smoothly in the harshest of conditions. The doors feature integrated snap out speaker panels for easier upgradability, and soft touchpoints for an automotive feel and all-day comfort. To ease entering and exiting the vehicle, the front doors feature an enlarged opening, 63% wider than previous Wolverine models. Further increasing comfort, the front shoulder bolster shapes are optimised for a more secure-feeling.

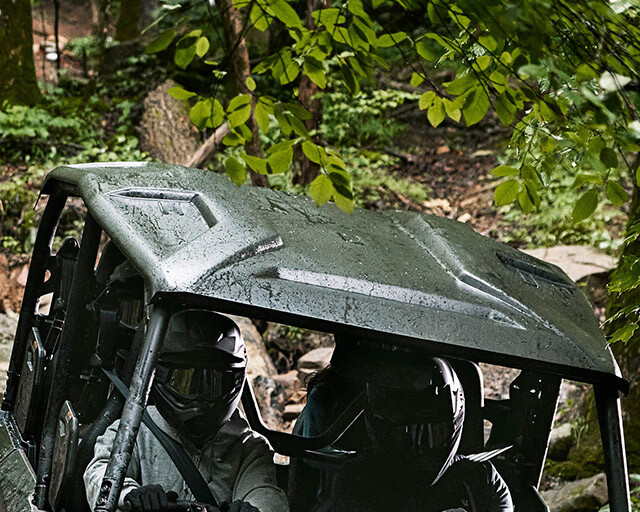

Protective Suntop

For extra comfort and protection, the suntop is engineered to keep the sun and other elements off the occupants as much as possible, while offering the ultimate in accessory incorporation with integrated sealing surfaces and mounting points for a variety of Yamaha Genuine Accessories.

TECHNICAL SPECIFICATION

ENGINE CHASSIS DIMENSIONS

Engine TypeLiquid-cooled, 4-stroke, DOHC, parallel twin

Displacement (cc)999.0

Bore x Stroke (mm)93.0 x 73.5

Compression Ratio11.2 : 1

Lubrication SystemDry sump

Fuel ManagementFuel Injection

IgnitionTCI

Starter SystemElectric

Fuel Capacity (L)34.8

Final TransmissionOn-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD

TransmissionUltramatic® V-belt, On-Command® 2WD, 4WD, 4WD with Diff-lock

Frame TypeSteel tube

Suspension FrontIndependent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 360mm travel

Suspension RearIndependent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 338mm travel

Brakes FrontHydraulic dual discs

Brakes RearHydraulic dual discs

Tyres Front29 x 9.00R-14 Maxxis Carnage

Tyres Rear29 x 11.00R-14 Maxxis Carnage

Length (mm)3255
Width (mm)1676	Height (mm)2110
Seat Height (mm)
Wheelbase (mm)2291
Ground Clearance (mm)340
Wet Weight (kg)930
