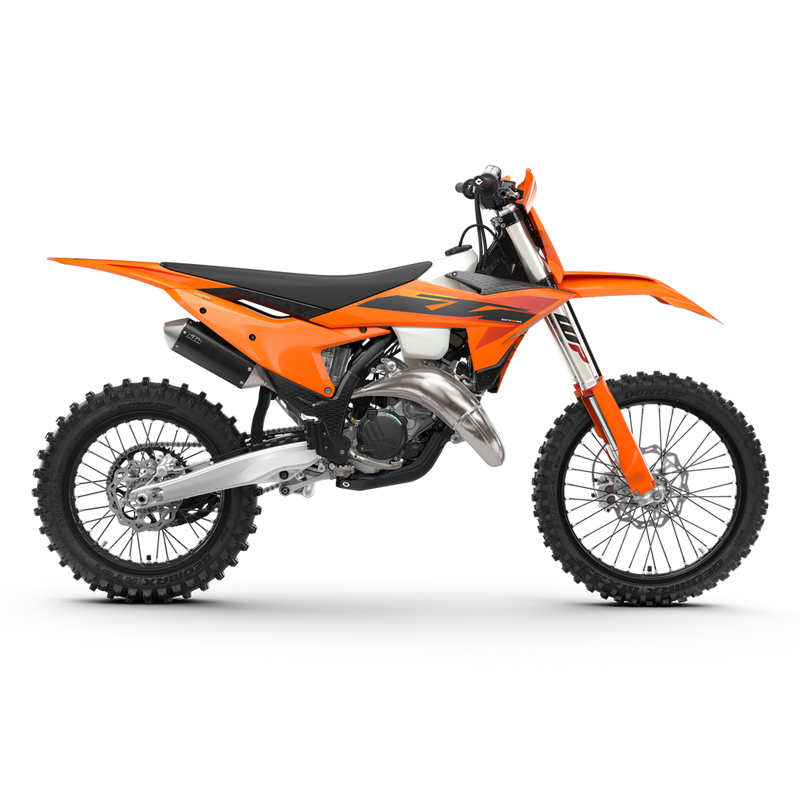

2025 KTM 125 XC
2025 KTM 125 XC
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
HERE COMES THE 'BRAAAP!'
Two years of hard-charging R&D have gone into the making of the 2025 KTM 125 XC. That's right, we meant Racing and Development. A reworked, lighter frame, updated engine mounts, and a new durable chain glide - to name a few - make the 2025 KTM 125 XC the leader in the 2-Stroke GNCC screamer class.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Transmission6-speed |
| Clutch Primary Drive Teeth73 |
| StarterElectric starter |
| Stroke54.5 mm |
| Bore54 mm |
| ClutchWet multi-disc DS clutch, Brembo hydraulics |
| Displacement124.8 cm³ |
| EMSVitesco Technologies EMS |
| Design1-cylinder, 2-stroke engine |
| Fuel-Mixture GenerationKeihin EFI, throttle body 39 mm |
| Tank Capacity (Approx.)9 l |
| Front Brake Disc Diameter260 mm |
| Rear Brake Disc Diameter220 mm |
| Front BrakeDisc brake |
| Rear BrakeDisc brake |
| Chain520 X-Ring |
| Frame DesignCentral double-cradle-type 25CrMo4 steel |
| Front SuspensionWP XACT cartridge Ø 48 mm |
| HandlebarNeken, aluminium Ø 28/22 mm |
| Rear SuspensionWP XACT Monoshock with linkage |
| SilencerAluminium |
| Steering Head Angle63.9° |
| Rear Subframe DesignAluminum-reinforced polyamide |
| Suspension travel (front)300 mm |
| Suspension travel (rear)300 mm |
| Weight (Without Fuel)94.8 kg |
| Wheelbase1493 mm |
| Ground clearance359 mm |
| Seat Height954 mm |
| WheelsSpoked wheels with aluminium rims |
