2025 KTM 1390 SUPER DUKE R
2025 KTM 1390 SUPER DUKE R
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
THE BEAST
They say it's lonely at the top. But that's only because you've eaten your way to the sharp end of the pyramid. The KTM 1390 SUPER DUKE R takes its place as the undisputed Alpha of the NAKED pack, making its dominance felt with every brazen blip of its throttle. This motorcycle is designed, developed and produced in Austria.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Primary Drive40:76 |
| Torque 145 Nm |
| Transmission6-speed |
| Battery capacity11.2 Ah |
| CoolingLiquid cooled with water/oil heat exchanger |
| Secondary gear ratio17:38 |
| Power190 PS |
| StarterElectric starter |
| Stroke71 mm |
| Traction controlCornering MTC (lean-angle sensitive, 3-Mode, disengageable, TRACK mode opt.) |
| Bore110 mm |
| ClutchPASC slipper clutch, hydraulically operated |
| CO2 emissions139 g/km |
| Compression ratio13.2 |
| Displacement1350 cm³ |
| EMSKeihin EMS with RBW and cruise control, double ignition |
| Engine oilMotorex, SAE 10W-50 |
| Design2-cylinder, 4-stroke, V 75° |
| Fuel consumption5.9 l/100 km |
| Fuel-Mixture GenerationKeihin EFI (throttle body 60 mm) |
| LubricationForced oil lubrication with 3 oil pumps |
| Tank Capacity (Approx.)17.5 l |
| Front Brake Disc Diameter320 mm |
| Rear Brake Disc Diameter240 mm |
| Front Brake 2 x Brembo Stylema Monobloc four piston, radially mounted caliper |
| Rear BrakeBrembo twin-piston fixed calliper, brake disc |
| Chain520 X-Ring |

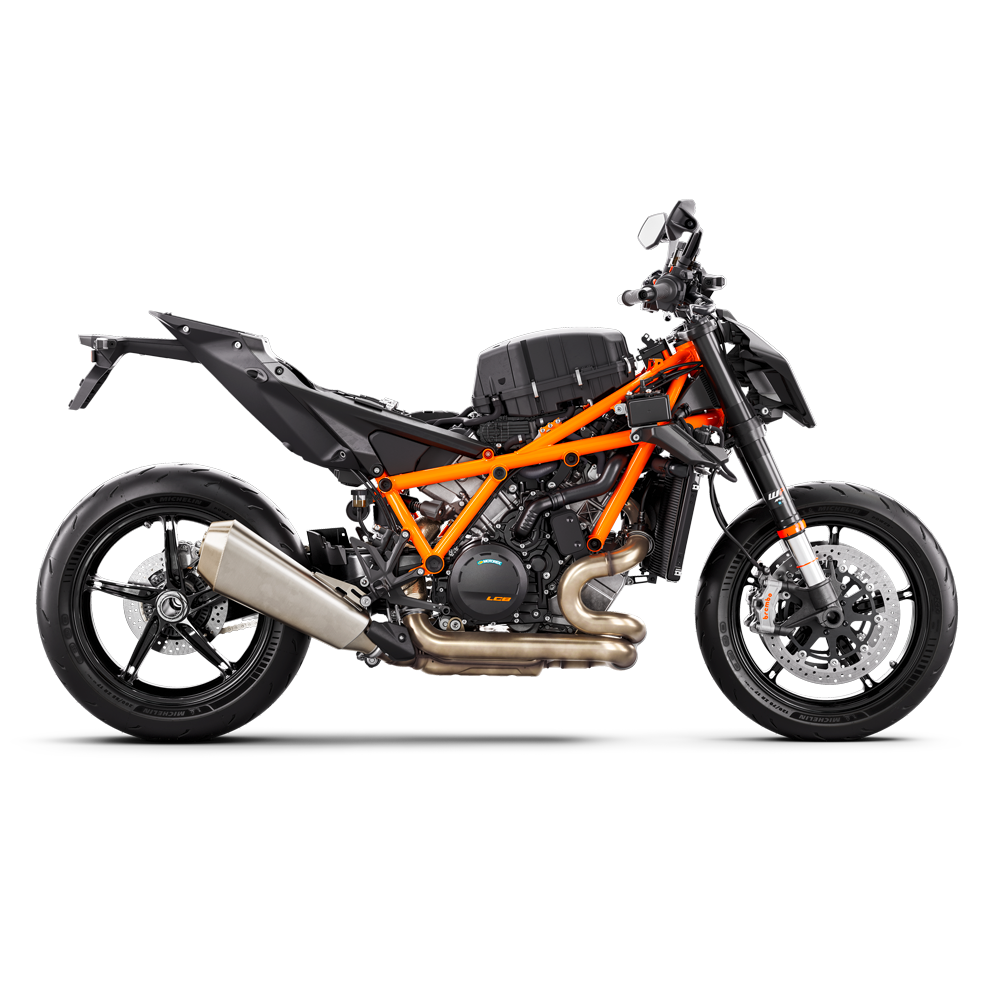

| Frame DesignChromium-Molybdenum-Steel trellis frame, powder coated |
| Front SuspensionWP APEX-USD Ø 48 mm |
| HandlebarTapered aluminum Ø 28/22 mm |
| Rear SuspensionWP APEX-linkage shock |
| SilencerStainless steel primary and secondary silencer with two catalytic converters |
| Steering Head Angle65.3° |
| Rear Subframe DesignCast aluminium / Composite |
| Suspension Travel (Front)125 mm |
| Suspension Travel (Rear)140 mm |
| Trail101 mm |
| Weight (Without Fuel)200.5 kg |
| Ground clearance149 mm |
| Wheelbase1491 mm |
| Wheelbase Tolerance15 mm |
| Tyre dimensions (front/rear)120/70 200/55 |
| Seat Height834 mm |
| WheelsCast aluminium wheels 3.50 x 17 6 x 17 |
| Front Wheel Diameter17 |
| Rear Wheel Diameter17 |
| Front Wheel Width3.5 |
| Rear Wheel Width6 |
