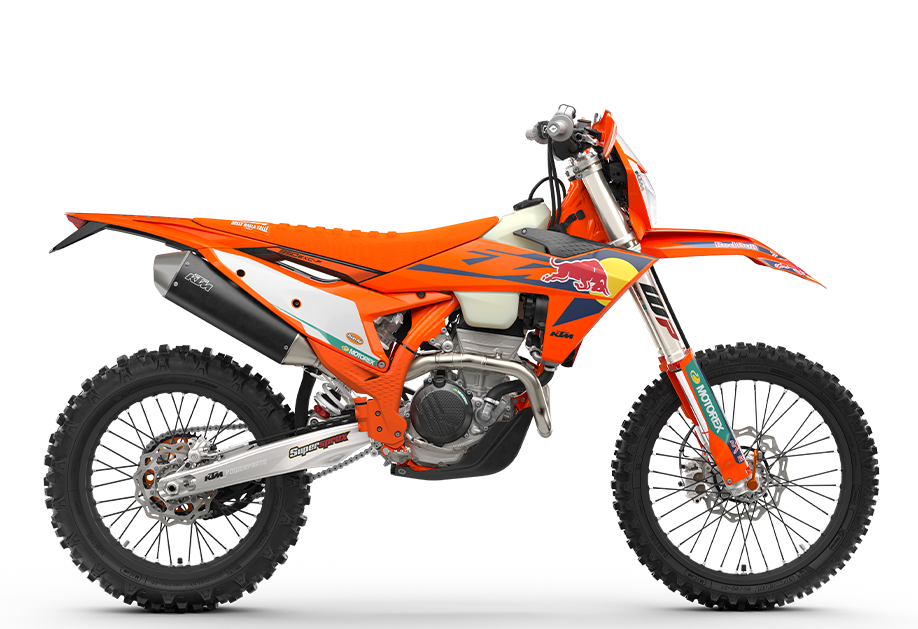

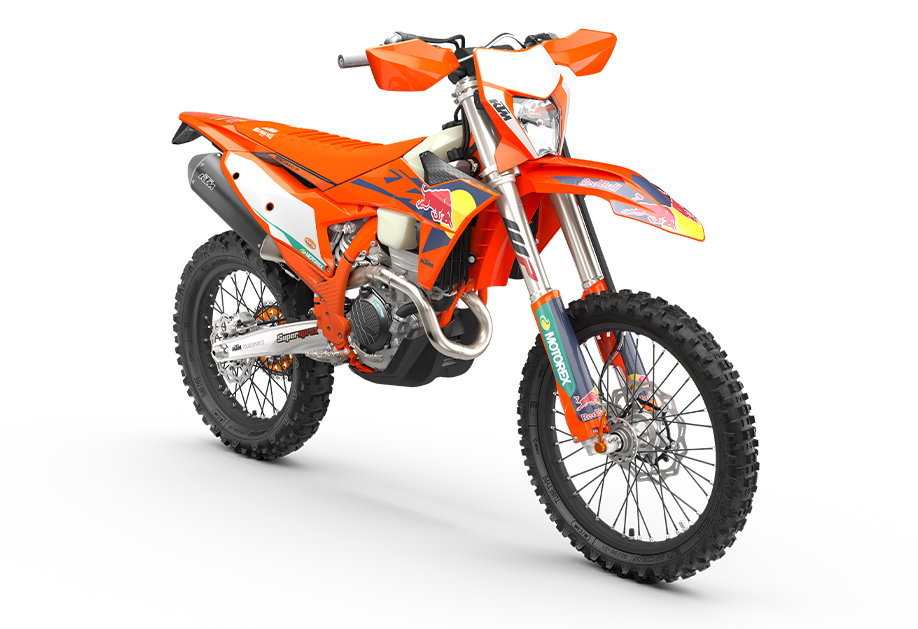

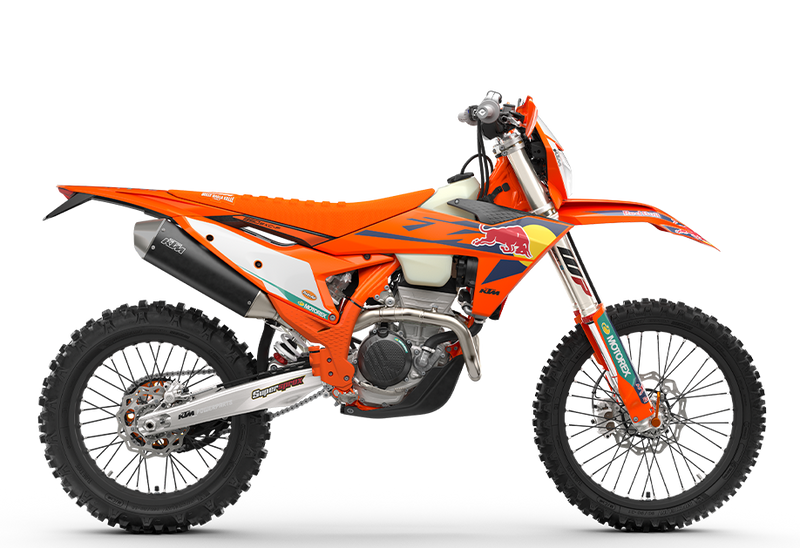

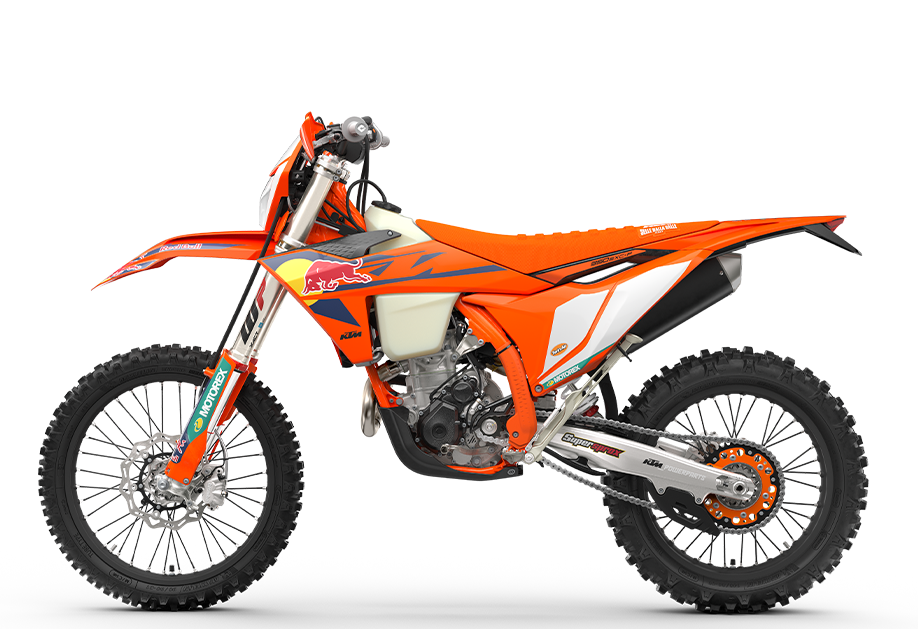

2025 KTM 350 EXC-F CHAMPION EDITION
2025 KTM 350 EXC-F CHAMPION EDITION
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
CHASE NEW LIMITS
Back in 1996, there was nothing to beat the KTM 350 EXC for sheer versatility. Nearly 30 years later, the 2025 KTM 350 EXC-F CHAMPION EDITION is ready to launch its assault on the competition. With a class-leading frame, closed-cartridge suspension, and a renewed ability to challenge for the win, the 2025 KTM 350 EXC-F CHAMPION EDITION is the one to beat. 2025 KTM EXC CHAMPIONS EDITION highlights are:
- RED BULL CTG
- ORANGE FRAME
- RADIATOR FAN
- MAP-SELECT SWITCH
- ORANGE FRONT AXLE PULLER
- SEMI-FLOATING FRONT BRAKE DISC
- SUPERSPROX STEALTH REAR SPROCKET
- SKID PLATE
- FRAME PROTECTION SET
- FACTORY SEAT
MODEL
YEAR

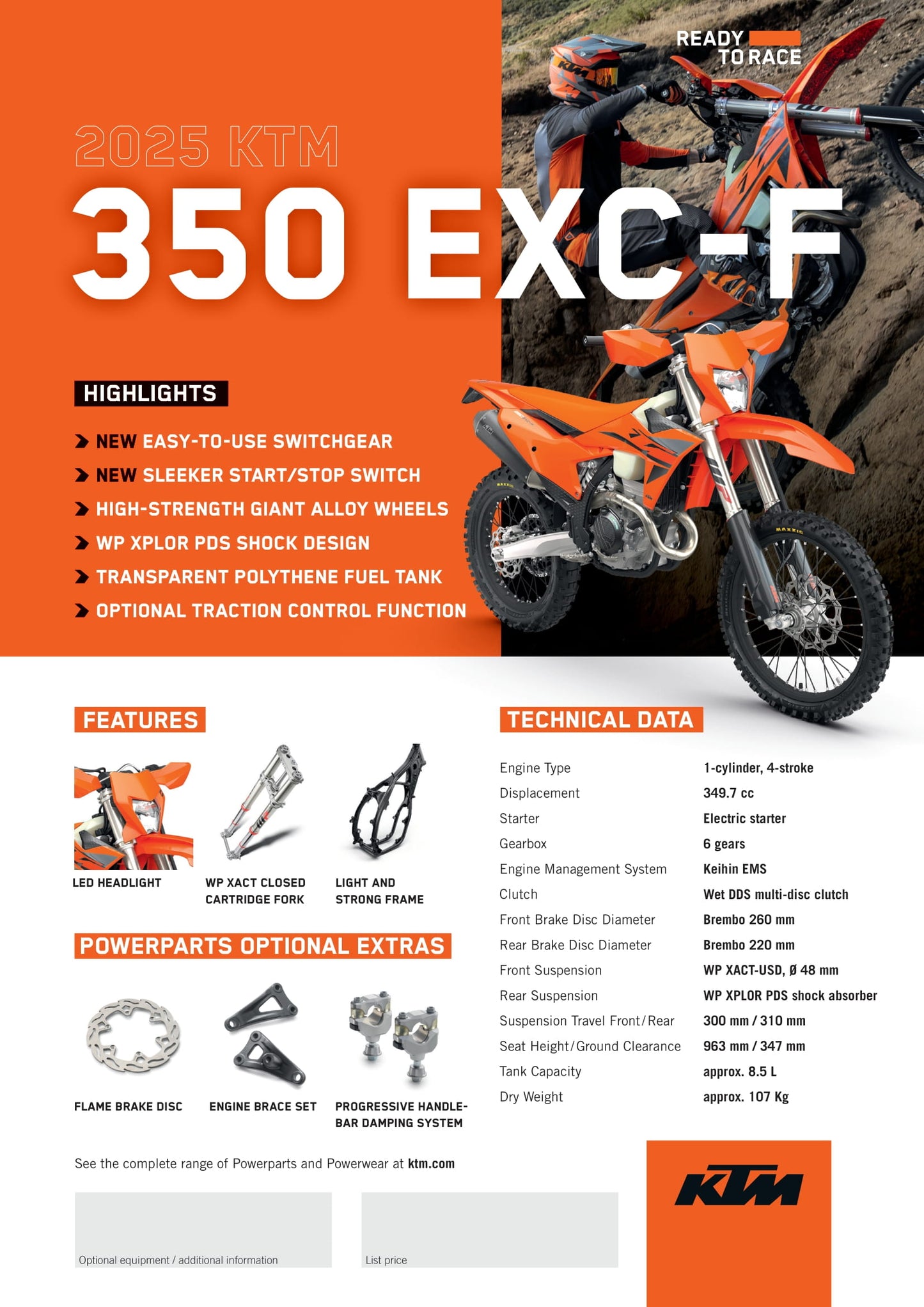

TECHNICAL SPECIFICATION
| Primary Drive24:72 |
| Transmission6-speed |
| Secondary Gear Ratio14:46 |
| Clutch Primary Drive Teeth72 |
| StarterElectric starter |
| Stroke57.5 mm |
| Bore88 mm |
| ClutchWet, DDS multi-disc clutch, Brembo hydraulics |
| Compression ratio13.7 |
| Displacement349.7 cm³ |
| EMSKeihin EMS |
| Design1-cylinder, 4-stroke engine |
| Fuel-Mixture GenerationKeihin EFI, throttle body 42 mm |
| Tank Capacity (Approx.)8.5 l |
| Front Brake Disc Diameter260 mm |
| Rear Brake Disc Diameter220 mm |
| Front BrakeDisc brake |
| Rear BrakeDisc brake |
| Chain520 X-Ring |
| Frame DesignCentral double-cradle-type 25CrMo4 steel |
| Front SuspensionWP XACT Closed Cartridge Ø 48 mm |
| HandlebarNeken, aluminium Ø 28/22 mm |
| Rear SuspensionWP XPLOR shock absorber with PDS |
| SilencerAluminium |
| Steering Head Angle63.9° |
| Rear Subframe DesignAluminum-reinforced polyamide |
| Suspension Travel (Front)300 mm |
| Suspension Travel (Rear)310 mm |
| Weight (Without Fuel)107.3 kg |
| Wheelbase1.489 mm |
| Ground Clearance347 mm |
| Seat Height963 mm |
| Tyre dimensions (front/rear)90/90 140/80 |
| Wheels1.60 x 21 2.15 x 18 |
