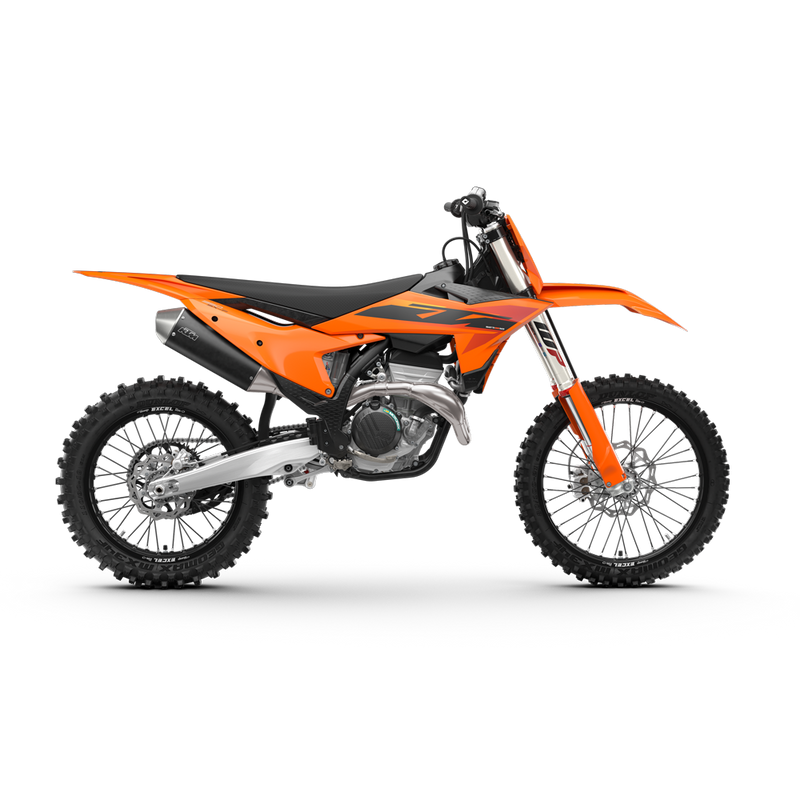

2025 KTM 350 SX-F
2025 KTM 350 SX-F
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
MIDDLE-GROUND MASTERCLASS
With over a decade of racing - and winning - under its seat, the KTM 350 SX-F has long shed its underdog label and proven itself a worthy adversary. Delivering usable power throughout the rev range, unwavering stability at speed, and true championship-winning credentials, the 2025 KTM 350 SX-F is once again READY TO RACE.
This motorcycle is designed, developed and produced in Austria.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Transmission5-speed |
| Clutch Primary Drive Teeth72 |
| StarterElectric starter |
| Stroke57.5 mm |
| Bore88 mm |
| ClutchWet multi-disc DS clutch, Brembo hydraulics |
| Compression Ratio14.6 |
| Displacement349.7 cm³ |
| EMSKeihin EMS |
| Design1-cylinder, 4-stroke engine |
| Fuel-Mixture GenerationKeihin EFI, throttle body 44 mm |
| Tank Capacity (Approx.)7.2 l |
| Front Brake Disc Diameter260 mm |
| Rear Brake Disc Diameter220 mm |
| Front BrakeDisc brake |
| Rear BrakeDisc brake |
| Chain520, Non-sealed |
| Frame DesignCentral double-cradle-type 25CrMo4 steel |
| Front SuspensionWP XACT-USD (AER), Ø 48 mm |
| HandlebarNeken, aluminium Ø 28/22 mm |
| Rear SuspensionWP XACT Monoshock with linkage |
| SilencerAluminium |
| Steering Head Angle63.9° |
| Rear Subframe DesignAluminum-reinforced polyamide |
| Suspension Travel (Front)310 mm |
| Suspension Travel (Rear)300 mm |
| Weight (Without Fuel)101.9 kg |
| Wheelbase1493 mm |
| Ground Clearance343 mm |
| Seat Height958 mm |
| WheelsSpoked wheels with aluminium rims |
