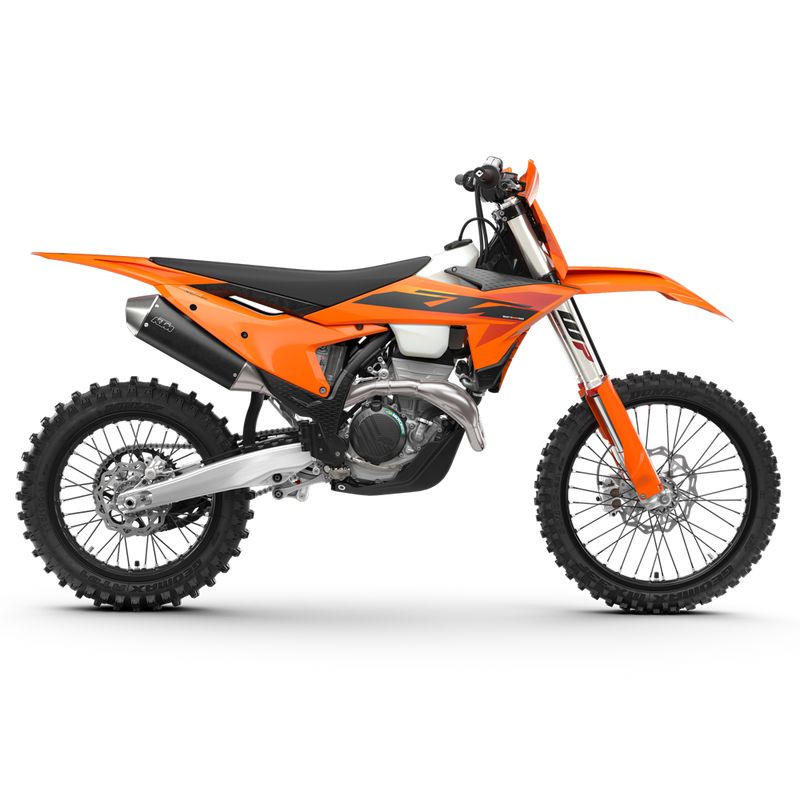

2025 KTM 350 XC-F
2025 KTM 350 XC-F
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
LEAGUE OF ITS OWN
What is there to say about the KTM 350 XC-F that hasn't already been said? Well, for starters, the 2025 KTM 350 XC-F takes everything great about previous generations and makes it even better. With a reworked frame, new airbox, new swingarm, improved suspension settings, and the same usable performance, the 2025 KTM 350 XC-F is ready to take up the challenge - and the lead.
This motorcycle is designed, developed and produced in Austria.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Transmission6-speed |
| Clutch Primary Drive Teeth72 |
| StarterElectric starter |
| Stroke57.5 mm |
| Bore88 mm |
| ClutchWet, DDS multi-disc clutch, Brembo hydraulics |
| Compression Ratio14.6 |
| Displacement349.7 cm³ |
| EMSKeihin EMS |
| Design1-cylinder, 4-stroke engine |
| Fuel-Mixture GenerationKeihin EFI, throttle body 44 mm |
| Tank Capacity (Approx.)8.5 l |
| Front Brake Disc Diameter260 mm |
| Rear Brake Disc Diameter220 mm |
| Front BrakeDisc brake |
| Rear BrakeDisc brake |
| Chain520 X-Ring |
| Frame DesignCentral double-cradle-type 25CrMo4 steel |
| Front SuspensionWP USD closed cartridge Ø 48 mm |
| HandlebarNeken, aluminium Ø 28/22 mm |
| Rear SuspensionWP XACT Monoshock with linkage |
| SilencerAluminium |
| Steering Head Angle63.9° |
| Rear Subframe DesignAluminum-reinforced polyamide |
| Suspension travel (front)300 mm |
| Suspension travel (rear)300 mm |
| Weight (Without Fuel)104.2 kg |
| Wheelbase1.493 mm |
| Ground clearance343 mm |
| Seat Height954 mm |
| WheelsSpoked wheels with aluminium rims |
