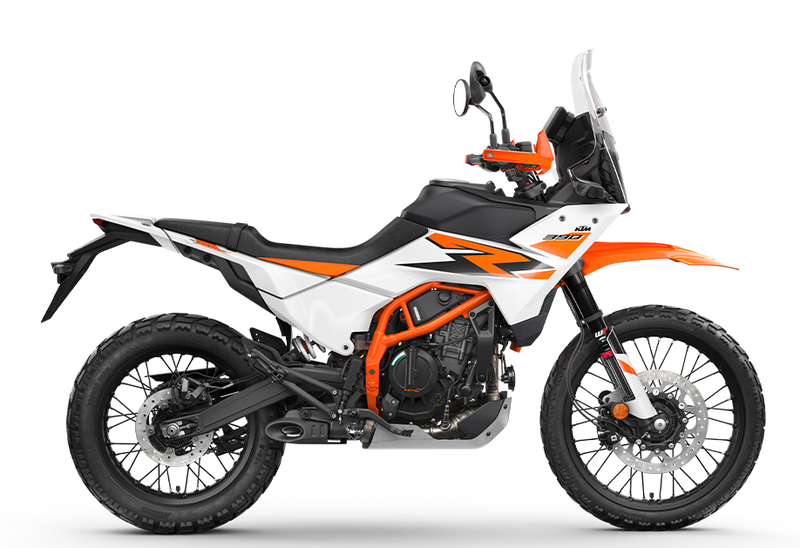

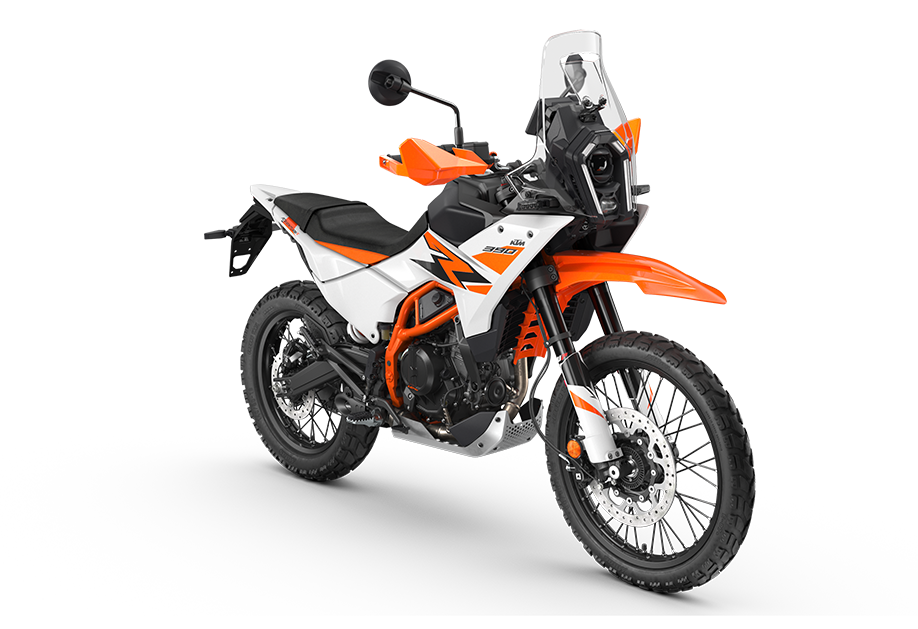

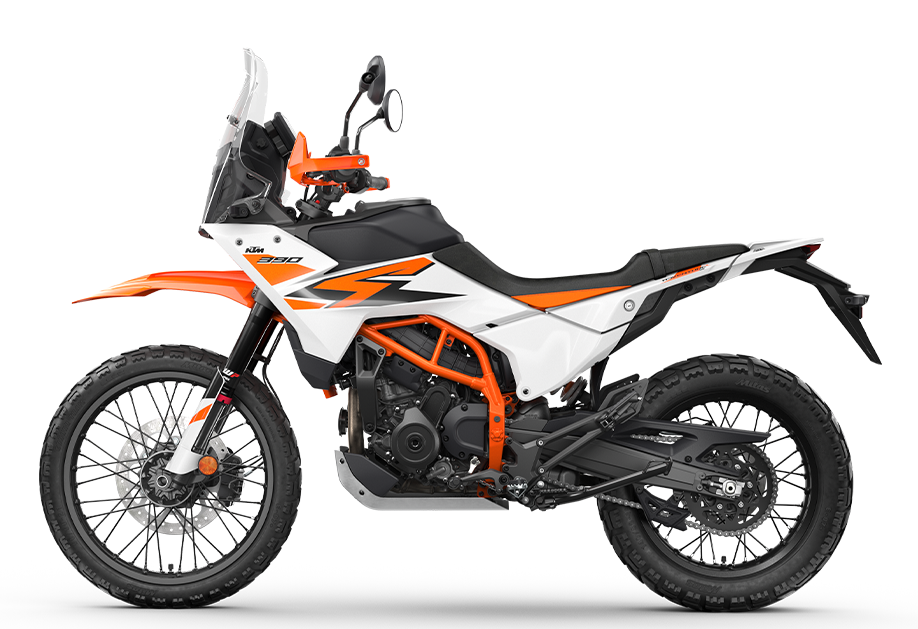

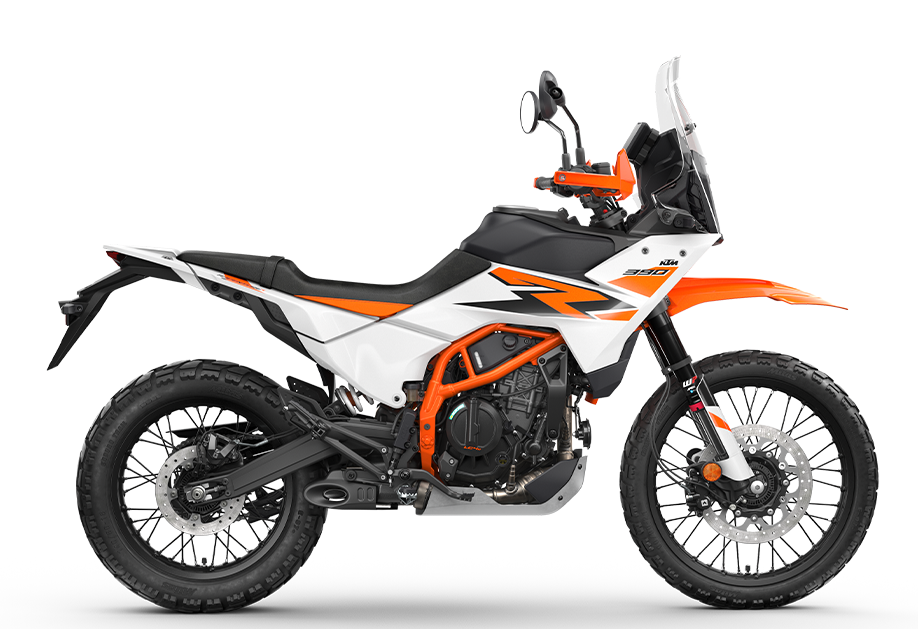

2026 KTM 390 Adventure R
2026 KTM 390 Adventure R
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
Inquiring for 2026 KTM 390 Adventure R
Fill out the form below and one of our friendly sales team will be in touch.
SUPREMELY CAPABLE
We have to say it - the KTM 390 ADVENTURE R is the most off-road capable middleweight adventure bike in its segment. Yes, it's a bold claim, but with a 399cc powerplant, true rally-inspired design, 230 mm adjustable suspension, and a 21/18"" wheel split, this new addition to the KTM R stable simply rewrites the rulebook.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Transmission6-speed |
| StarterElectric starter |
| Stroke64 mm |
| Bore89 mm |
| Compression Ratio12.6 |
| Displacement398.7 cm³ |
| EMSBosch EMS with RBW |
| Design1-cylinder, 4-stroke engine |
| Fuel-Mixture GenerationBosch EFI (throttle valve 46 mm) |
| Tank Capacity (Approx.)14 l |
| Front Brake Disc Diameter320 mm |
| Rear Brake Disc Diameter240 mm |
| Front BrakeFloating disk, Bybre radial calipers with 2 pistons |
| Rear BrakeByBre, single-piston, floating caliper, brake disc |
| Chain520 X-Ring |
| Frame DesignSteel trellis frame, powder coated |
| Front SuspensionWP APEX 43 |
| HandlebarAluminum |
| Rear SuspensionWP APEX Split Piston |
| Steering Head Angle62.9 ° |
| Rear Subframe DesignSteel trellis frame, powder coated |
| Suspension Travel (Front)230 mm |
| Suspension Travel (Rear)230 mm |
| Weight (Without Fuel)165 kg |
| Wheelbase1481 mm |
| Ground Clearance272 mm |
| Seat Height870 mm |
| Wheels["1.85 x 21", "2.5 x 18"] |
| Tyre Dimensions (Front/Rear)90/90; 140/80 |
