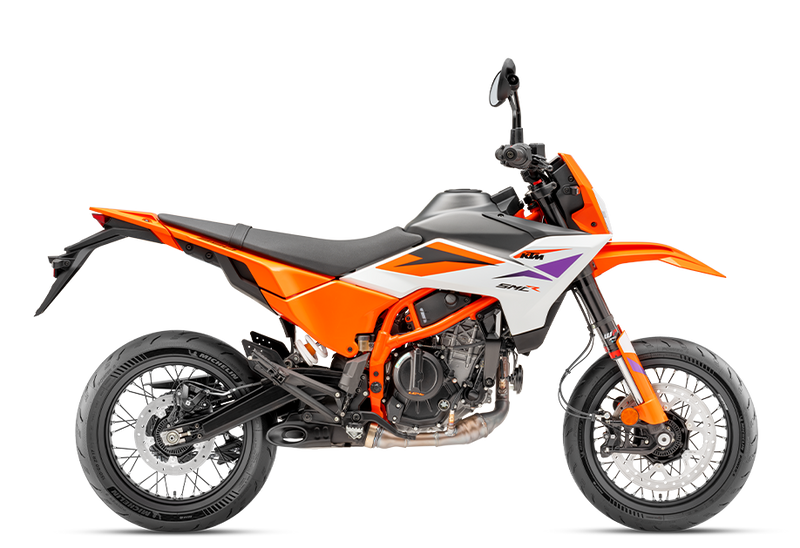

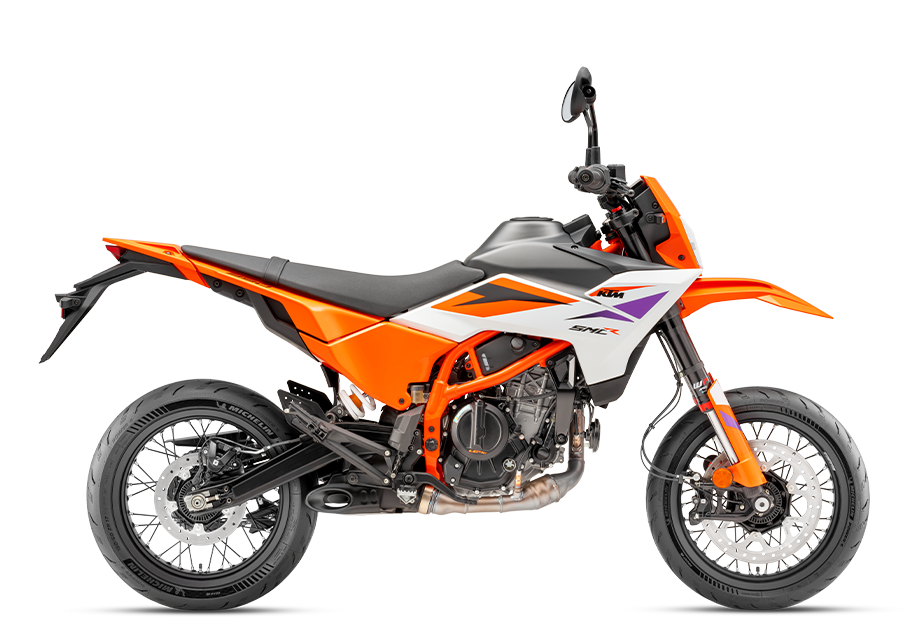

2025 KTM 390 SMC R
2025 KTM 390 SMC R
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
Inquiring for 2025 KTM 390 SMC R
Fill out the form below and one of our friendly sales team will be in touch.
BEHAVE SOMEWHERE ELSE
Sliding at the apex to join the KTM SuperMotard army in the middle-weight battalion, the KTM 390 SMC R brings unlimited fun to the masses. Just like its KTM 690 SMC R brethren, it is engineered to dominate the asphalt - as well as the odd dirt track - with ease. This motorcycle is designed and developed in Austria.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Primary Drive86:33 |
| Torque 39 Nm |
| Transmission6-speed |
| CoolingLiquid cooled |
| Secondary Gear Ratio48:14 |
| Power45 PS |
| StarterElectric starter |
| Stroke64 mm |
| Traction controlMTC (lean angle sensitive, disengageable) |
| Bore89 mm |
| ClutchPASC slipper clutch, mechanically operated |
| CO2 emissions79 g/km |
| Compression ratio12.6 |
| Displacement398.7 cm³ |
| EMSBosch EMS with RBW |
| Engine oilMotorex Formula 4T 15W/50 |

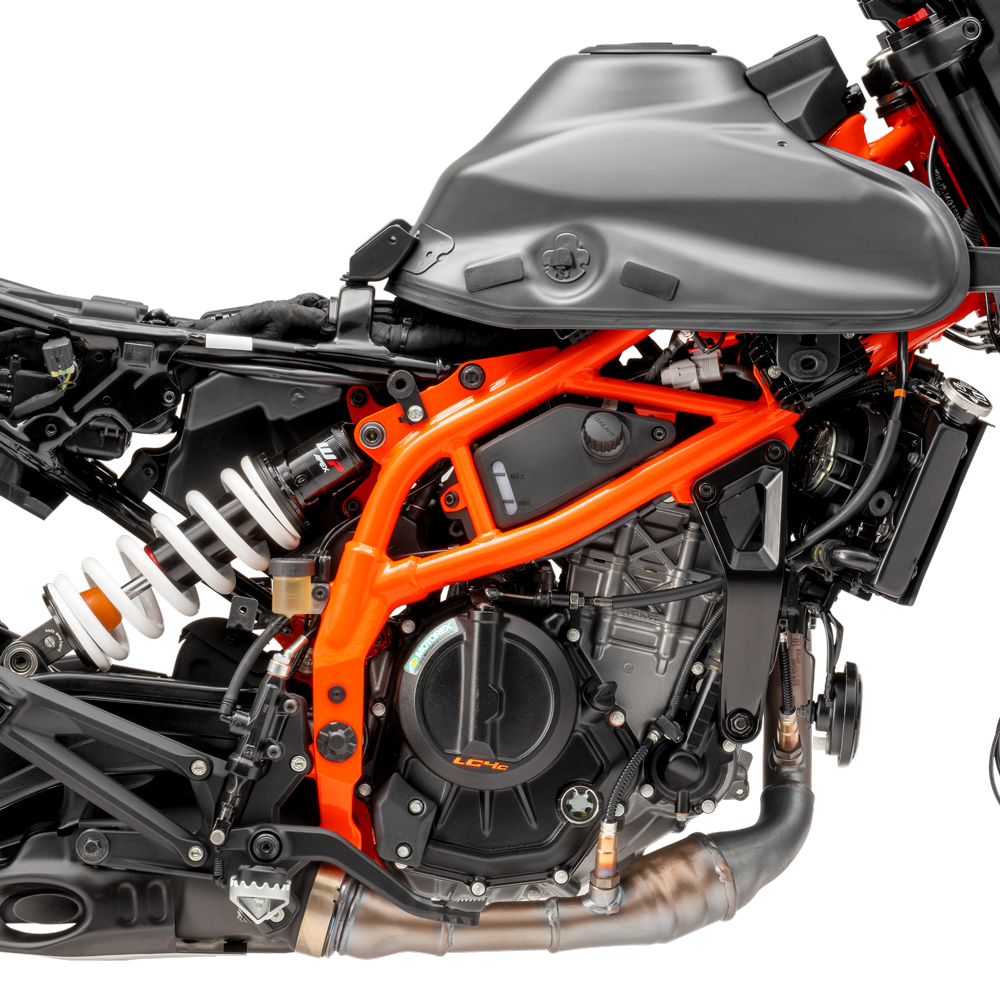

| Design1-cylinder, 4-stroke engine |
| Fuel consumption3.4 l/100 km |
| Fuel-Mixture GenerationBosch EFI (throttle valve 46 mm) |
| LubricationWet sump |
| Tank Capacity (Approx.)9 l |
| Front Brake Disc Diameter320 mm |
| Rear Brake Disc Diameter240 mm |

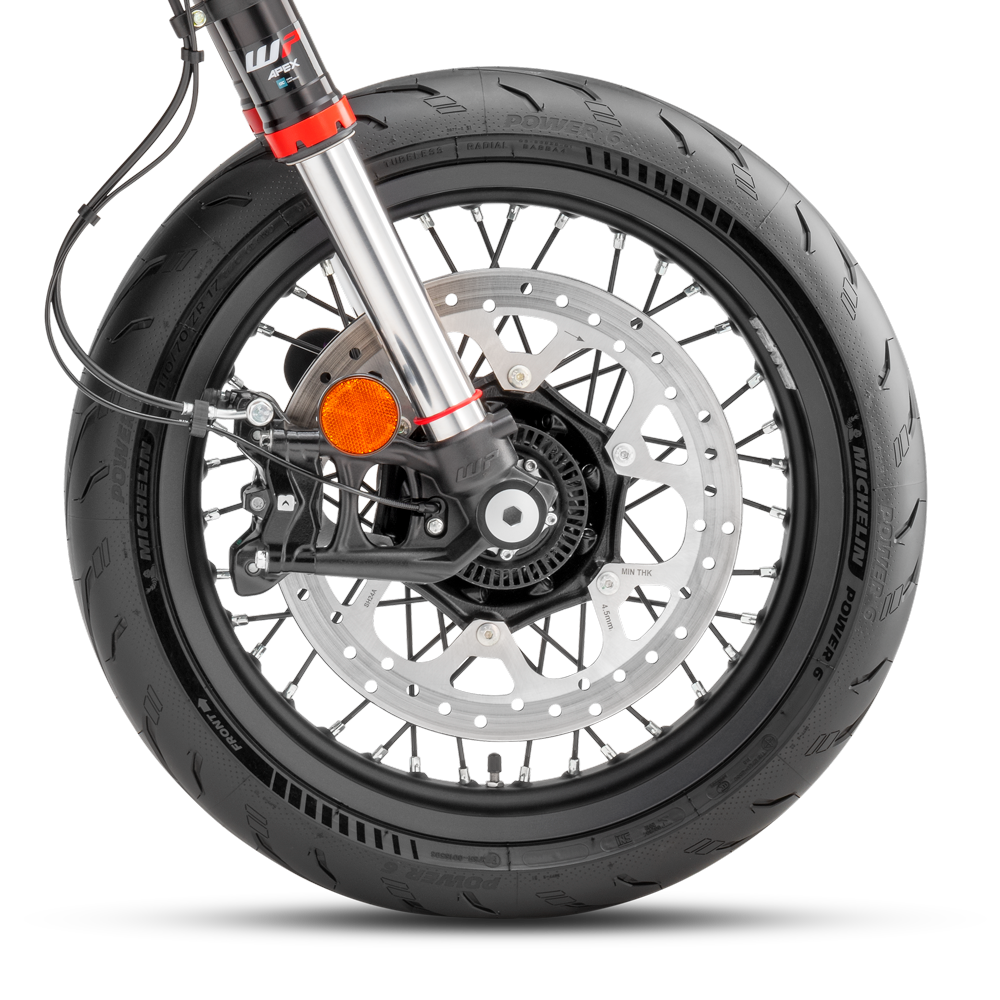

| Front BrakeFloating disk, Bybre radial calipers with 2 pistons |
| Rear BrakeByBre, single-piston, floating caliper, brake disc |
| Chain520 X-Ring |
| Frame DesignSteel trellis frame, powder coated |

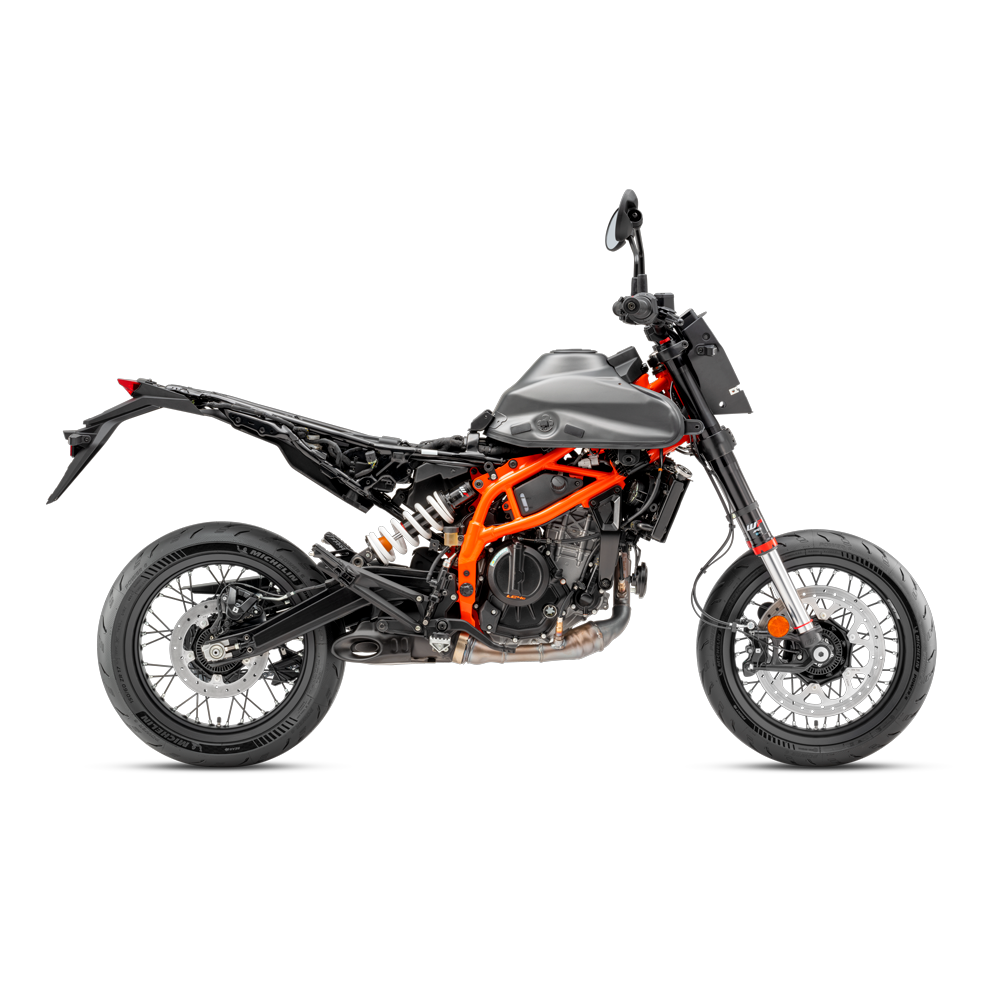

| Front SuspensionWP APEX 43 |
| HandlebarAluminium |
| Rear SuspensionWP APEX Split Piston |
| Steering Head Angle63.1° |

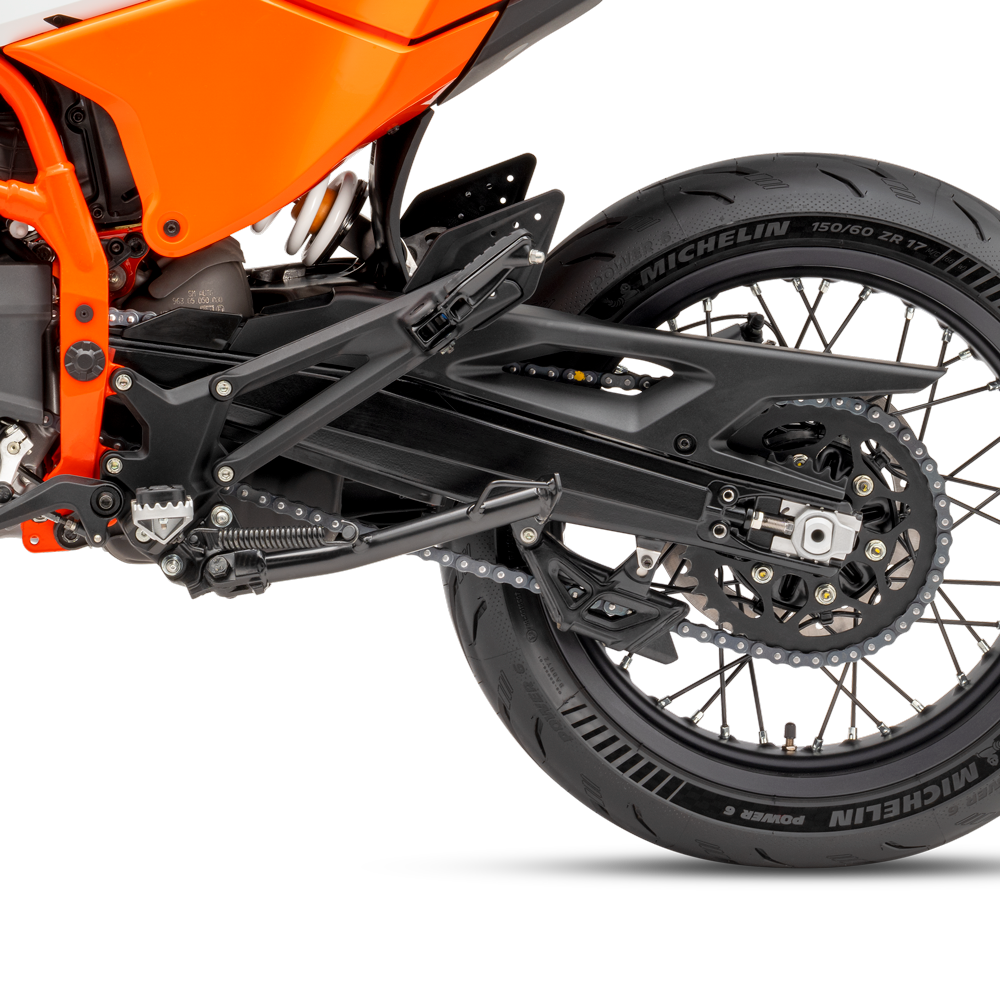

| Rear Subframe DesignSteel trellis frame, powder coated |
| Suspension Travel (Front)230 mm |
| Suspension Travel (Rear)230 mm |
| Trail111 mm |
| Weight (Without Fuel)154 kg |
| Wheelbase1453 mm |
| Ground clearance270 mm |
| Seat Height860 mm |
| Tyre dimensions (front/rear)110/70 150/60 |
| Wheels Size2 x 17 4 x 17 |

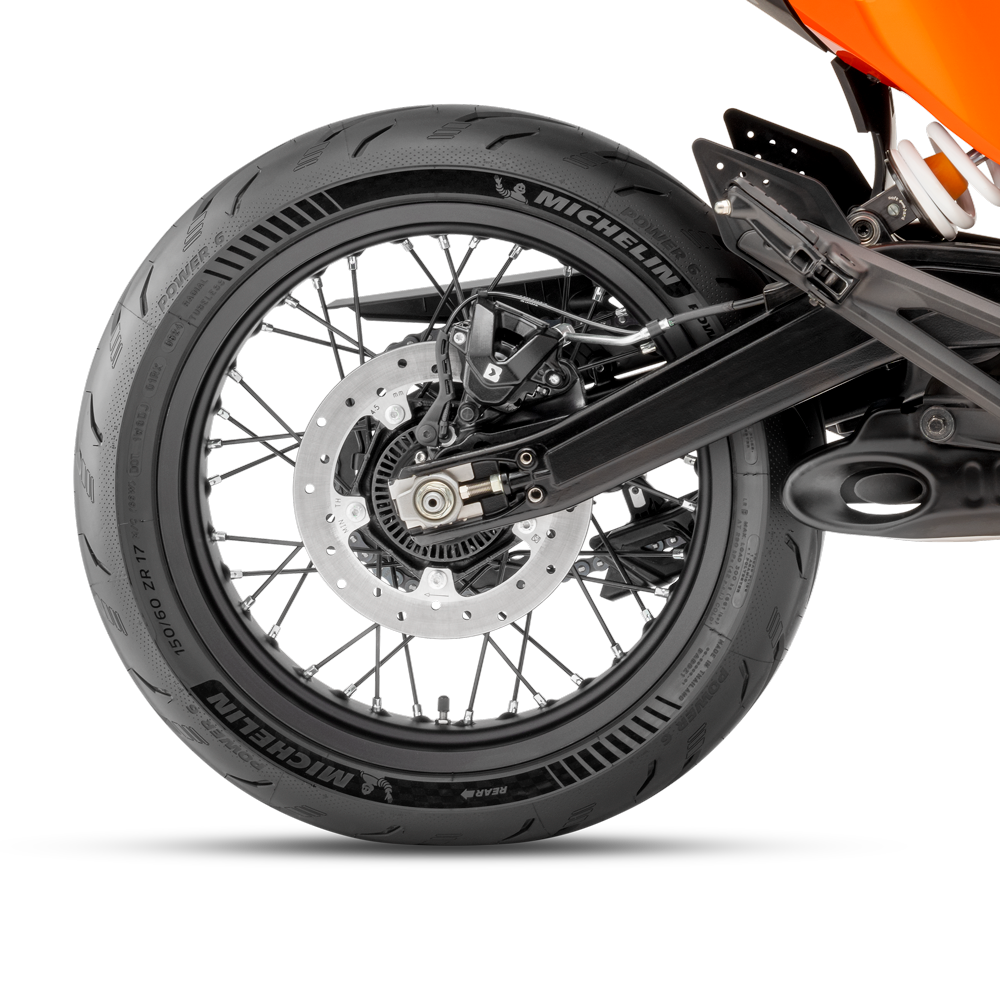

| WheelsSpoked wheels with aluminium rims |
| Front Wheel Diameter17 |
| Rear Wheel Diameter17 |
| Front Wheel Width2 |
| Rear Wheel Width4 |
