TEARING AHEAD

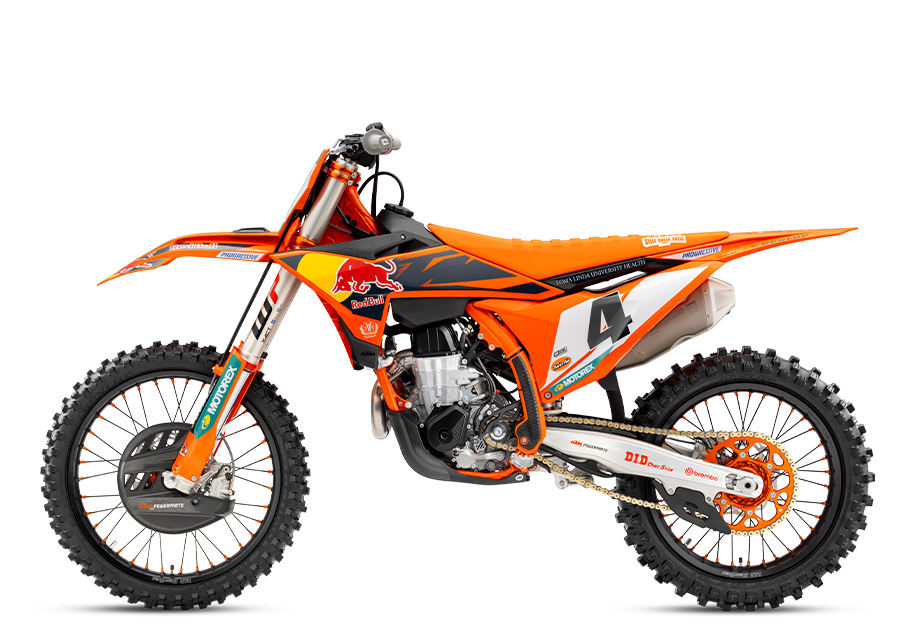

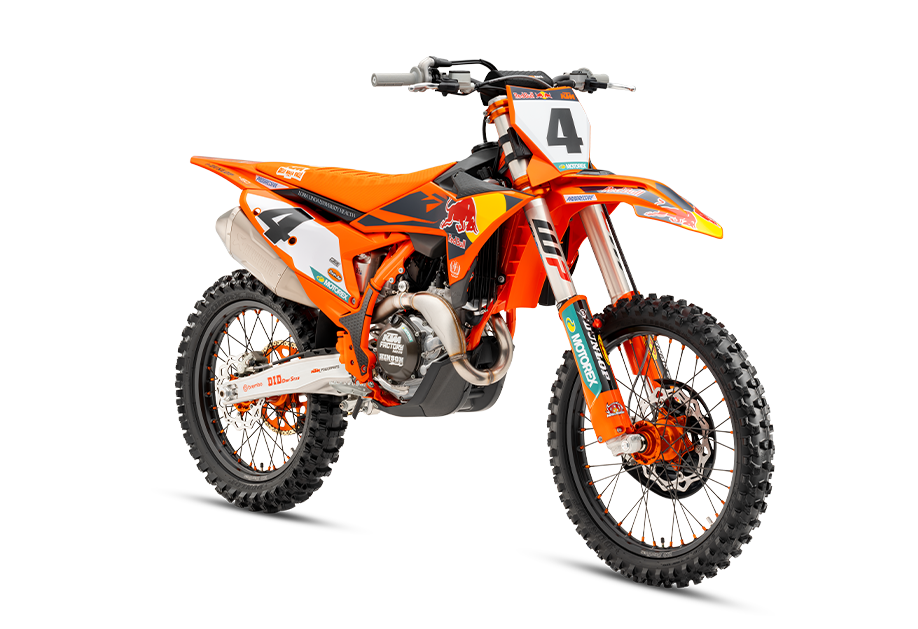

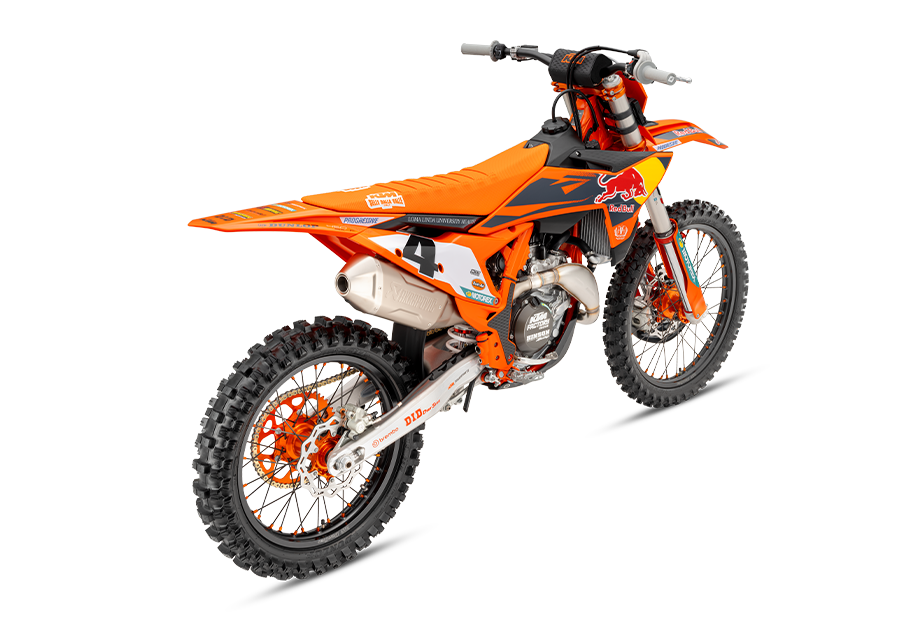

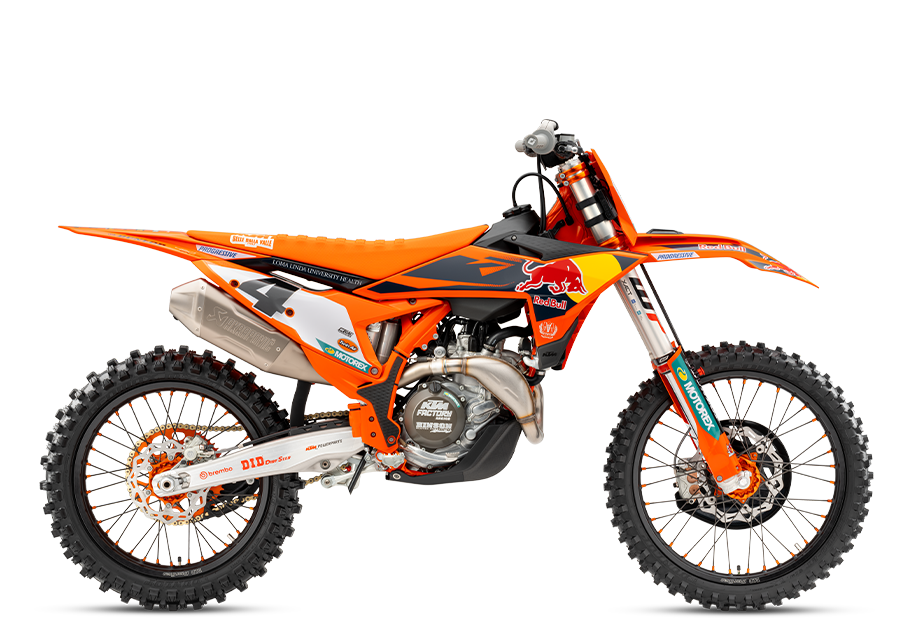

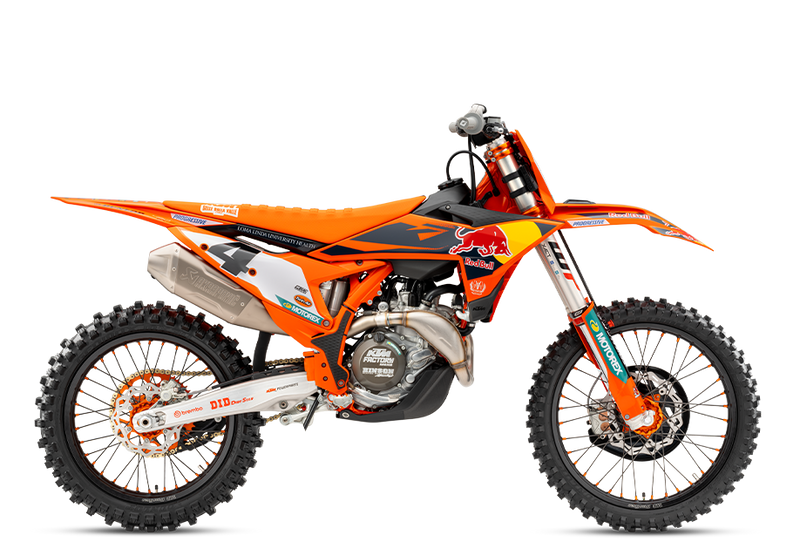

KTM lives and breathes a READY TO RACE mantra, and the FACTORY EDITIONS are special, limited-run models that erase the last few spec variances between what is 'stock' and what is 'factory'. It's then up to the rider how much they want to make the difference: how fast are you and how much do you want it? The KTM 450 SX-F FACTORY EDITION inherits the basis of the 2025 peerless KTM SX-F motocross racers and then, thanks to a list of KTM POWERPARTS additions, gets as close to the Pros as its possible to be. This specific bike comes with a fresh chassis, and a Connectivity Unit that allows more interaction and setup possibilities than ever before. The KTM 450 SX-F FACTORY EDITION has been crafted by racers for the ultimate racecraft. Try to catch it.
2025 FACTORY EDITION highlights:
2025 FACTORY EDITION highlights:
- ORANGE GLOSSY 'FACTORY' FRAME
- 2K ORANGE FACTORY FRAME PROTECTORS
- FACTORY TANK SPOILERS
- CONNECTIVITY UNIT OFFROAD COMPATIBLE FRONT FENDER
- CONNECTIVITY UNIT OFFROAD INCLUDED
- WHITE-VENTED AIRBOX COVER IN BY-PACK
- BLACK ENGINE MOUNTS
- WP XACT AER FORK
- RED BULL KTM FACTORY RACING GRAPHICS WITH #4 AND #7 OPTIONS FOR CHASE SEXTON OR AARON PLESSINGER
- RIBBED FACTORY SEAT COVER
- ORANGE CNC FACTORY TRIPLE CLAMPS
- SEMI-FLOATING FRONT BRAKE DISC
- FACTORY FRONT BRAKE DISC GUARD
- FACTORY SKID PLATE
- GREY, SOFT ODI GRIPS
- DID FACTORY WHEEL SET
- DUNLOP GEOMAX MX34 TYRES
- ORANGE REAR SPROCKET
- WP FACTORY START DEVICE
- GOLD CHAIN
- AKRAPOVIC SLIP-ON EXHAUST
- HINSON CLUTCH COVER
MODEL
YEAR
TECHNICAL SPECIFICATION
Transmission5-speed |
StarterElectric starter |
Stroke63.4 mm |
Bore95 mm |
Compression Ratio13.6 |
Displacement449.9 cm³ |
EMSKeihin EMS |
Design1-cylinder, 4-stroke engine |
Fuel-Mixture GenerationKeihin EFI, throttle body 44 mm |
Tank Capacity (Approx.)7.2 l |
Front Brake Disc Diameter260mm |
Rear Brake Disc Diameter220mm |
Front BrakeDisc brake |
Rear BrakeDisc brake |
Chain520, Non-sealed |
Frame DesignCentral double-cradle-type 25CrMo4 steel |
Front SuspensionWP XACT-USD, Ø 48 mm |
HandlebarNeken, aluminium Ø 28/22 mm |
Rear SuspensionWP XACT Monoshock with linkage |
SilencerAkrapovič Slip-On Line |
Steering Head Angle63.9 ° |
Rear Subframe DesignAluminium / Polyamide Glass Fiber |
Suspension Travel (Front)310 mm |
Suspension Travel (Rear)300 mm |
Weight (Without Fuel)103.9 kg |
Wheelbase1493 ± 10 mm |
Ground Clearance343 mm |
Seat Height958 mm |
Wheels1.60 x 21; 2.15 x 19 |
Tyre Dimensions (Front/Rear)80/100; 120/80 |
