LEADING THE CHARGE

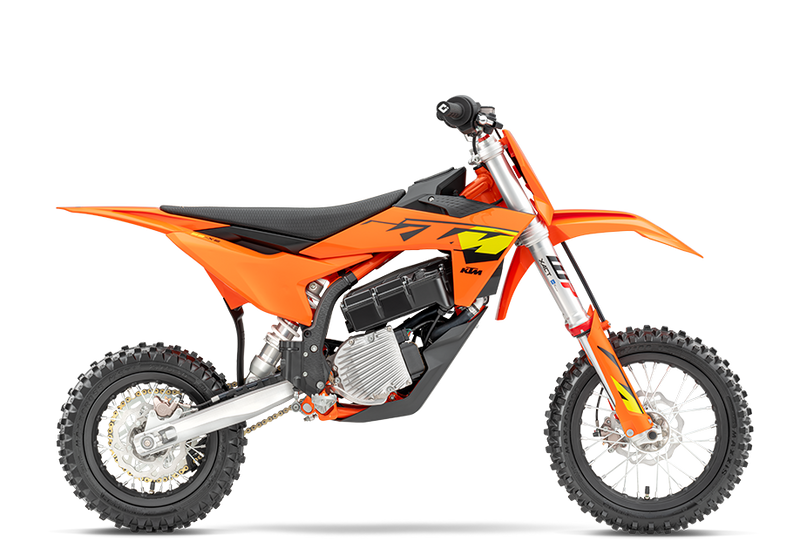

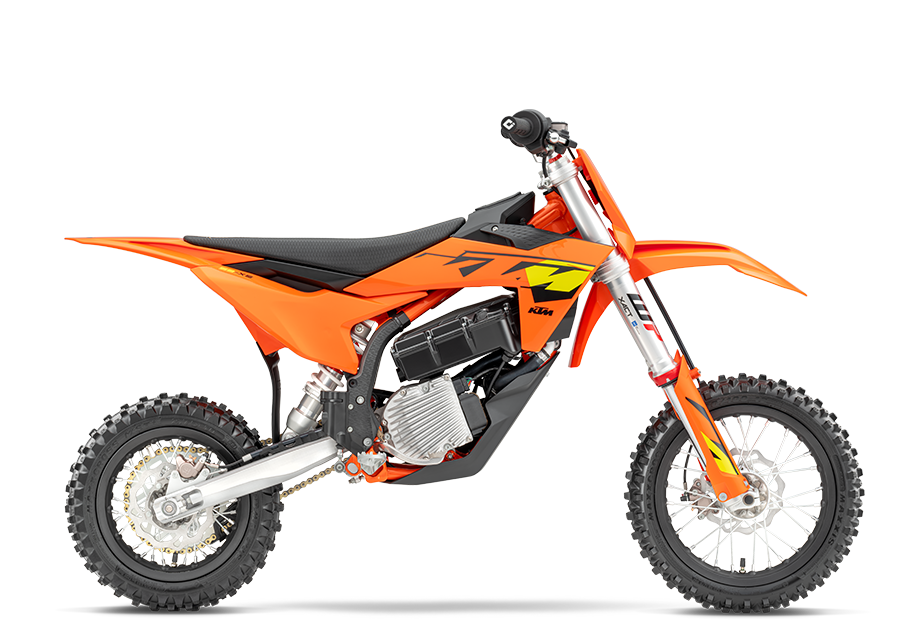

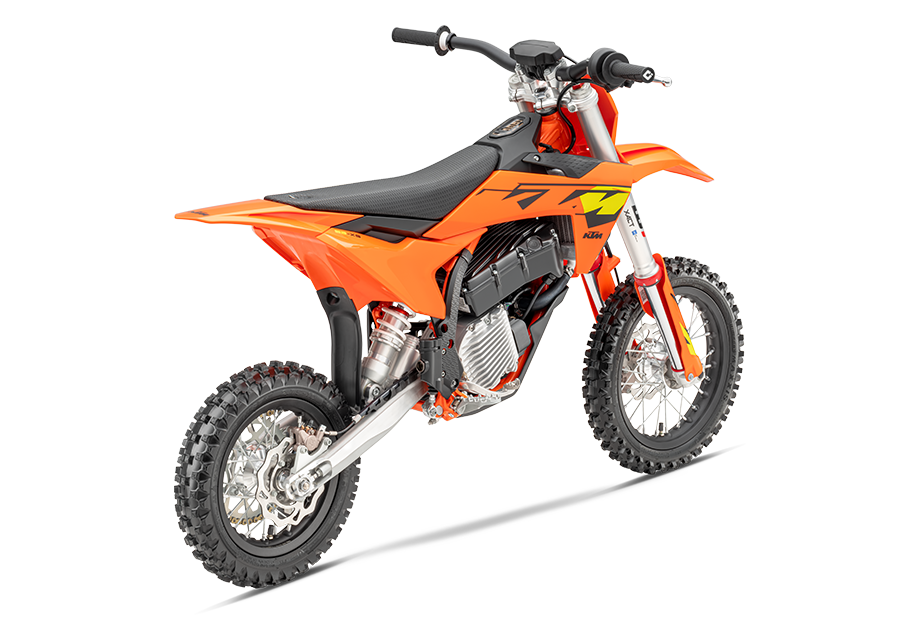

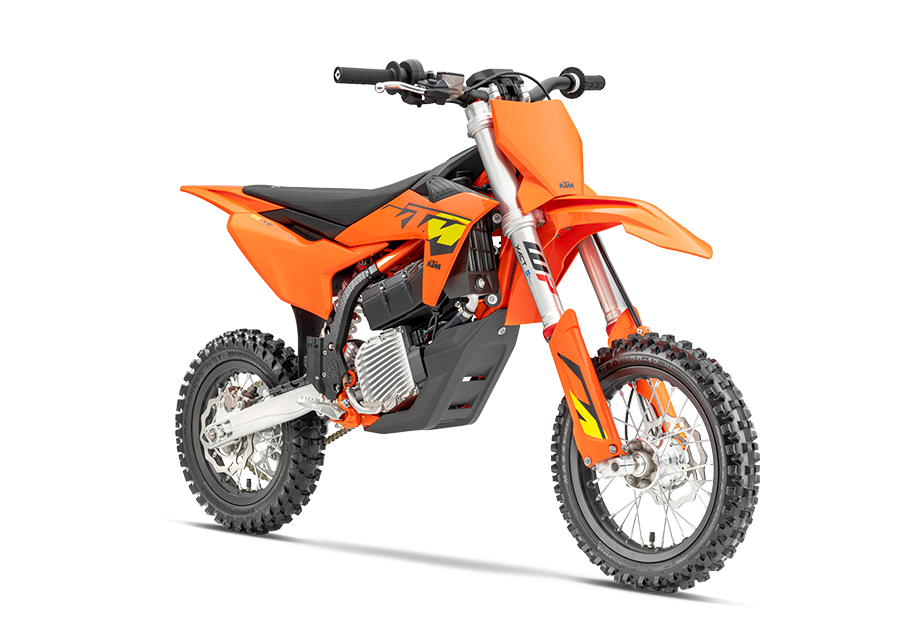

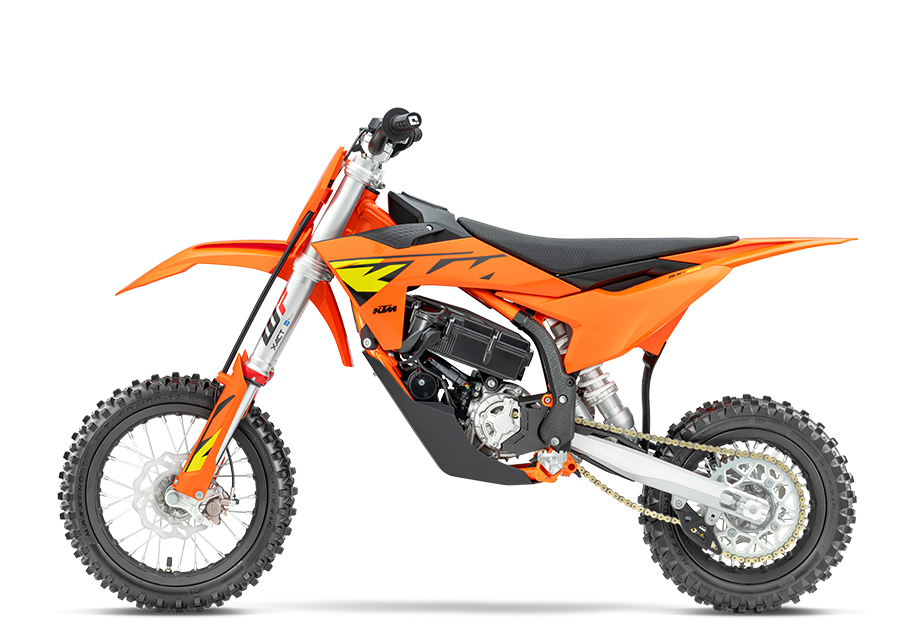

The KTM SX-E 5 represents a new generation of advanced all-electric mini-cross that will entice and empower the next generation of KTM motorcyclist. Aimed at both beginner and competitive junior racers and with benchmark adjustable ergonomics - allowing the bike to 'grow' with the user - the KTM SX-E 5 is a high-quality and prime real-world READY TO RACE alternative to the petrol-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors that are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need. This motorcycle is designed, developed, and produced in Austria.

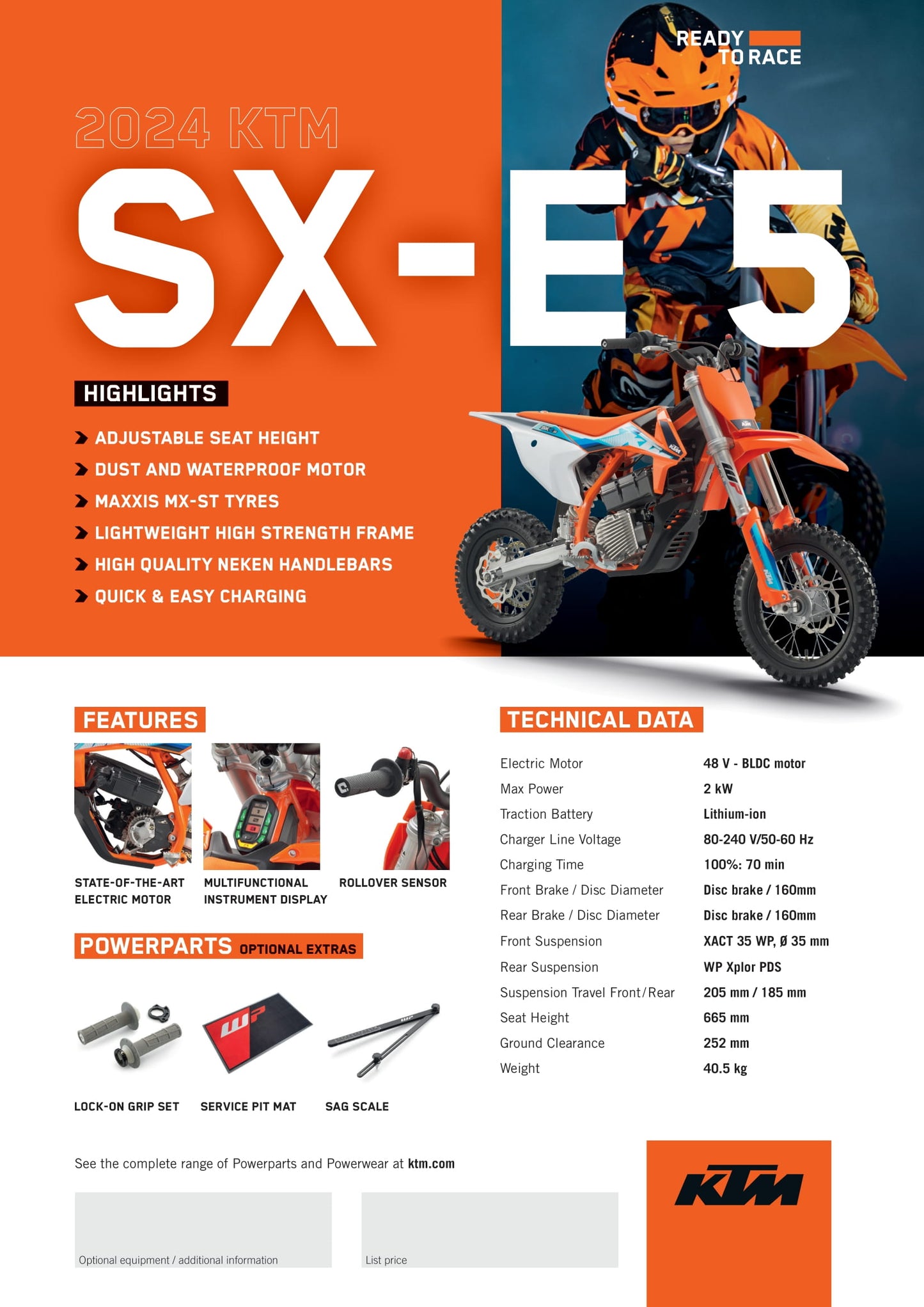

TECHNICAL SPECIFICATION
Rated output2 kW / 3,200 rpm |
Torque13.8 Nm |
Traction batteryLithium-Ion KTM PowerPack |
Battery capacity21 Ah |
Charger line voltage80-240 V/50-60 Hz |
Charging inputQuick charging 5 A @ 230 V (AC) |
Charging power900 W |
Charging time 100 %70 min. |
Charging time 80 %45 min. |
CoolingLiquid cooled |
Energy content0.907 kWh |
Electric motor48 V - BLDC motor with outer rotor |
Max. motor speed6000 rpm |
Max. power5 kW / 3,900 rpm |
Front Brake Disc Diameter160 mm |
Rear Brake Disc Diameter160 mm |
Front BrakeDisc brake |
Rear BrakeDisc brake |
Chain415, Non-sealed |
Frame DesignChrome-molybdenum steel central-tube frame |
Front SuspensionXACT 35 WP Upside-Down fork, Ø 35 mm |
HandlebarTapered aluminum Ø 28/22/18 mm |
Rear SuspensionXACT WP mono shock |
Steering Head Angle66° |
Rear Subframe DesignGlass fiber reinforced plastic |
Suspension Travel (Front)205 mm |
Suspension Travel (Rear)193 mm |
Weight40.5 kg |
Wheelbase1028 mm |
Ground Clearance259 mm |
Seat Height682 mm |
