2025 NMAX 155

2025 NMAX 155

$6,499.00*
$6,499.00*

*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.

Apply for Finance Enquire Now
CLICK HERE FOR CLEARANCE BIKES ON SALE!
SHARE:
View full details

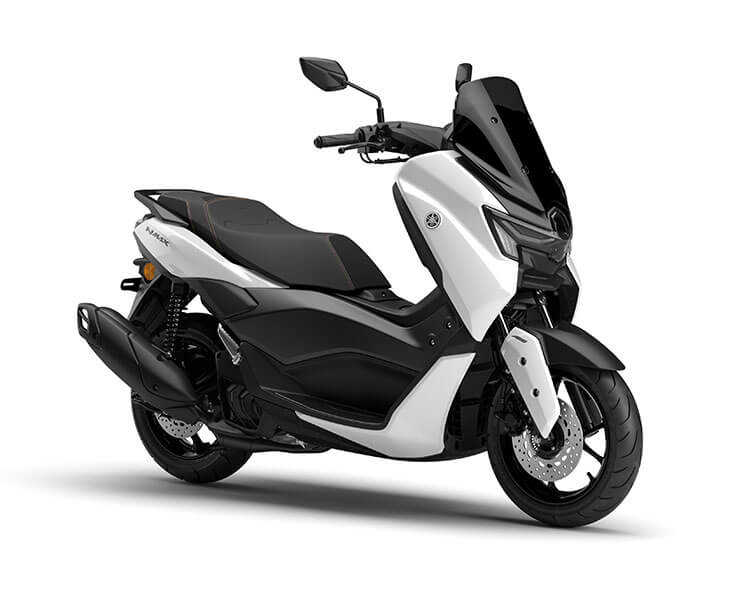

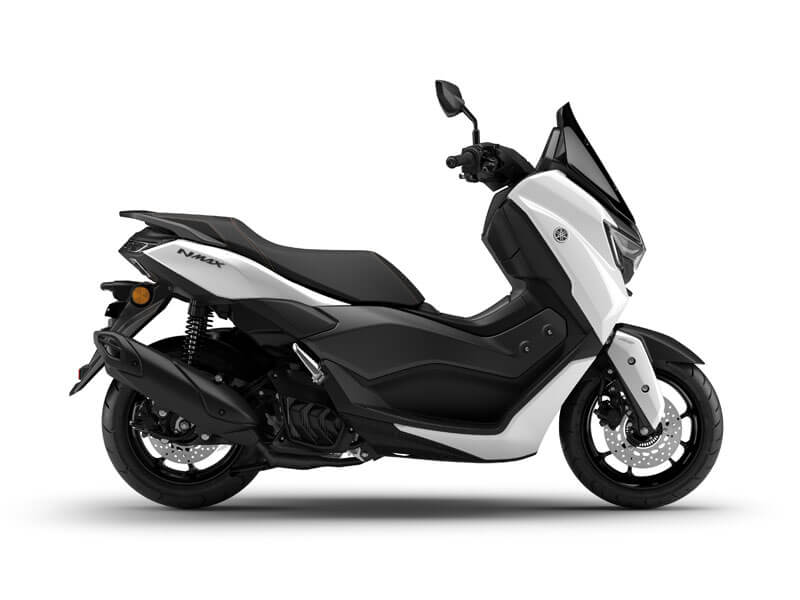

Featuring a new drive system, high comfort suspension and dynamic fresh styling, the third generation NMAX 155 takes the entry level sports scooter category to a whole new level.
With its iconic MAX-inspired design, first class finish and extra features, NMAX 155 is an ideal scooter for car drivers and returning riders who want to experience the freedom of two wheels and the first step on the MAX sport scooter ladder.

A more refined riding experience awaits owners of the new NMAX 155 with two ride modes and the ability to downshift to allow the bike to accelerate or decelerate on command. New suspension improves rider and pillion comfort. Cutting edge exterior styling and a new TFT instrument cluster with the latest smartphone connectivity and onboard navigation is specified for added convenience.

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale

MODEL
YEAR

FEATURES

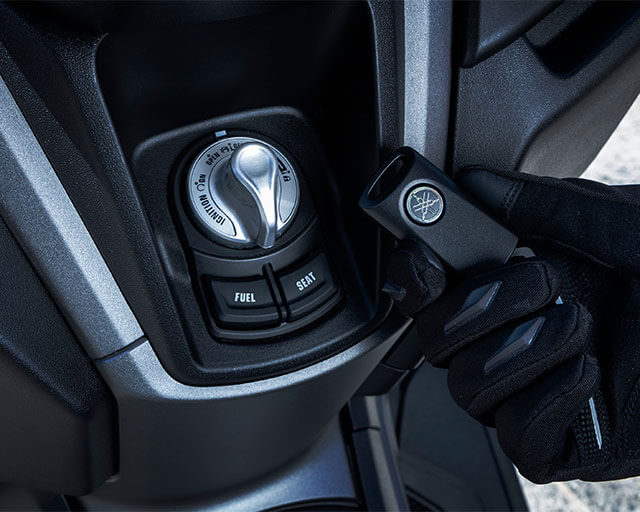

Smart Key System

Smart Key System

NMAX is one of the most sophisticated scooters in the class, and it comes with Yamaha’s Smart Key system as standard equipment. As long as you have the Smart Key with you in a pocket or bag, this keyless system allows you to turn your NMAX on, saving time and making the whole process much simpler and more convenient.

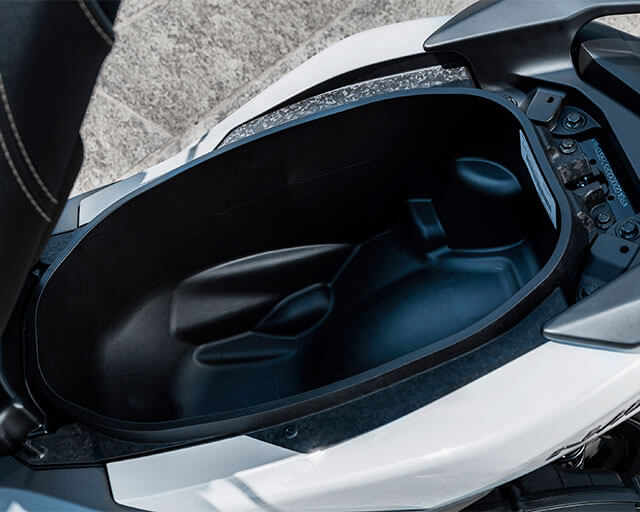

Underseat Storage System

Underseat Storage System

As well as being Yamaha’s sportiest and most dynamic scooter in the Urban Mobility class, the NMAX also has a practical side that makes it the ideal companion for work and play. Flip up the contoured dual seat and you’ll be able to access the spacious storage compartment that’s big enough to accommodate your personal items when parked.

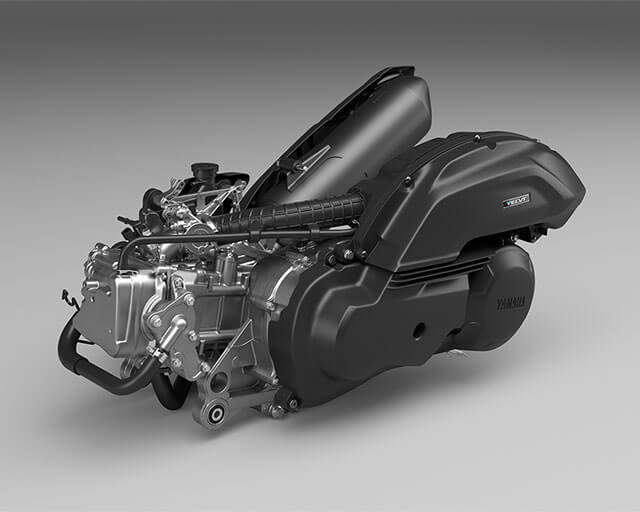

Powerful Blue Core Engine

Powerful Blue Core Engine

A liquid-cooled, 4-stroke SOHC, 155cc, single-cylinder, 4-valve fuel-injected Blue Core engine with new YECVT is adopted delivering excellent power and torque characteristics.

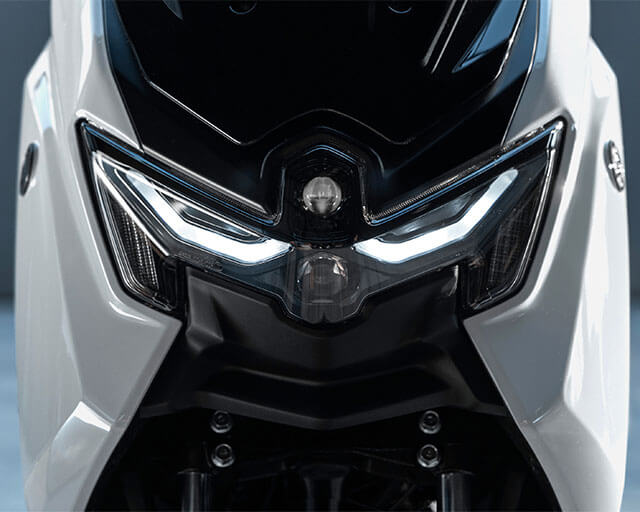

Fresh MAX Inspired Styling

Fresh MAX Inspired Styling

The front and rear faces of the bike, which now feature all-LED lighting, are made more compact but also designed to make the biggest impact possible. At the same time, the design follows other MAX scooters with the headlight forming a reversed pair of Ns as its design motif.

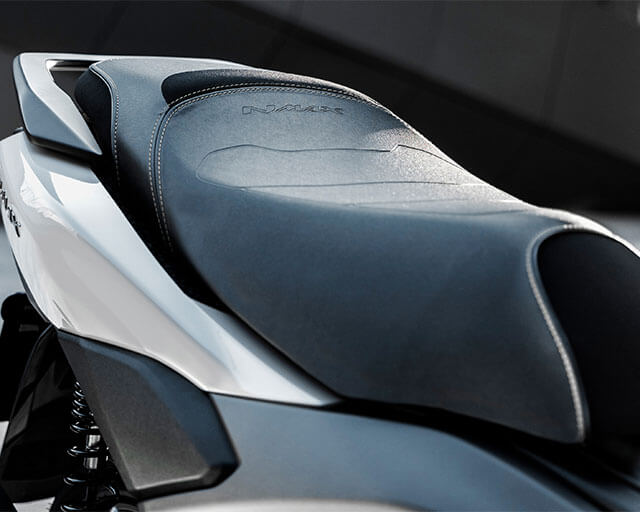

Two-level Seat

Two-level Seat

The cockpit and seating area have been designed in detail to inspire pride of ownership. In particular, the seat on the NMAX employs a tactile surface with gold-stitch seams and a special emblem.

Yamaha Electric Continuously Variable Transmission (YECVT)

Yamaha Electric Continuously Variable Transmission (YECVT)

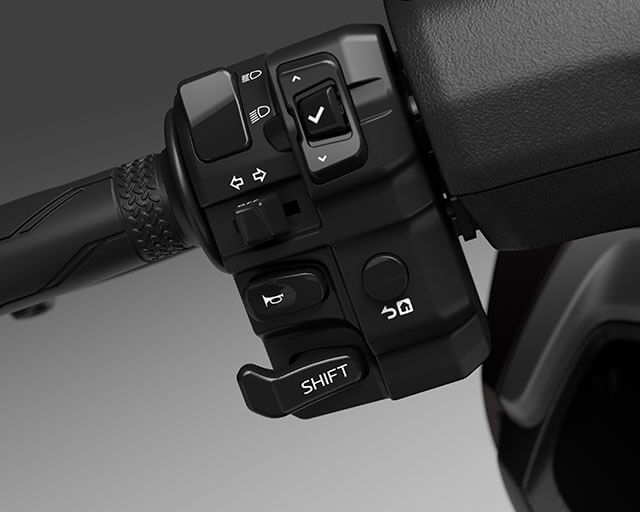

YECVT works by electronically adjusting the CVT’s reduction ratio to increase the range of control available to the rider, such as when they want to access strong acceleration for overtaking, or if they want to use engine braking when slowing. Pressing the Shift button on the left hand switch gear activates a downshift, with up to three successive downshifts can be performed with the Shift button and the number of downshifts are shown on the instrument panel.

Ride Mode Selection

Ride Mode Selection

To expand the fun of riding NMAX 155, two ride modes are available. Town mode (T) is designed for daily commuting with greater fuel economy while Sport mode (S) is for out of town sporty riding. When decelerating the difference between the two modes can be felt because their engine braking characteristics differ.

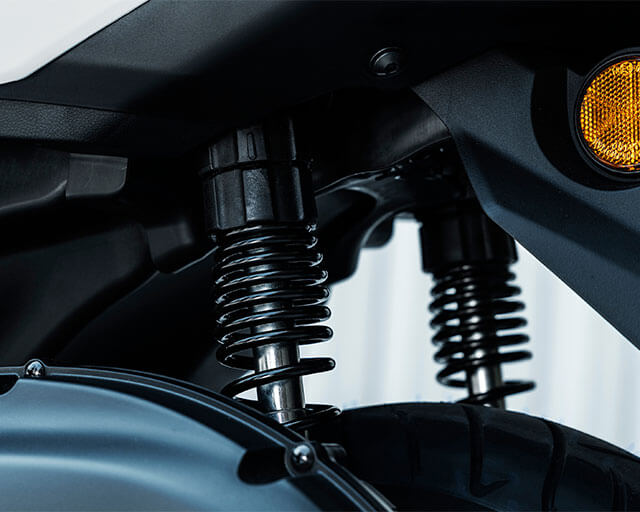

High comfort suspension

High comfort suspension

Suspension settings have been optimised, with the front and rear contributing to improved ride comfort and bump absorption. The rear suspension’s stroke has been lengthened by 5mm and the damping characteristics have been adjusted. Also, to give the front suspension settings a softer character, the fork tubes have gained oil locks.

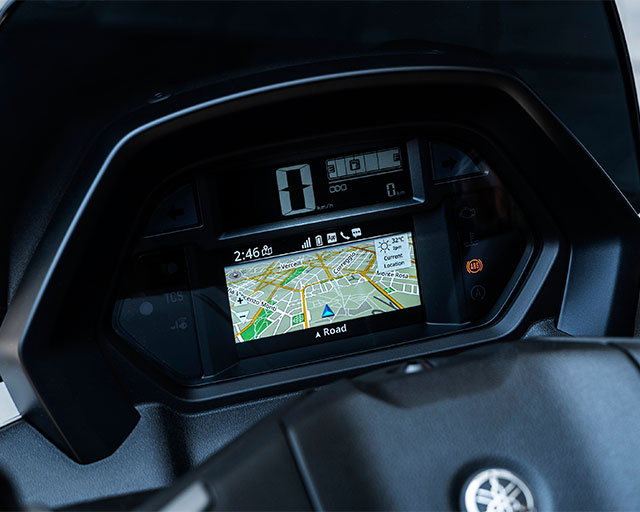

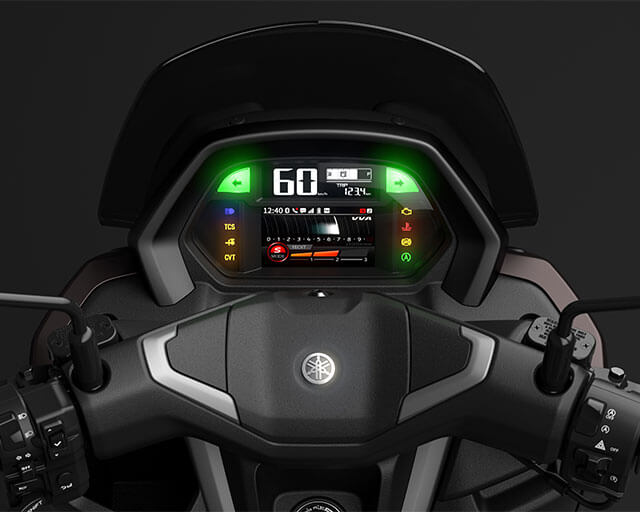

Twin Display Instrumentation

Twin Display Instrumentation

A new instrument cluster features two displays - one TFT display and one LCD display. The TFT display can show information about the bike and smartphone information via Bluetooth®. By installing the Garmin StreetCross navigation app for motorcycles on the user’s smartphone and connecting it to the bike’s CCU, the TFT display can be used as an onboard navigation system.

TECHNICAL SPECIFICATION

Milky White

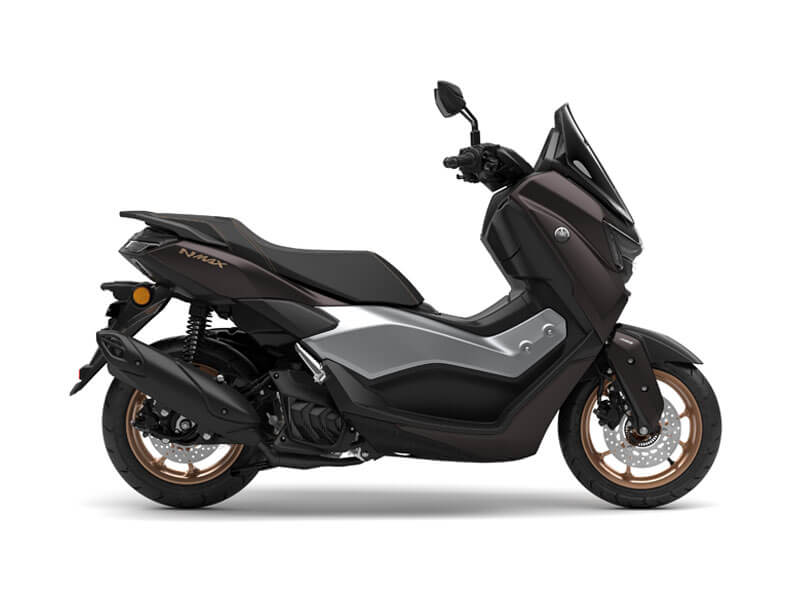

Dark Magma

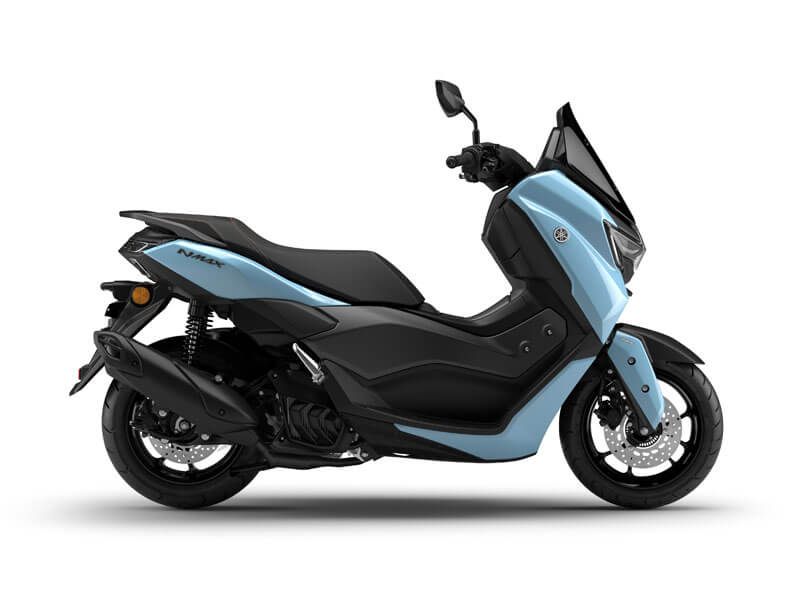

Sky Blue
Engine TypeLiquid-cooled, 4-stroke, SOHC, 4-valve
Displacement (cc)155.0
Bore x Stroke (mm)58.0 x 58.7
Compression Ratio11.6 : 1
Lubrication SystemWet sump
Fuel ManagementFuel Injection
IgnitionTCI
Starter SystemElectric
Fuel Capacity (L)7.1
Final TransmissionGear
TransmissionV-Belt Automatic
Frame TypeUnderbone
Suspension FrontTelescopic forks, 100mm travel
Suspension RearUnit swing, 91mm travel
Brakes FrontHydraulic single disc
Brakes RearHydraulic single disc
Tyres Front110/70-13M/C 48P Tubeless
Tyres Rear130/70-13M/C 63P Tubeless
Length (mm)1935
Width (mm)740 Height (mm)1200
Seat Height (mm)770
Wheelbase (mm)1340
Ground Clearance (mm)125
Wet Weight (kg)135
