2025 Raptor 110

2025 Raptor 110

$4,849.00*
$4,849.00*

*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.

Apply for Finance Enquire Now
CLICK HERE FOR CLEARANCE BIKES ON SALE!
SHARE:
View full details

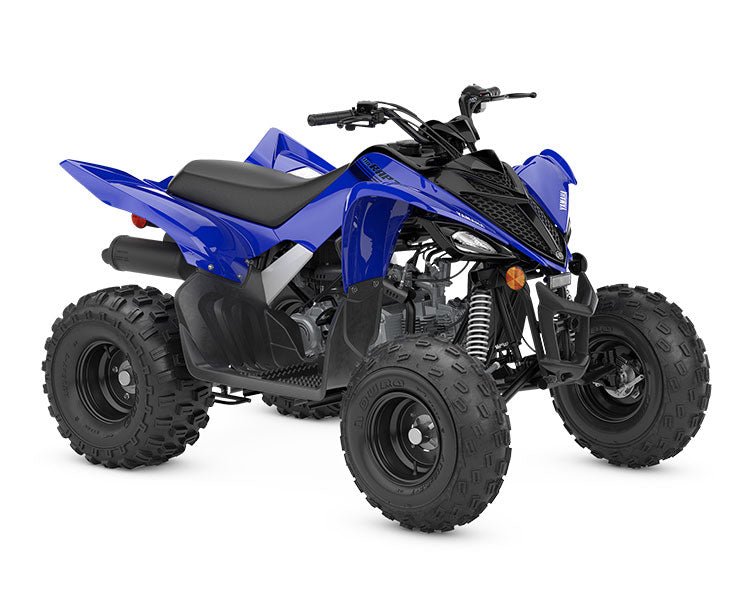

The Raptor 110 is built to bring maximum fun to ATV riders ages 10 and up. A new fuel-injected 112cc air-cooled SOHC 4-stroke engine is tuned to develop excellent low- to mid-range performance. A fully automatic CVT transmission with reverse, a gated shifter, and electric start with a back-up kickstart all come standard.

Designed based on the top-selling Raptor 700R, this entry-level ATV brings Yamaha's Proven Off-Road sport ATV performance, legacy, and quality to new riders as they develop their skills and embrace their passion for motorsports.



*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale

MODEL
YEAR

FEATURES

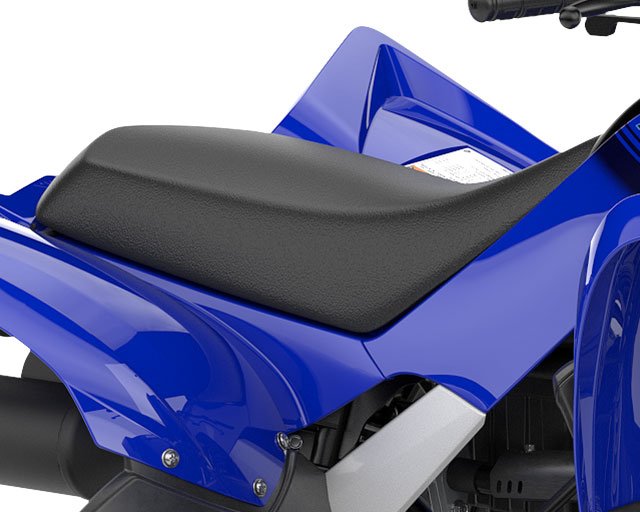

Comfortable Chassis

Comfortable Chassis

An advanced frame design incorporates a large 6.7 litre fuel tank, plush seat and roomy integrated floorboards on an optimised wheelbase.

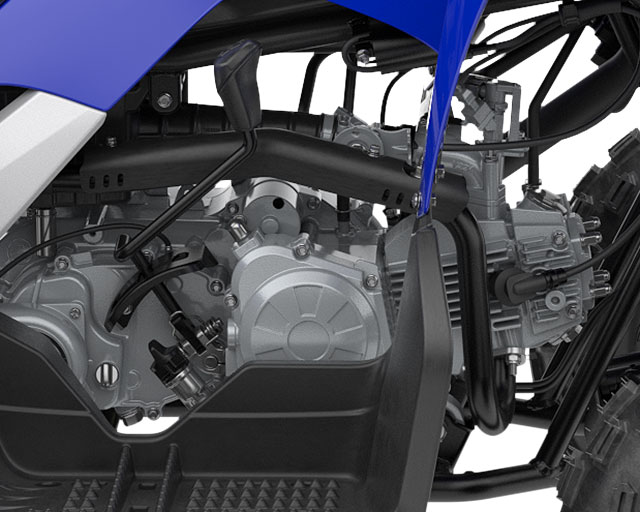

Sporty 112cc Engine

Sporty 112cc Engine

The new fuel-injected 112cc four-stroke SOHC engine is tuned to develop excellent low- to mid-range performance, just where it’s needed. The engine is air-cooled for simplicity, performance and long life, and uses ultra-reliable wet-sump lubrication.

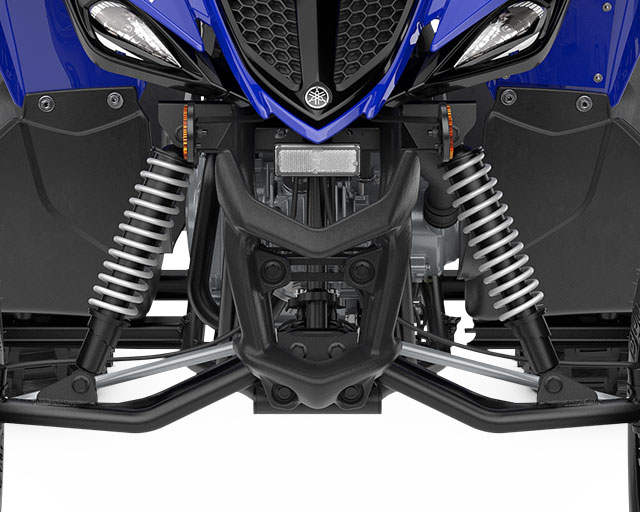

Scaled Down Not Scaled Back

Scaled Down Not Scaled Back

Compact A-arm front suspension is tuned for light, sporty steering and comfortable ride quality, with preload-adjustable shocks offering 127mm of wheel travel and adding to the Raptor 110’s full-size ATV look. The rear swingarm also features a 5-way preload adjustable shock, offering 145mm of wheel travel.

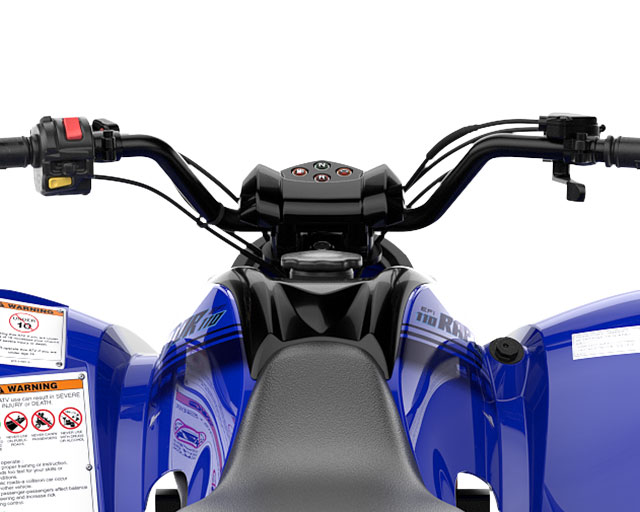

Modern Reliable Electronics

Modern Reliable Electronics

The new EFI system with an ECU delivers strong, reliable performance. A sealed, maintenance-free battery provides worry-free operation. Convenient handlebar-mounted reverse and neutral indicators, along with new engine warning and low-fuel warning lights keep the rider informed in all situations.

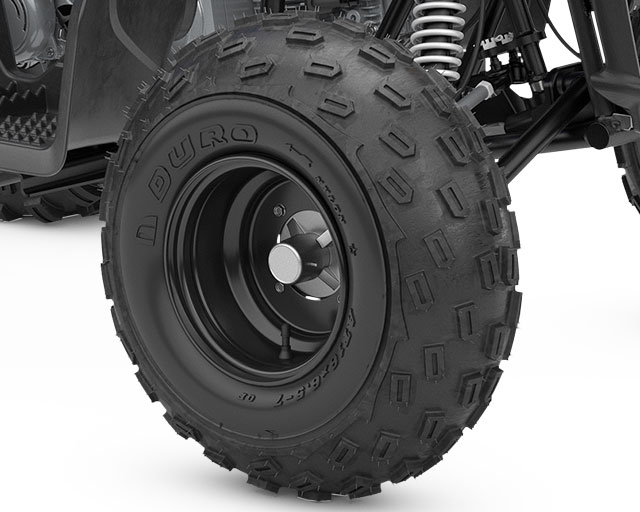

Optimised Tyres

Optimised Tyres

Duro low-profile tyres—AT18 x 7-8 front and AT18 x 9-8 rear—give the Raptor 110 aggressive looks and sporty handling.

Electric Starter

Electric Starter

Push-button electric starting comes standard. For additional peace of mind, a backup kick starter is also provided in a storage spot under the seat.

TECHNICAL SPECIFICATION

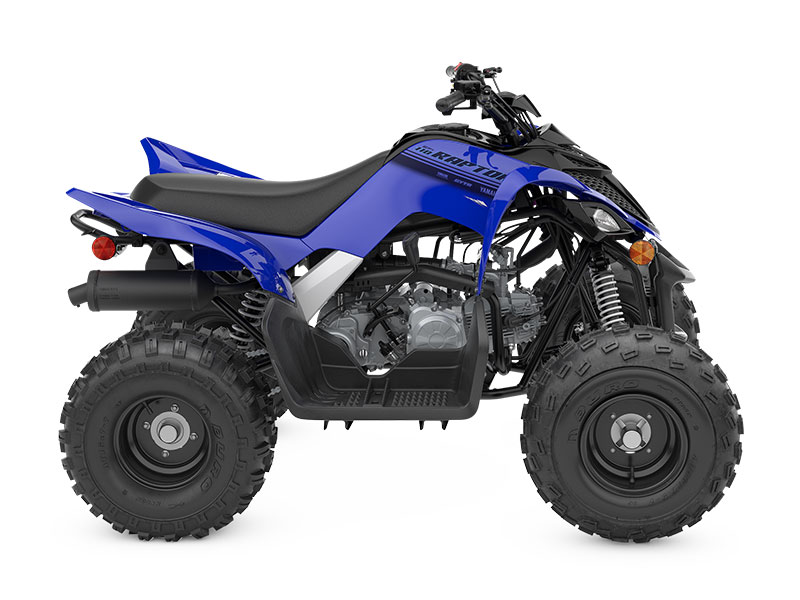

Team Yamaha Blue

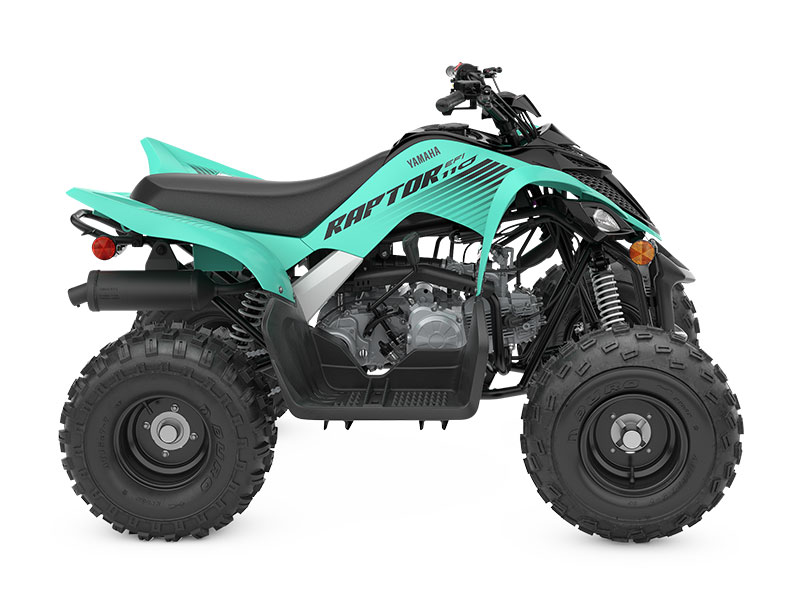

Teal
Engine TypeAir-cooled, 4-stroke, SOHC, 2-valve, single cylinder
Displacement (cc)112
Bore x Stroke (mm)52.4 x 51.8
Compression Ratio9.2 : 1
Lubrication SystemWet sump
Fuel ManagementFuel Injection
IgnitionTCI
Starter SystemElectric
Fuel Capacity (L)6.8
Final TransmissionChain
TransmissionV-belt automatic, F, N, R
Frame TypeSteel tube
Suspension FrontSingle A-arm, 127mm travel
Suspension RearSwingarm, 145mm travel
Brakes FrontDual drums
Brakes RearDrum
Tyres FrontAT18 x 7-8
Tyres RearAT18 x 9-8
Length (mm)1485
Width (mm)1020 Height (mm)991
Seat Height (mm)750
Wheelbase (mm)1030
Ground Clearance (mm)100
Wet Weight (kg)130.4
