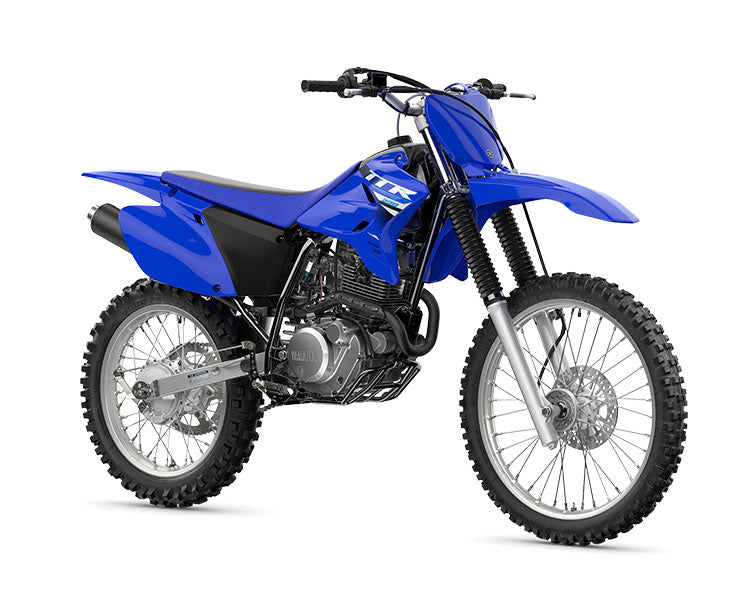

2025 TT-R230

2025 TT-R230

$6,949.00*
$6,949.00*

*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.

Apply for Finance
CLICK HERE FOR CLEARANCE BIKES ON SALE!
SHARE:
View full details
Meet Mr – and Mrs – Versatile. YZ-inspired handling and looks, and a clockwork reliable 223cc air-cooled, SOHC four-stroke make the TT-R230 a great choice for beginner and intermediate riders.

A competition-style flat seat / tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that's accessible to wide range of riders.

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale

MODEL
YEAR

FEATURES

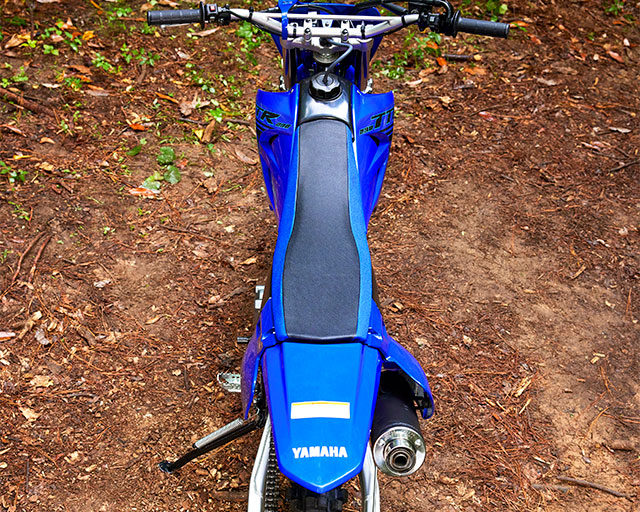

Low seat height

Low seat height

A low seat height atop long-travel suspension and 295mm of ground clearance makes this a very capable trailbike suitable to a wide range of riders.

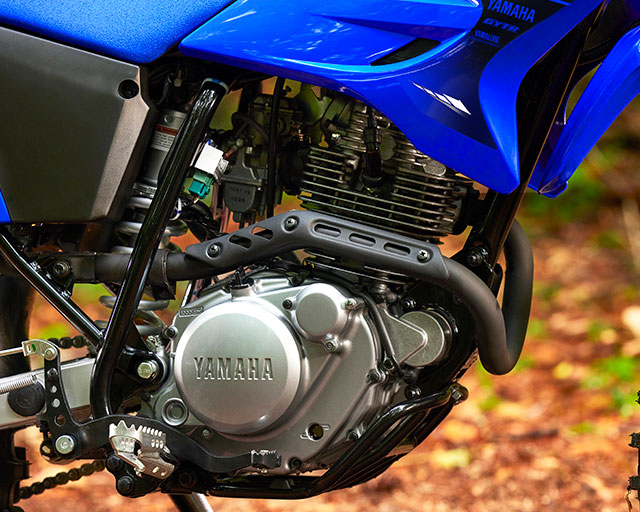

Air-cooled 223cc four-stroke

Air-cooled 223cc four-stroke

Confidence-inspiring handling and a rugged 223cc air-cooled, SOHC four-stroke producing predictable, broadband power make the TT-R230 a great choice for beginner and intermediate riders.

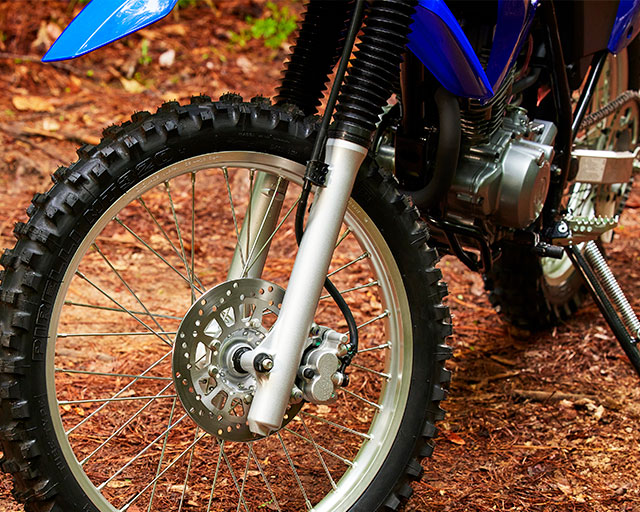

Plush suspension

Plush suspension

36mm front fork with 240mm of wheel travel provides plush, confidence inspiring control over rough terrain. 295mm of ground clearance should be enough to deal with almost any trail.

Superb stopping power

Superb stopping power

Front 220mm disc and 130mm rear drum brakes for powerful, confident stops. Full-size 21-inch front and 18-inch rear aluminium wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.

6-speed gearbox

6-speed gearbox

Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.

TECHNICAL SPECIFICATION

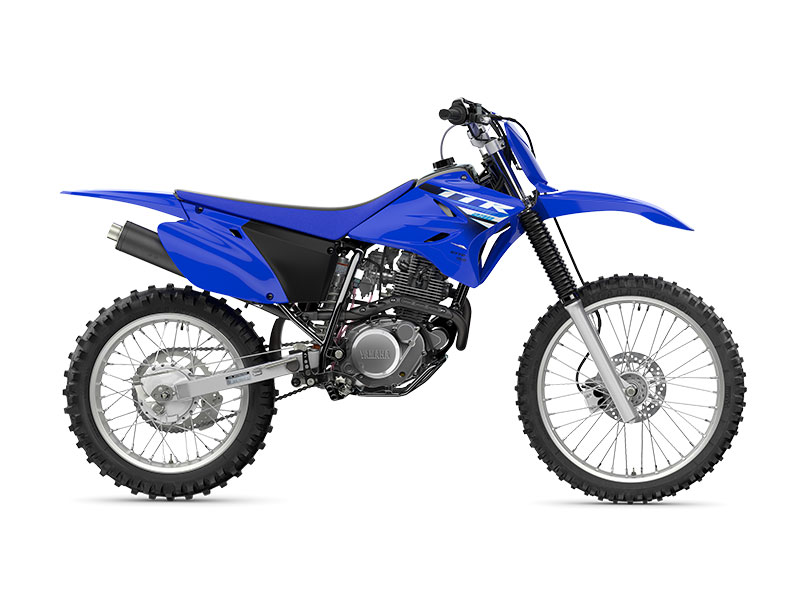

Team Yamaha Blue
Engine TypeAir-cooled, 4-stroke, SOHC, 2-valve, single cylinder
Displacement (cc)223.0
Bore x Stroke (mm)70.0 x 58.0
Compression Ratio9.5 : 1
Lubrication SystemWet sump
Fuel ManagementY26P x 1
IgnitionCDI
Starter SystemElectric
Fuel Capacity (L)8
Final TransmissionChain
TransmissionConstant mesh 6-speed
Frame TypeDiamond
Suspension FrontTelescopic forks, 240mm travel
Suspension RearSwingarm (link suspension), 220mm travel
Brakes FrontHydraulic single disc, 220mm
Brakes RearDrum
Tyres Front80/100-21 51R Tube type
Tyres Rear100/100-18 59R Tube type
Length (mm)2065
Width (mm)800 Height (mm)1180
Seat Height (mm)870
Wheelbase (mm)1385
Ground Clearance (mm)295
Wet Weight (kg)114
