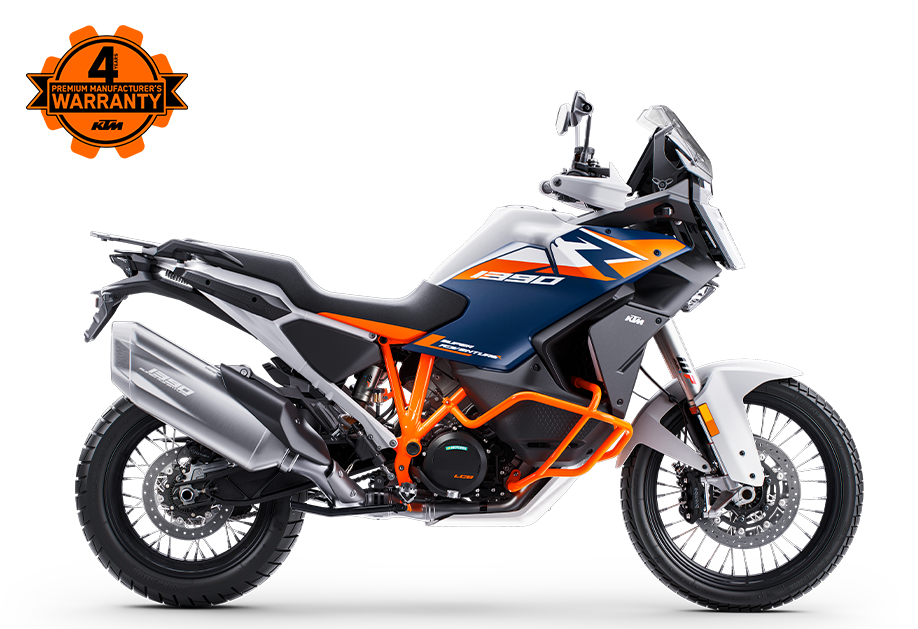

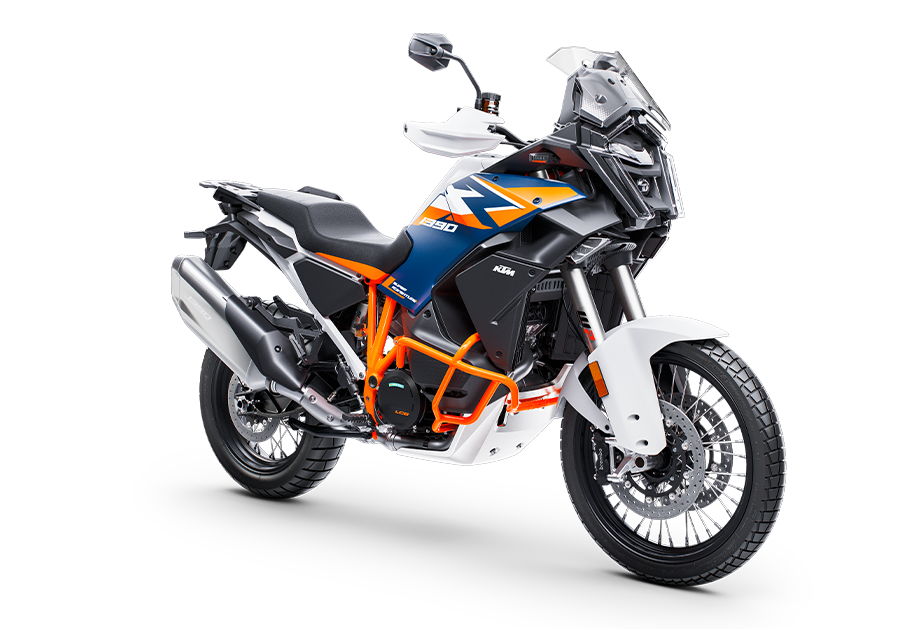

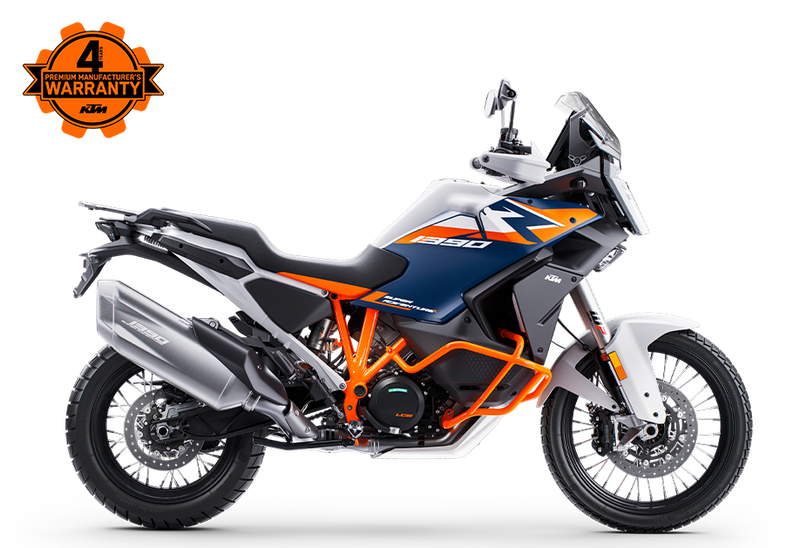

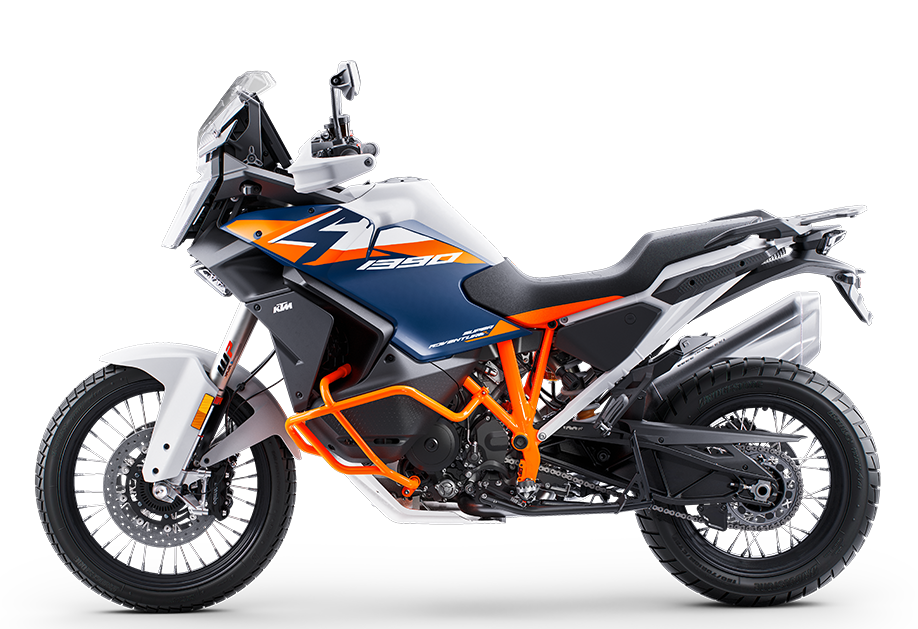

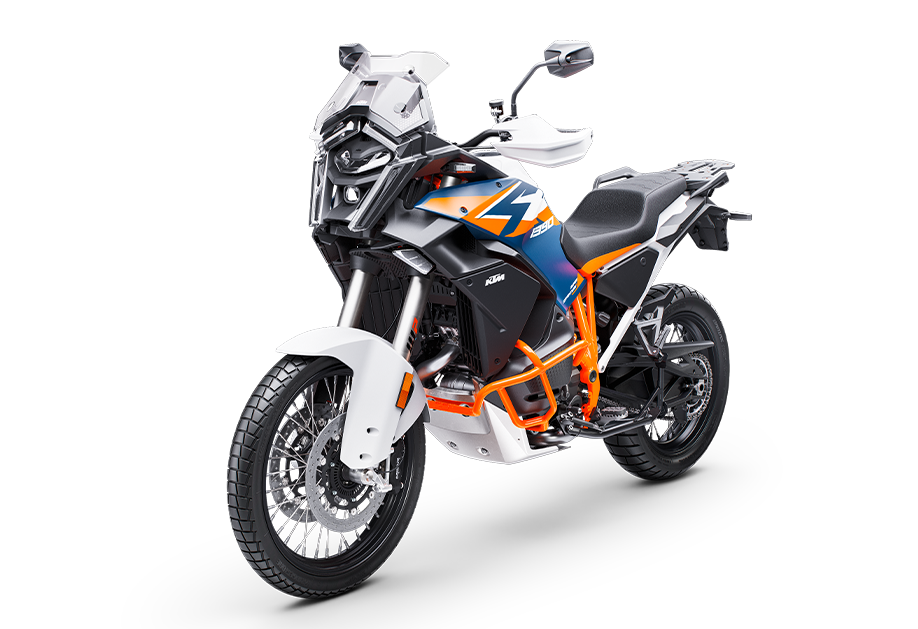

2026 KTM 1390 Super Adventure R
2026 KTM 1390 Super Adventure R
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
Inquiring for 2026 KTM 1390 Super Adventure R
Fill out the form below and one of our friendly sales team will be in touch.
BLAZE NEW TRAILS
Open a map app, find the most remote location, and hit navigate. The KTM 1390 SUPER ADVENTURE R is engineered to cross the wildest, most challenging terrain with unmatched ability and class-leading performance. Not only has it proven itself with a stable of hard-hitting predecessors, but the KTM 1390 SUPER ADVENTURE R nameplate remains the ultimate READY TO RACE v-twin-powered travel machine ever made.
MODEL
YEAR
TECHNICAL SPECIFICATION
| Design2-cylinder, 4-stroke, V 75° |
| Displacement1350 cm³ |
| Torque145 Nm |
| Transmission6-speed |
| CoolingLiquid cooled with water/oil heat exchanger |
| CO2 Emissions139.5 g/km |
| EMSKeihin EMS with RBW, twin ignition |
| Engine OilMotorex, SAE 10W-50 |
| Engine CylinderTwin cylinder |
| Silencer MaterialStainless steel |
| Silencer TypeSilencer |
| Frame DesignChromium-Molybdenum-Steel trellis frame, powder coated |
| Rear Subframe DesignAluminium, powder-coated |
| Front Brake2 x Brembo 4-piston, radially mounted caliper, brake disc Ø 320 mm |
| Rear BrakeBrembo 2-piston, fixed caliper, brake disc Ø 267 mm |
| Chain525 X-Ring |
| Steering Head Angle65.3° |
| Trail110 mm |
| Wheelbase1558 mm |
| Seat Height847 / 867 mm |
| Tank Capacity (Approx.)23 l |
| Ground Clearance223 mm |
| Weight (Without Fuel)227 kg |
| Weight Fully Fueled244 kg |
| Wheelbase Tolerance15 mm |
| Wheelbase1558 ± 15 mm |
| Front Wheel Diameter19" |
| Rear Wheel Diameter17" |
| Front Wheel Width3.50" |
| Rear Wheel Width5" |
| Wheels3.50 x 19"; 5 x 17" |
| Wheel TypeCast aluminium wheels |
