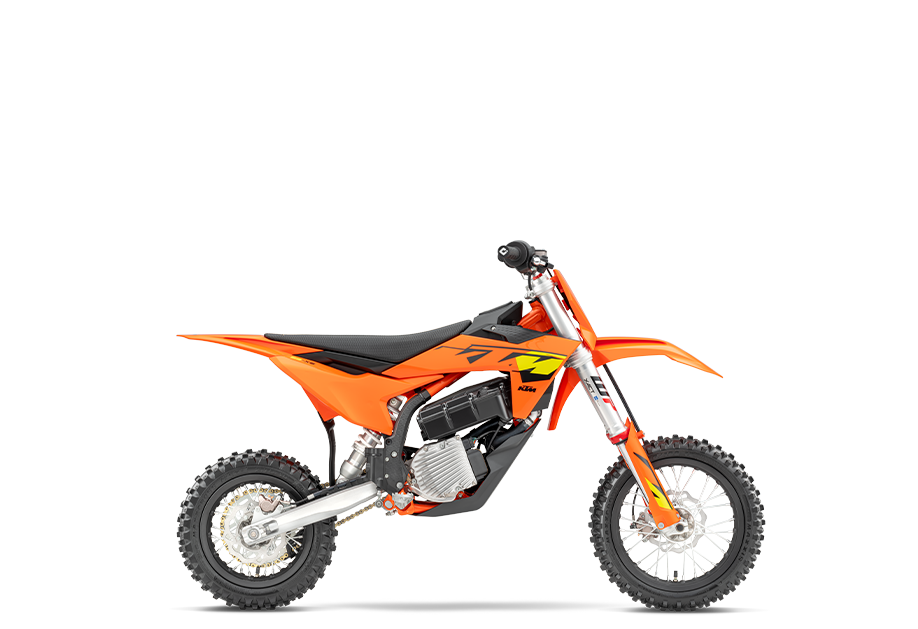

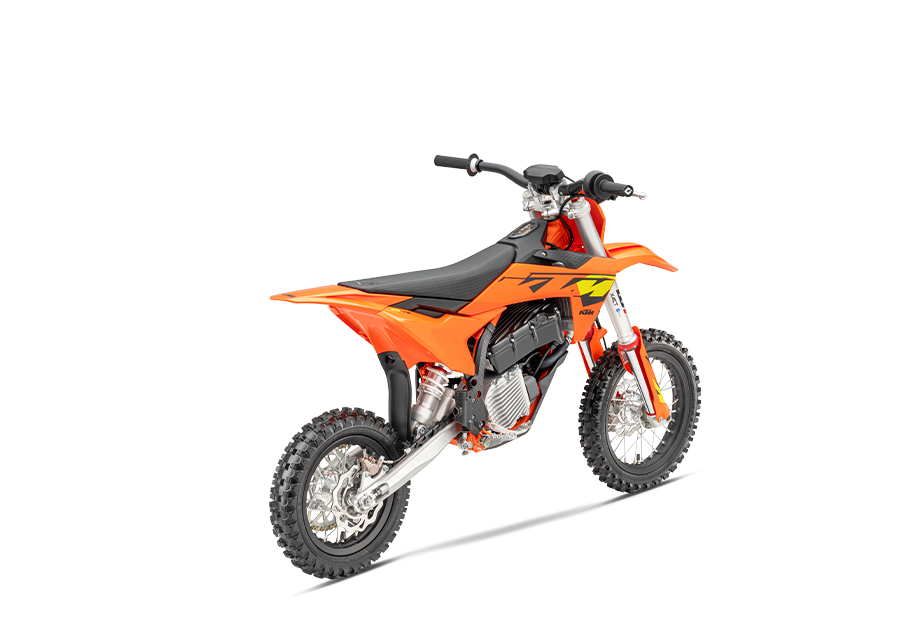

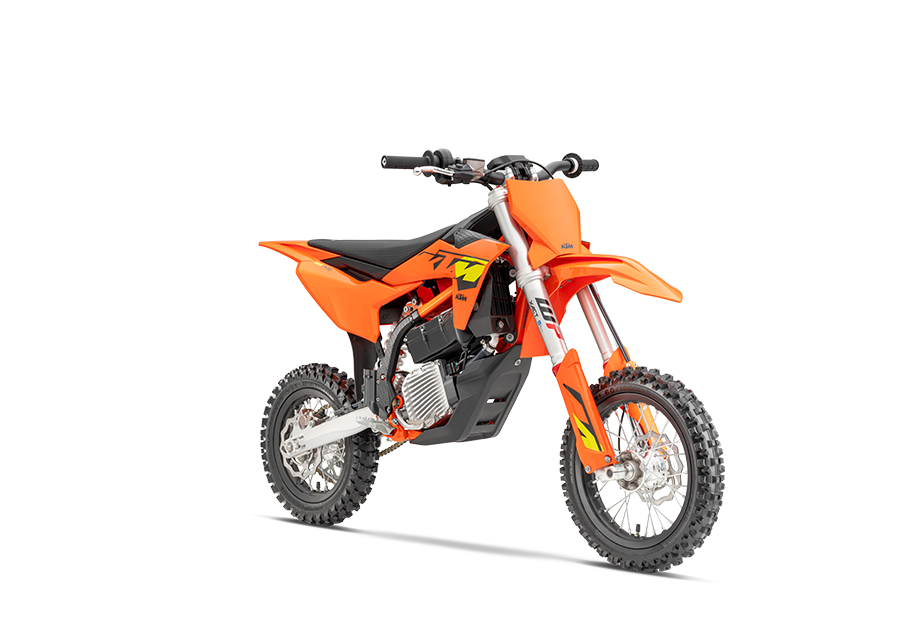

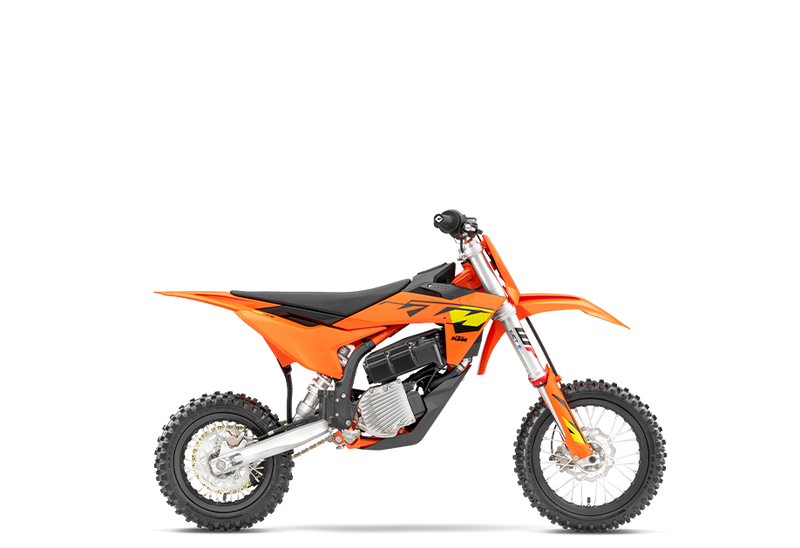

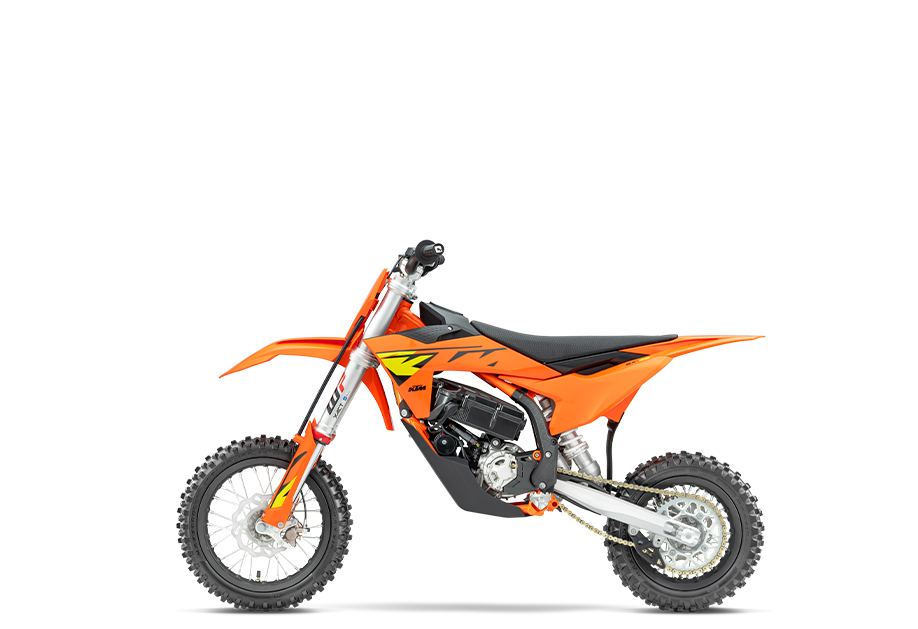

2026 KTM SX-E 5
2026 KTM SX-E 5
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
Fill out the form below and one of our friendly sales team will be in touch.
LEADING THE CHARGE
The KTM SX-E 5 represents the latest generation of advanced all-electric mini-crossers, aimed at both beginner and competitive junior racers. Setting the benchmark in adjustable ergonomics, the KTM SX-E 5 is a high-quality, real-world READY TO RACE alternative to the petrol-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors who are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing, or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need - proudly designed, developed, and produced in Austria.
*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
TECHNICAL SPECIFICATION
| Motor Type48 V - BLDC motor with outer rotor |
| Max Power5 kW / 3,900 rpm |
| Rated Output2 kW / 3,200 rpm |
| Torque13.8 Nm |
| Max Motor Speed6000 rpm |
| Secondary Gear Ratio1 |
| Battery Capacity21 Ah |
| Traction BatteryLithium-Ion KTM PowerPack |
| Charger Line Voltage80-240 V/50-60 Hz |
| Charging Power900 W |
| Charging Time 100%70 min |
| Charging Time 80%45 min |
| Frame DesignChrome-molybdenum steel central-tube frame |
| Rear Subframe DesignGlass fiber reinforced plastic |
| HandlebarTapered aluminum Ø 28/22/18 mm |
| Front BrakeDisc brake |
| Rear BrakeDisc brake |
| Front Brake Disc Diameter160 mm |
| Rear Brake Disc Diameter160 mm |
| Chain415, Non-sealed |
| Steering Head Angle66° |
| Fork Offset22 mm |
| Front Wheel Diameter12" |
| Rear Wheel Diameter10" |
| Front Wheel Width1.5" |
| Rear Wheel Width1.6" |
| Tyre Width (Front)60 |
| Tyre Height (Front)100 |
| Tyre Width (Rear)2.75 |
| Seat Height682 mm |
| Wheelbase1028 ± 10 mm |
| Wheelbase Tolerance10 mm |
| Ground Clearance259 mm |
