2026 YAMAHA
TT-R230
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
Fill out the form below and one of our friendly sales team will be in touch.
-
-
Meet Mr – and Mrs – Versatile. YZ-inspired handling and looks, and a clockwork reliable 223cc air-cooled, SOHC four-stroke make the TT-R230 a great choice for beginner and intermediate riders.
A competition-style flat seat / tank junction makes for great rider mobility while the push button start is a no brainer. A low seat height on top of a long-travel suspension and generous ground clearance make this a serious trail bike that's accessible to wide range of riders.
- Displacement
- 223.0cc
- Frame
- Diamond
- Wet weight
- 114kg
- Fuel capacity
- 8L
GALLERY
THE DETAILS MAKE THE DIFFERENCE
BUILT TO GO BEYOND.
-

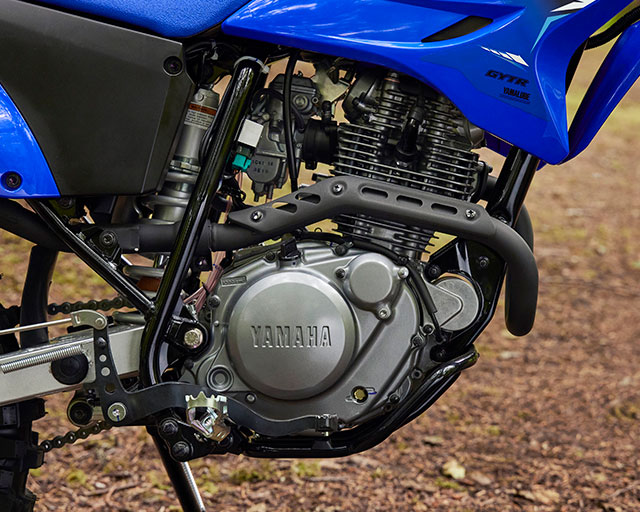

Air-cooled 223cc four-stroke
-
Plush suspension
-

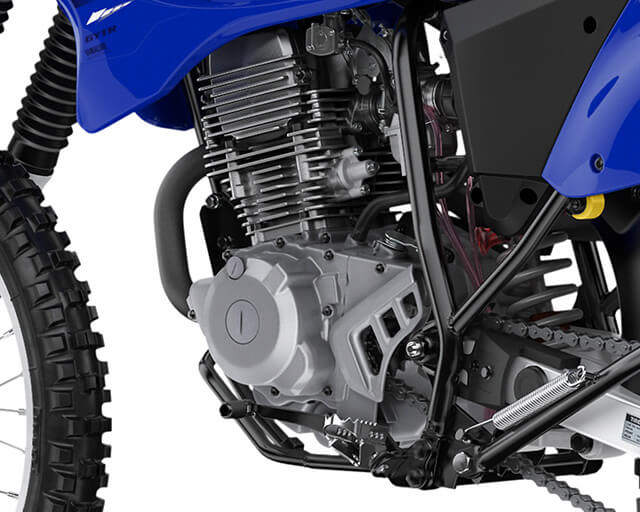

6-speed gearbox
-

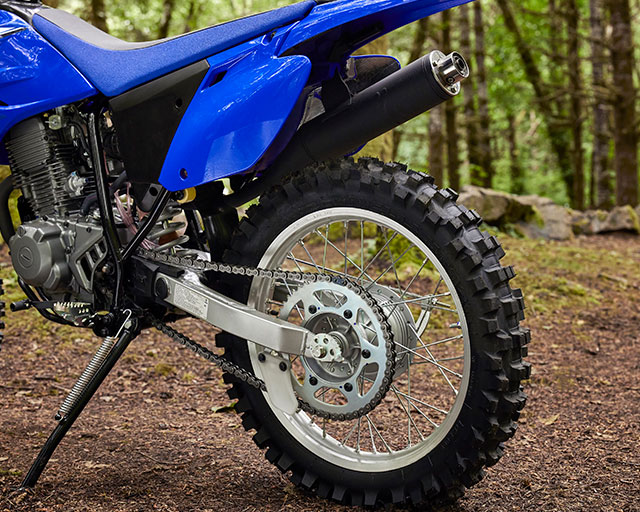

Superb stopping power
-

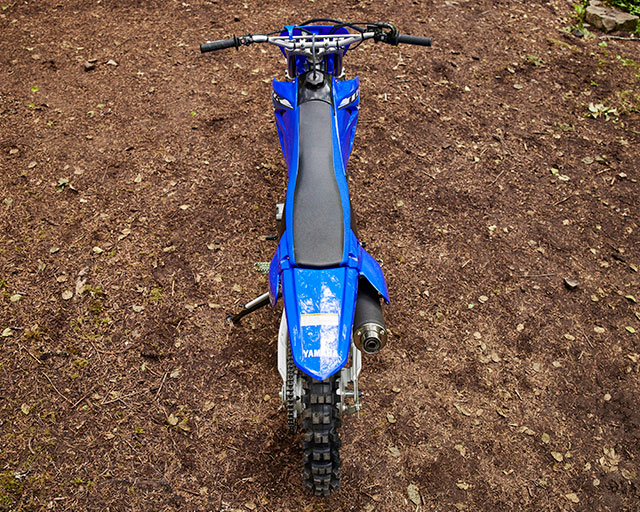

Low seat height
KNOW YOUR MACHINE
TECHNICAL SPECIFICATIONS
The numbers behind the R1M.
Engine
- Engine type
- Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
- Displacement (cc)
- 223.0
- Bore x Stroke (mm)
- 70.0 x 58.0
- Compression Ratio
- 9.5 : 1
- Lubrication System
- Wet sump
- Fuel Management
- Y26P x 1
- Ignition
- CDI
- Starter System
- Electric
- Fuel Tank Capacity (L)
- 8
- Final Transmission
- Chain
- Transmission
- Constant mesh 6-speed
Chassis
- Frame Type
- Diamond
- Suspension Front
- Telescopic forks, 240mm travel
- Suspension Rear
- Swingarm (link suspension), 220mm travel
- Brakes Front
- Hydraulic single disc, 220mm
- Brakes Rear
- Drum
- Tyres Front
- 80/100-21 51R Tube type
- Tyres Rear
- 100/100-18 59R Tube type
Dimensions
- Length (mm)
- 2065
- Width (mm)
- 800
- Height (mm)
- 1180
- Seat Height (mm)
- 870
- Wheelbase (mm)
- 1385
- Ground Clearance (mm)
- 295
- Wet Weight (kg)
- 114
