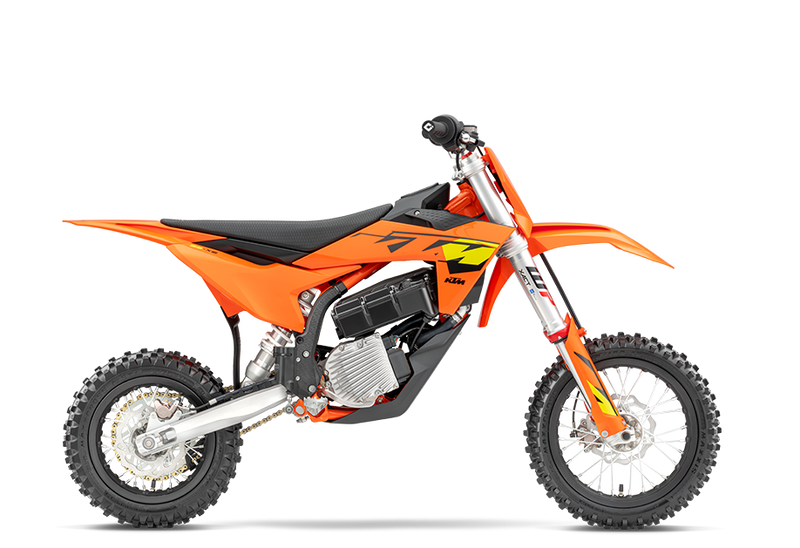

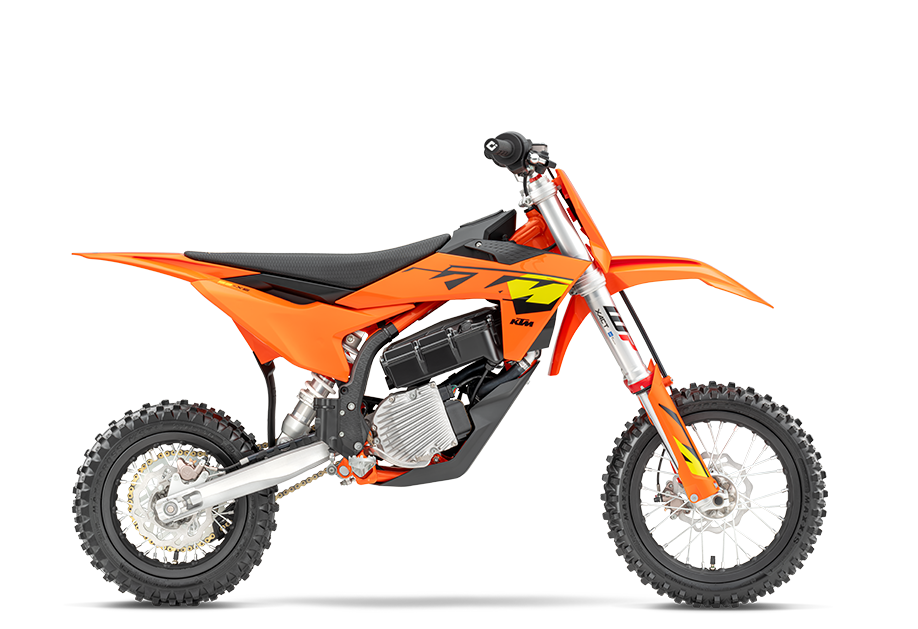

2027 KTM SX-E 5
2027 KTM SX-E 5
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
Fill out the form below and one of our friendly sales team will be in touch.
LEADING THE CHARGE
The KTM SX-E 5 represents the latest generation of advanced all-electric mini-crossers, aimed at both beginner and competitive junior racers. Setting the benchmark in adjustable ergonomics, the KTM SX-E 5 is a high-quality, real-world READY TO RACE alternative to the petrol-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors who are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing, or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need - proudly designed, developed, and produced in Austria.
TECHNICAL SPECIFICATION
| Electric Motor48 V - BLDC motor with outer rotor |
| Max. Power5 kW / 3,900 rpm |
| Rated Output2 kW / 3,200 rpm |
| Torque13.8 Nm |
| Max. Motor Speed6000 rpm |
| Battery Capacity21 Ah |
| Traction BatteryLithium-Ion KTM PowerPack |
| Secondary Gear Ratio8:46 |
| Charger Line Voltage80-240 V/50-60 Hz |
| Charging Power900 W |
| Charging Time (80%)45 min. |
| Charging Time (100%)70 min. |
| Frame DesignChrome-molybdenum steel central-tube frame |
| Rear Subframe DesignGlass fiber reinforced plastic |
| HandlebarTapered aluminum Ø 28/22/18 mm |
| Front BrakeDisc brake |
| Rear BrakeDisc brake |
| Front Brake Disc Diameter160 mm |
| Rear Brake Disc Diameter160 mm |
| Brake Disc Diameters (Front/Rear)160 / 160 mm |
| Wheels1.5 x 12"; 1.6 x 10" |
| Tyre Width (Front)60 |
| Tyre Height (Front)100 |
| Tyre Width (Rear)2.75 |
| Chain415, Non-sealed |
| Steering Head Angle66 ° |
| Seat Height682 mm |
| Wheelbase1028 ± 10 mm |
| Ground Clearance259 mm |
