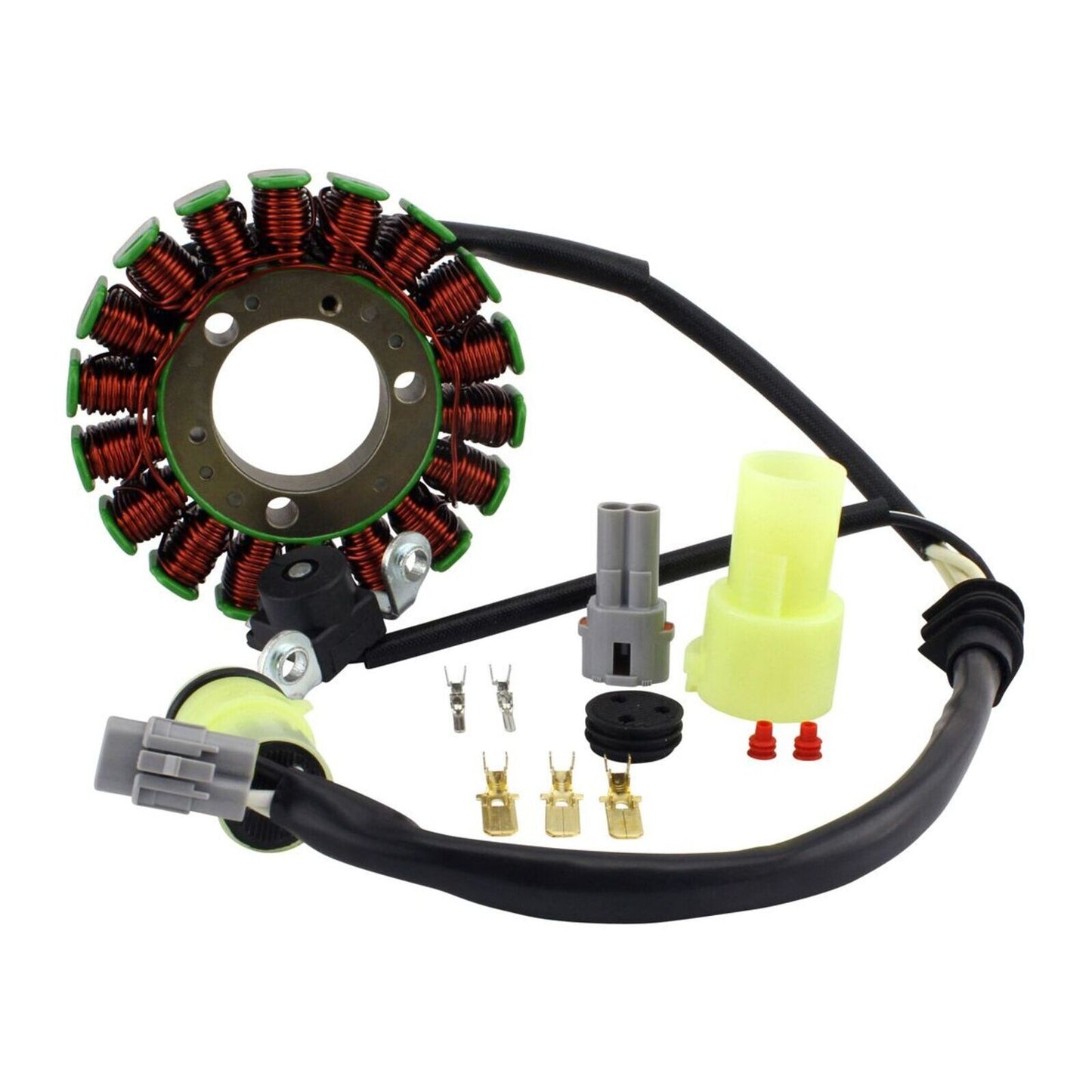

300W High Output RM Stator Yamaha YFZ450R/X \'09-\'24 (RMS010-107948)

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

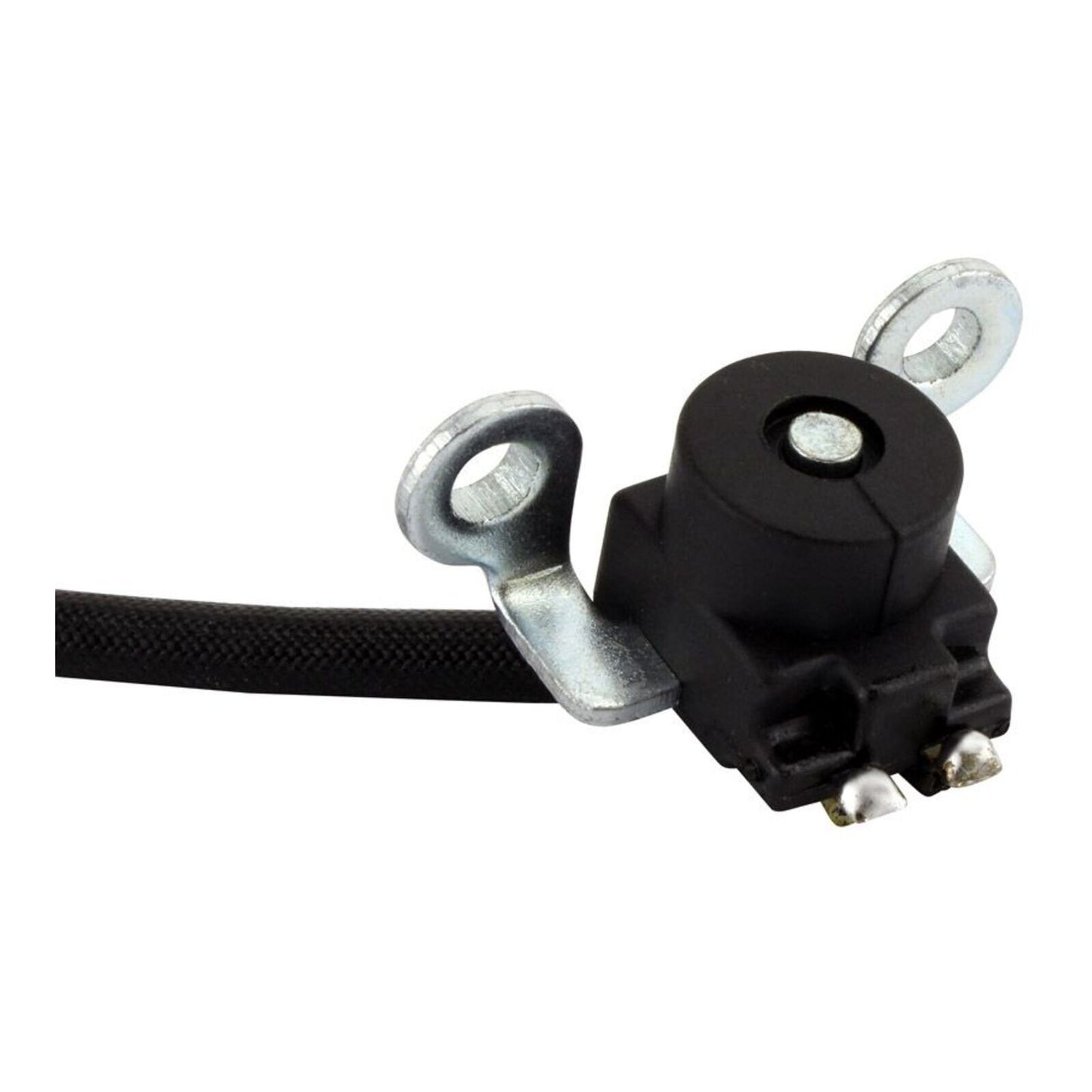

• Pick up pulsar coil included

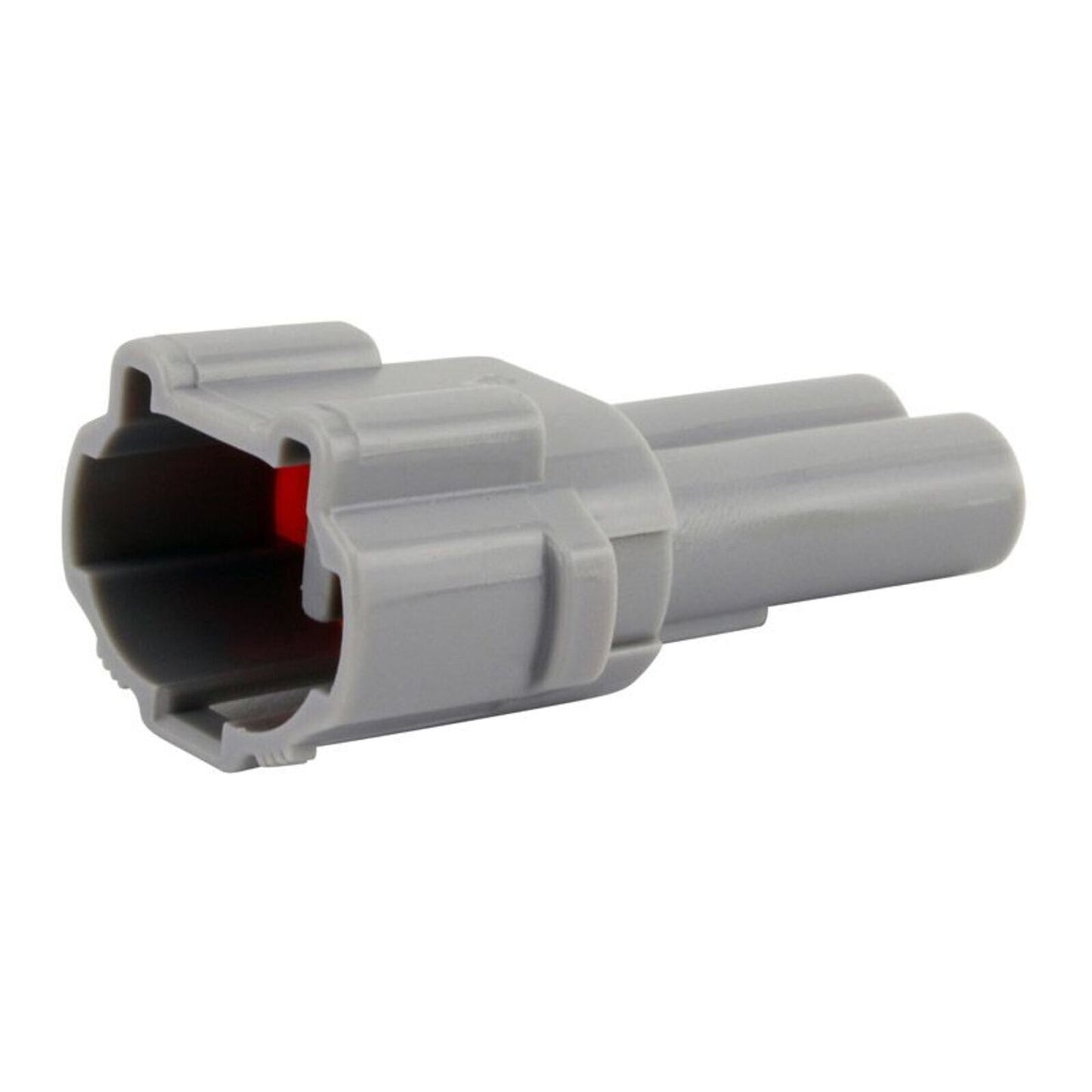

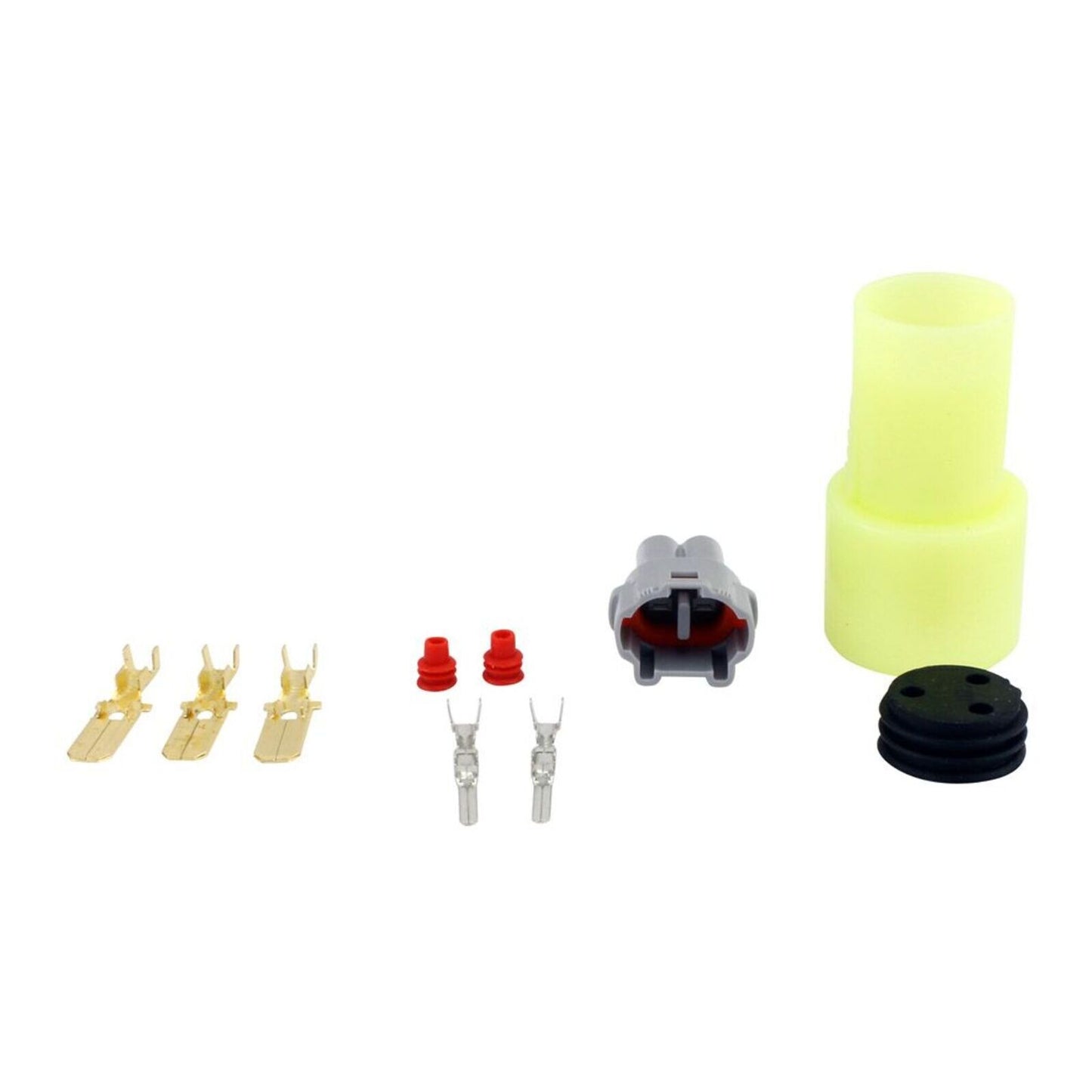

• Connectors included
• Rubber grommet included
• All products shipped are tested

This stator output 300W (vs OEM 208W) to give you extra power to install accessories and lighting.

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

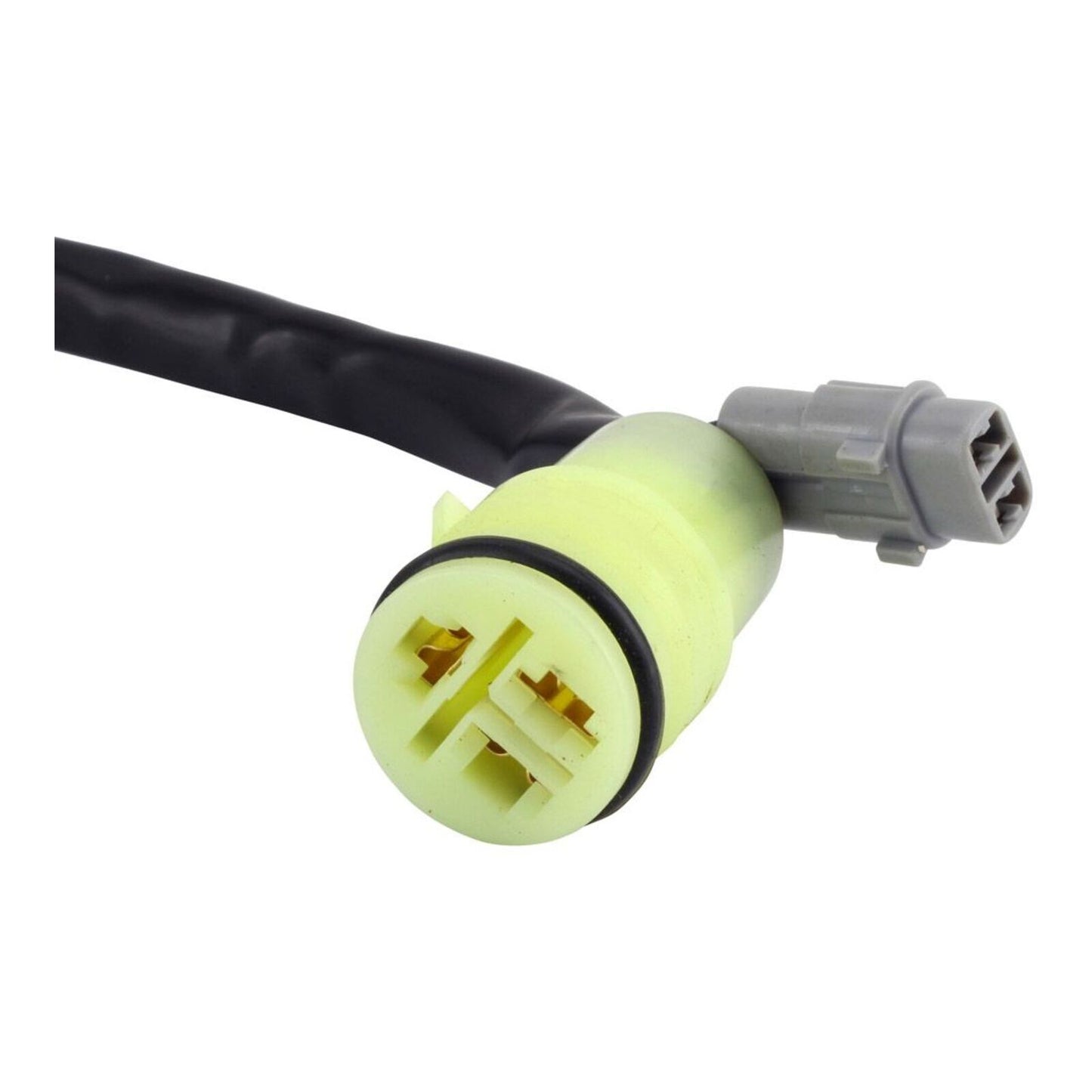

RM Stators has even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:

• Interior diameter: 37 mm
• Exterior diameter: 97 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 160 mm
• Length of wires grommet to plug: 180 mm
• Length of pickup coil\'s wire to grommet: 180 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: White to White = 0.2 ohms +-20%
  • Pickup: White to Black = 260 ohms +-20%

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
