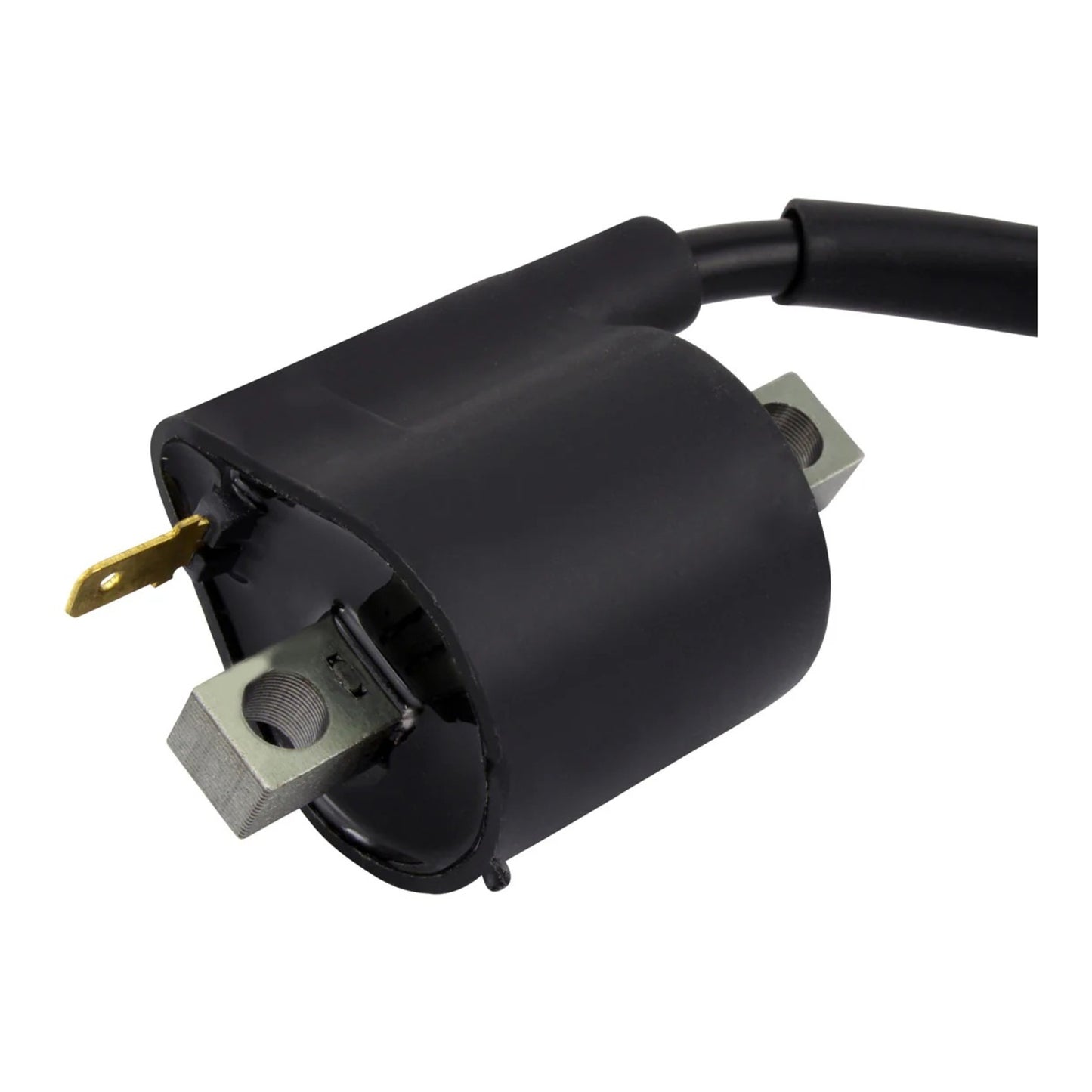

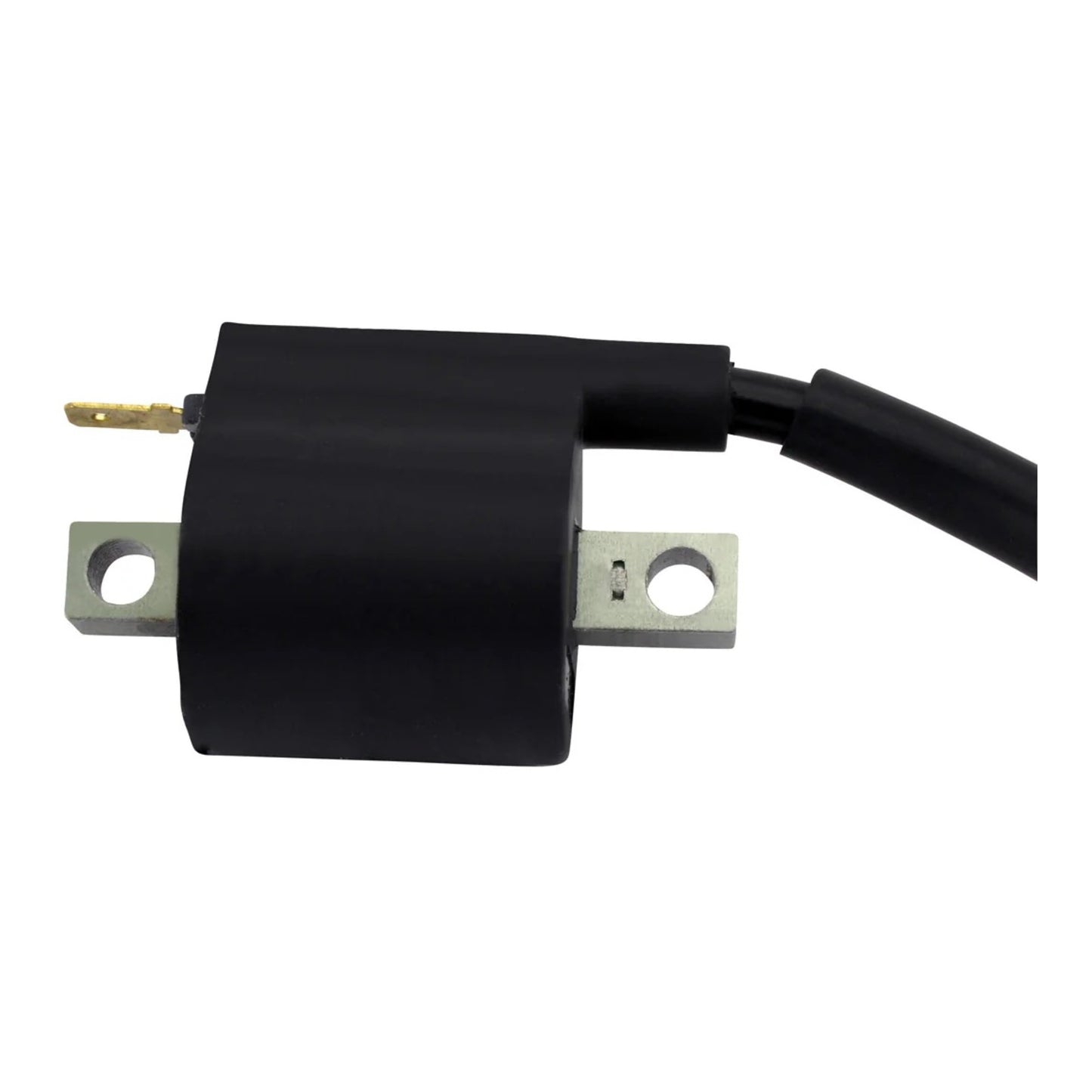

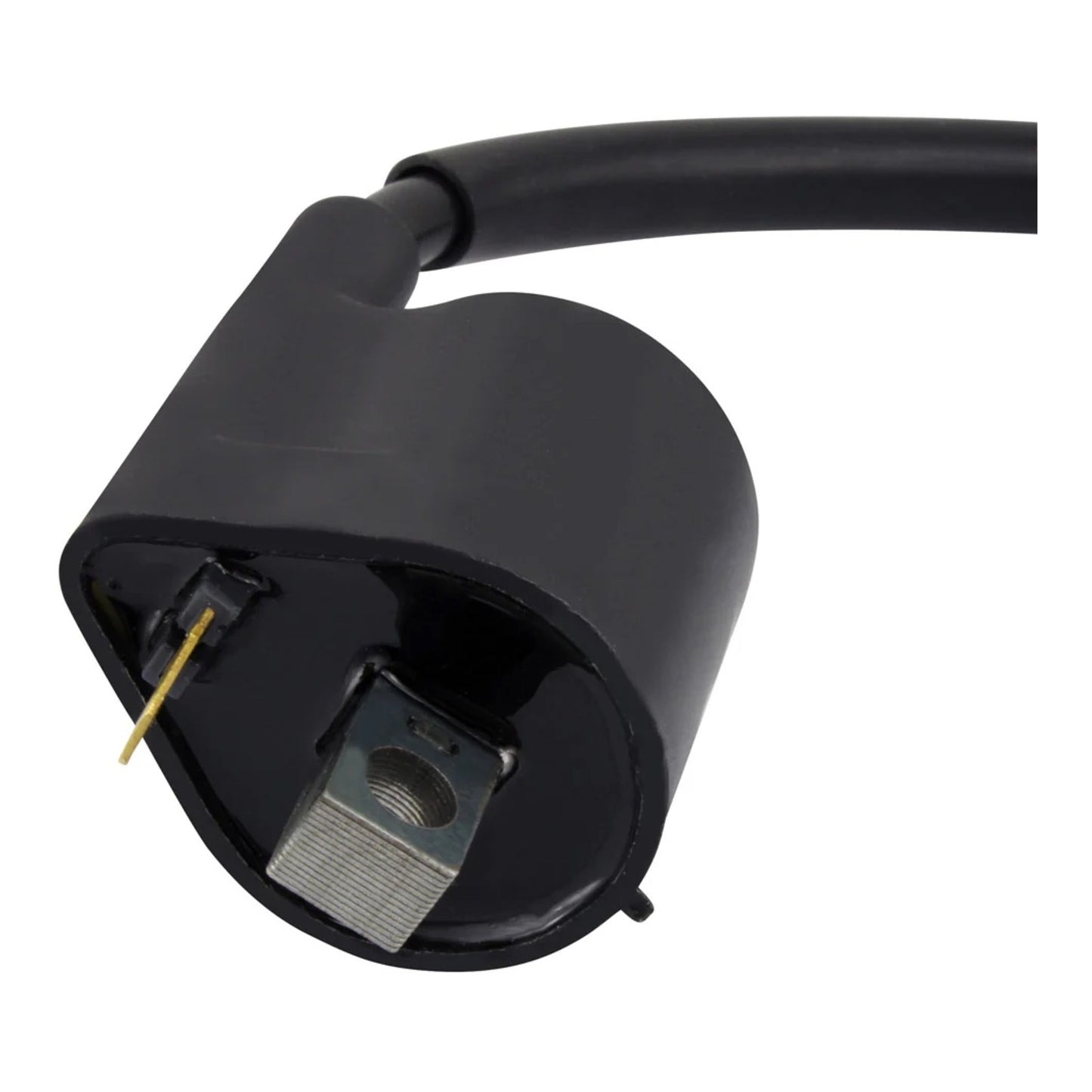

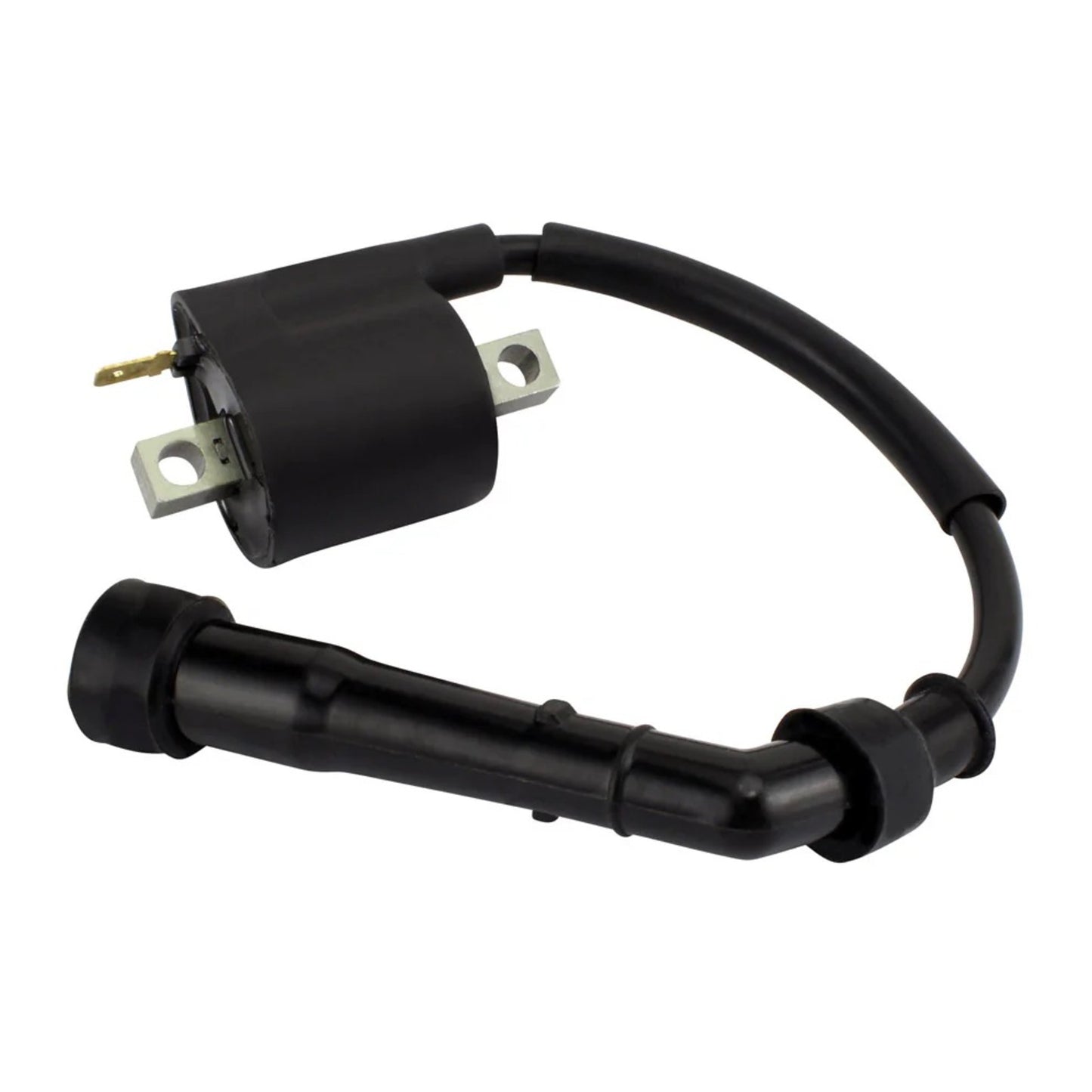

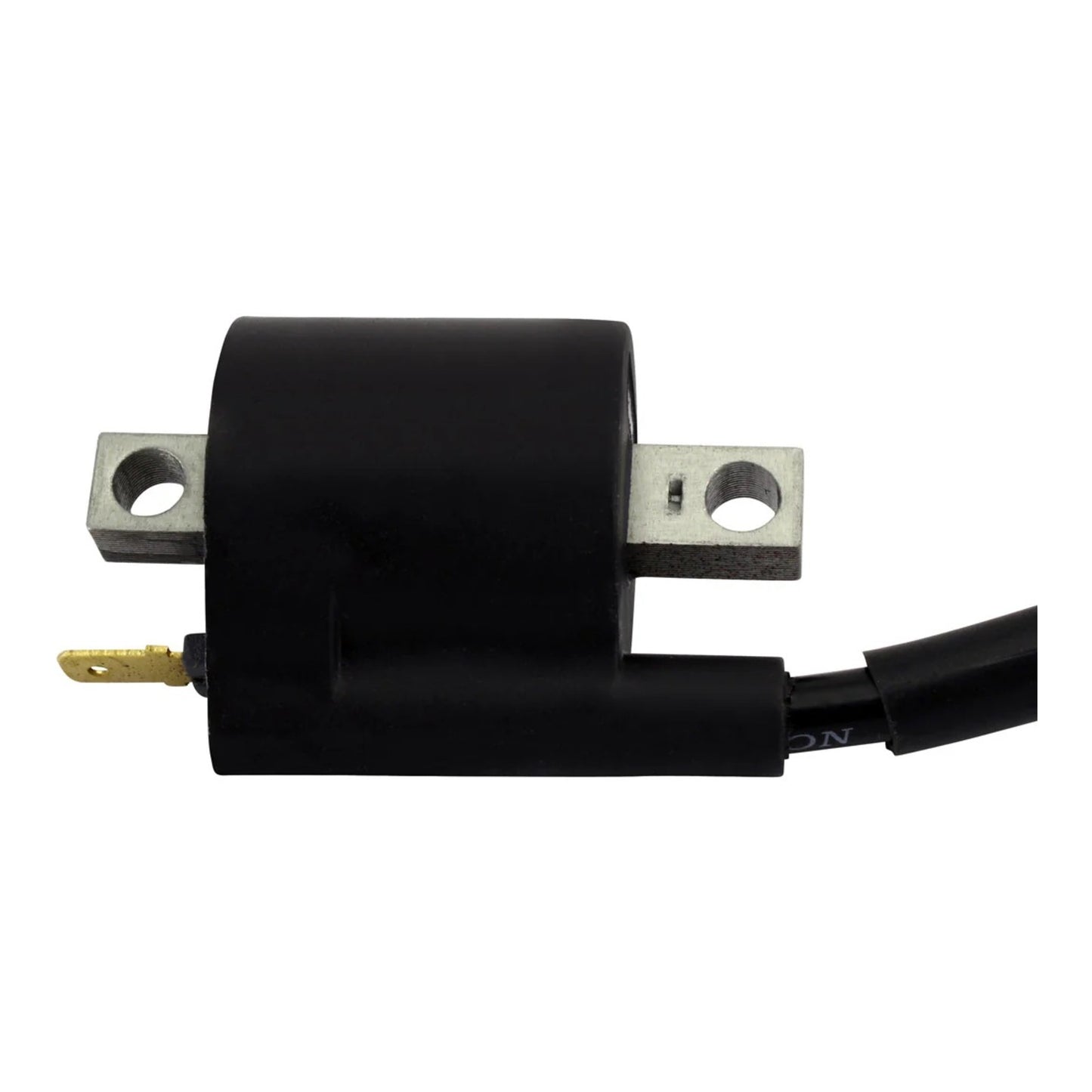

External Ignition Coil with Cap - Suzuki Models
External Ignition Coil with Cap - Suzuki Models
separator
Or split over 4 payments with Afterpay
Brand new aftermarket external ignition coil with spark plug cap.
Features:
- Direct replacement of your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials.
- Spark plug cap(s) included.
- All products shipped are tested.
Specifications:
- Width: 46m
- Length: 66mm
- Height: 38mm
- Wires length: 180mm
- Fixation holes centre to centre: 55mm
- Primary Resistance: 0.9 ohms
- Secondary Resistance without cap: 6.6k ohms
- Secondary Resistance with cap: 16.9k ohms
*The image shown is for illustrative purposes only. Actual product colour may vary. Depending on availability and model, the item may be supplied in blue or black. Product specifications and quality remain the same regardless of colour. If in doubt, do not hesitate to compare our item to your original part.
*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
