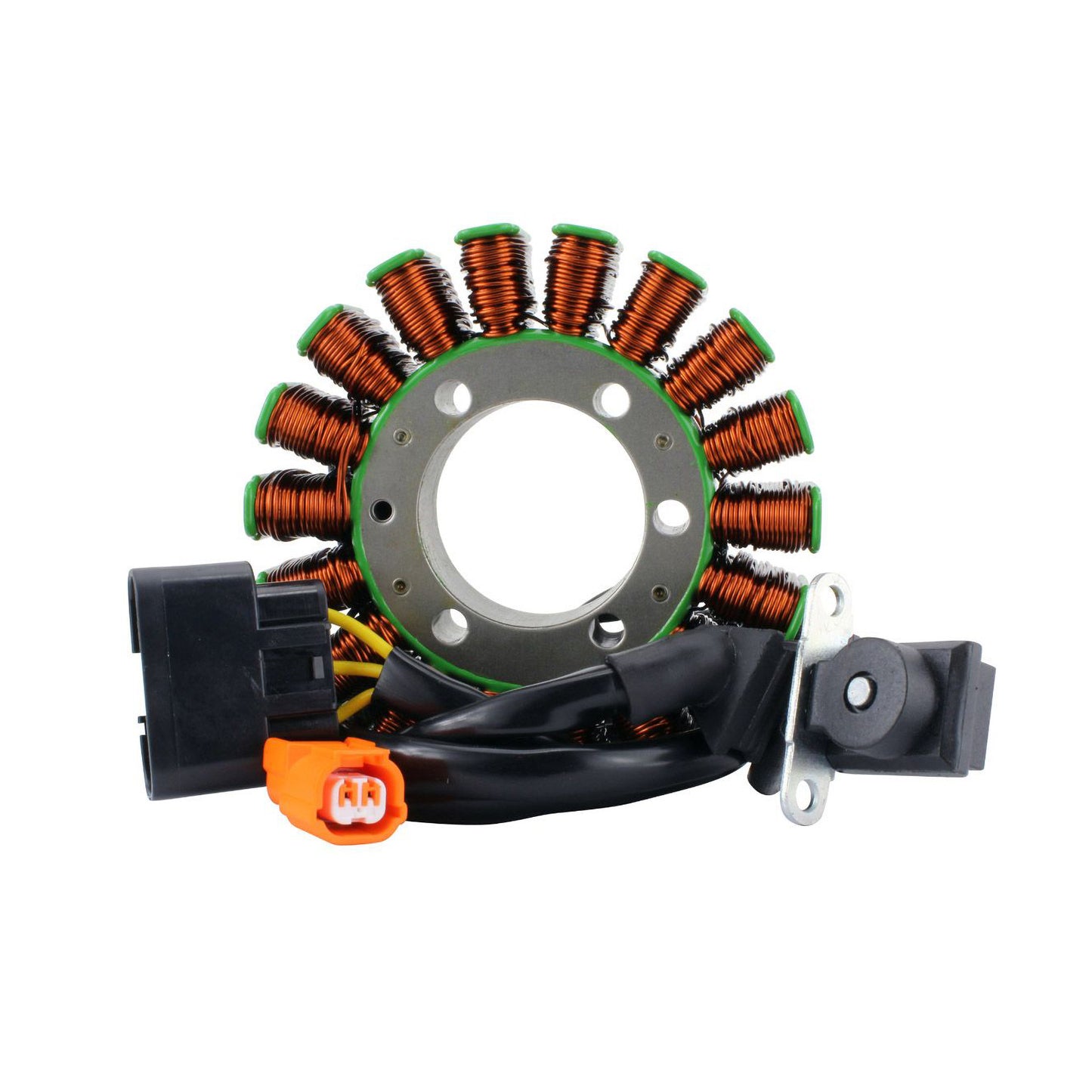

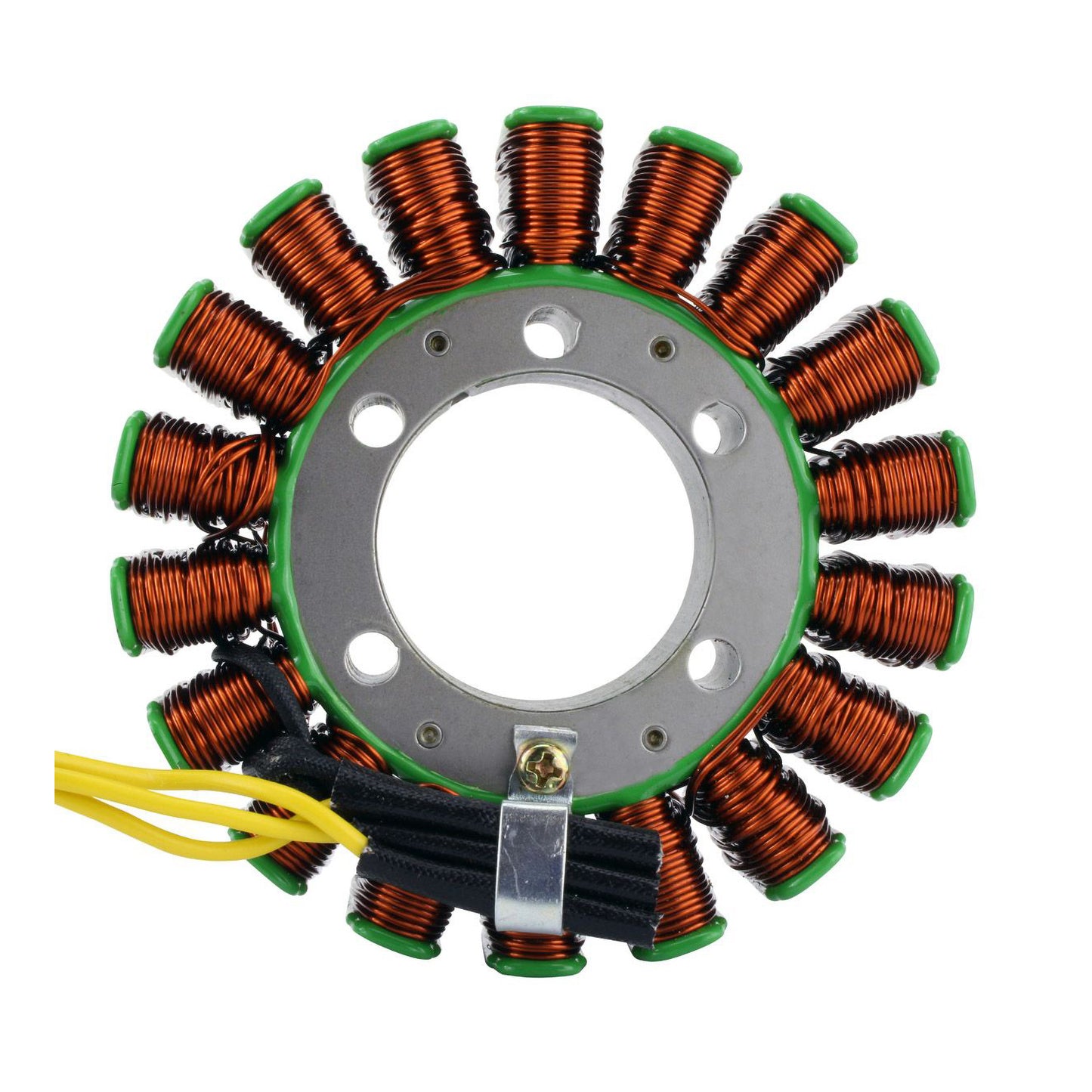

GENERATOR STATOR HONDA TRX420FA 14-21 (RMS010-107116)

Plug-and-play replacement generator stator from RM Stator. See fitment guide for model details.

Dimensions:

• Interio r diameter: 42 mm
• Exterior diameter: 107 mm
• Thickness: 24 mm
• Length of wires stator to grommet: 110 mm
• Length of wires grommet to plug: 370 mm & 835 mm
• Length of pickup coil\'s wire to grommet: 80 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18
• Wire to wire resistance:
• Alternator: Between each Yellow = 0.6 ohms +-20%
• Pickup: Blue/Yellow to Green = 116 ohms +-20%

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

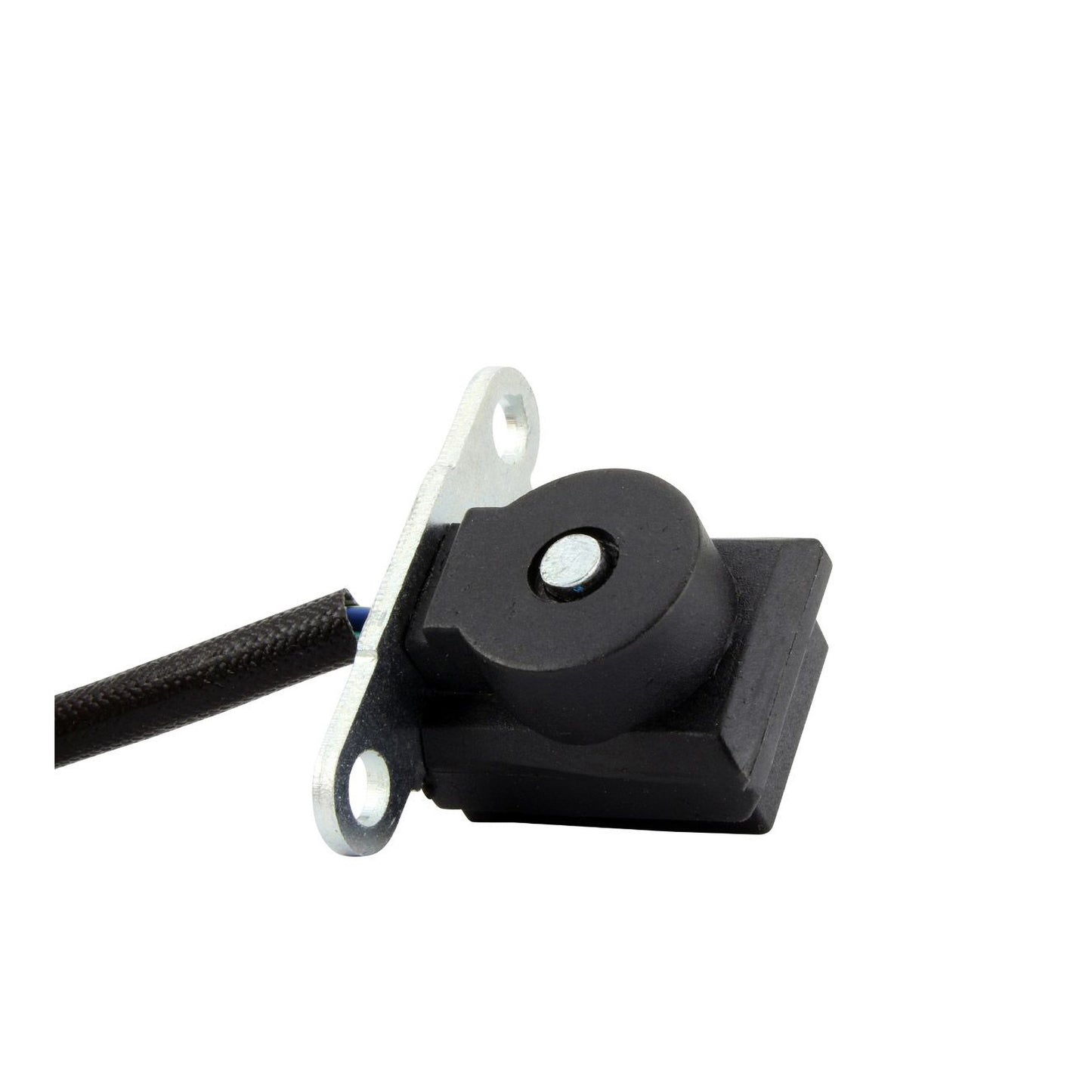

• Pick up pulsar coil included

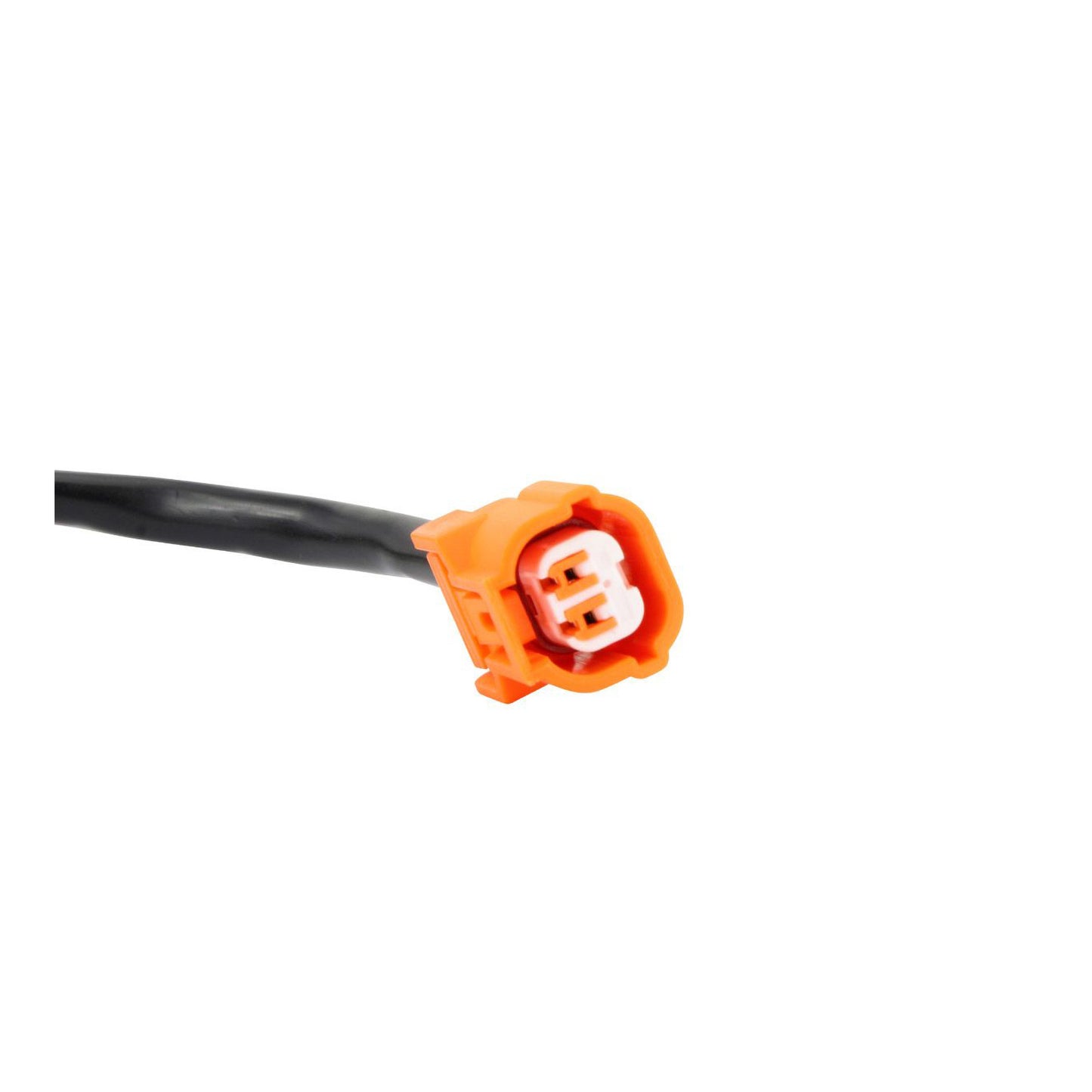

• Connectors included

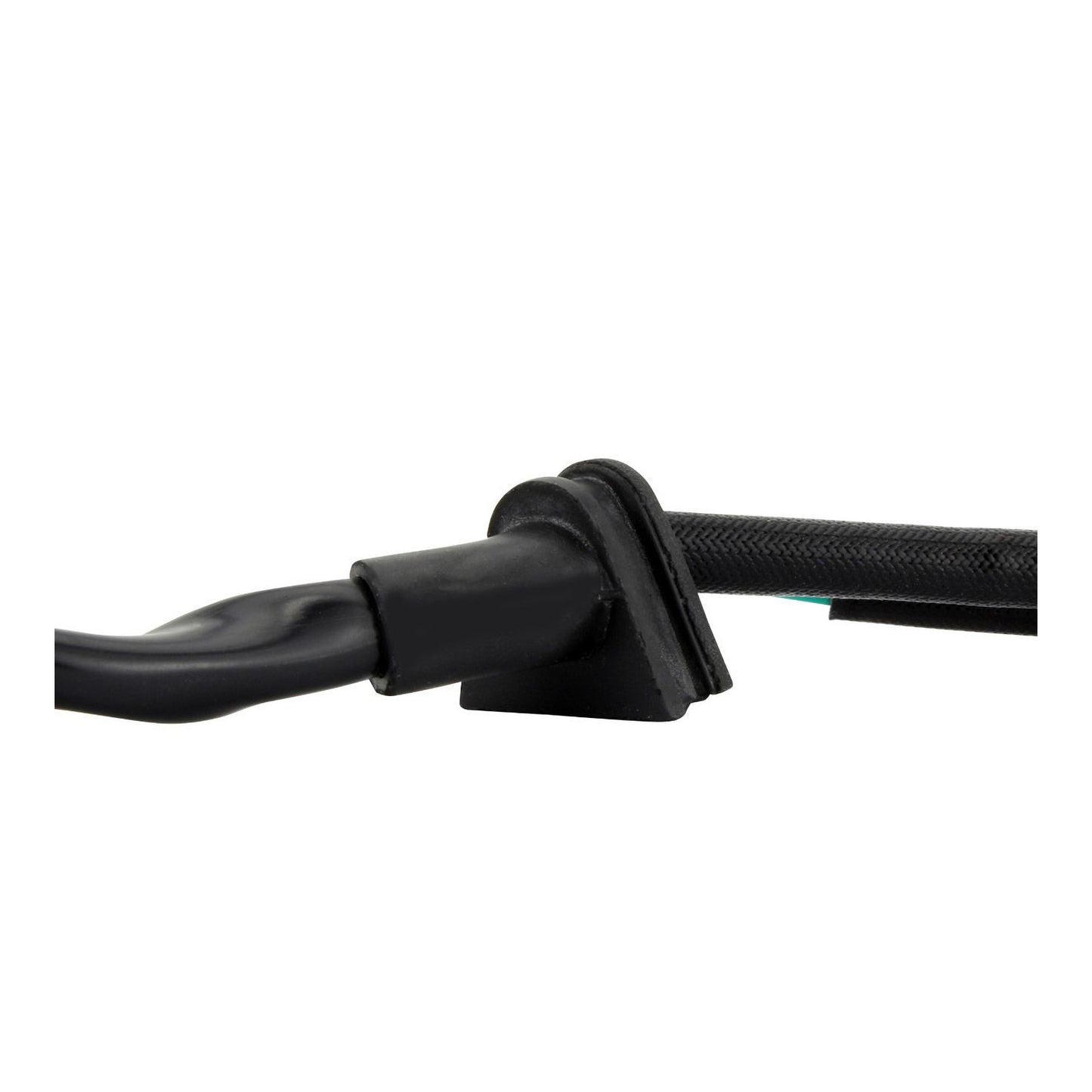

• Rubber grommet included
• All products shipped are tested
