GENERATOR STATOR KAW KLX140 08-21 (RMS010-107080)
GENERATOR STATOR KAW KLX140 08-21 (RMS010-107080)
separator
Or split over 4 payments with Afterpay

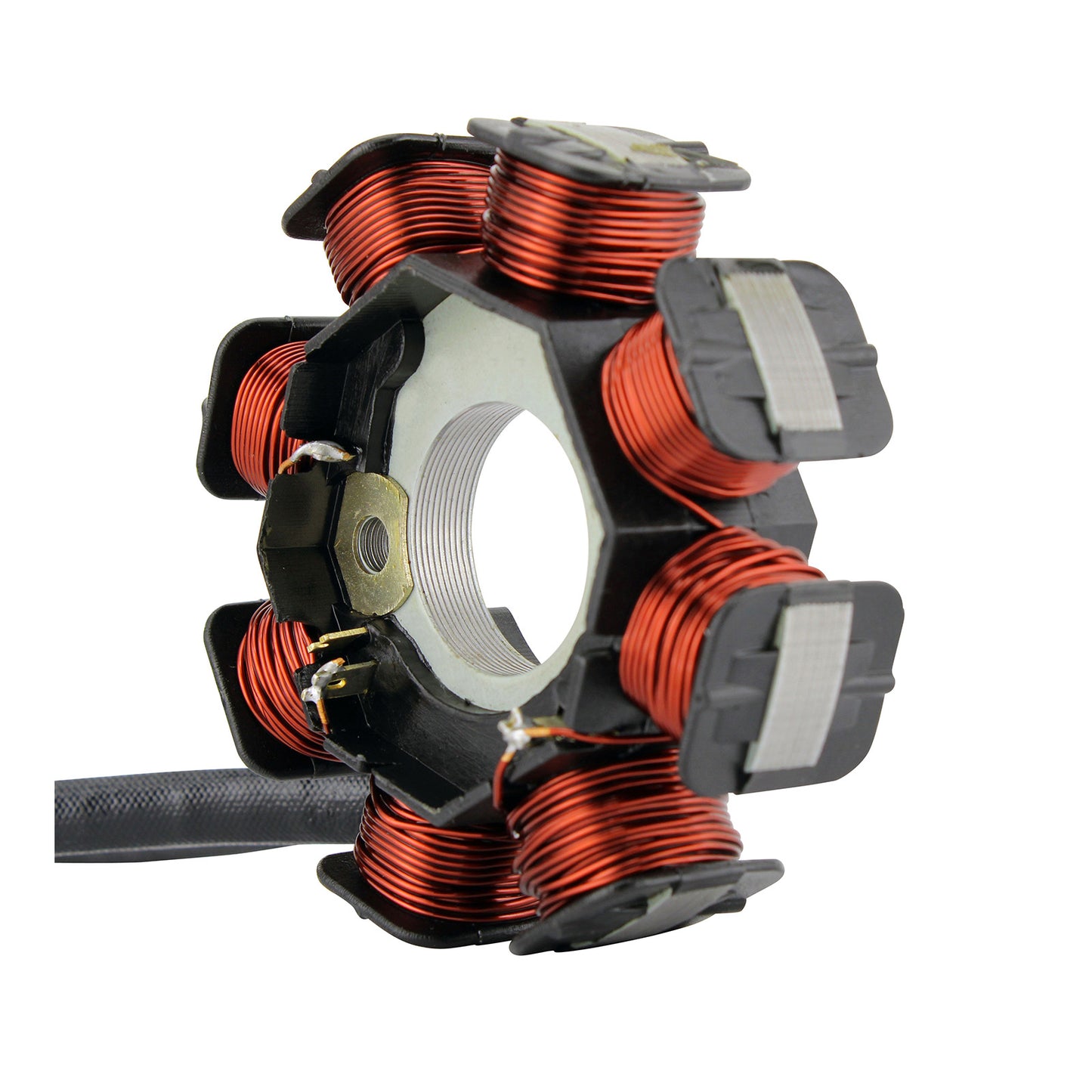

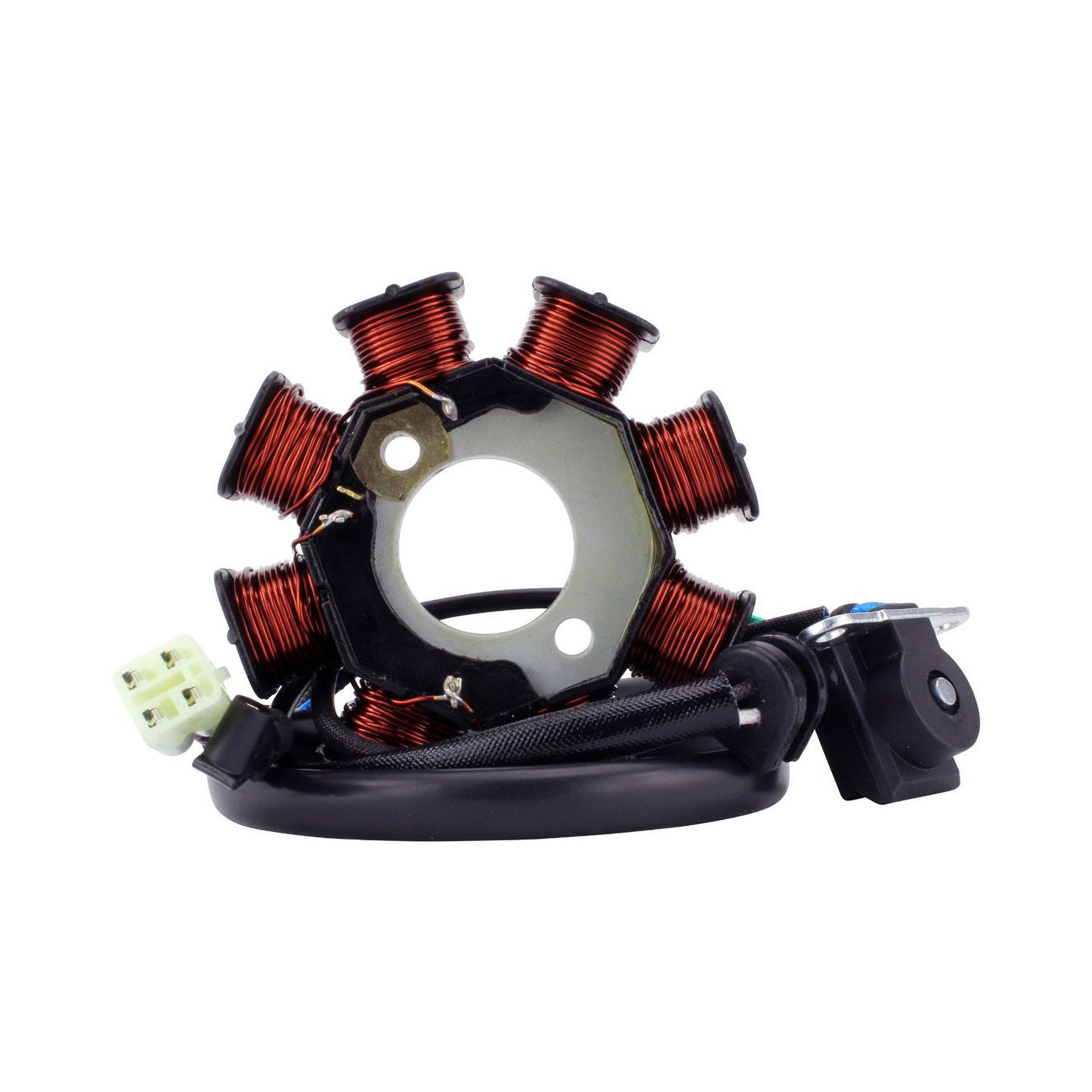

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest-grade lamination materials
- Highest-grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions :
- Interior diameter: 29 mm
- Exterior diameter: 88 mm
- Thickness: 10 mm
- Length of wires stator to grommet: 110 mm
- Length of wires grommet to plug: 475, 100 mm
- Length of pickup coil\'s wire to grommet: 145 mm
Other specifications :
- Number of wires: 4
- Number of plugs: 2
- Number of holes: 2
- Number of poles: 8
- Alternator : White to Ground = 1.1 ohms +-20%
- Pickup: Blue/yellow to Ground = 119 ohms +-20%
*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
