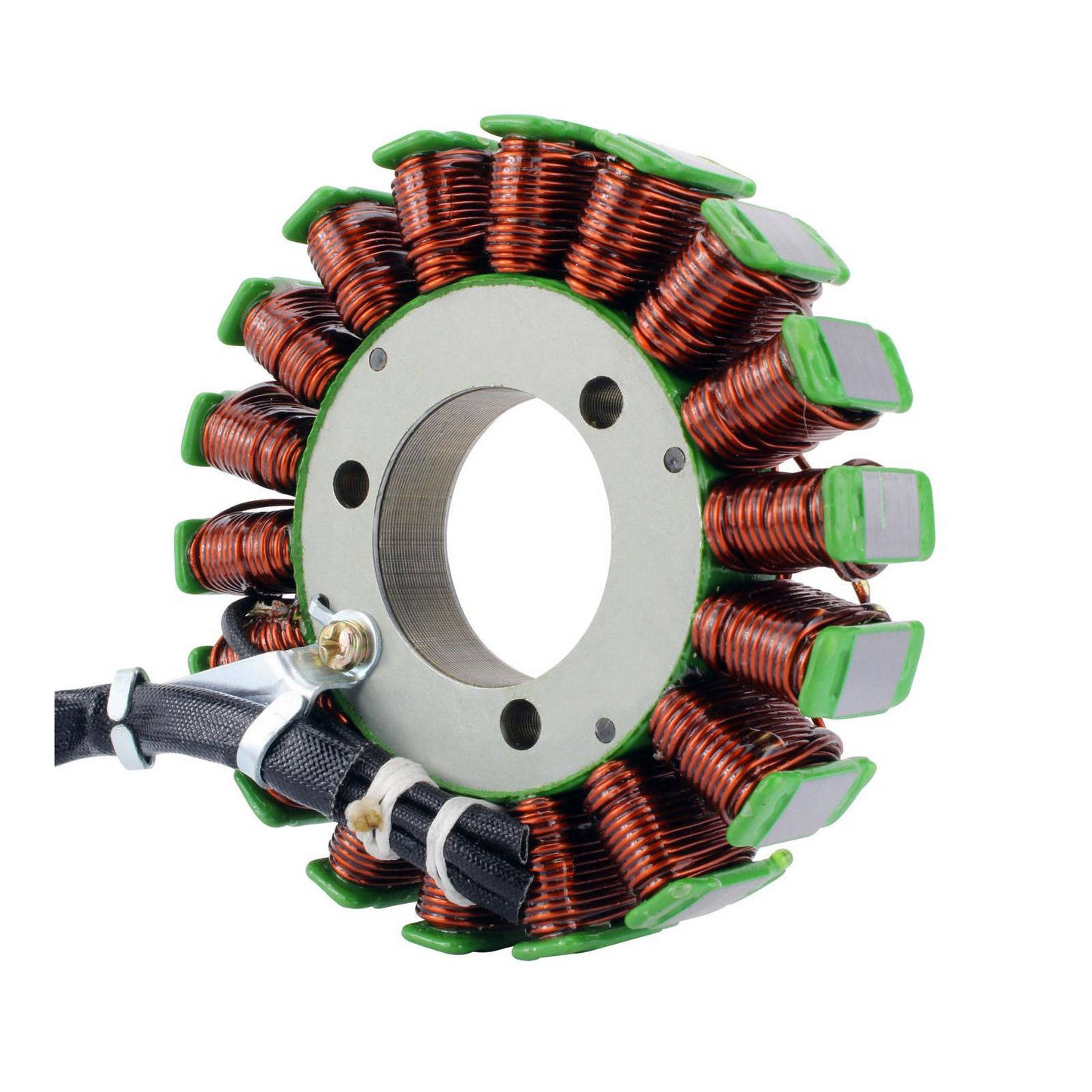

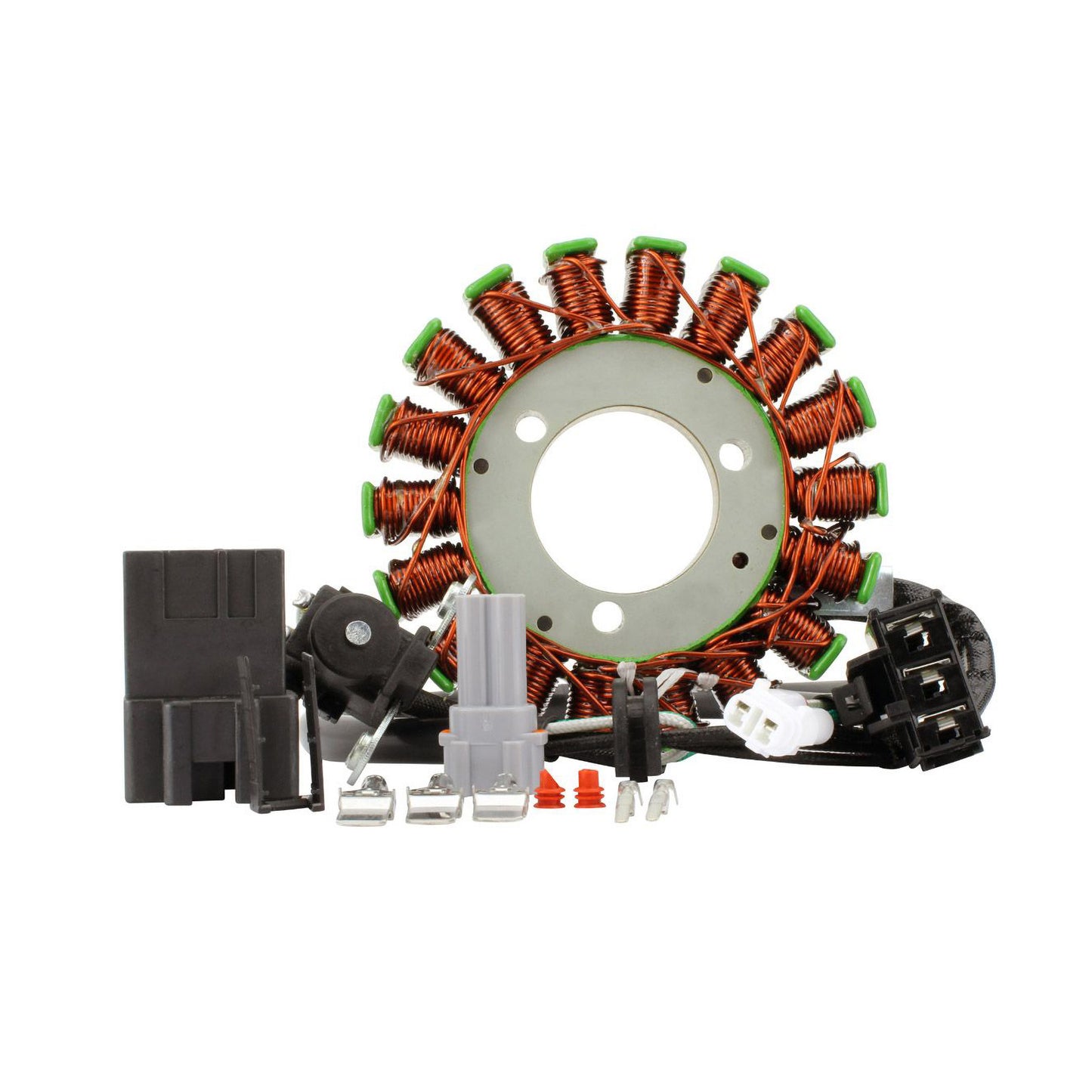

GENERATOR STATOR KAW NINJA 400 18-20 (RMS010-107074)

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

• Interior diameter: 38 mm
• Exterior diameter: 107 mm
• Thickness: 16 mm
• Length of wires stator to grommet: 95 mm
• Length of wires grommet to plug: 380 mm
• Length of pickup coil\'s wire to grommet: 75 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of holes: 3
• Number of poles: 18

Wire to wire resistance:

• Alternator : Black to Black = 0.6 ohms +-20%
• Pickup : White to Green/White = 232 ohms +-20%

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
