GENERATOR STATOR KAWA KRF 750 TERYX 2013

GENERATOR STATOR KAWA KRF 750 TERYX 2013

$319.99
$319.99

In Store

Available now for delivery or store pickup, during store hours.

Warehouse

Available for delivery or store pickup during store hours in 2-5 business days time.

Contact us for availability

We are currently out of stock for this product.
Or split over 4 payments with Afterpay Afterpay
SHARE:
View full details

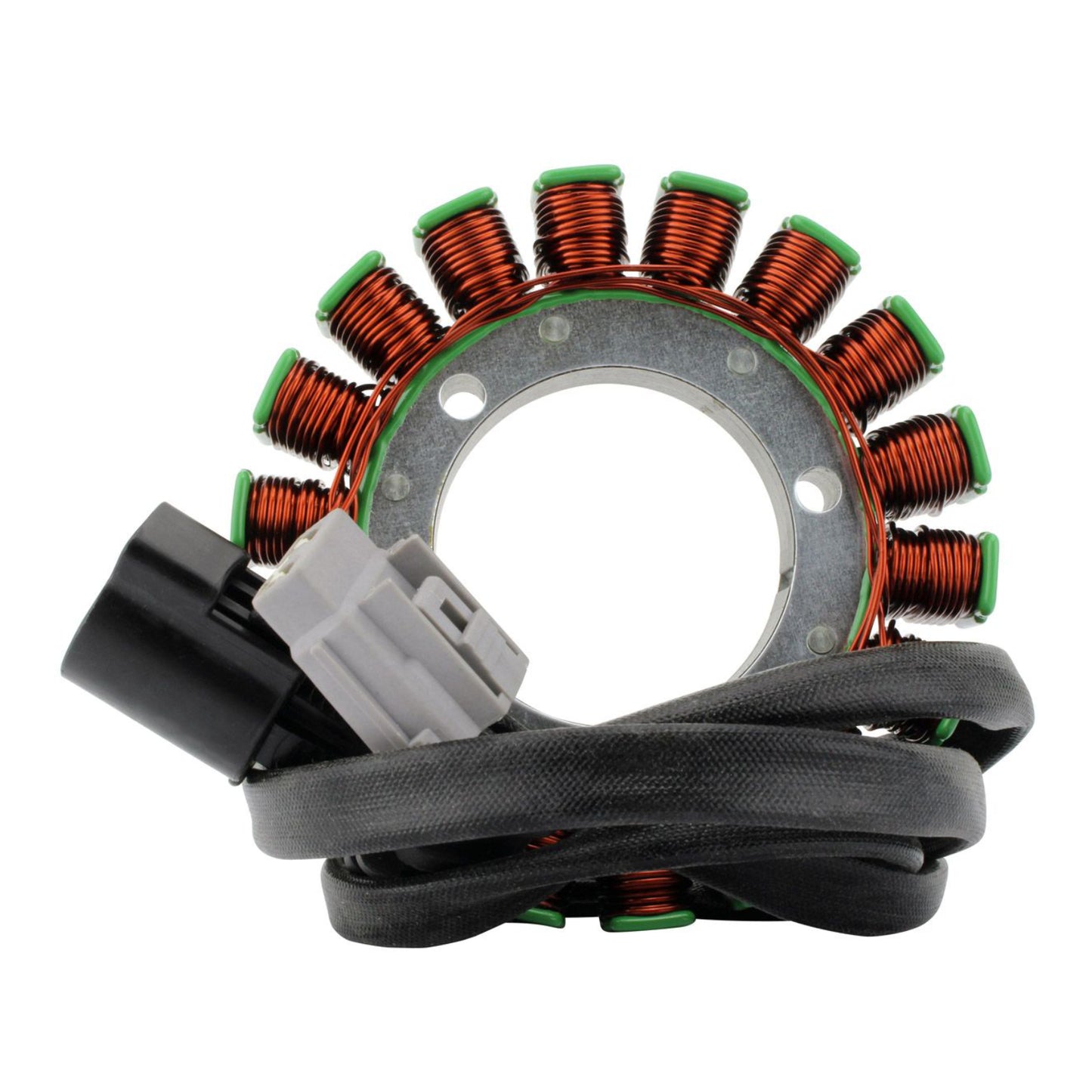

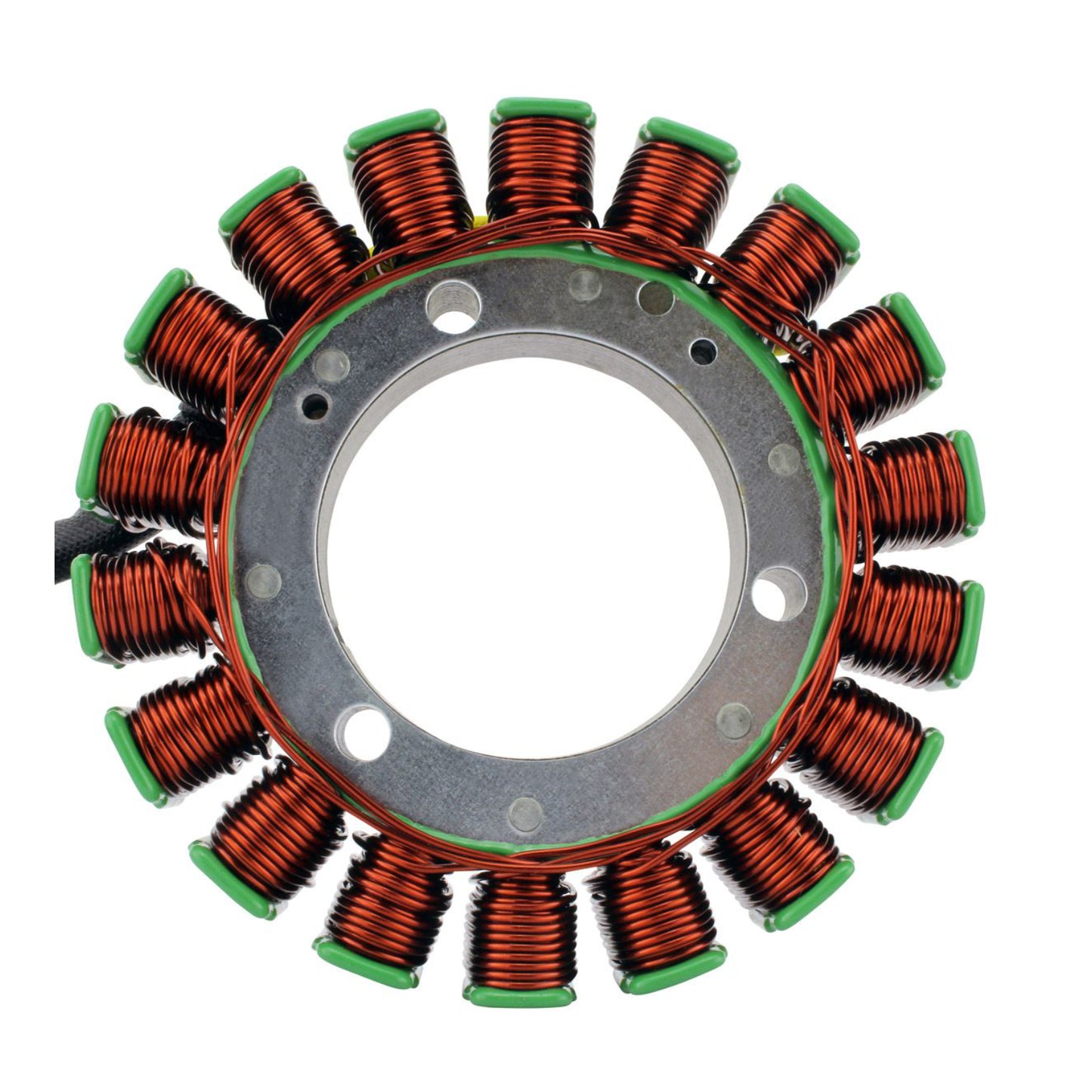

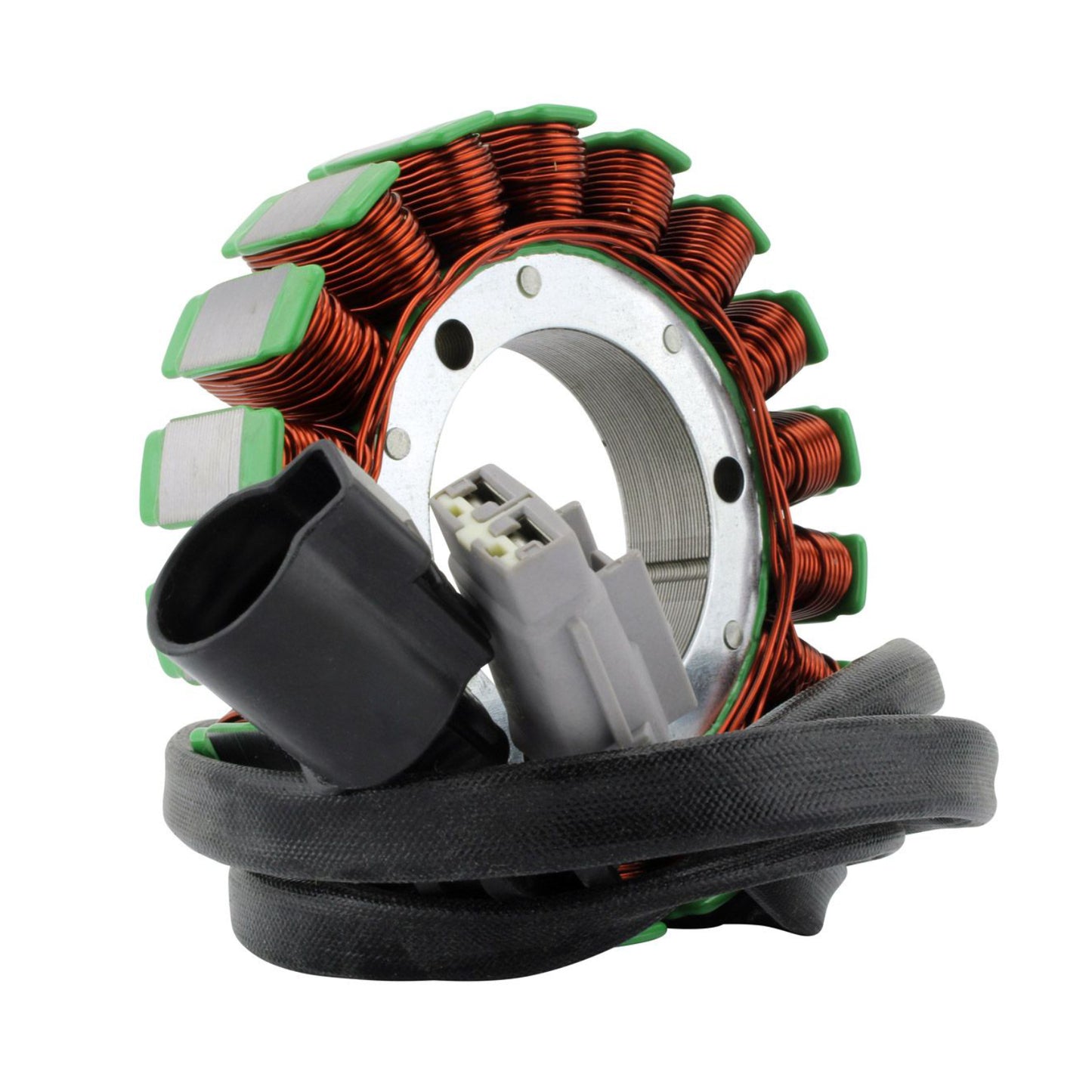

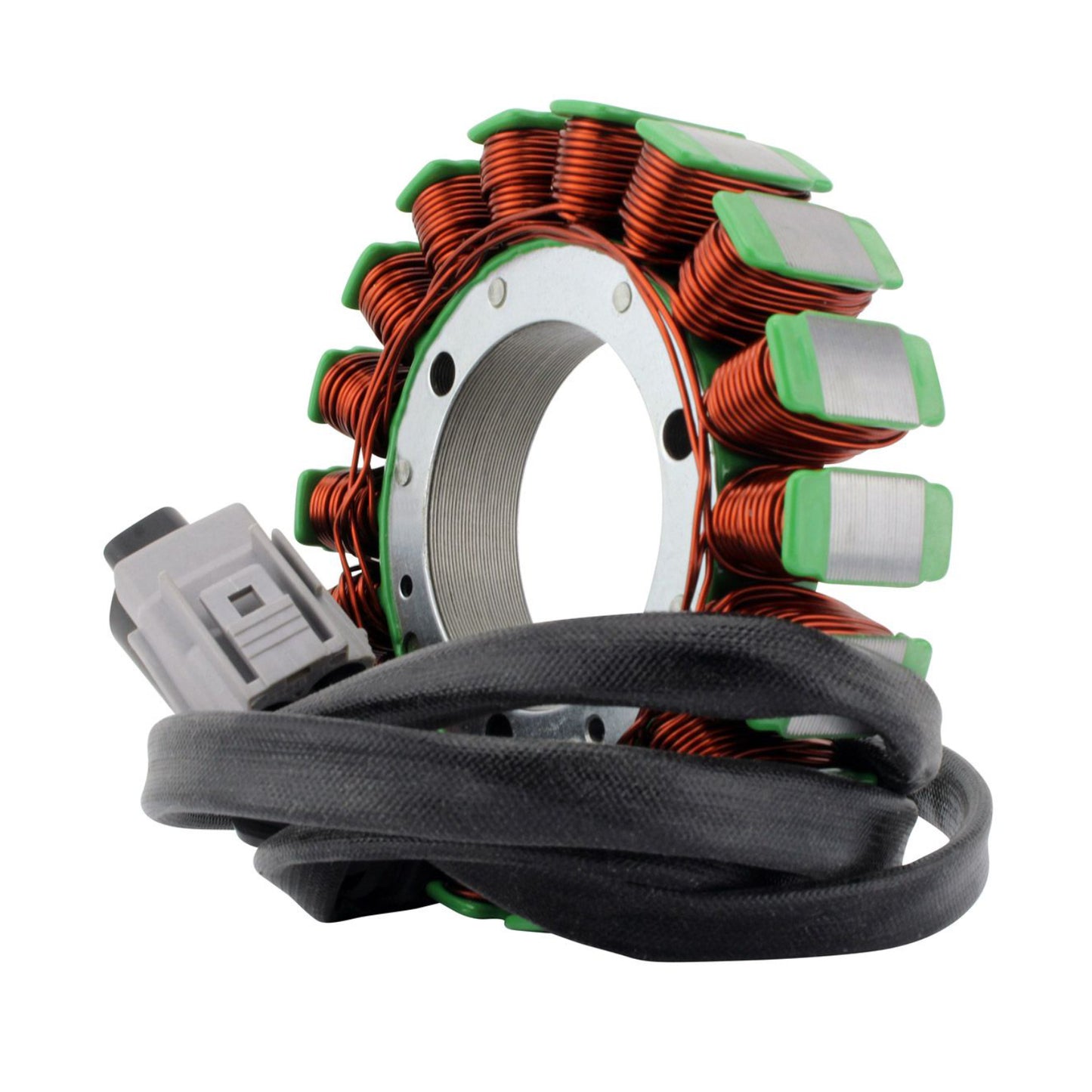

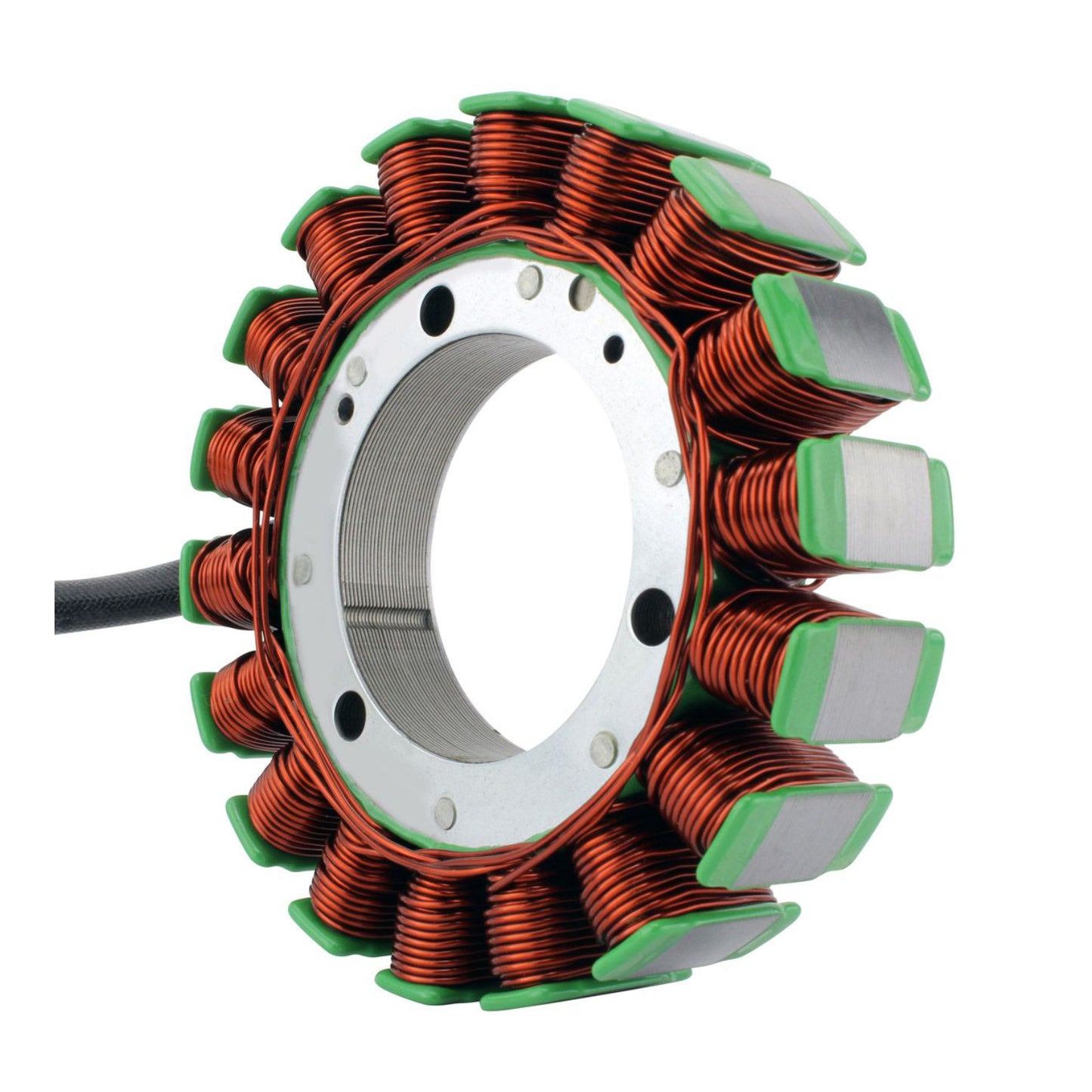

Plug-and-play aftermarket replacement generator stator from RM Stator.



Dimensions:

  • Interior diameter: 54mm
  • Exterior diameter: 115mm
  • Thickness: 18mm
  • Length of wires stator to grommet: 160mm
  • Length of wires grommet to plug: 840mm



Other specifications:

  • Number of wires: 3
  • Number of plugs: 2
  • Number of pins: 3
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Black to Black = 0.4 ohms +-20%
    • Alternator: Black to ground = O.L



Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
