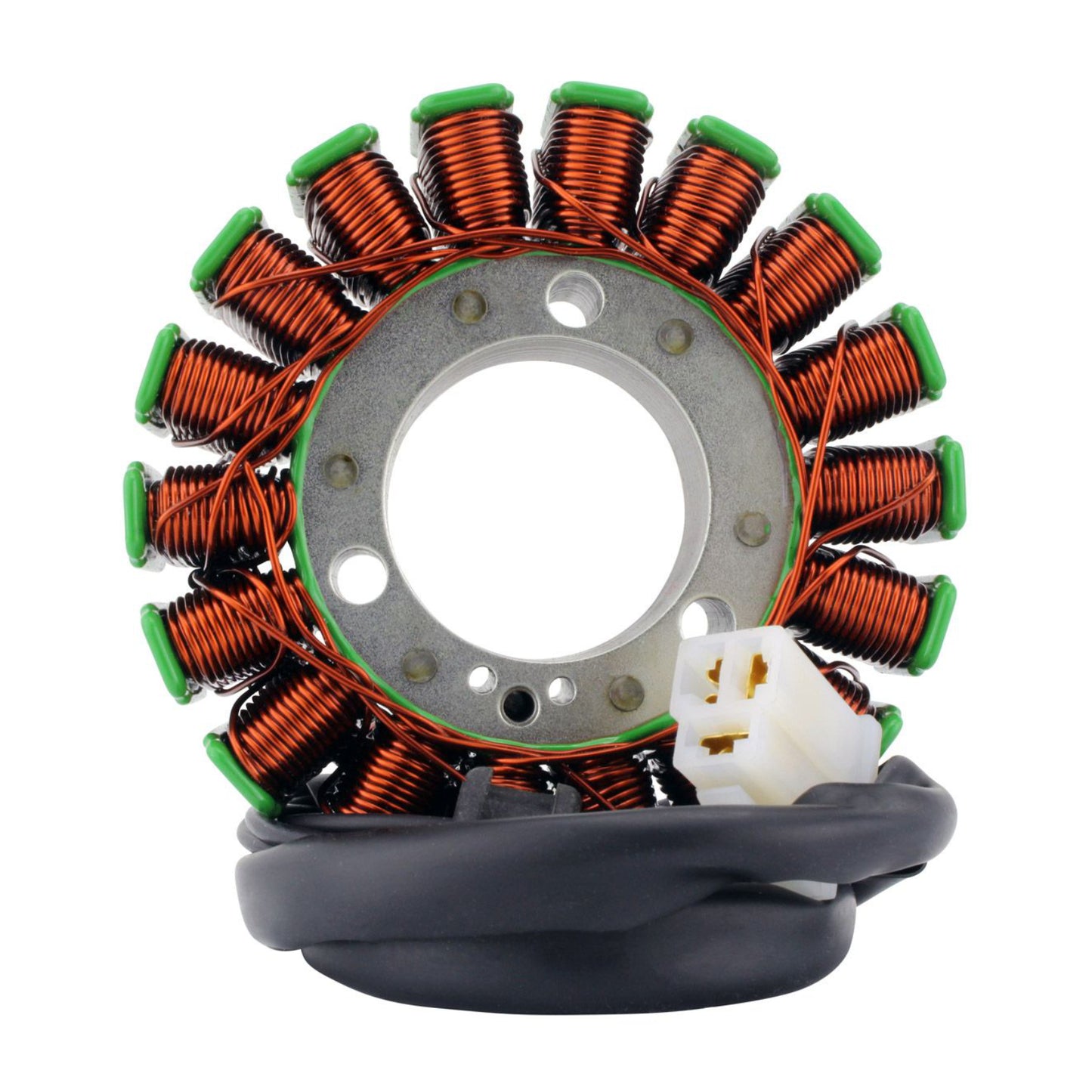

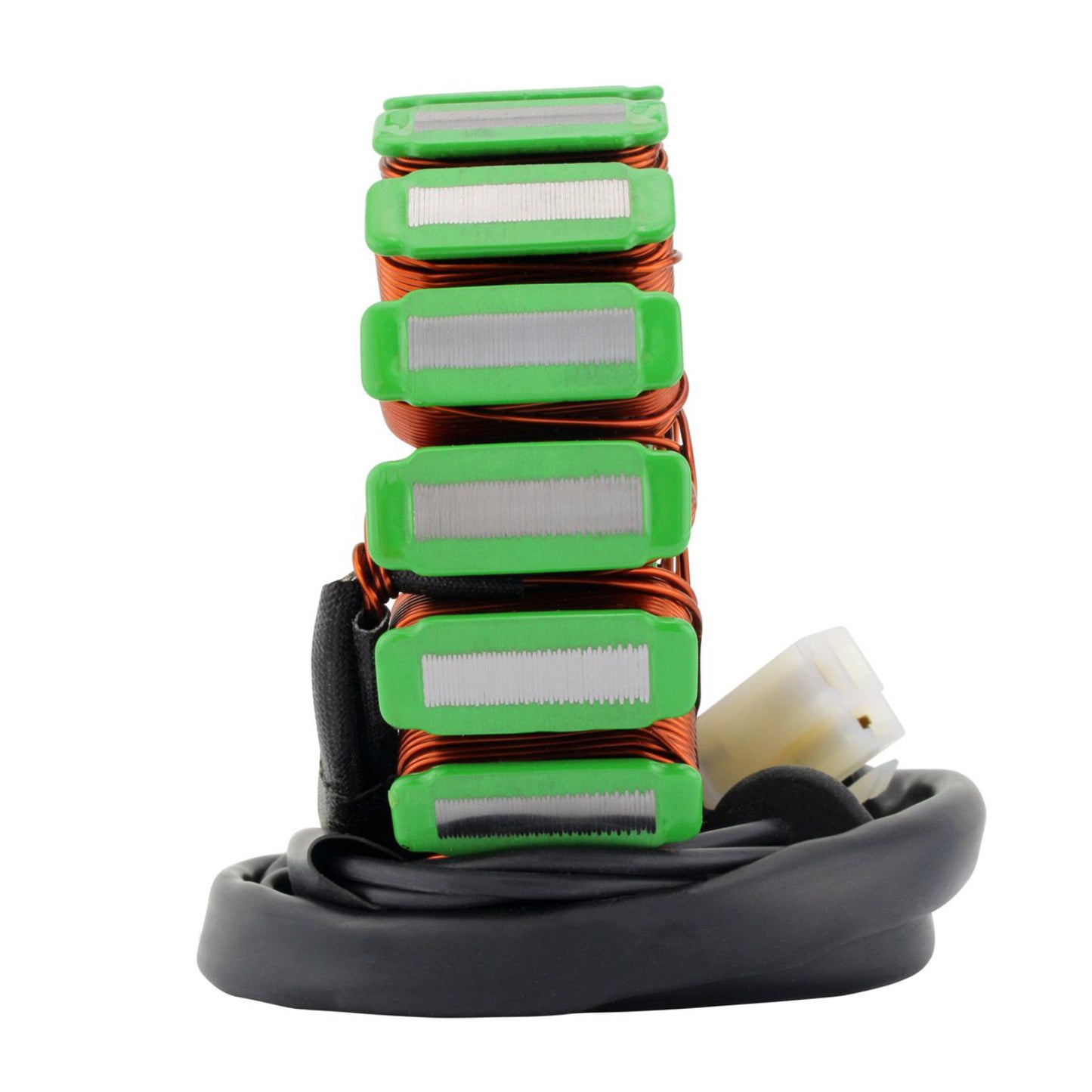

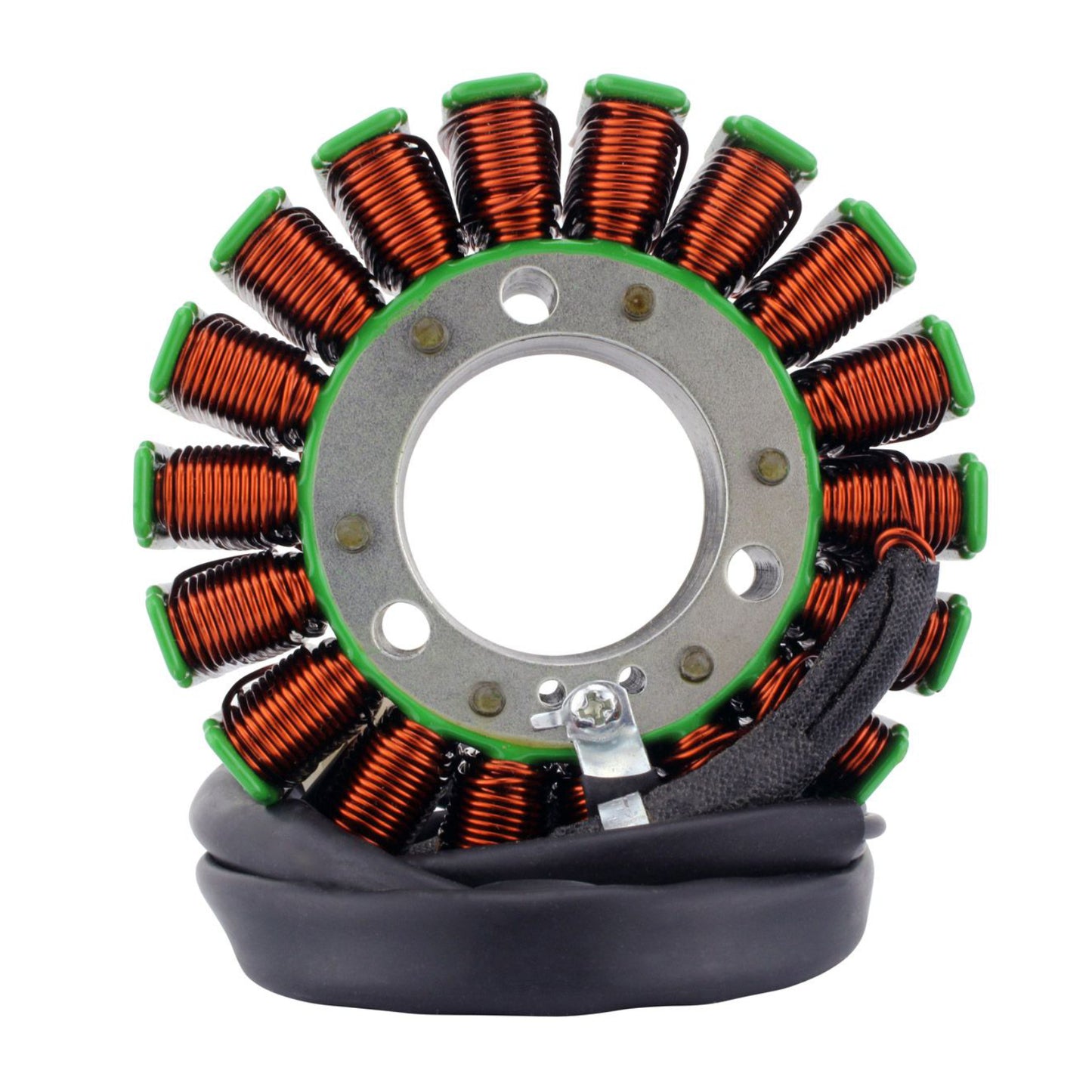

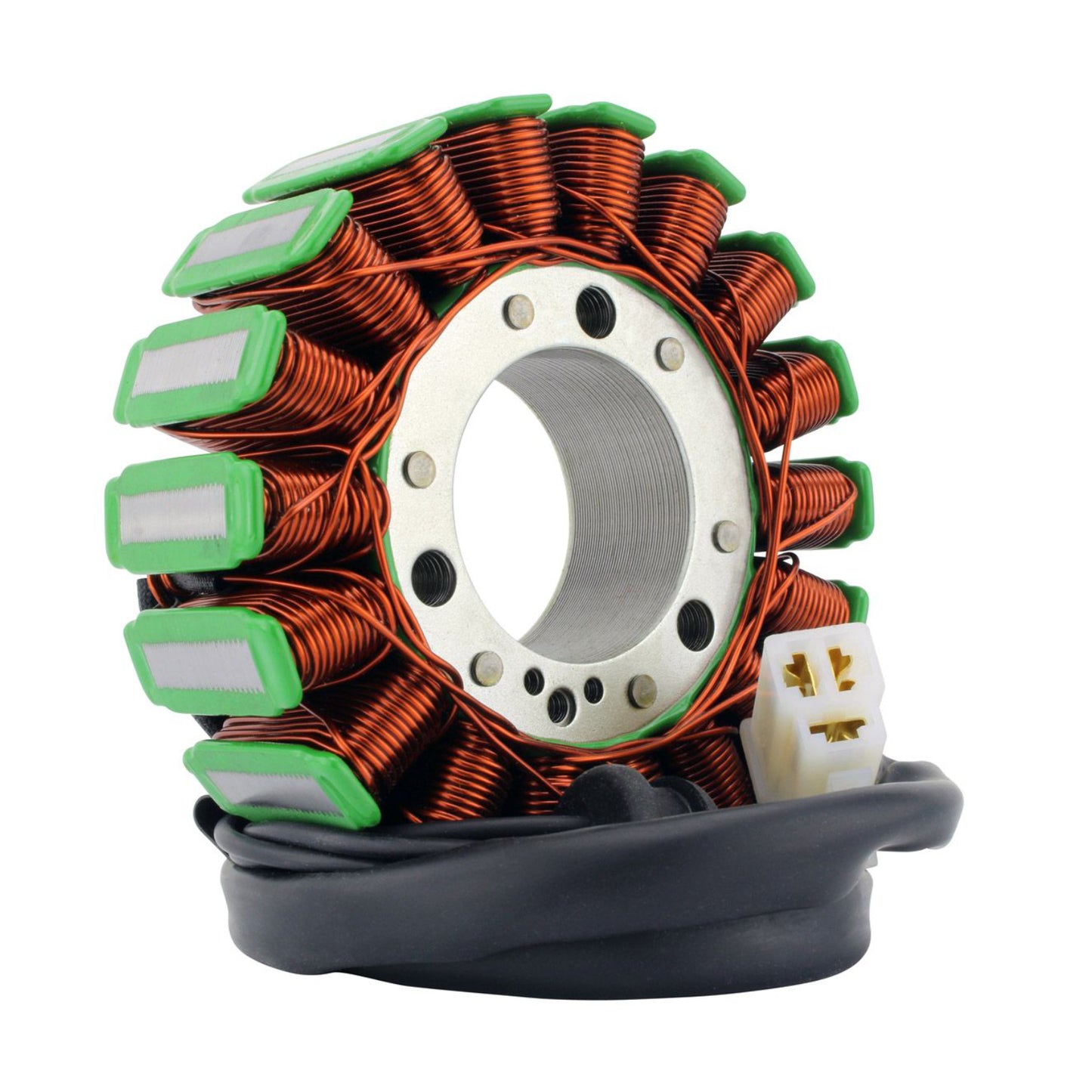

GENERATOR STATOR SUZ GSXR 600 1997-2000/GSXR 750 1996-1999

GENERATOR STATOR SUZ GSXR 600 1997-2000/GSXR 750 1996-1999

$409.99
$409.99

In Store

Available now for delivery or store pickup, during store hours.

Warehouse

Available for delivery or store pickup during store hours in 2-5 business days time.

Contact us for availability

We are currently out of stock for this product.
Or split over 4 payments with Afterpay Afterpay
SHARE:
View full details

Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

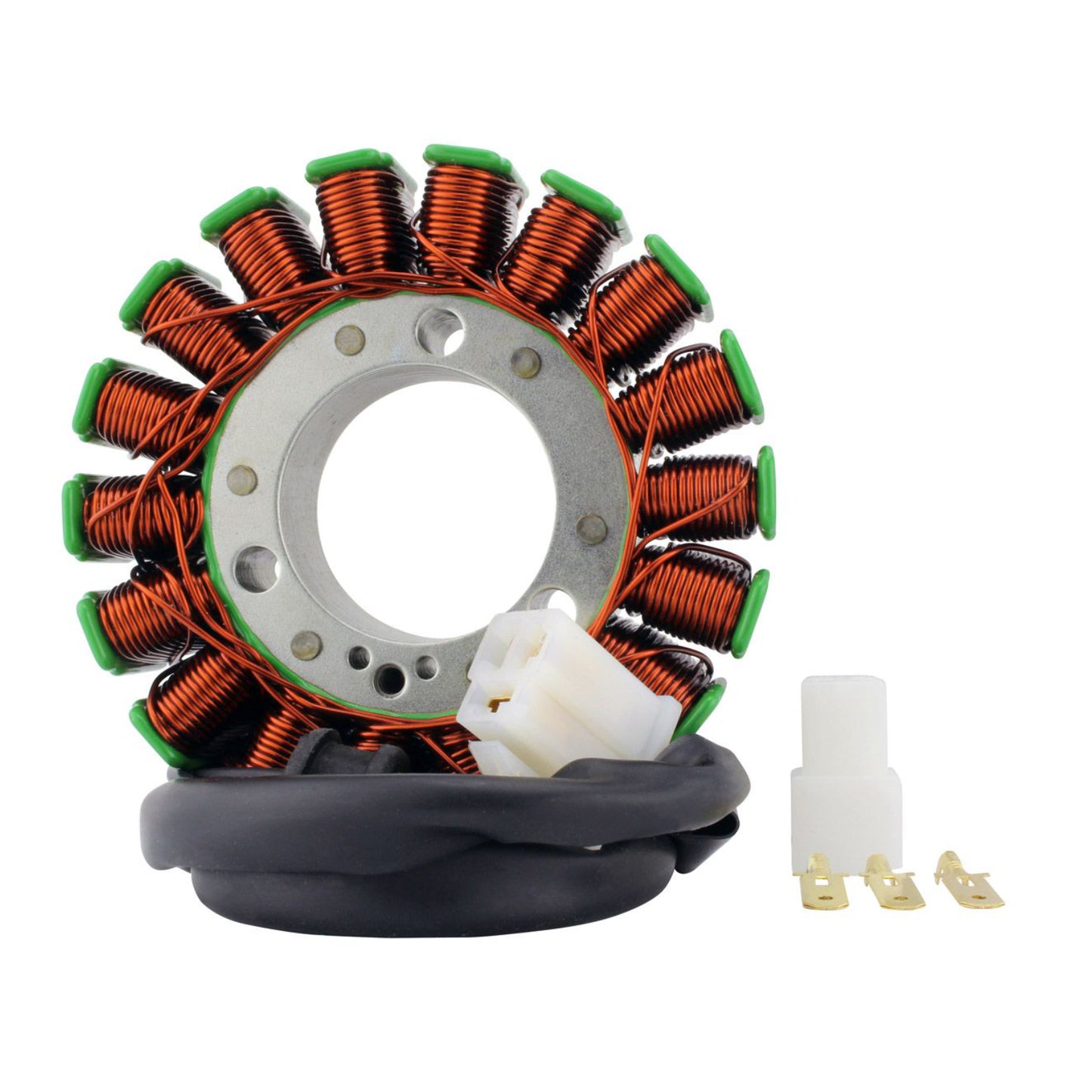

  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 38 mm
  • Exterior diameter: 99 mm
  • Thickness: 27 mm
  • Length of wires stator to grommet: 100 mm
  • Length of wires grommet to plug: 650 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 18

Wire to wire resistance:

  • Alternator: Black to Black = 0.6 ohms +-20%
  • Alternator to ground = O.L (Open Loop)

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
