GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)

GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)

$479.99
$479.99

In Store

Available now for delivery or store pickup, during store hours.

Warehouse

Available for delivery or store pickup during store hours in 2-5 business days time.

Contact us for availability

We are currently out of stock for this product.
Or split over 4 payments with Afterpay Afterpay
SHARE:
View full details

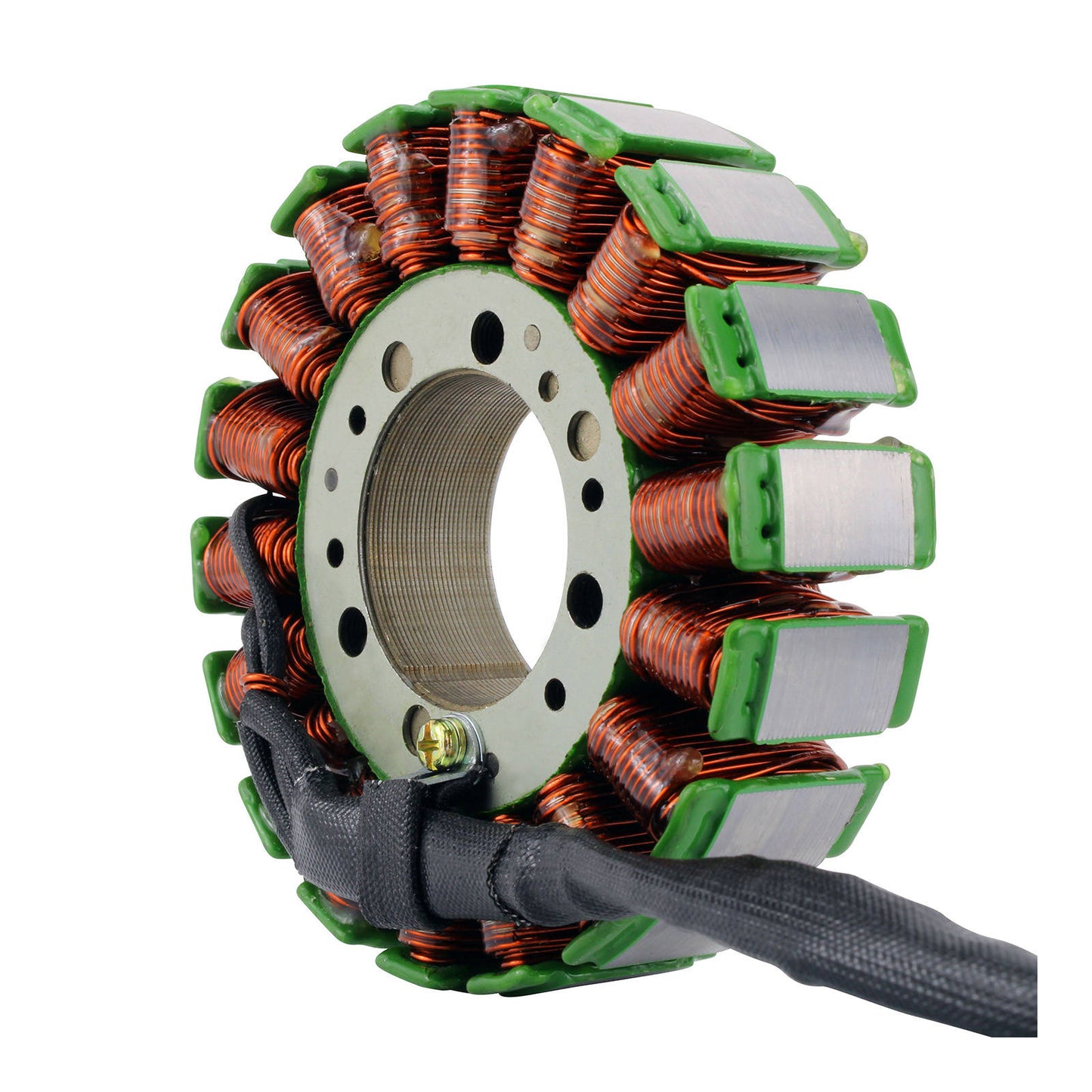

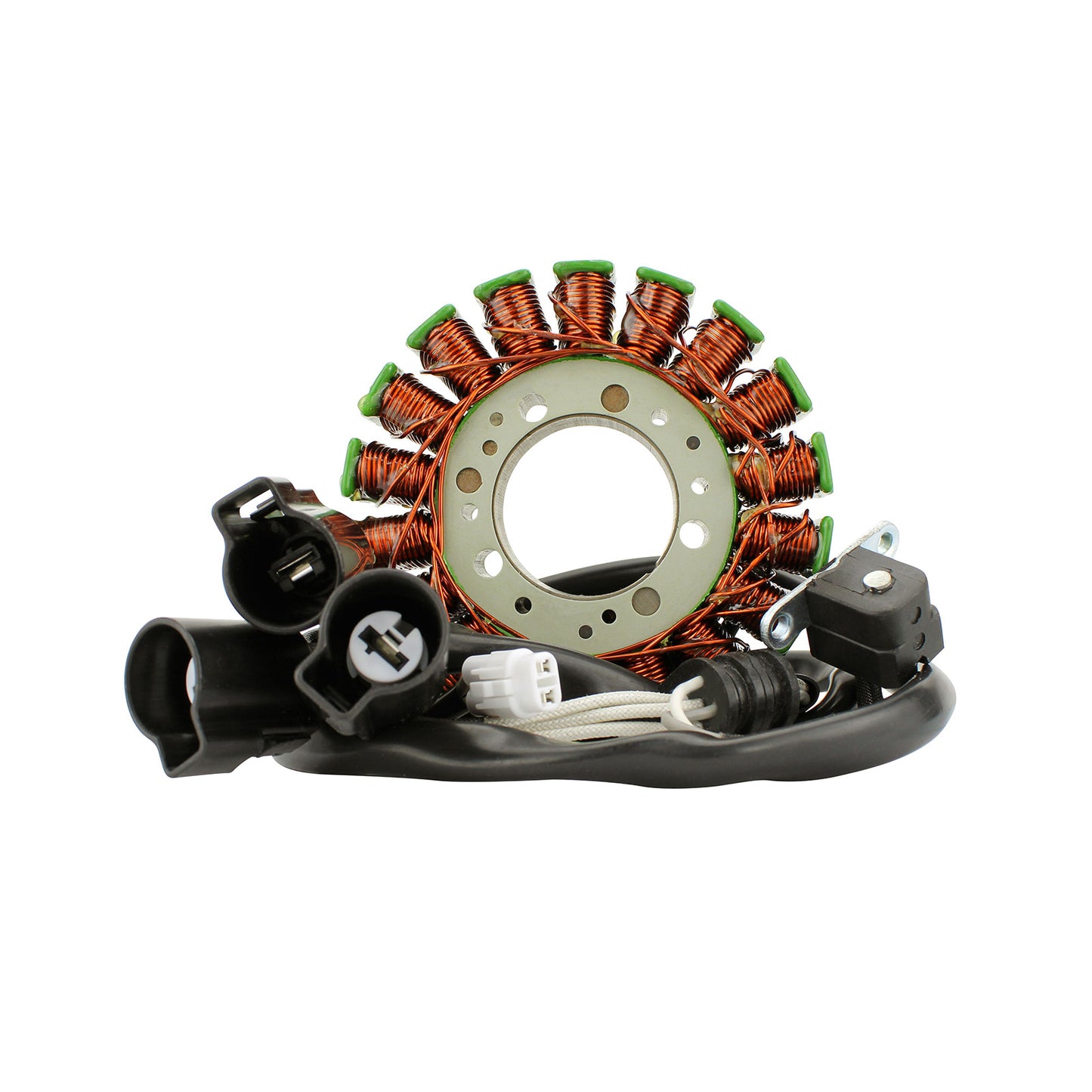

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 115 mm
  • Thickness: 23 mm
  • Length of wires stator to grommet: 200 mm
  • Length of wires grommet to plug: 1020 mm
  • Length of pickup coil\'s wire to grommet: 110 mm

    • Other specifications:

    • Number of wires: 5
    • Number of plugs: 4
    • Number of pins: 5
    • Number of poles: 18

    Wire-to-wire resistance:

    • Alternator: White to White = 0.5 ohms +-20%
    • Pickup: Black to Grey = 512 ohms +-20%

    *The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
