GENERATOR STATOR YAMAHA TTR 110 08-22 (RMS010-107173)

GENERATOR STATOR YAMAHA TTR 110 08-22 (RMS010-107173)

$139.99
$139.99
Sold out

In Store

Available now for delivery or store pickup, during store hours.

Warehouse

Available for delivery or store pickup during store hours in 2-5 business days time.

Contact us for availability

We are currently out of stock for this product.
Or split over 4 payments with Afterpay Afterpay
SHARE:
View full details

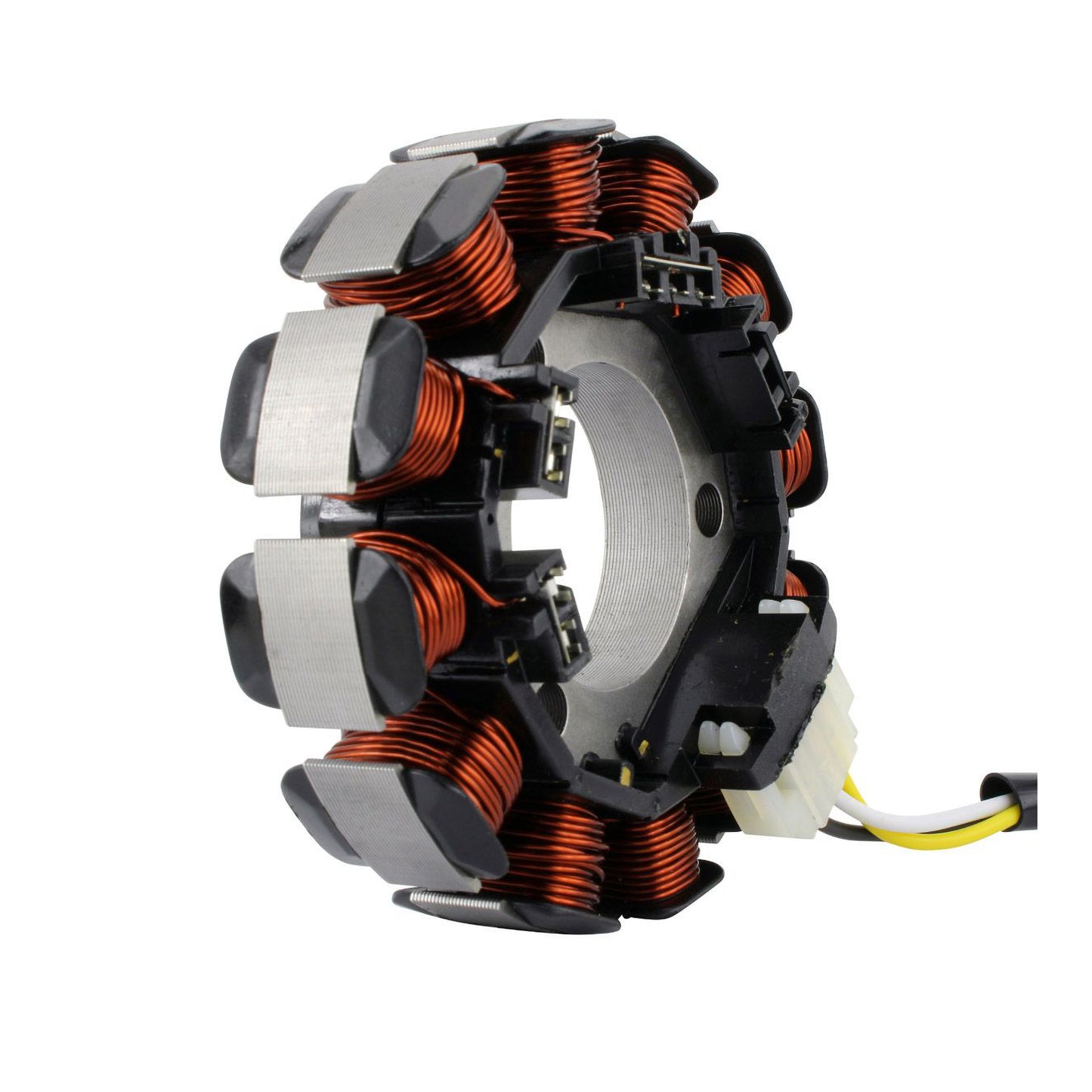

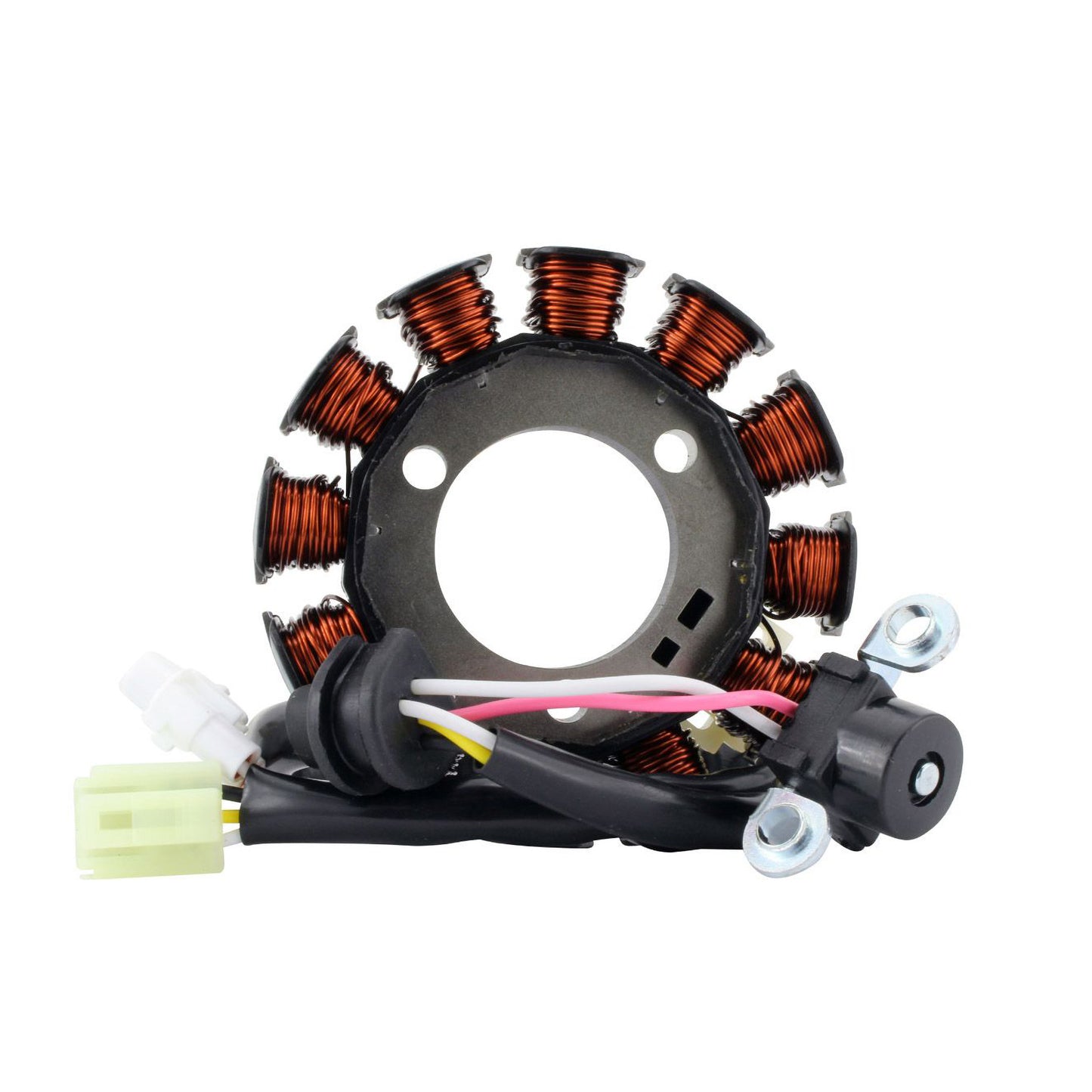

Brand new aftermarket stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation

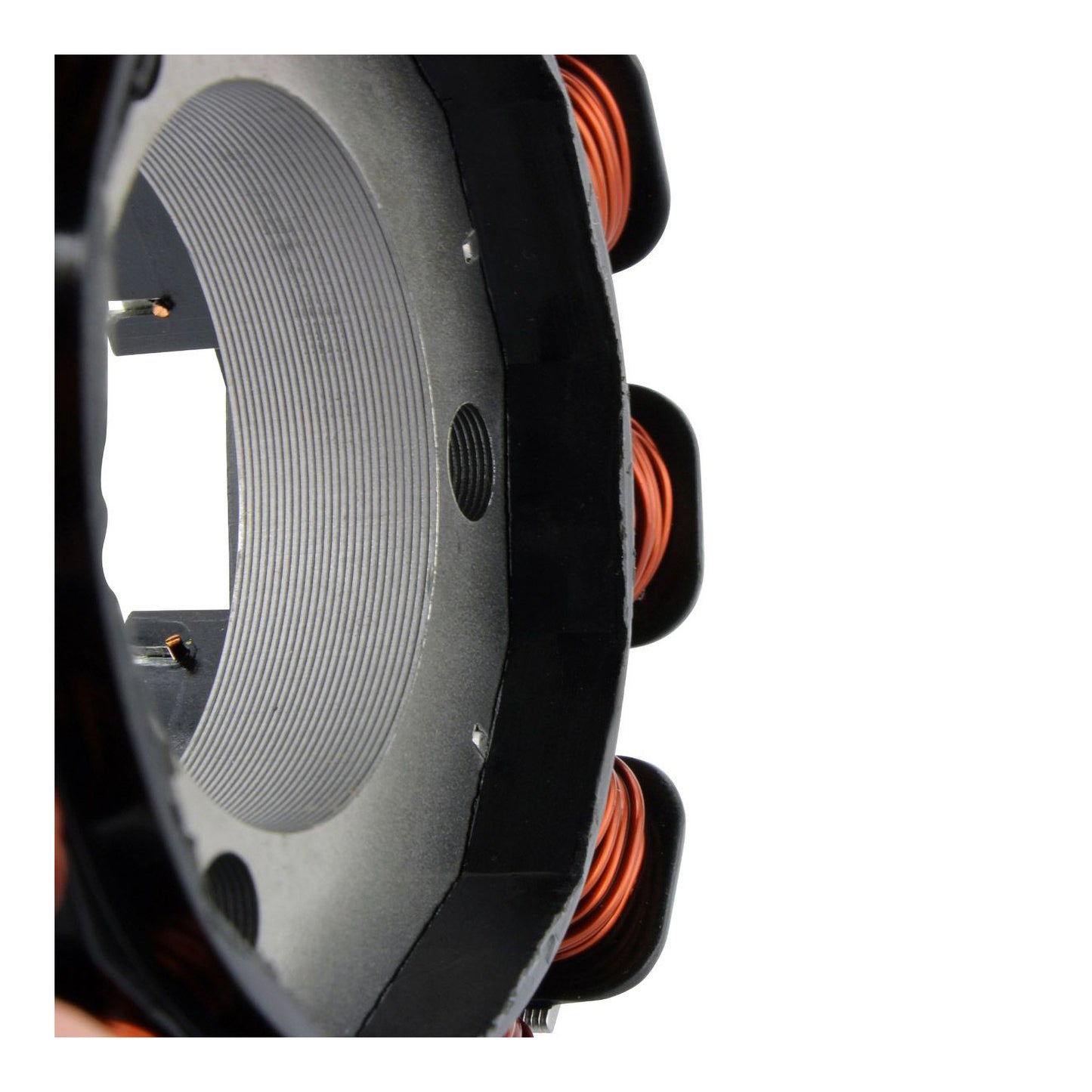

  • Highest-grade lamination materials
  • Highest-grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included

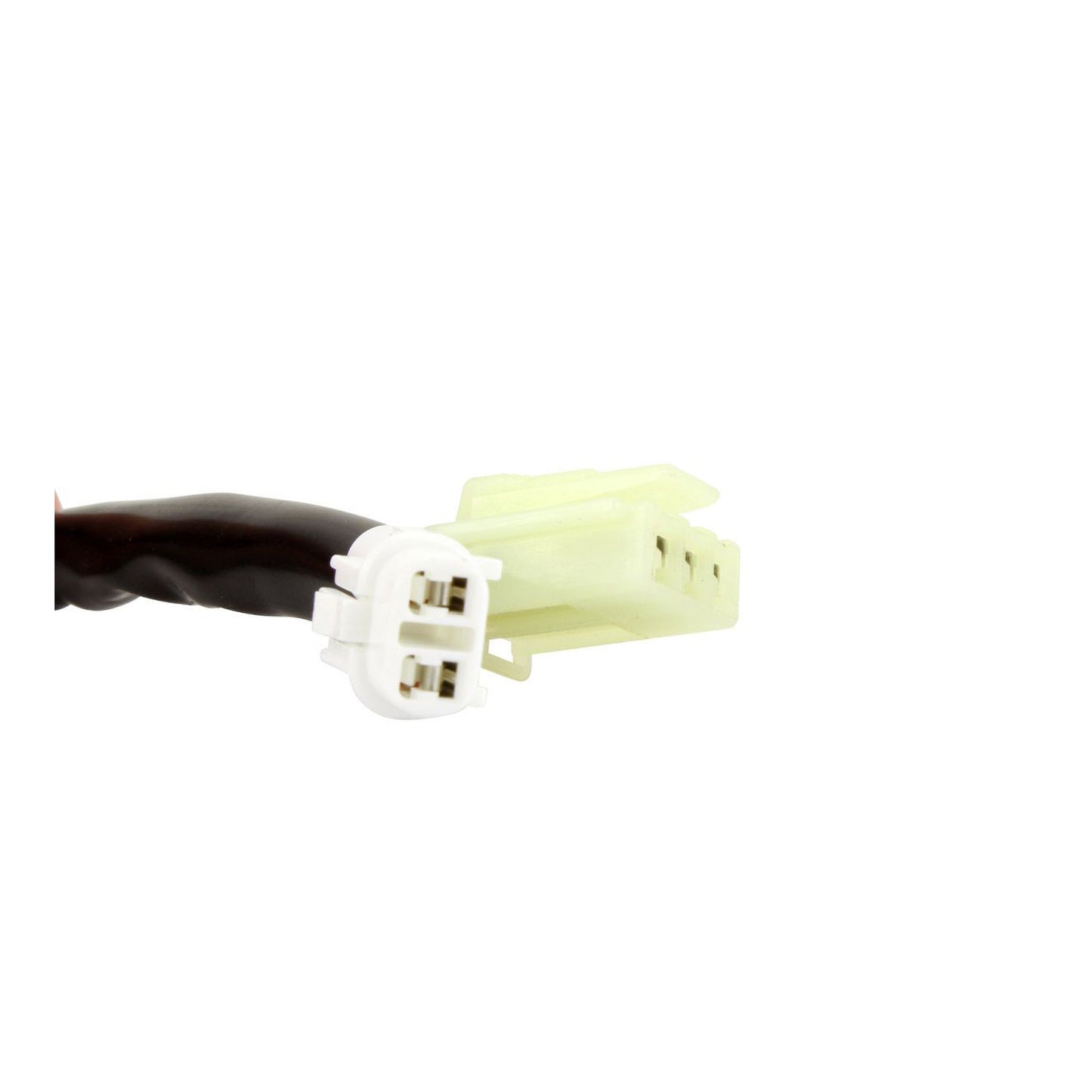

  • Connector included

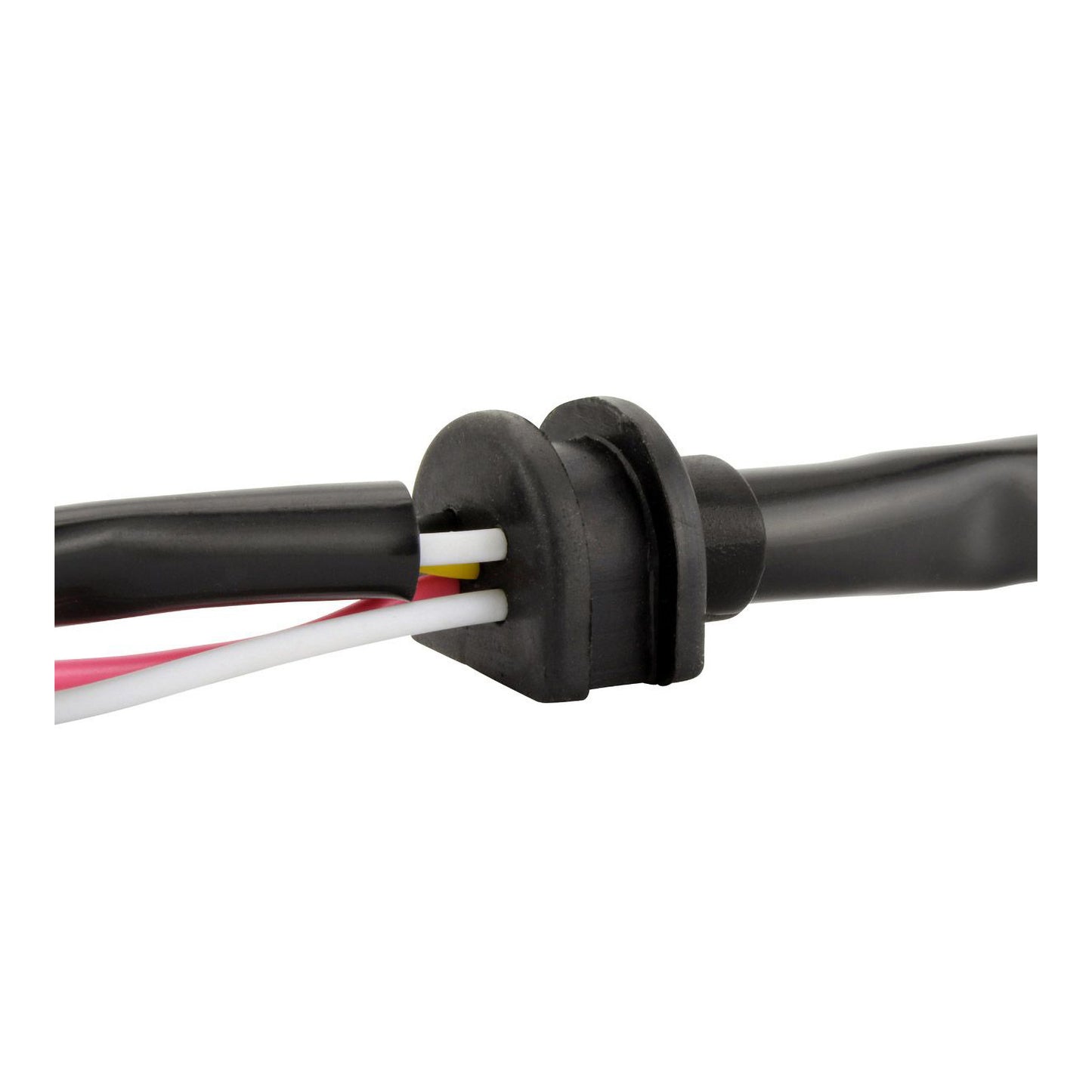

  • Rubber grommet included
  • All products shipped are tested

Specifications:

Dimensions:

  • Interior diameter: 37 mm
  • Exterior diameter: 92 mm
  • Thickness: 12 mm
  • Length of wires stator to grommet: 90 mm
  • Length of wires grommet to plug: 280 mm
  • Length of pickup coil\'s wire to grommet: 55 mm

    • Other specifications:

    • Number of wires: 5
    • Number of plugs: 2
    • Number of pins: 5
    • Number of poles: 12

    Wire-to-wire resistance:

    • All 1p winding: Black to White = 0.9 ohms +-20%
    • Alternator #1: Yellow to Black = 0.6 ohms +-20%
    • Alternator #2: Yellow to White = 0.8 ohms +-20%
    • Pickup: Pink to White = 280 ohms +-20%

    *The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
