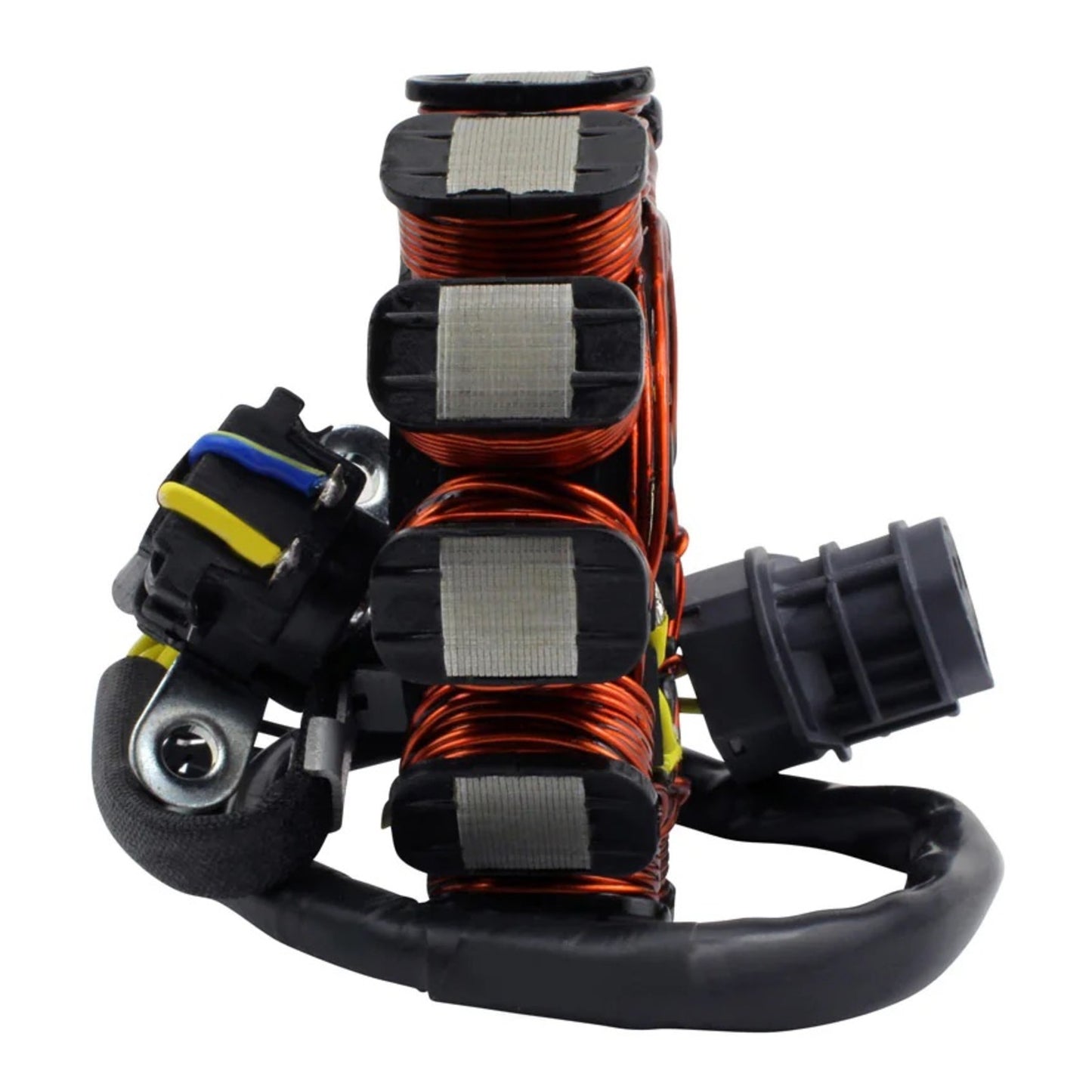

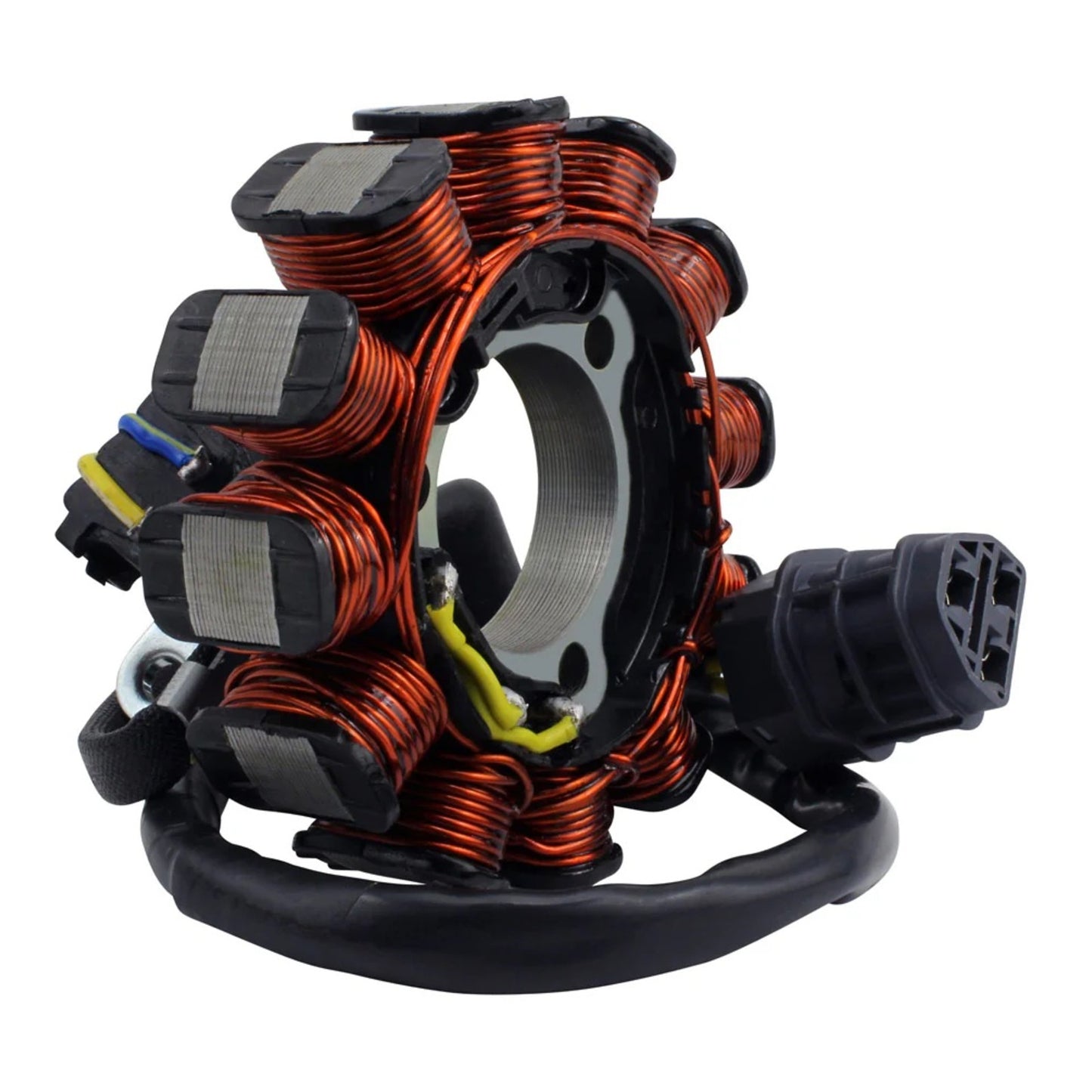

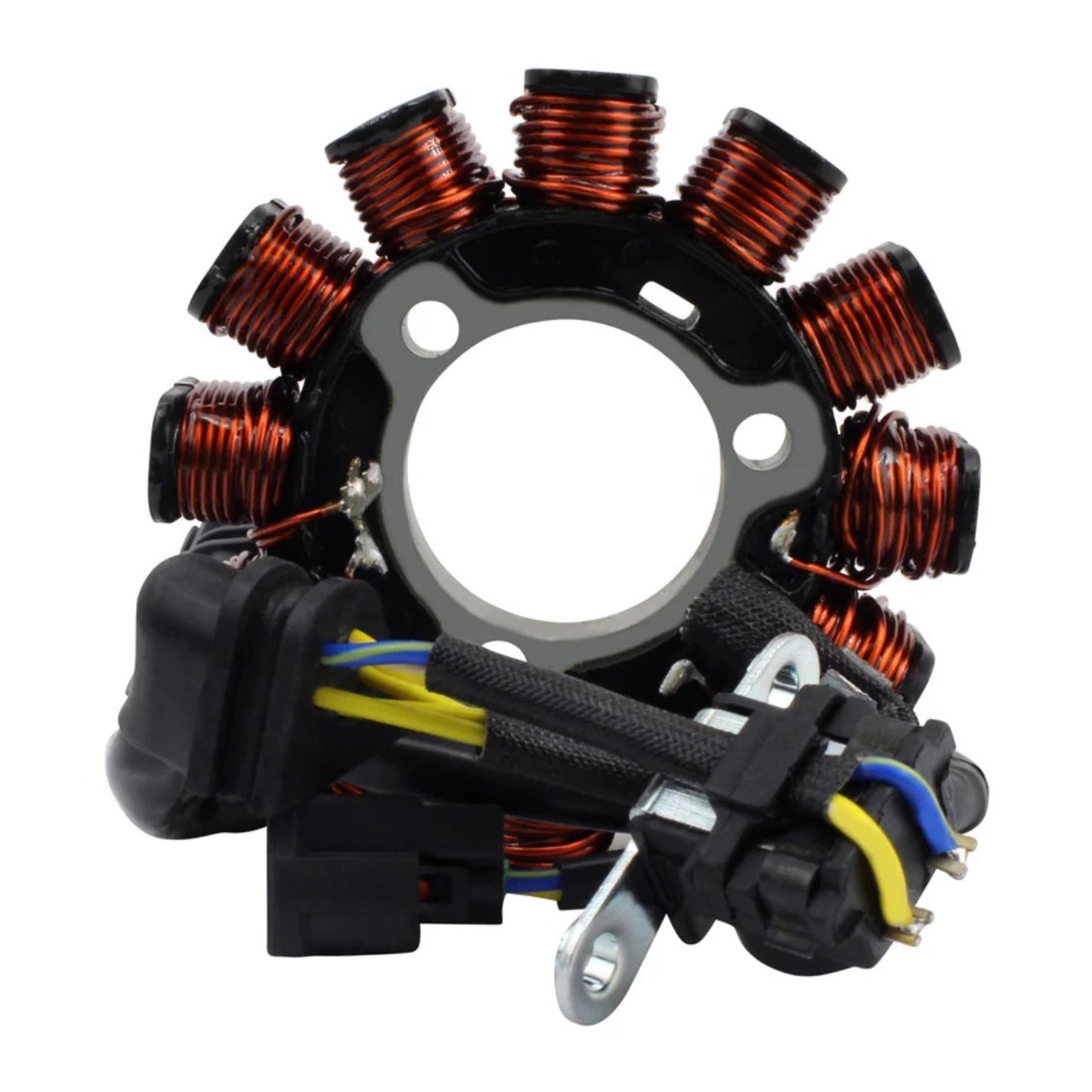

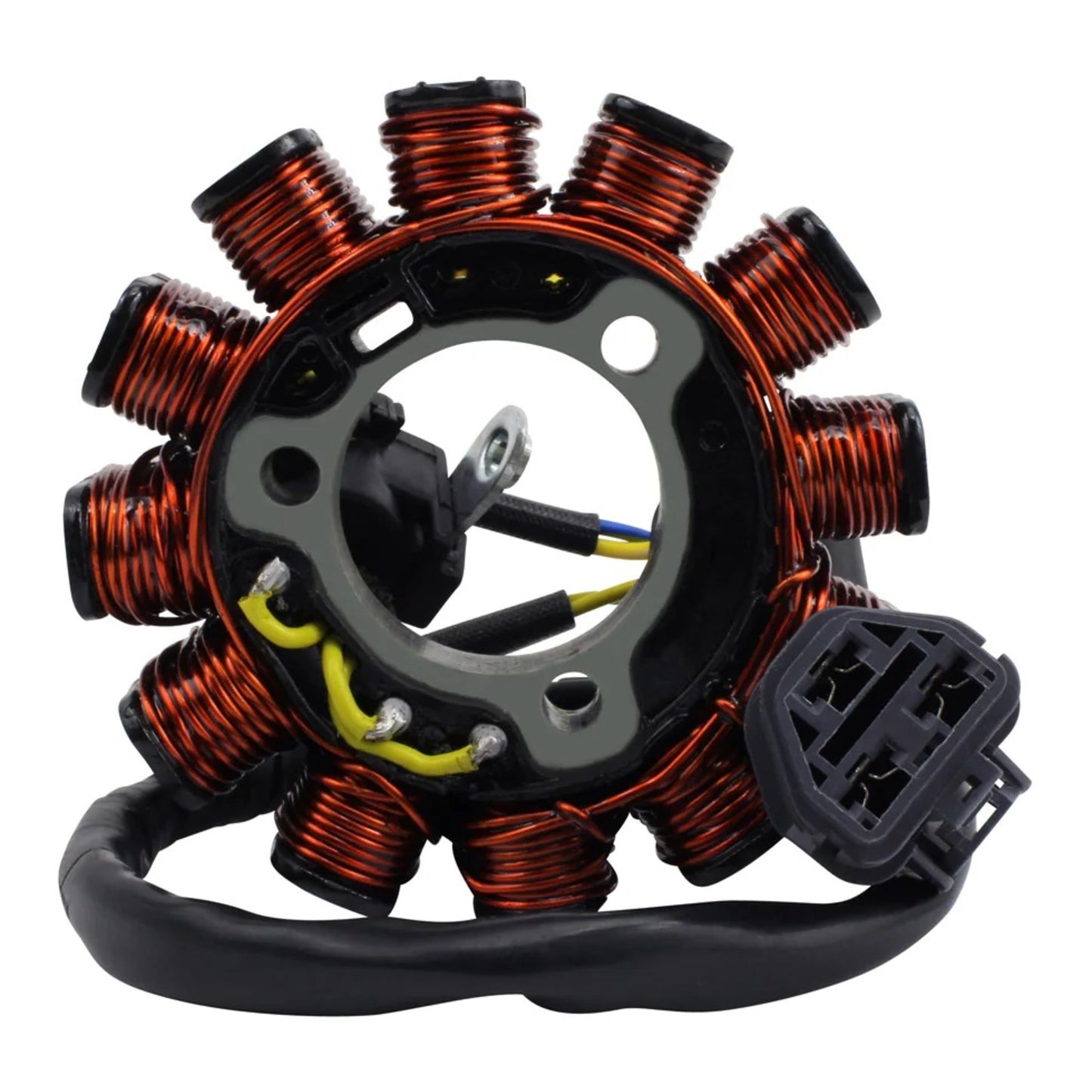

High Output Stator 200W Honda CRF450 X/L/RL (RMS010-108786)

Brand new aftermarket high-output stator (200W).

Features:

• Direct replacement for your original unit.
• Plug-and-play, direct fit for easy installation.
• Highest grade lamination materials.
• Premium copper windings resistant to 200°C.
• Pickup pulsar coil included.
• Connectors included.

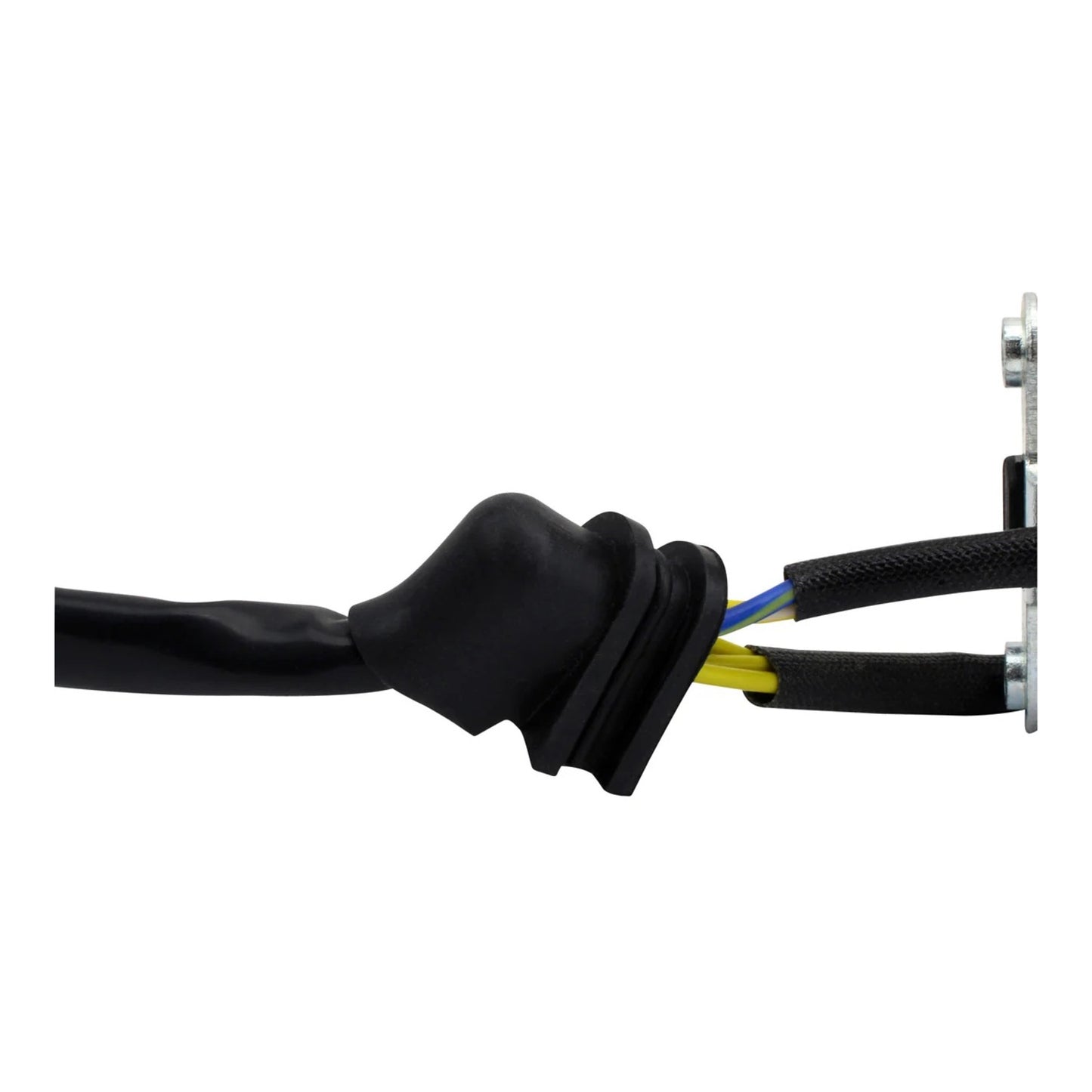

• Rubber grommet included.
• All units are tested before shipping.

Specifications:

Dimensions

• Interior diameter: 35 mm
• Exterior diameter: 89 mm
• Thickness: 12 mm
• Stator wires (to grommet): 80 mm
• Grommet to plug wire lengths: 250 mm and 310 mm
• Pickup coil wire (to grommet): 45 mm

Other Specifications

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 12

Electrical Specifications

• Alternator resistance (Yellow to Yellow): 1.3 Ω ±20%
• Alternator resistance (Yellow to ground): O.L (open line)
• Pickup resistance (Blue/Yellow to White/Yellow): 240 Ω ±20%
