Kit Stator+Regulator Honda CBF 125 \'09-\'13

Brand New Kit Stator + Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Connector included
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

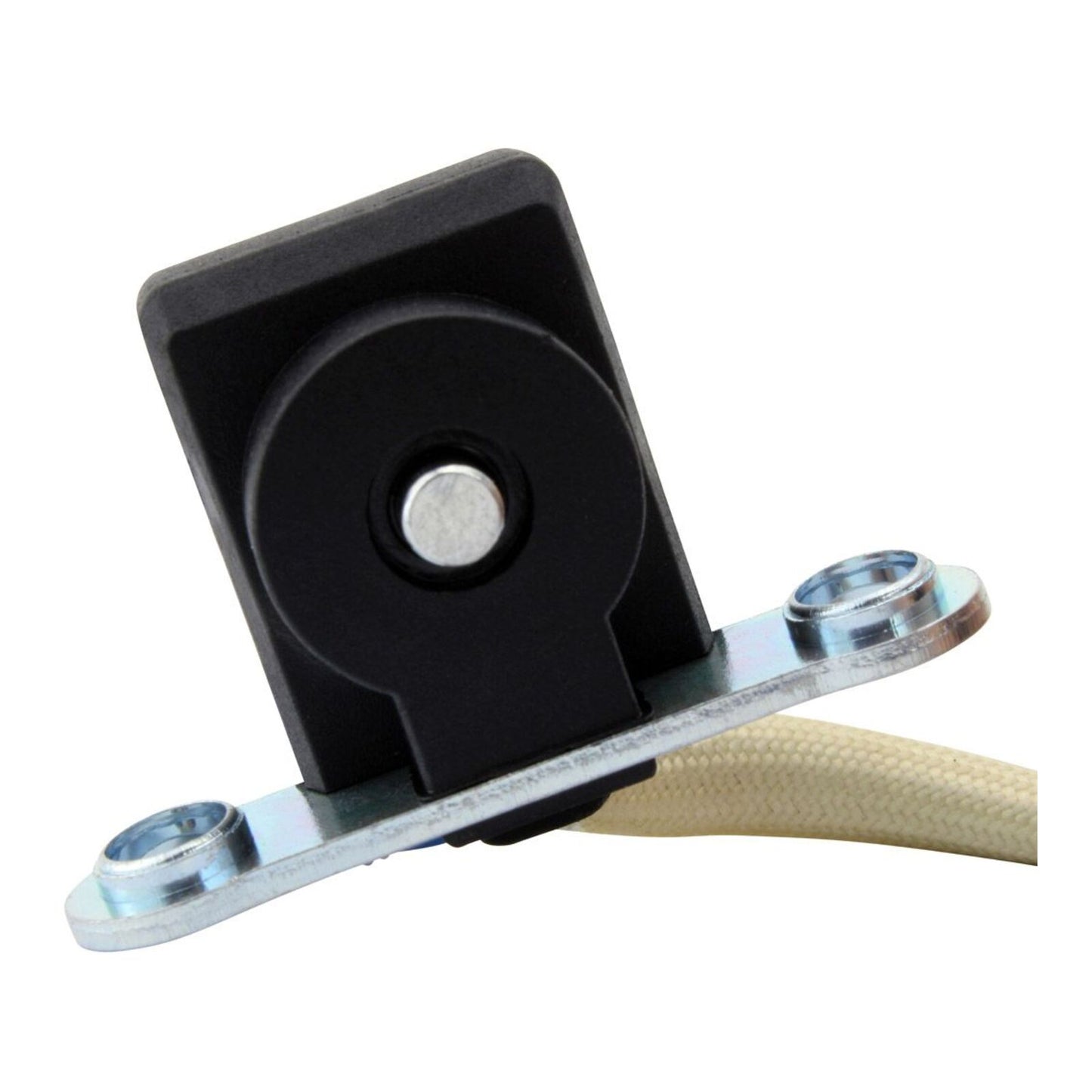

• Pick up pulsar coil included
• Rubber grommet included

Voltage Regulator Rectifier

• The Quality exceeds the OEM equipment
• Higher grade of electric components

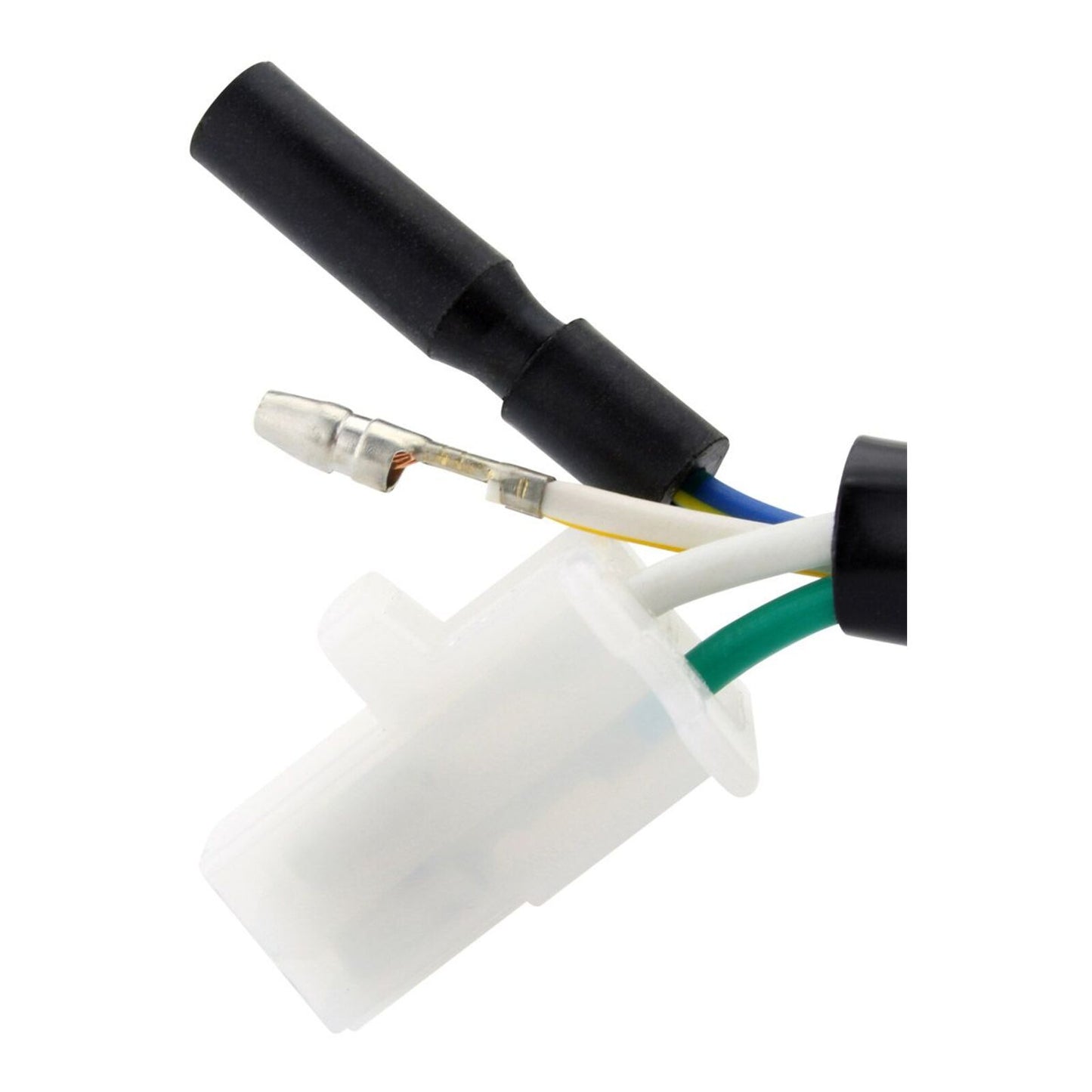

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

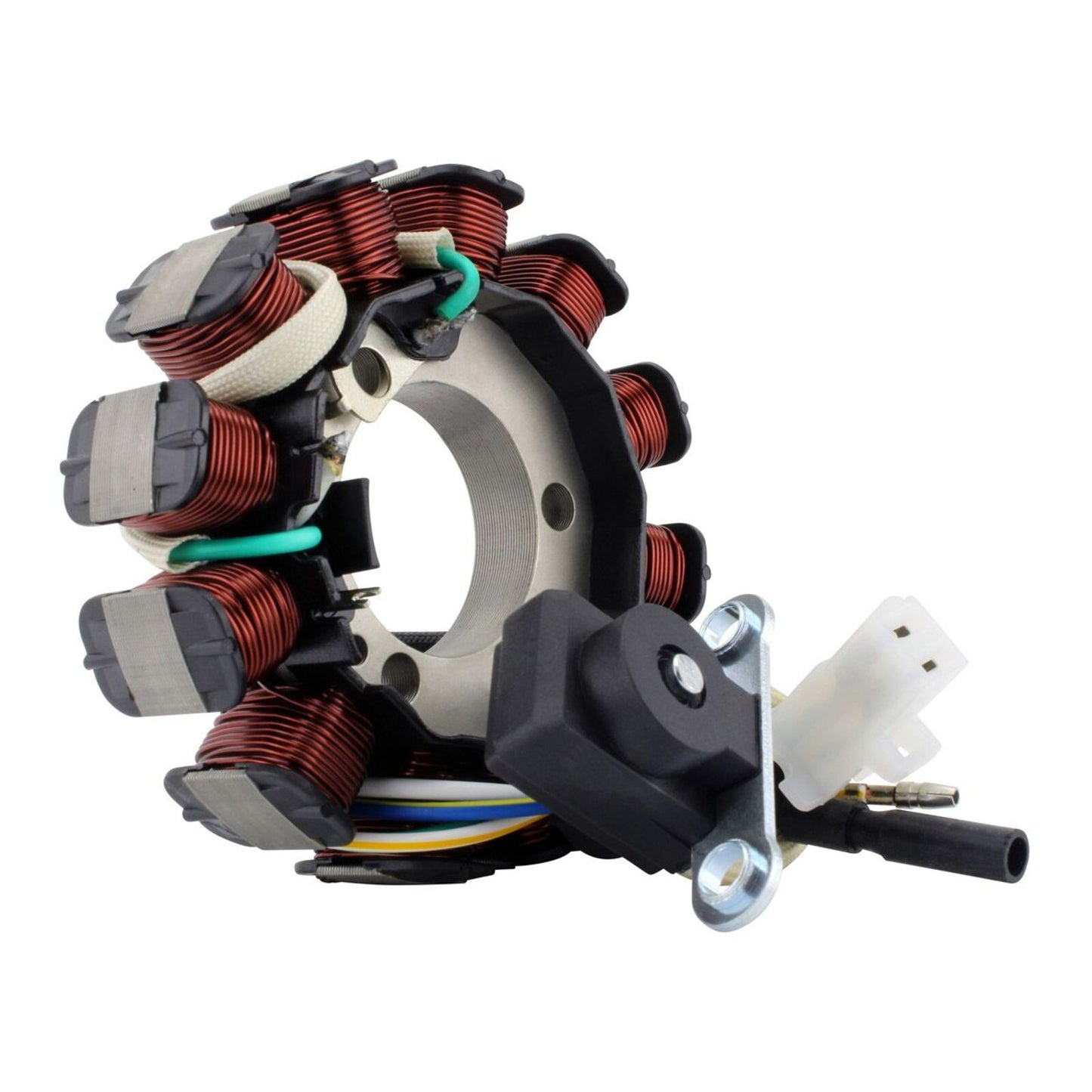

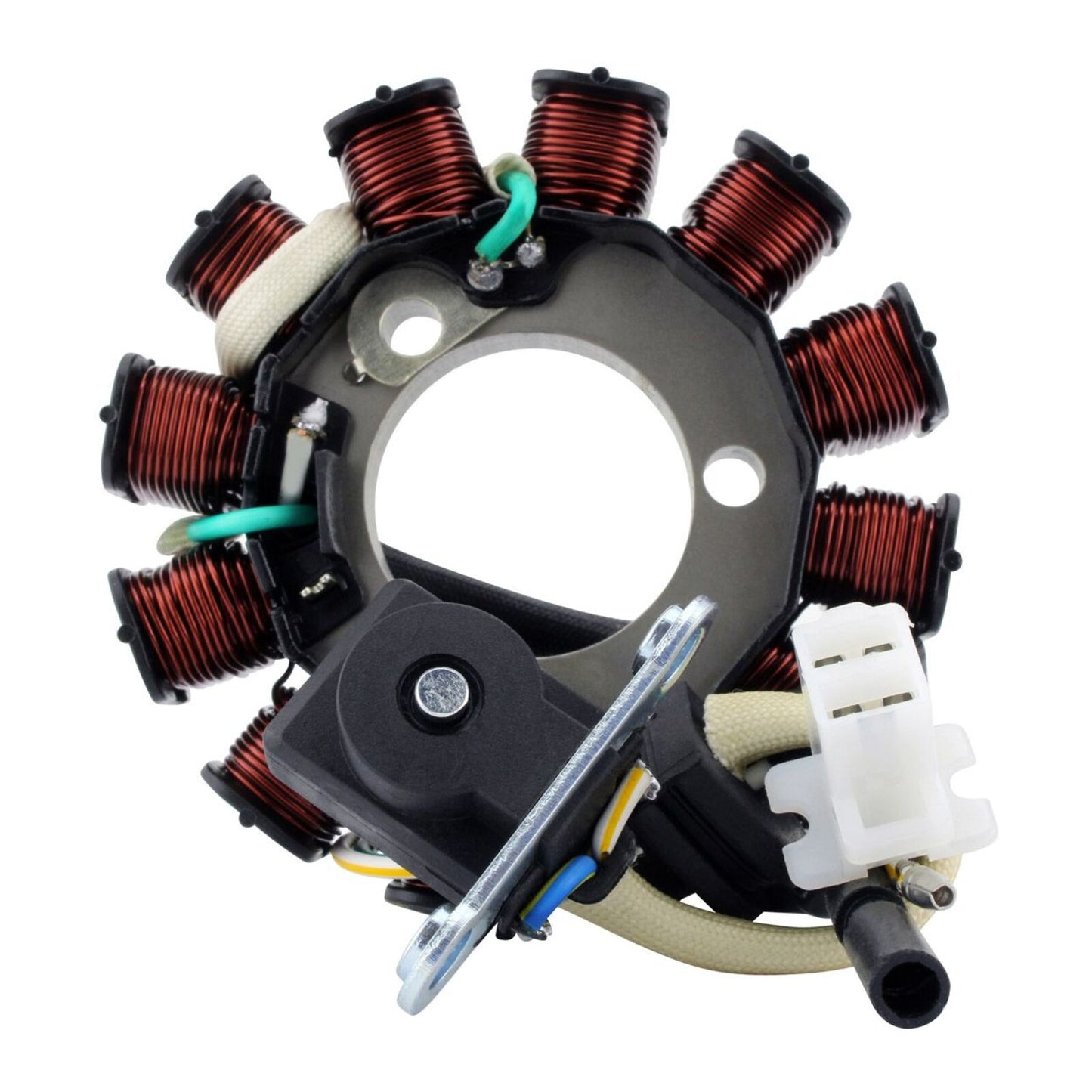

Stator

Dimensions :
Interior diameter: 35 mm
Exterior diameter: 92 mm
Thickness: 14 mm
Length of wires stator to grommet: 130 mm
Length of wires grommet to plug: 120 mm
Length of pickup coil\'s wire to grommet: 90 mm

Other specifications :
Number of wires: 4
Number of plugs: 3
Number of pins: 4

Wire to wire resistance:
Alternator : white to green = 0.9 ohms +/-20%
Pickup: White/Yellow to Blue/Yellow = 115 ohms +/-20%

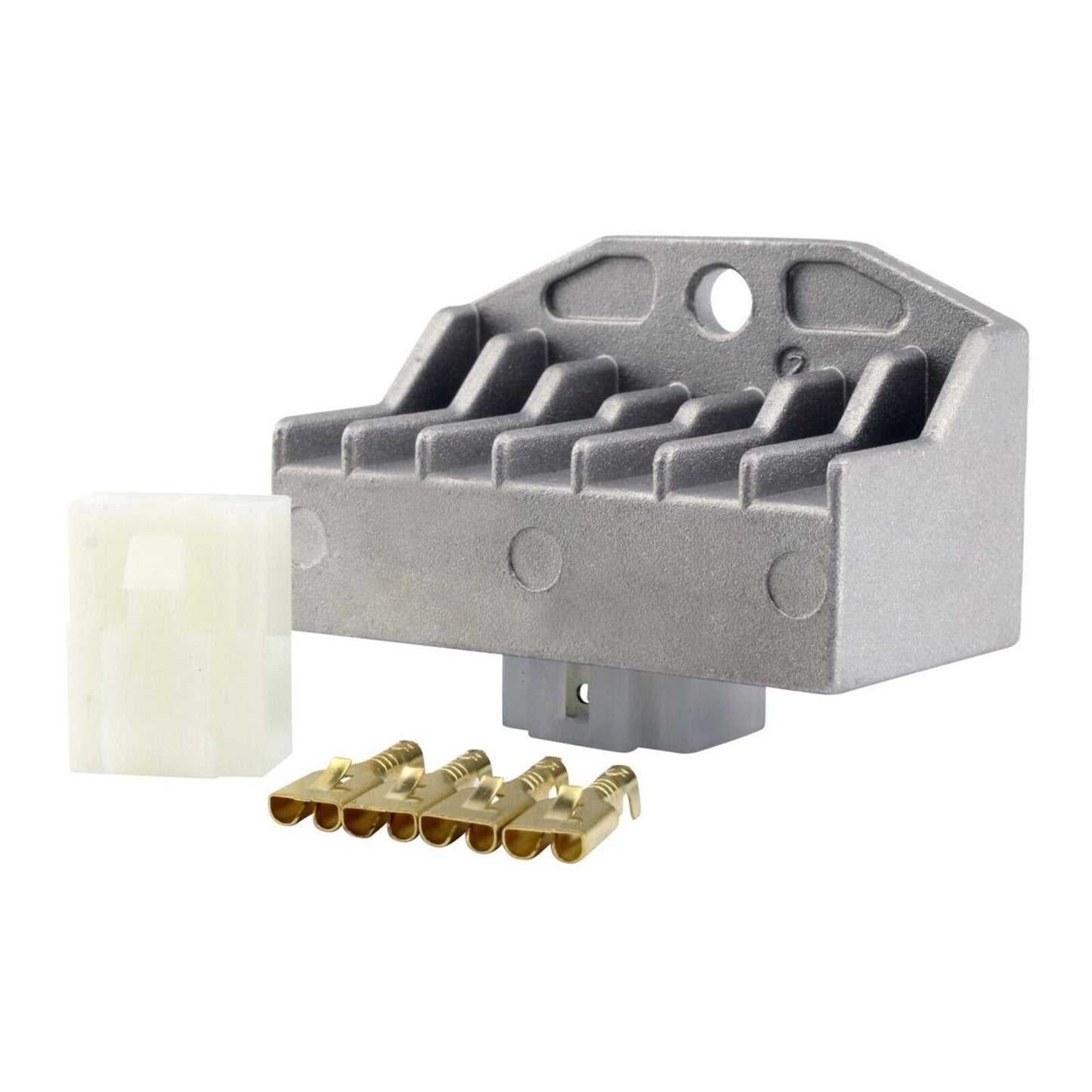

Voltage Regulator Rectifier

Dimensions:
Width: 38 mm
Length: 65 mm
Height: 40 mm

Other specifications:
Number of plugs: 1
Number of pins: 4
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85° C
