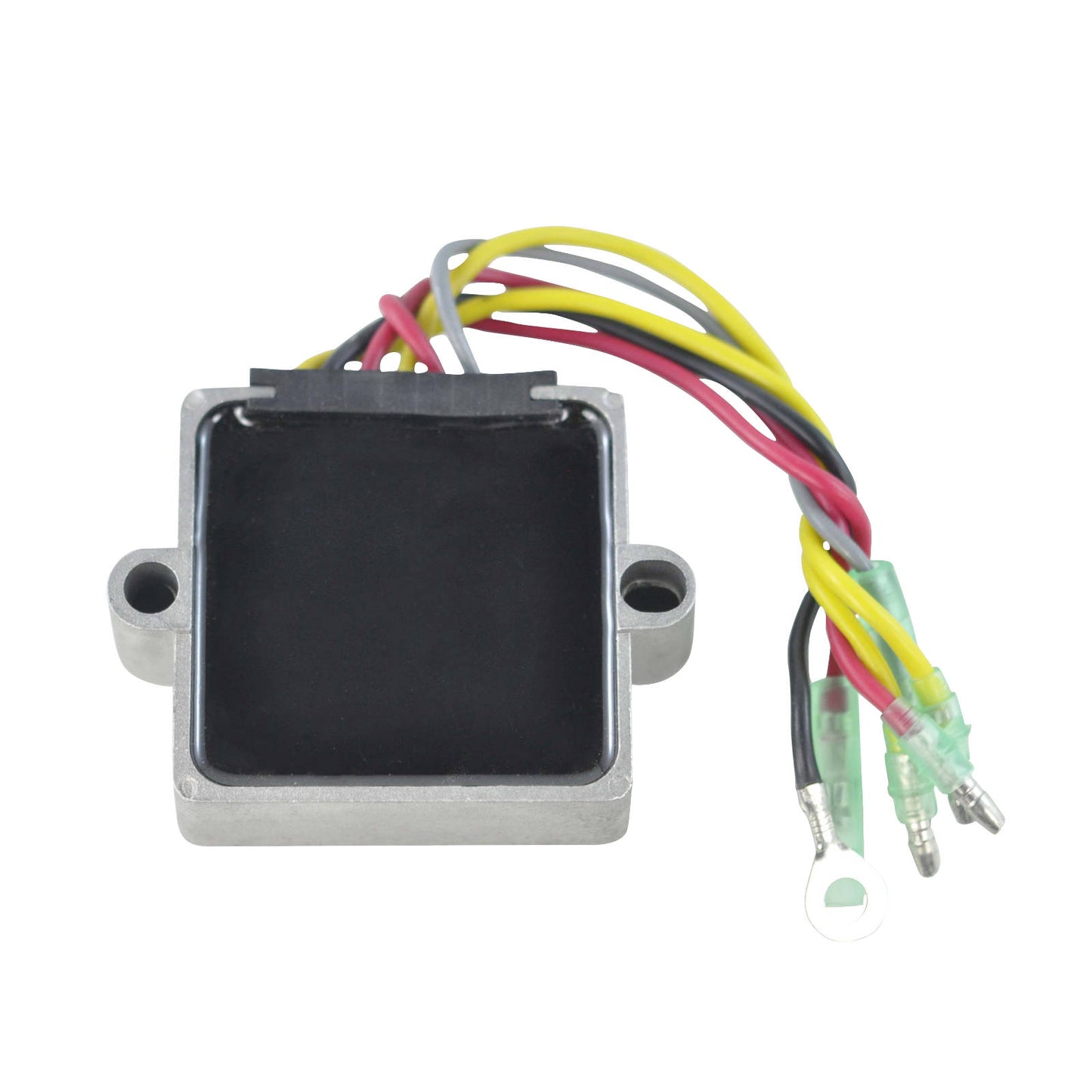

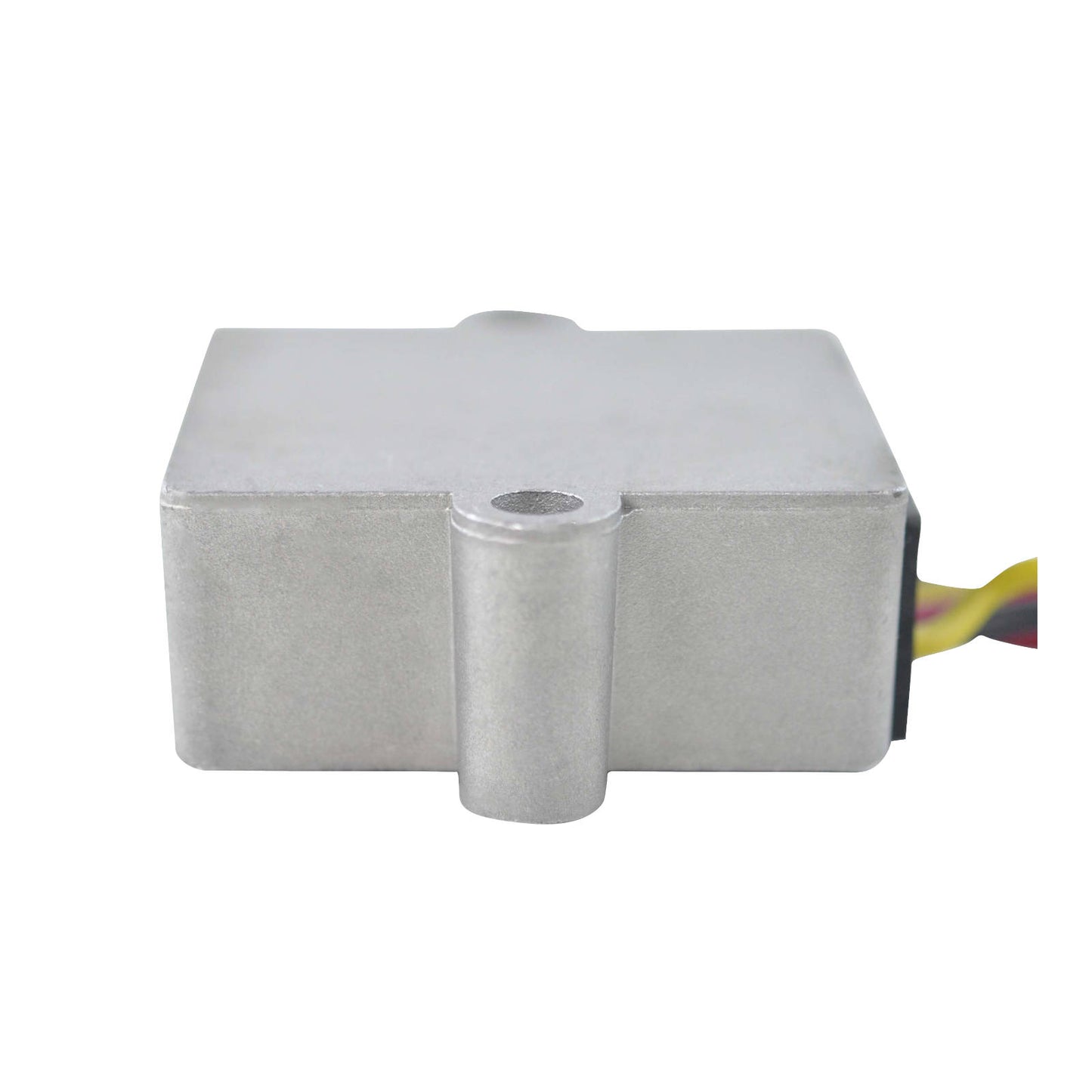

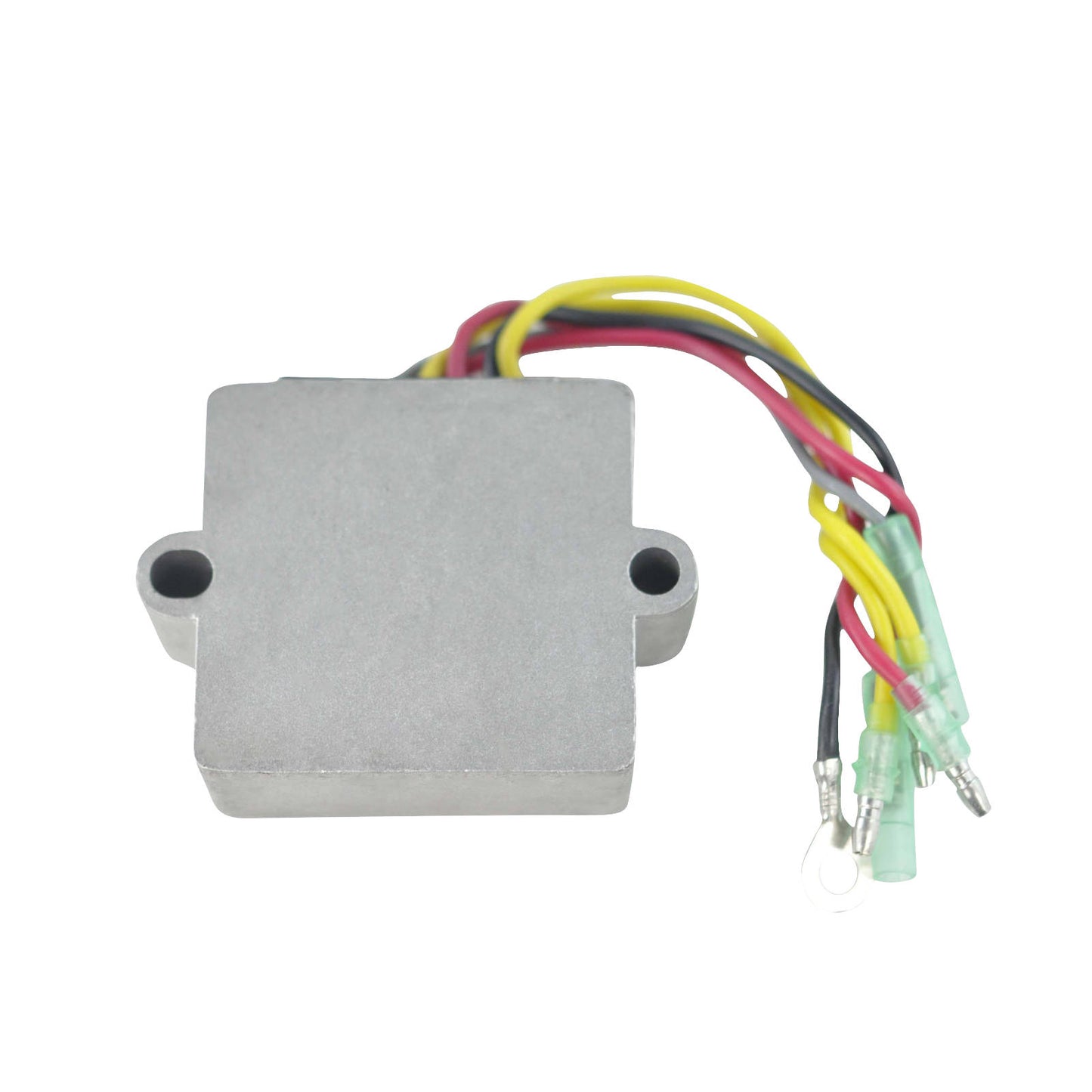

MOSFET RECTIFIER MERCURY OUTBOARD RFR FITMENTS (RM30430)

Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced MOSFET type.

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Higher grade of electric components
• All shipped products are tested

Specifications:

• Dime nsions:
  • Width: 66 mm
  • Length: 63 mm
  • Height: 25 mm
  • Fixation holes centre to centre: 65 mm

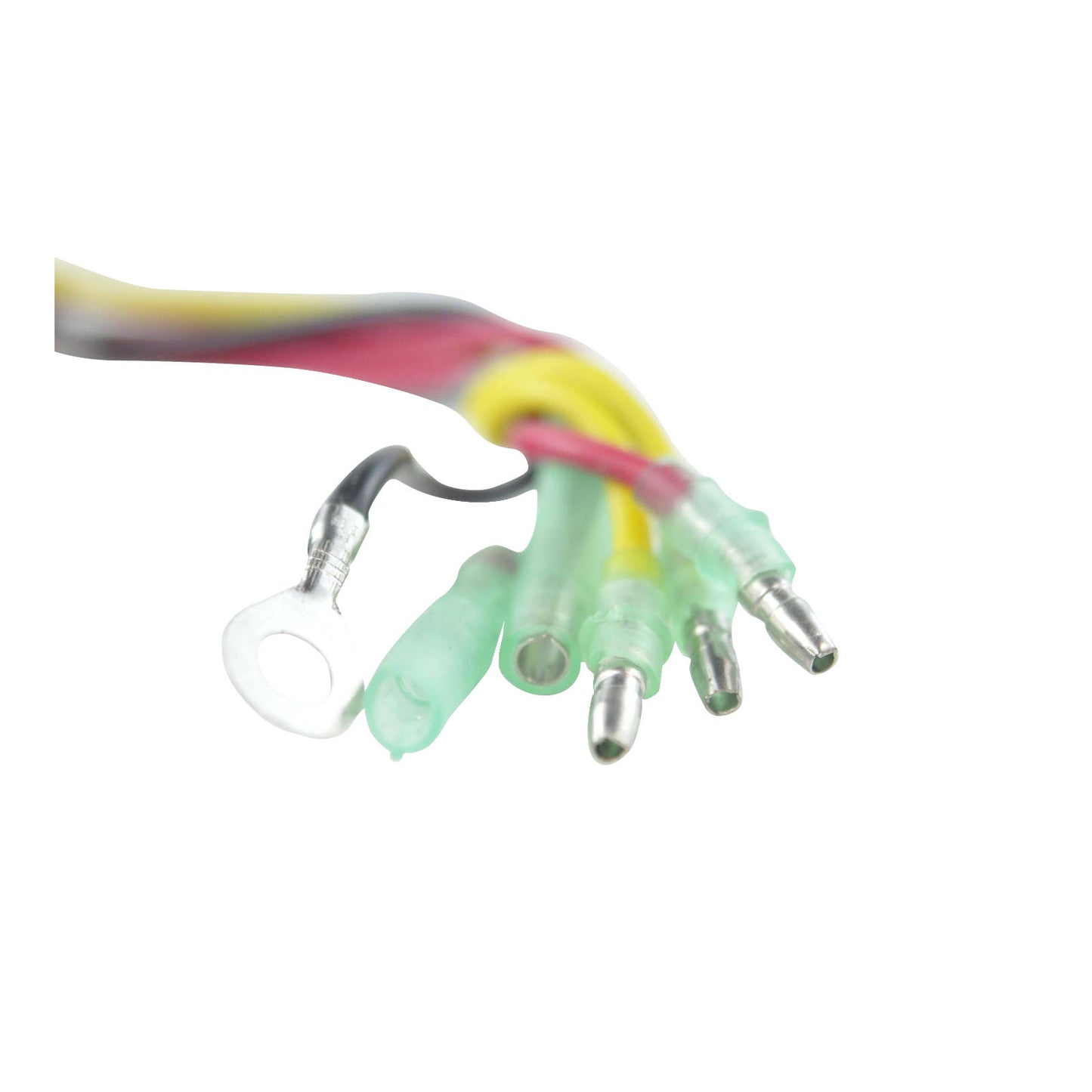

  • Wires Length: 156 mm
• Number of plugs: 6
• Number of pins: 6
• Number of wires: 6
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
