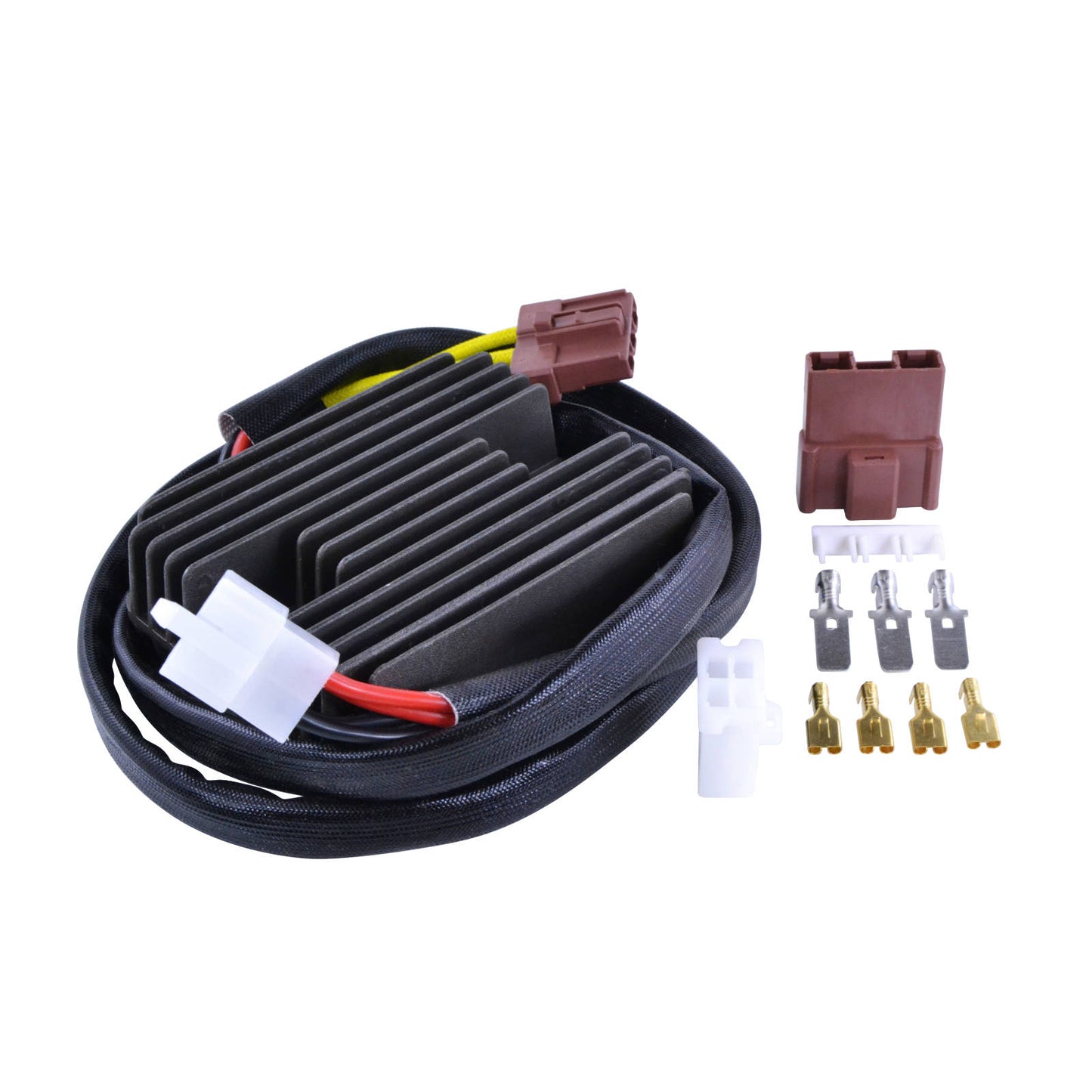

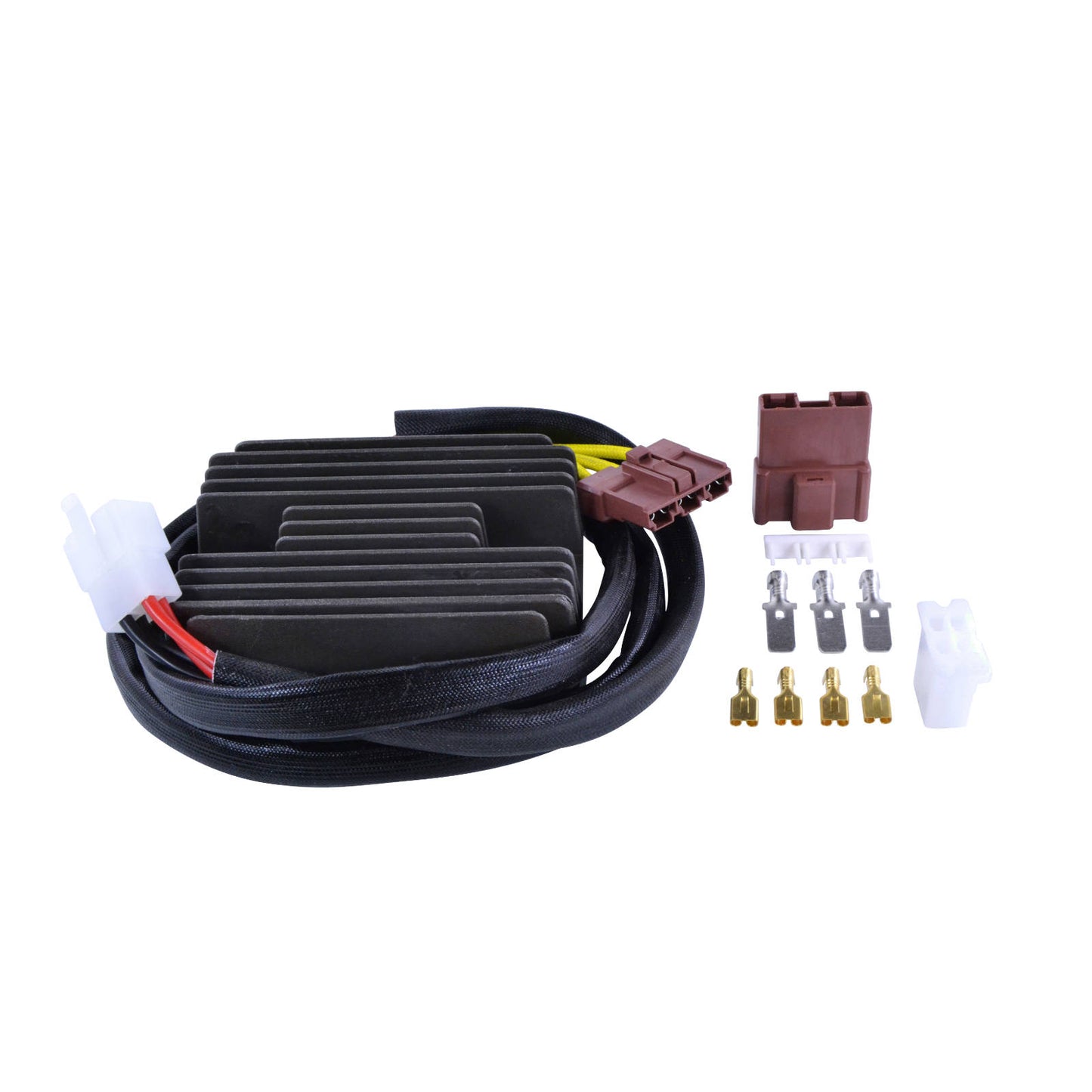

MOSFET Regulator - Scooter (Assorted Fitments) (RMS020-104011)

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode-style regulators.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Higher grade of electric components
• Improved heat sink and charging capabilities
• All shipped products are tested

Dimensions:

• Width: 108mm
• Length: 84mm
• Height: 41mm
• Wires length: 355 mm and 945 mm
• Fixation holes center to center: 81mm

Other specifications:

• Number of plugs: 2
• Number of wires: 7
• Wires Length: 580mm and 600mm
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
