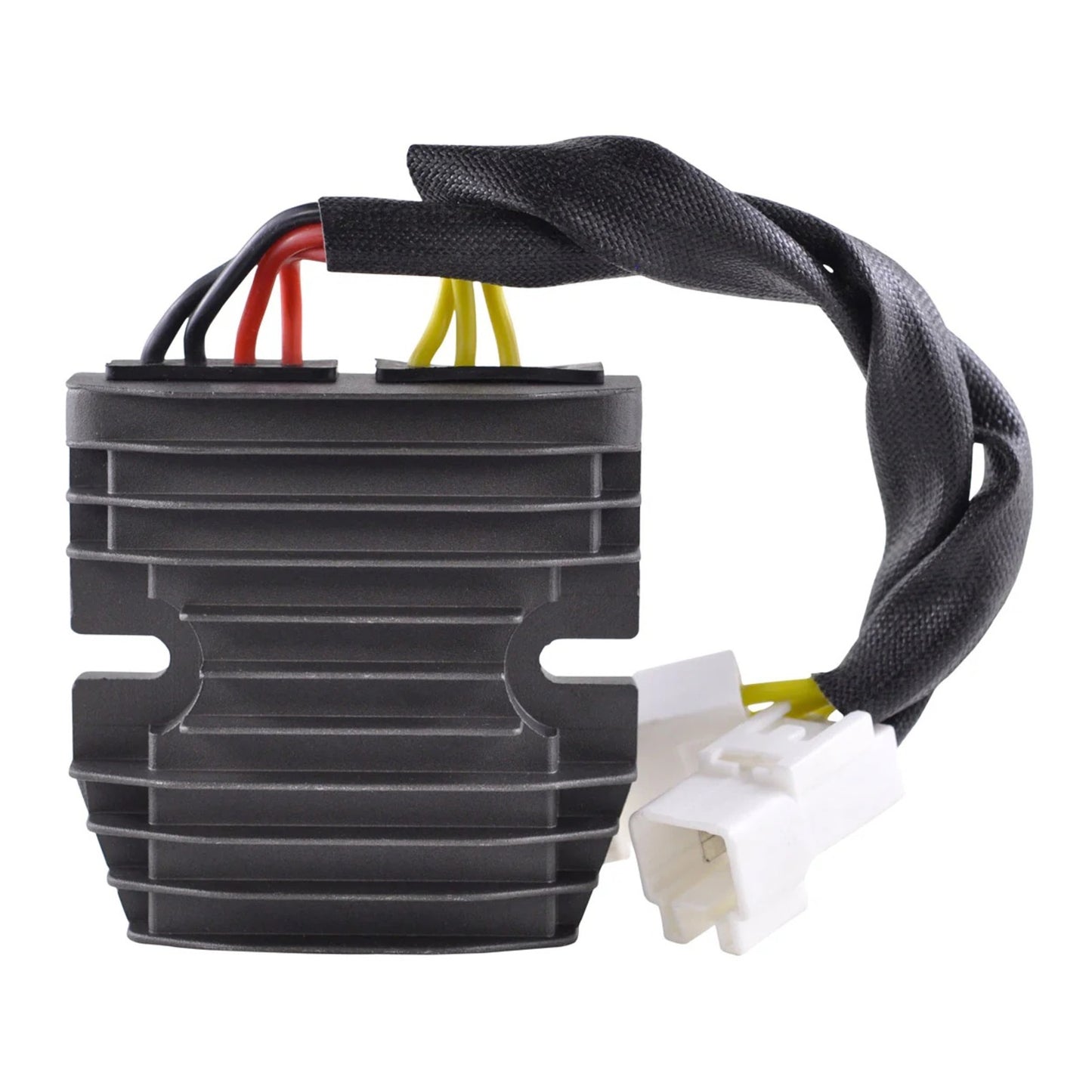

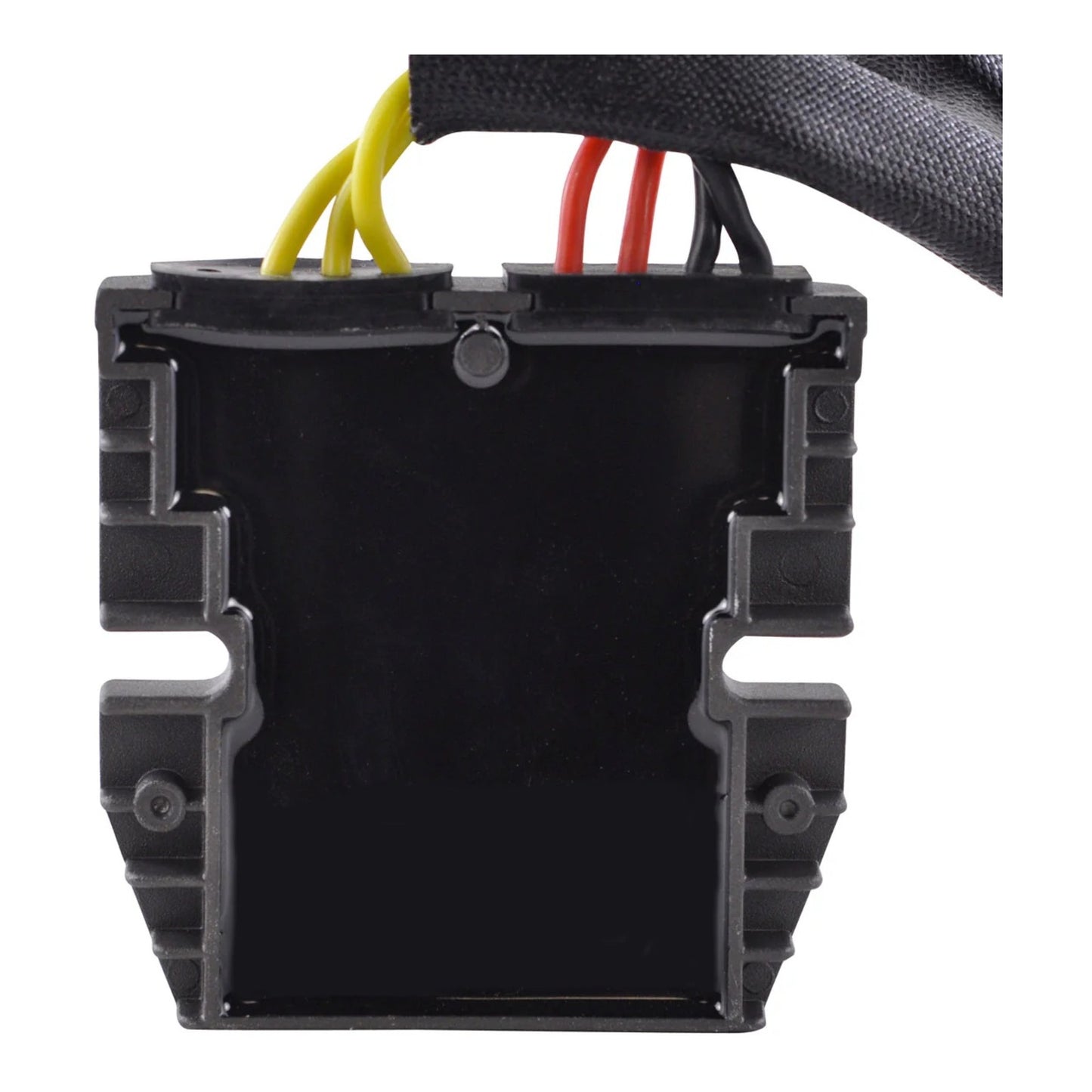

Mosfet Regulator Assorted Honda RFR Fitments (RMS020-102340)

Mosfet Regulator Assorted Honda RFR Fitments (RMS020-102340)

$229.99
$229.99

In Store

Available now for delivery or store pickup, during store hours.

Warehouse

Available for delivery or store pickup during store hours in 2-5 business days time.

Contact us for availability

We are currently out of stock for this product.

Are you sure this fits?
We recommend using 'Shop By Bike'.

SHOP BY BIKE
Or split over 4 payments with Afterpay Afterpay
SHARE:
View full details
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part. It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection; rather than burn up, it will simply turn off for a while and cool off.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required.
  • Higher grade of electric components.

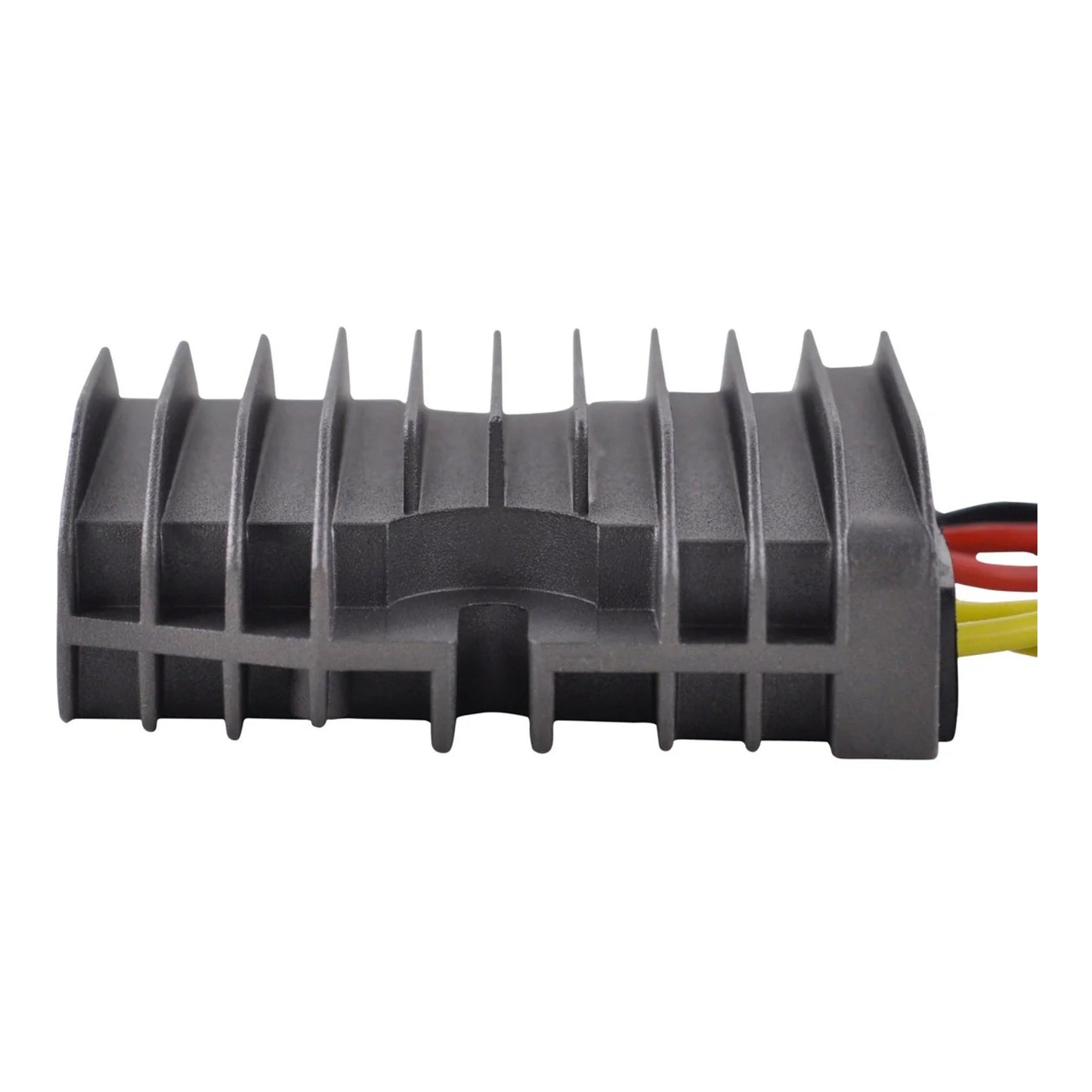

  • Improved heat sink and charging capabilities.
  • The quality exceeds the OEM equipment.
  • All shipped products are tested.

Technical Data:

  • Dimensions:
    • Width: 90 mm
    • Length: 90 mm
    • Height: 30 mm
    • Wires length: 220 and 210 mm
    • Fixation holes centre to centre: 75 mm
  • Other specifications:

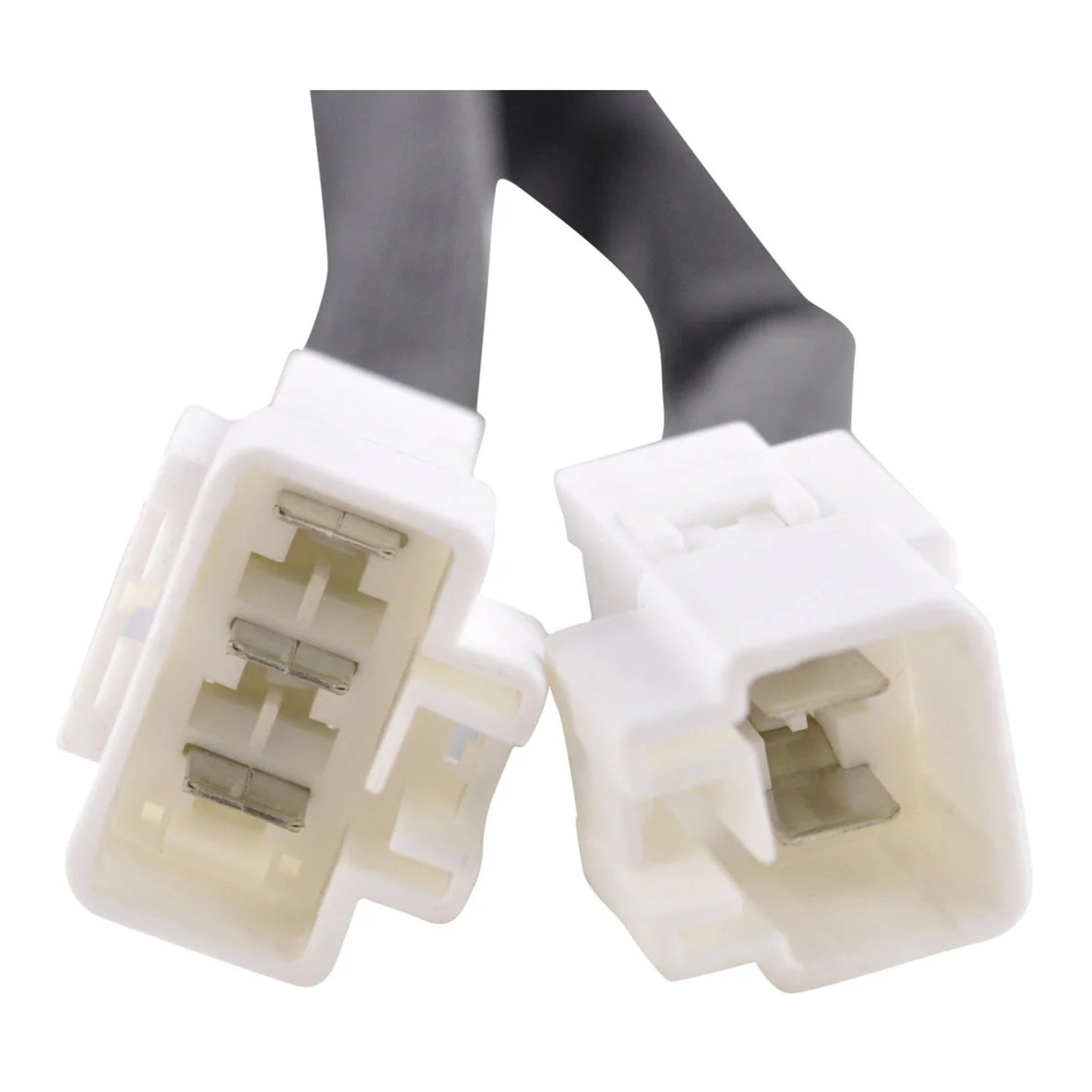

    • Number of plugs: 2
    • Number of pins: 5
    • Number of wires: 5
    • Minimum Charging Voltage: 14.5V +- 0.5V
    • Maximum Charging Current: 50A500W
    • Open Circuit Voltage: 15V
    • Operation Temperature: -20° to 85°
