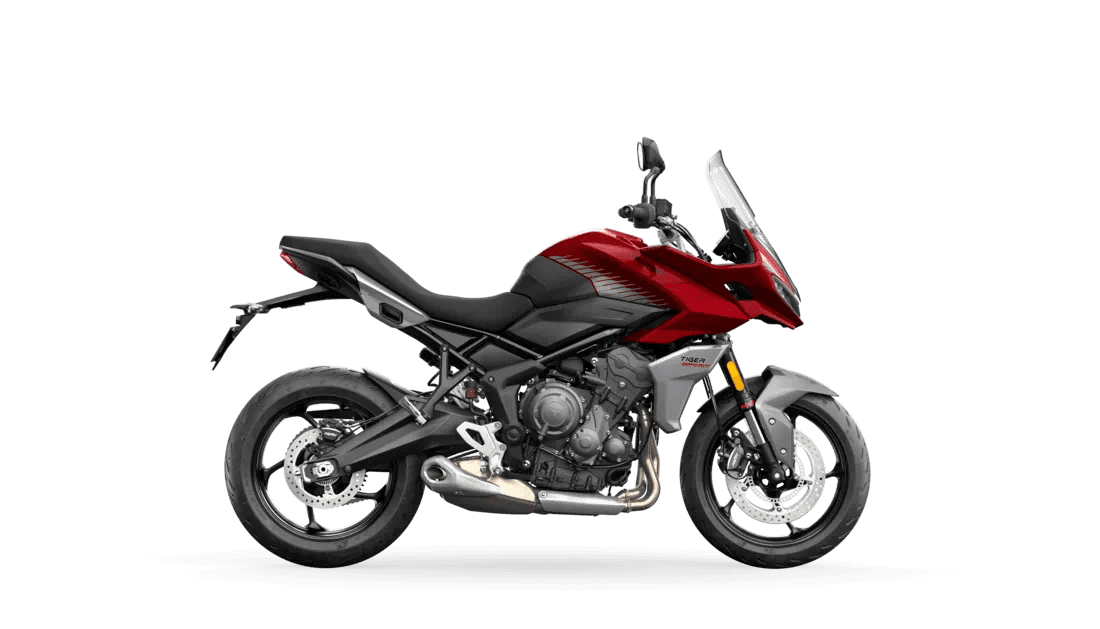

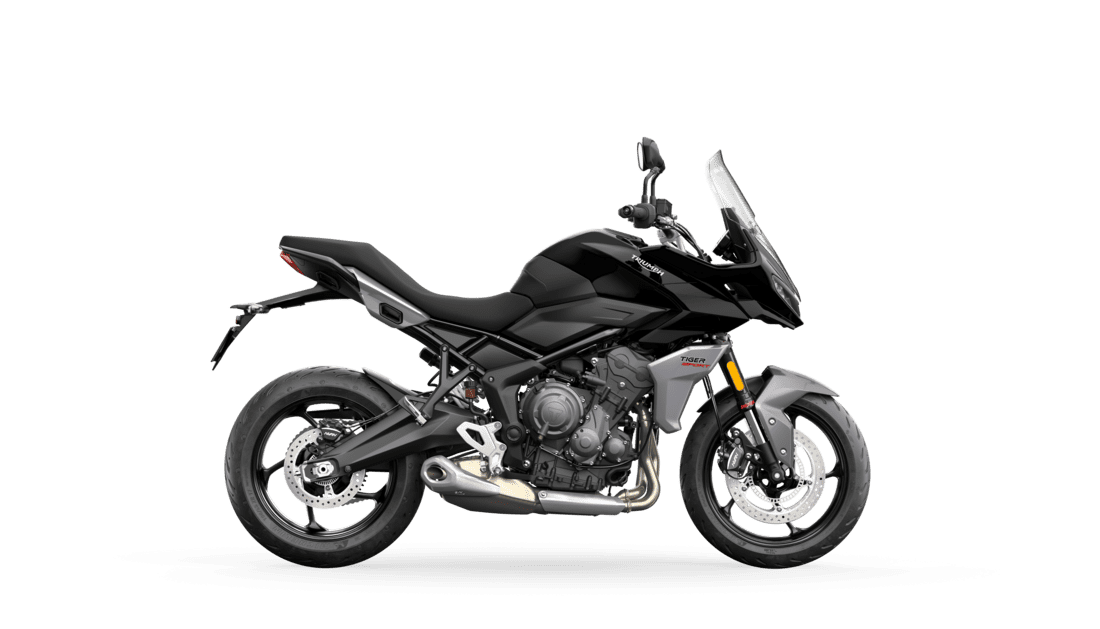

MY24 TIGER SPORT 660
MY24 TIGER SPORT 660
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
With its confidence-inspiring handling, superior triple performance and class-leading technology the Tiger Sport 660 sets the benchmark for adventure sports versatility and fun.
MODEL
YEAR
TECHNICAL SPECIFICATION
| TypeLiquid-cooled, 12 valve, DOHC, inline 3-cylinder, 240° firing order |
| Capacity660 cc |
| Bore74.04 mm |
| Stroke51.1 mm |
| Compression11.95:1 |
| Max Power EC56.3 PS / 55.5 bhp (41.5 kW) @ 8,750 rpm |
| Max Torque EC62 Nm @ 6,250 rpm |
| SystemMultipoint sequential electronic fuel injection with electronic throttle control |
| ExhaustStainless steel 3 into 1 header system with low single sided stainless steel silencer |
| Final DriveX-ring chain |
| ClutchWet, multi-plate, slip |
| Gearbox6 speed |
| FrameTubular steel perimeter frame |
| SwingarmTwin-sided, fabricated steel |
| Front WheelCast aluminium, 17 x 3.5 in |
| Rear WheelCast aluminium, 17 x 5.5 in |
| Front Tyre120/70 ZR 17 (58W) |
| Rear Tyre180/55 ZR 17 (73W) |
| Front SuspensionShowa 41mm upside down separate function cartridge forks, 150mm wheel travel |
| Rear SuspensionShowa monoshock RSU, with remote hydraulic preload adjustment, 150mm wheel travel |
| Front BrakesNissin two-piston sliding calipers, twin 310mm discs, ABS |
| Rear BrakesNissin single-piston sliding caliper, single 255mm disc, ABS |
| DisplayMulti-function instruments with colour TFT screen |
| Fuel Consumption4.5 litres / 100 km |
| Service10,000 miles (16,000 km) /12 months service interval, whichever comes first |
| Width Handlebars834 mm |
| Height Without Mirror1398 mm / 1315mm (high / low screen position) |
| Seat Height835 mm |
| Wheelbase1418 mm |
| Rake23.1 º |
| Trail97.1 mm |
| Tank Capacity17.2 L |
| Wet Weight206 kg |
