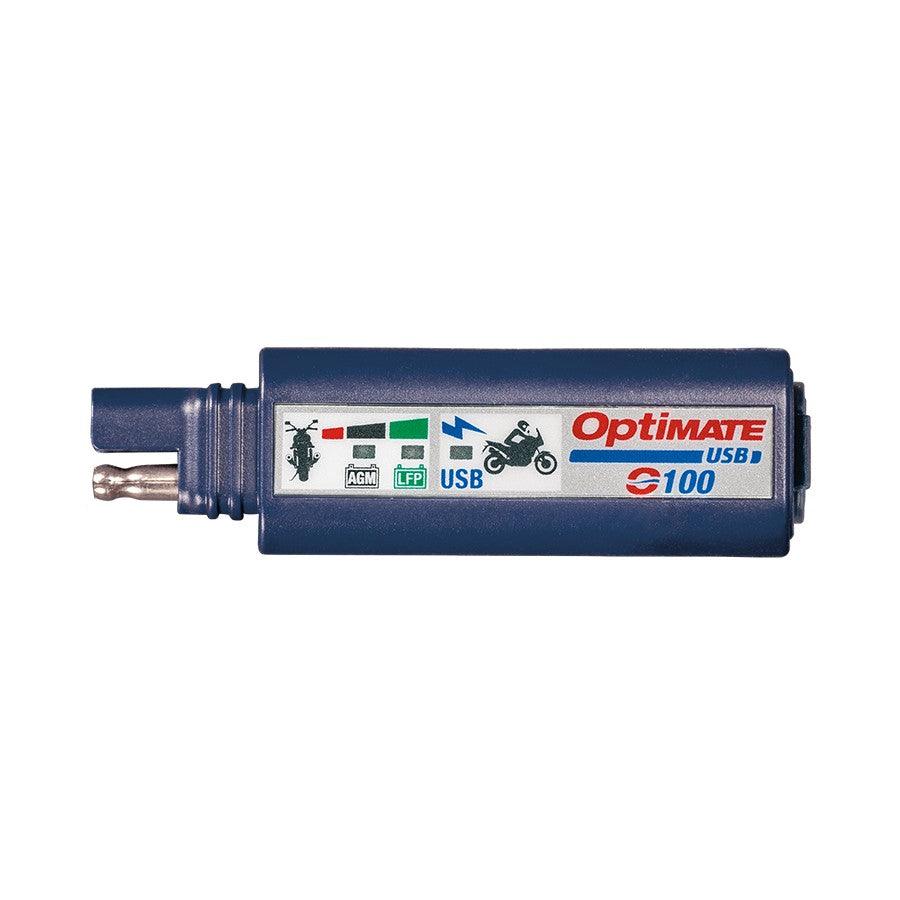

OPTIMATE USB CHARGER & 3-LED BATTERY MONITOR

The portable & compact SAE to USB 2400mA charger for safe and fast charging of any USB device, including your phone, camera or GPS.

• Connects to battery lead with industry standard SAE 2-pin connector – Seals perfectly when mated with OptiMate SAE!
• Charges 1x USB device with up to 2400mA current available (or get optional O-110 USB splitter and charge 2 devices). – Charge current adapts to connected device for safe recharging.
• Creates weatherproof seal against inserted USB cable, or ‘rideproof’ cap seals when not in use – Worry free phone, camera or GPS charging in any weather!
• Built in protection turns off USB charging & prevents your parked vehicle’s LFP (LiFePO4) or AGM (Pb)battery from draining – Starts back up when vehicle engine fires up.
• Monitors and displays parked vehicle’s battery status – indicates battery is ‘start ready’ at the blink of an LED!

LENGTH: 8cm

CHARGE CONNECTOR (INPUT): 2-pin SAE

CHARGE CONNECTOR (OUTPUT): 1x USB

CHARGING AMPS: 2400mA @5V

OPERATION:  fully automatic

• Smart stand-by mode: USB output turns off 1 hour after engine stopped or immediately if voltage reduces below 12.4V.
• 2 LED battery monitor (when USB output off)  – battery status is displayed every 5 seconds.
• Short circuit, overheat, over-voltage protection.

INPUT: Vehicle 12V system with 12V lead-acid or 12.8V lithium battery.

OPERATION (Voltage)

• USB ON – 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery.
• USB 1 HOUR – 12.4V to 13.3V – 1 hour USB output, USB LED on. Go to standby mode after 1 hour or voltage < 12.4V.
• STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V.
• AGM / LFP MONITOR – LED blink every 5 seconds if battery charge ≥ 50% , sufficient to start vehicle engine.
  • LED LFP: 13.1V to 13.3V.
  • LED AGM: 12.4V to 13.1V.
  • NO LED < 12.4V.
• OFF ≤ 9V

STYLE: Fully enclosed electronic circuitry with multiple LEDs, unique seal and cap design for USB socket ; use any USB cable, seals when inserted.
