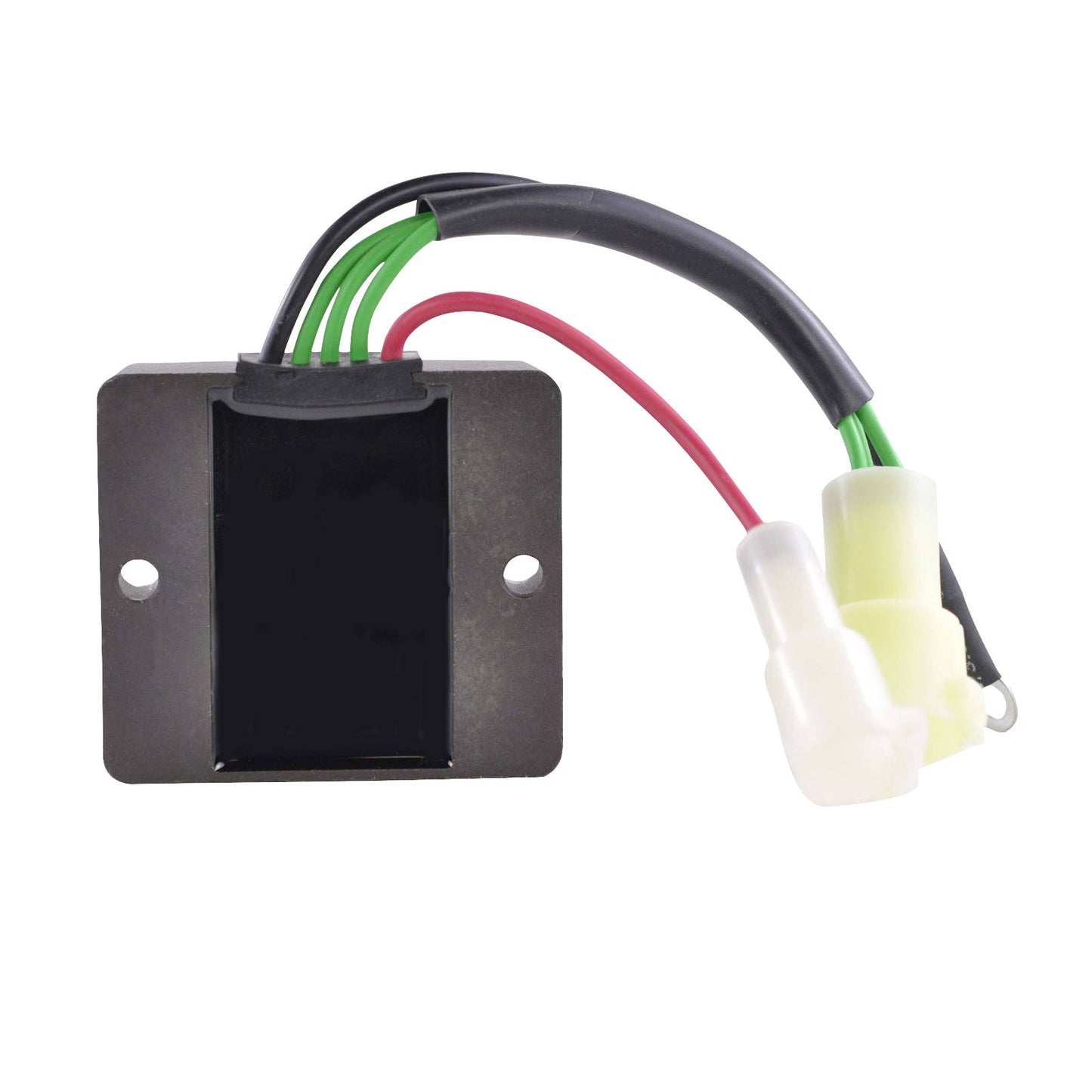

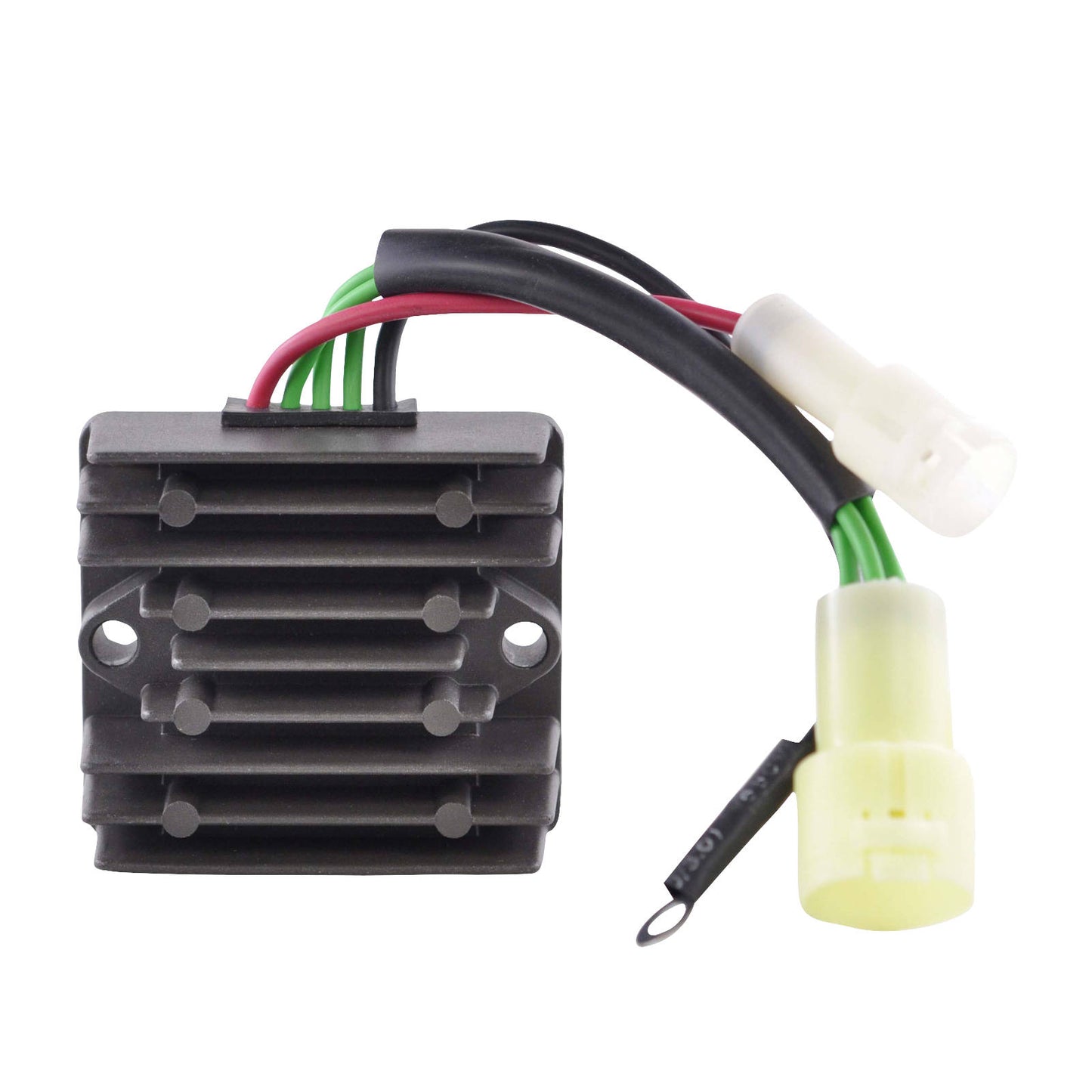

RECTIFIER YAMAHA OUTBOARD RFR FITMENTS (RM30428)

Brand new aftermarket AC/DC voltage regulator rectifier.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.

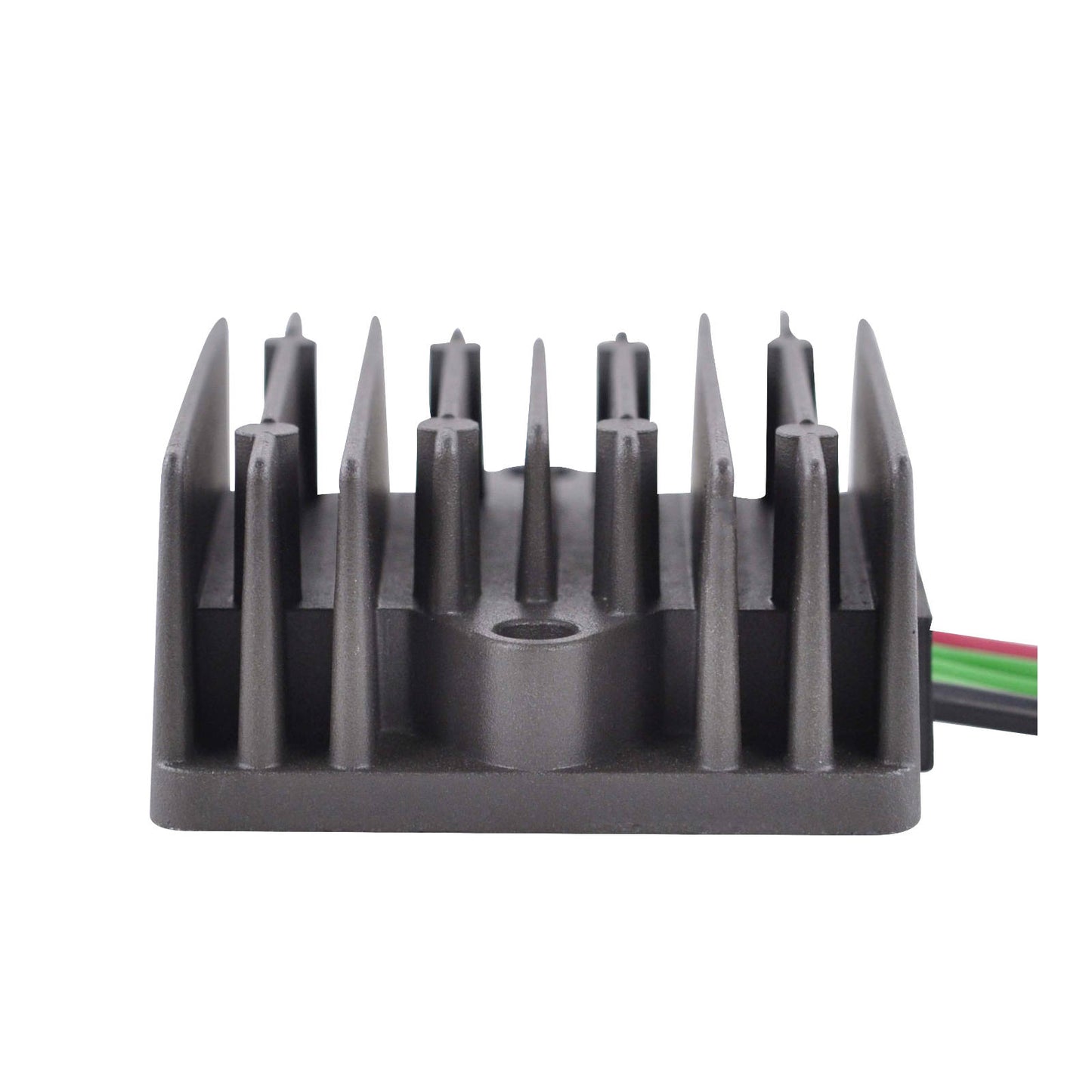

• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

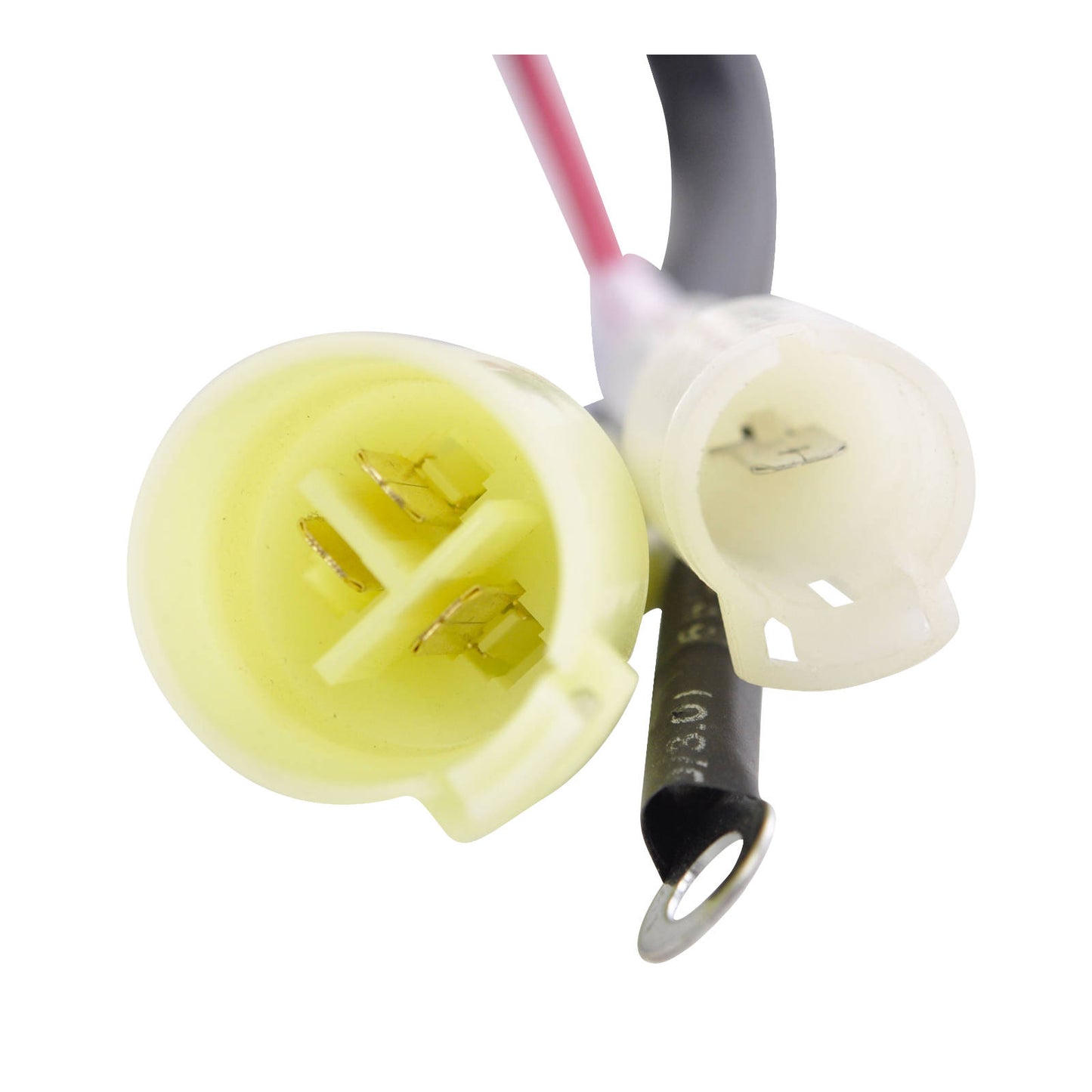

• Connector included
• All products shipped are tested

Dimensions:
Width: 79.5 mm
Length: 72 mm
Height: 35 mm
Wires length: 190 mm (black) 130 mm (green) 75 mm (red)
Fixation holes center to center: 67 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 4
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A500W
Open Circuit Voltage: 15V
Operation Temperature: -20° to 85°
