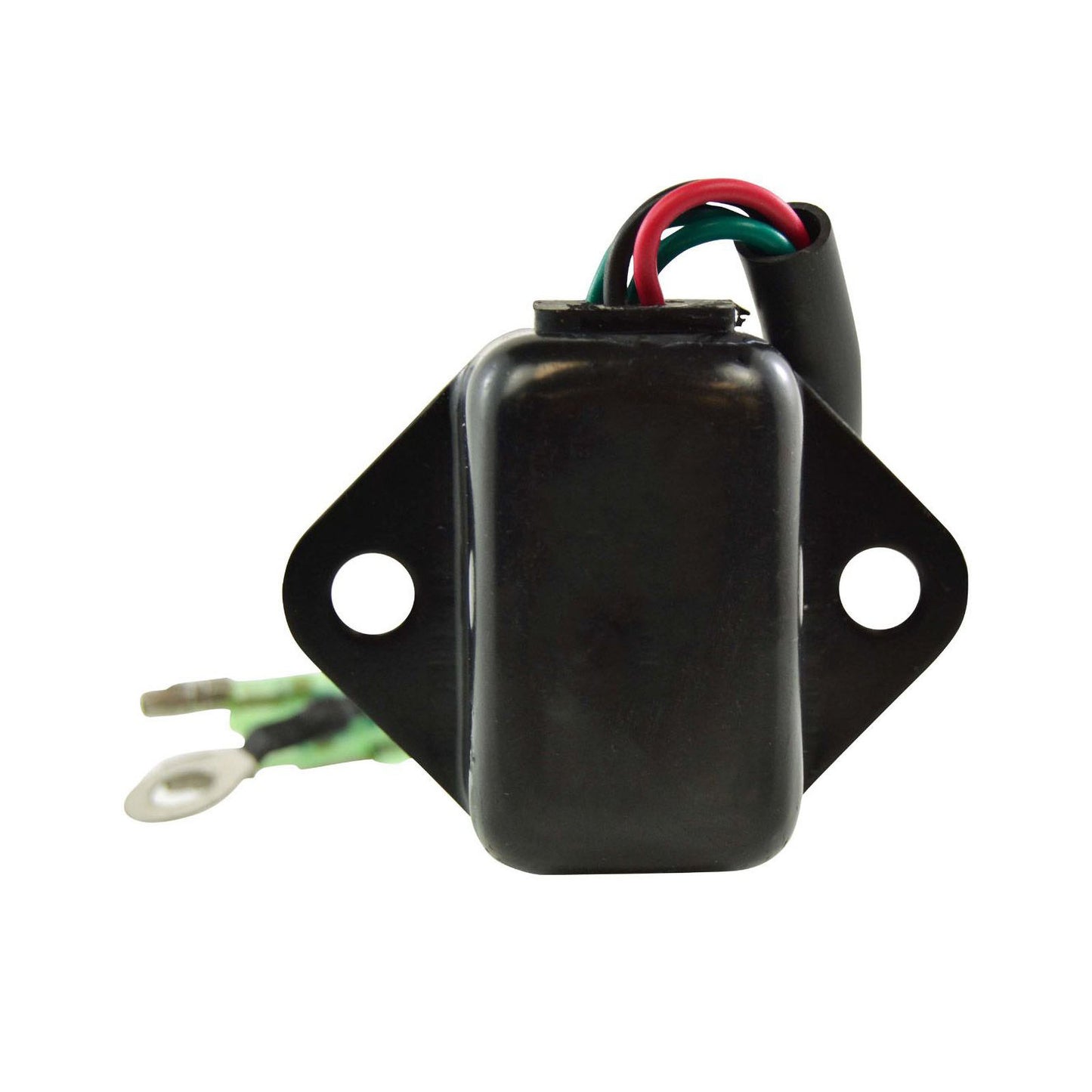

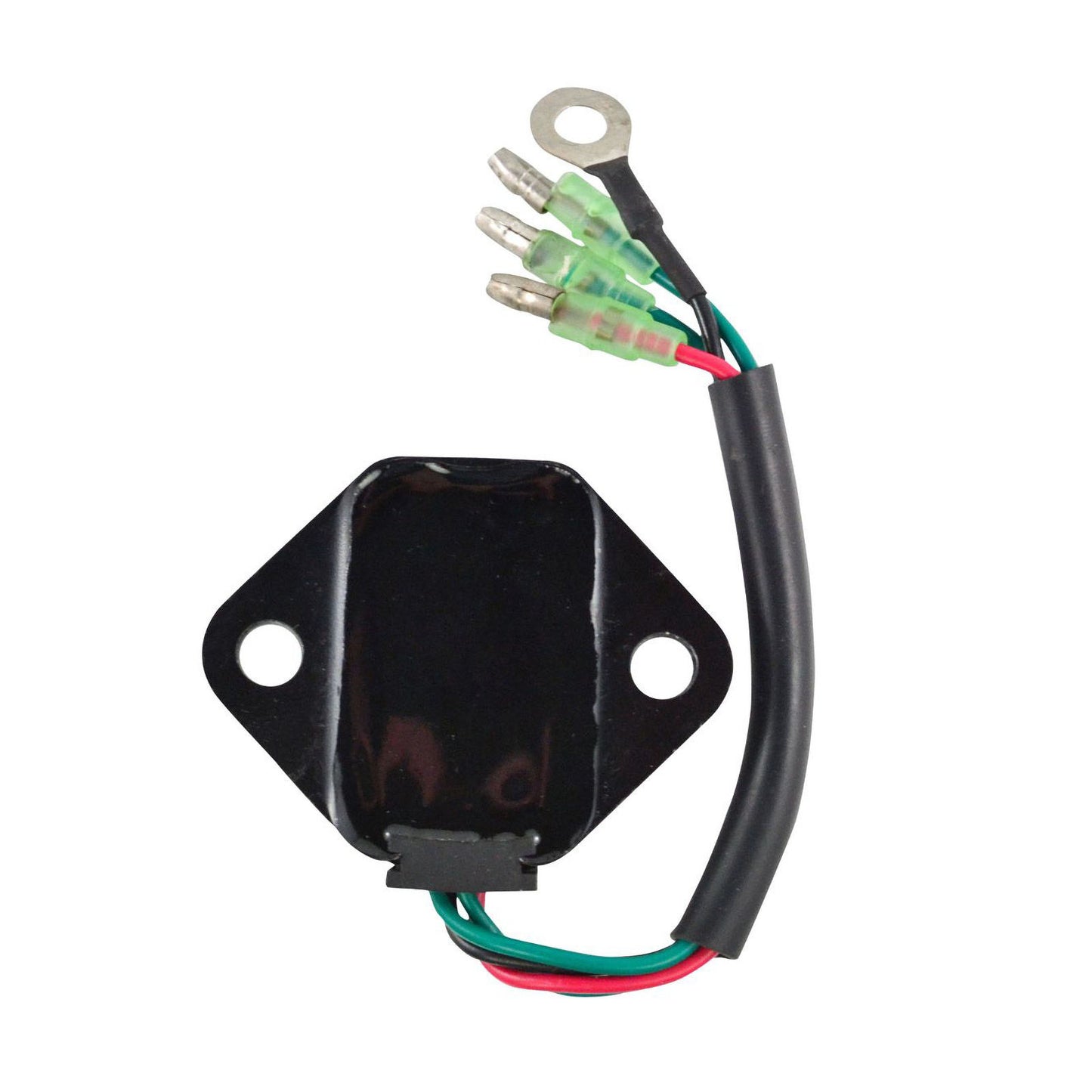

REGULATOR RECTIFIER ASSTD YAM RFR FITMENTS (RM30922)

Brand new aftermarket voltage regulator rectifier

• AC regulator rectifier
• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The quality exceeds the OEM equipment
• Higher grade of electric components.
• All products shipped are tested

Dimensions:

• Width: 55 mm
• Length: 45 mm
• Height: 15 mm
• Fixation holes centre to centre: 55 mm

Other specifications:

• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5V +/- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: <15V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
