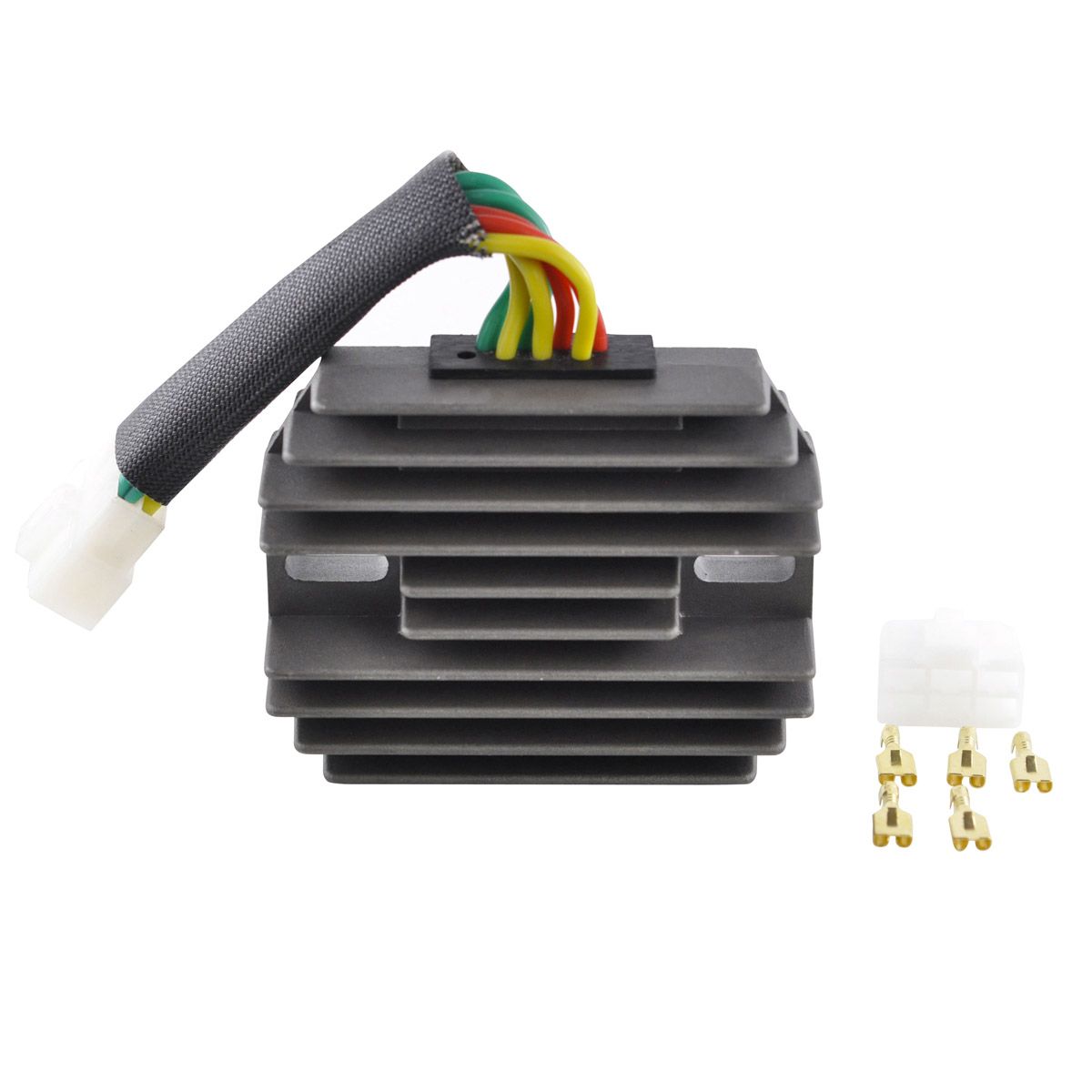

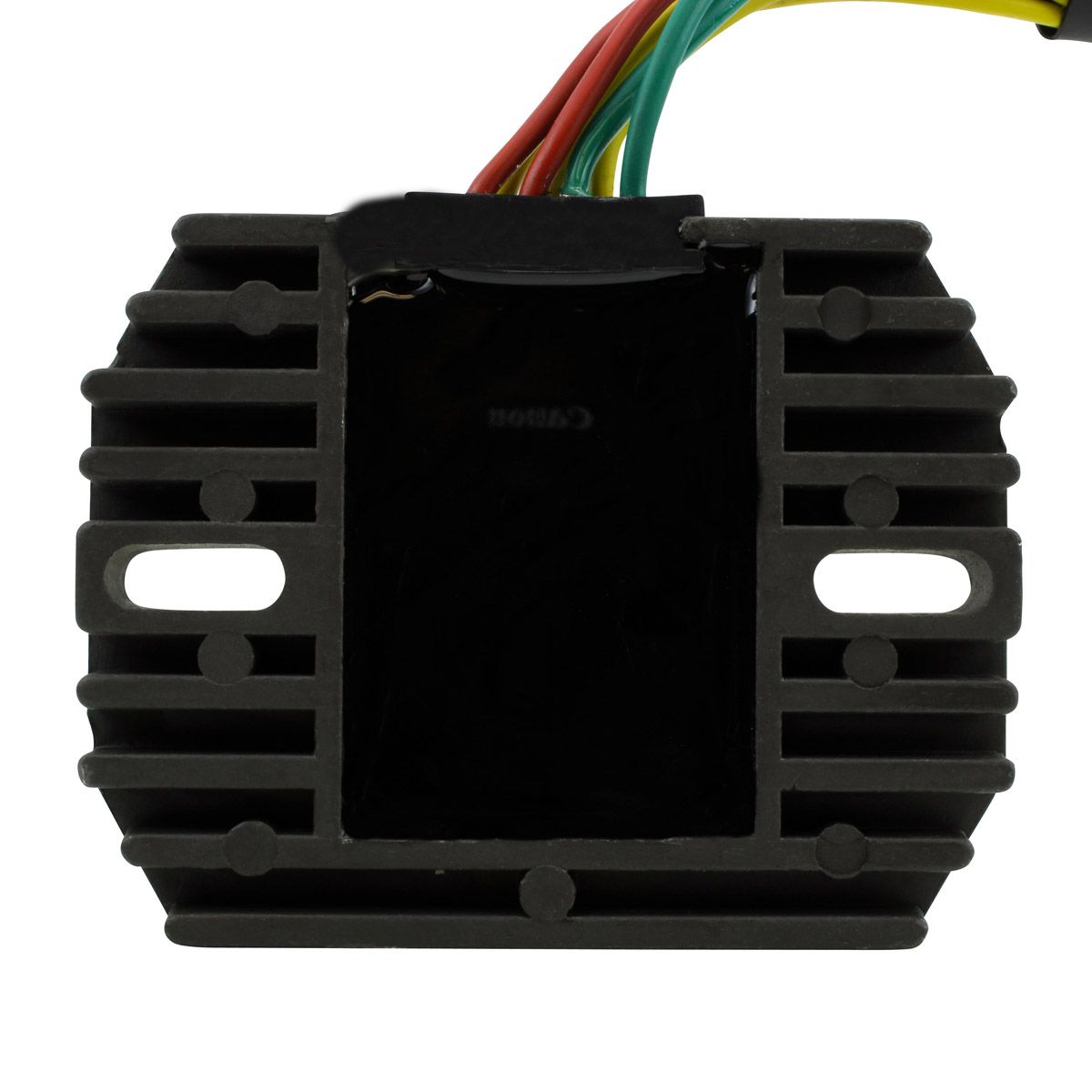

REGULATOR RECTIFIER SUZU GSXR 600 750 1000

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The Quality exceeds the OEM equipment

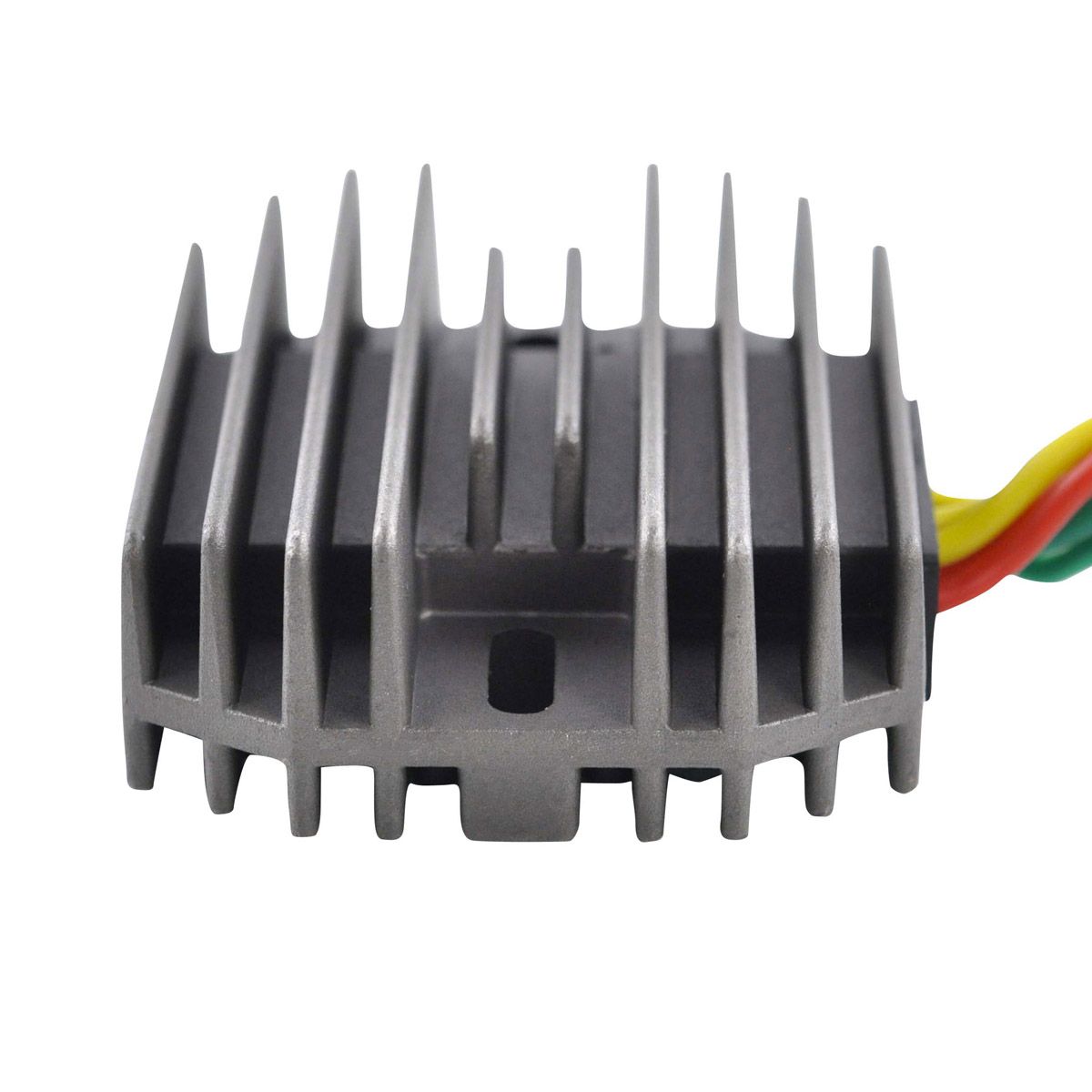

• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

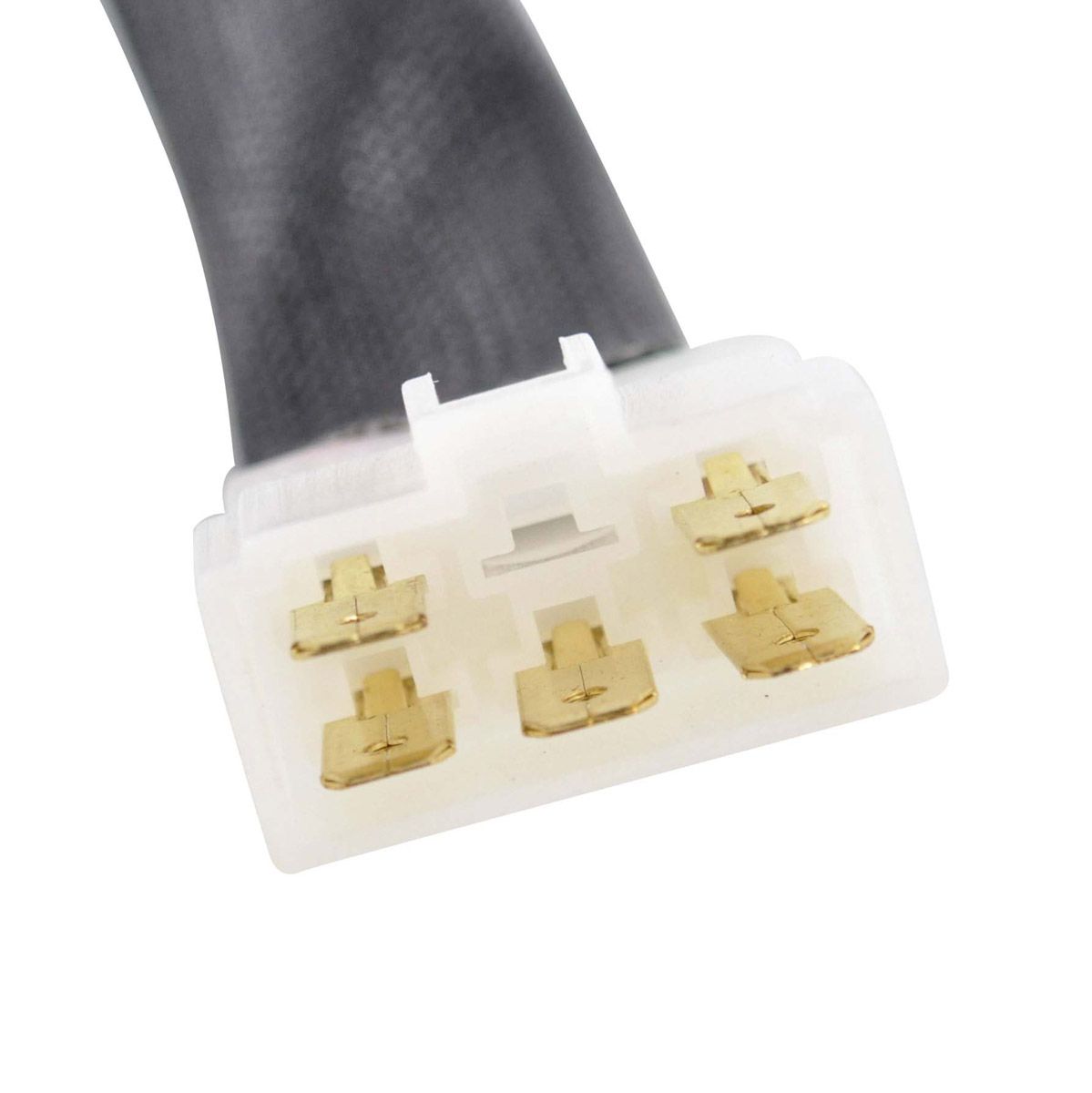

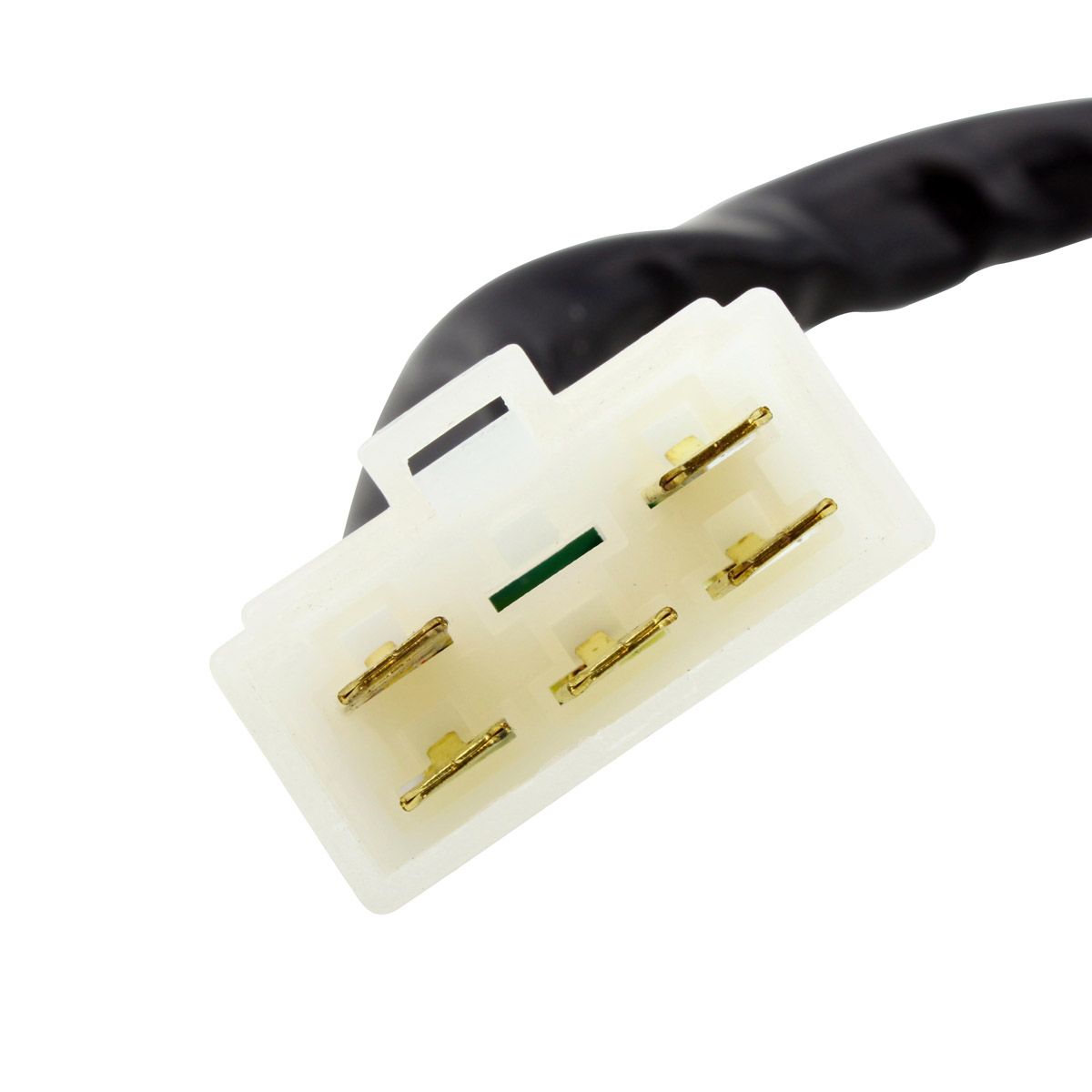

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

• Dimensions:

  • Width: 80mm
  • Length: 103mm
  • Height: 32mm
  • Fixation holes centre to centre: 75mm
  • Wires length: 120mm

• Other Specifications:

  • Number of plugs: 1
  • Number of pins: 5
  • Minimum Charging Voltage: 14.5V ± 0.5V
  • Maximum Charging Current: 25A-35A/300W-500W
  • Open Circuit Voltage: <15V
  • Operating Temperature: -20°C to 85°C
