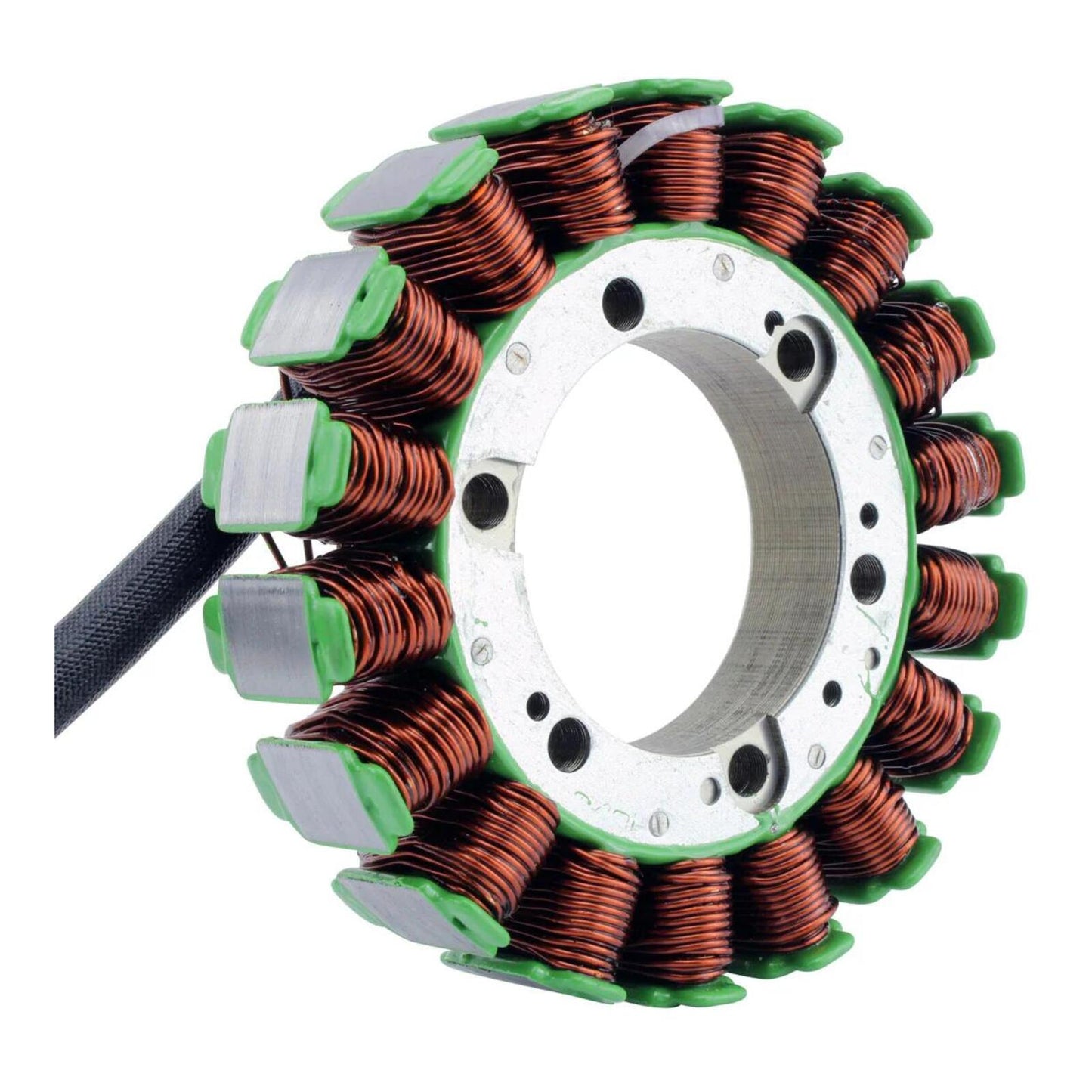

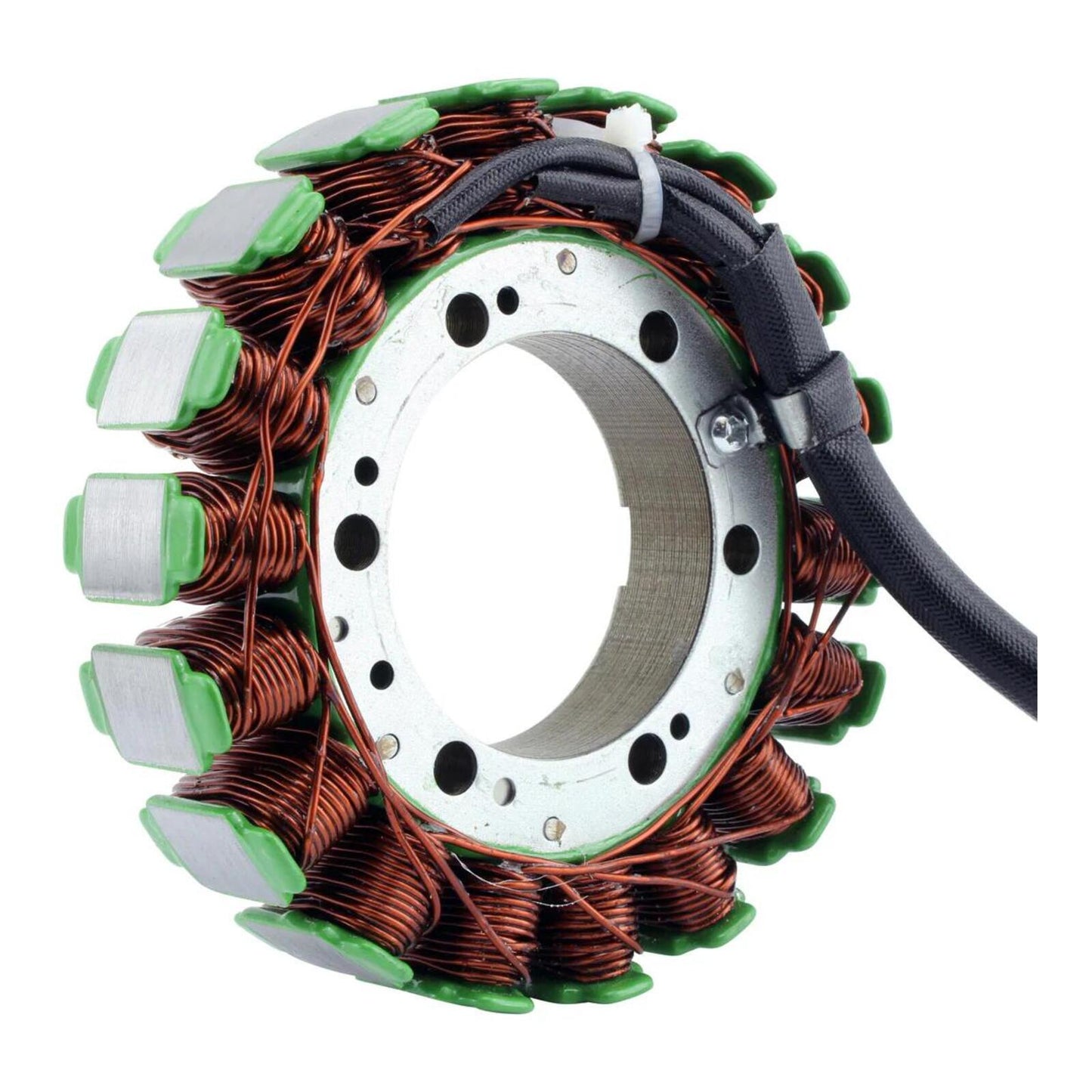

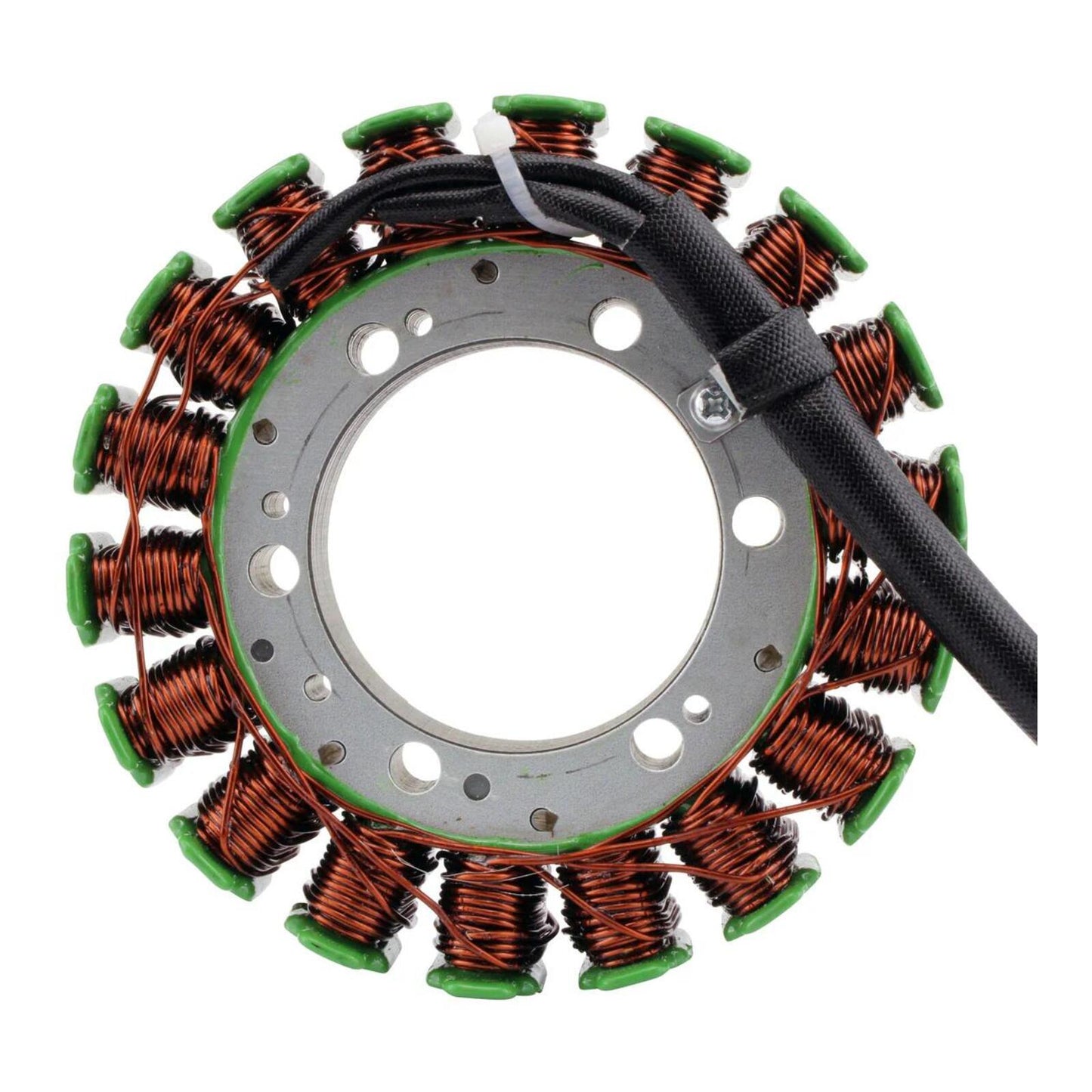

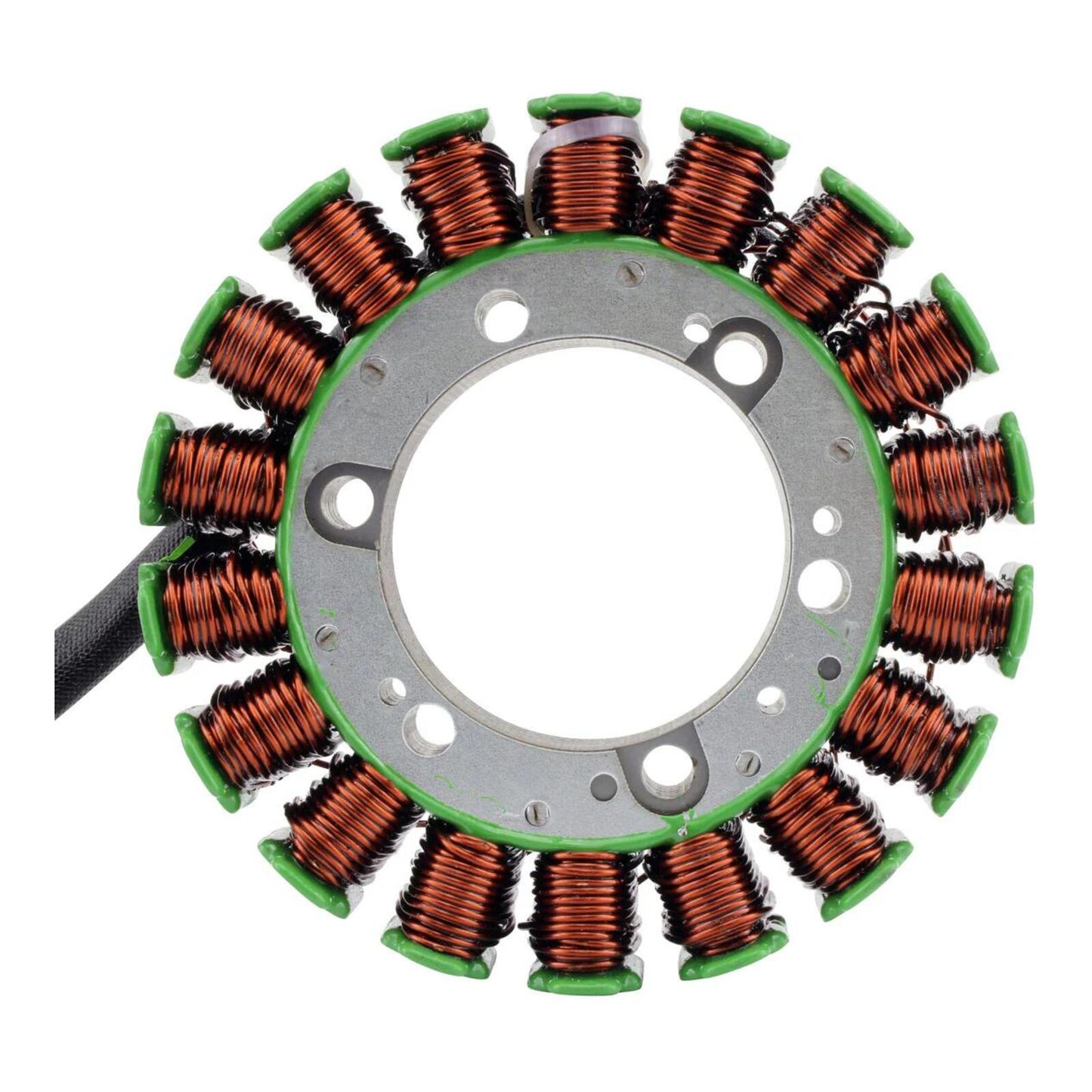

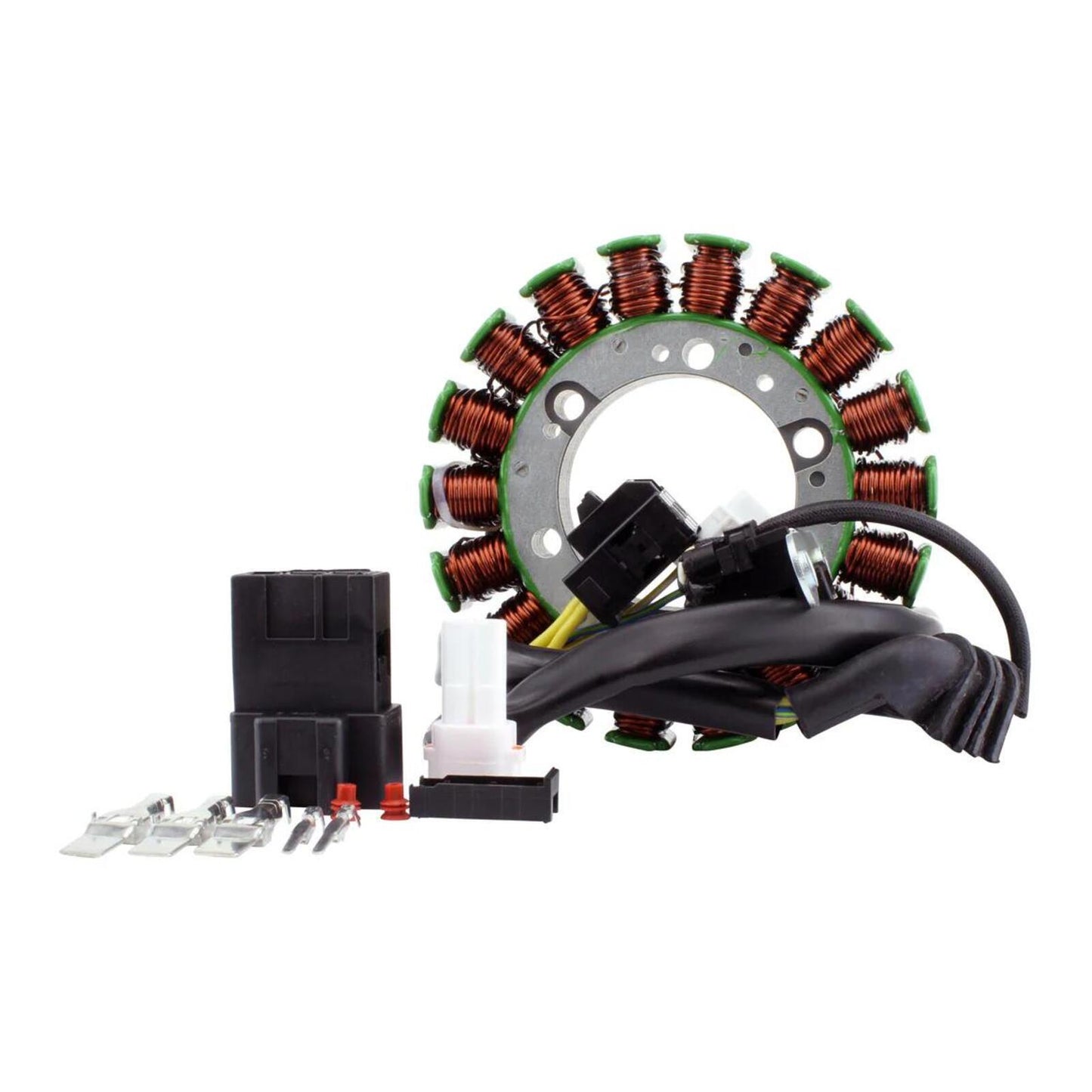

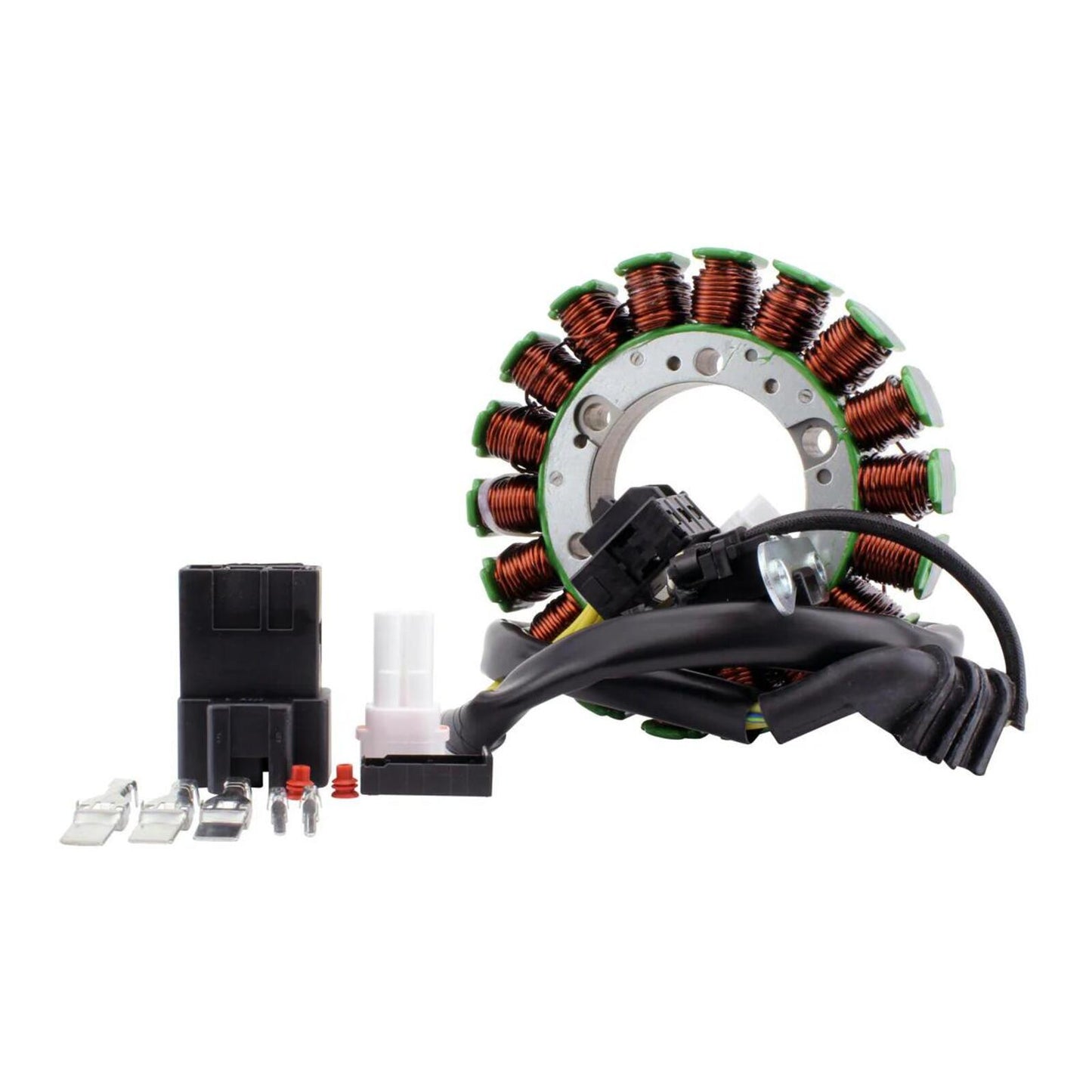

RM Stator Generator Stator Aprilia Models (RMS010-106004)

Direct replacement for your original unit.

Features:

• Plug-and-play direct fit for easy installation.
• Manufactured using high-grade lamination materials.
• Premium copper windings resistant to temperatures up to 200°C.

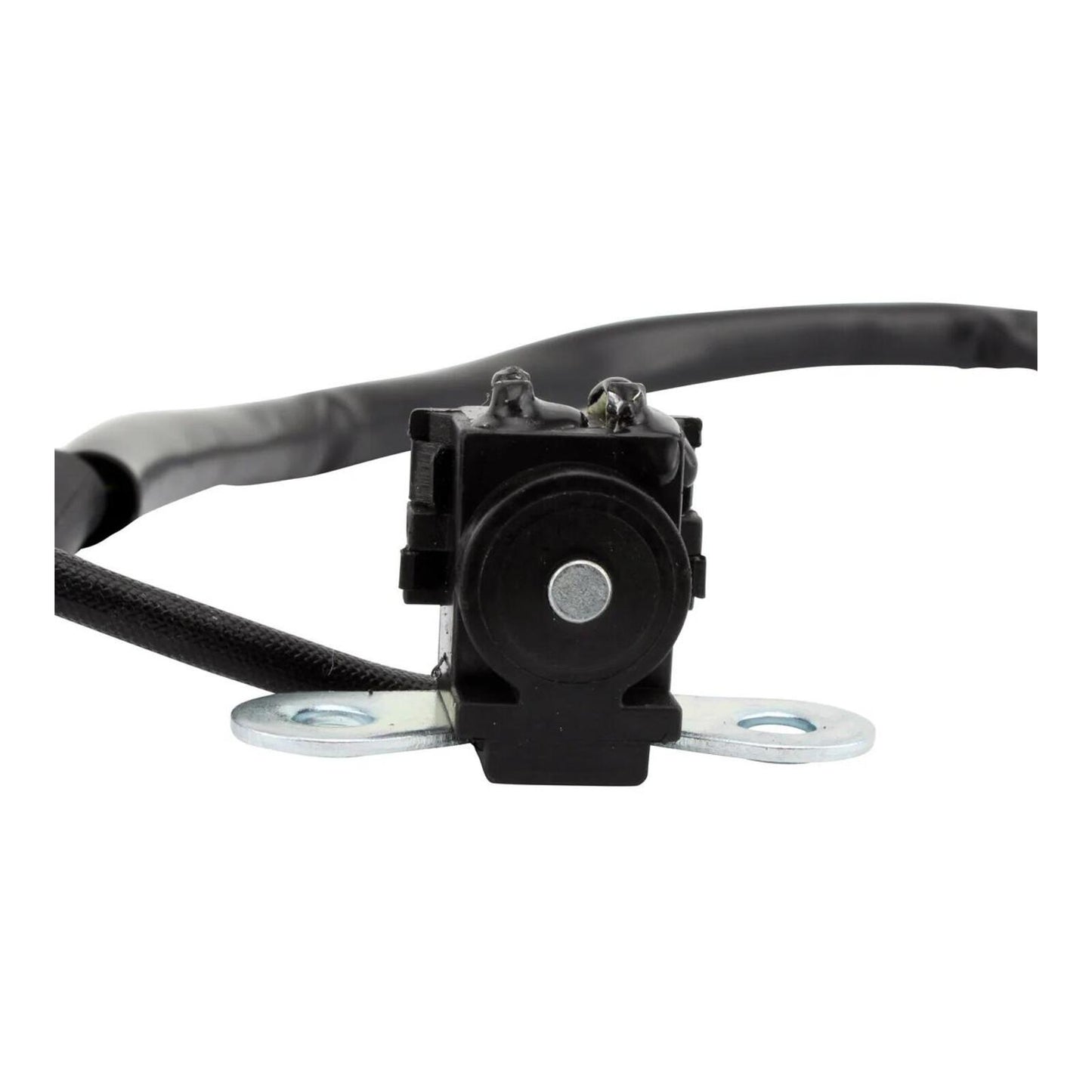

• Pickup pulsar coil included.

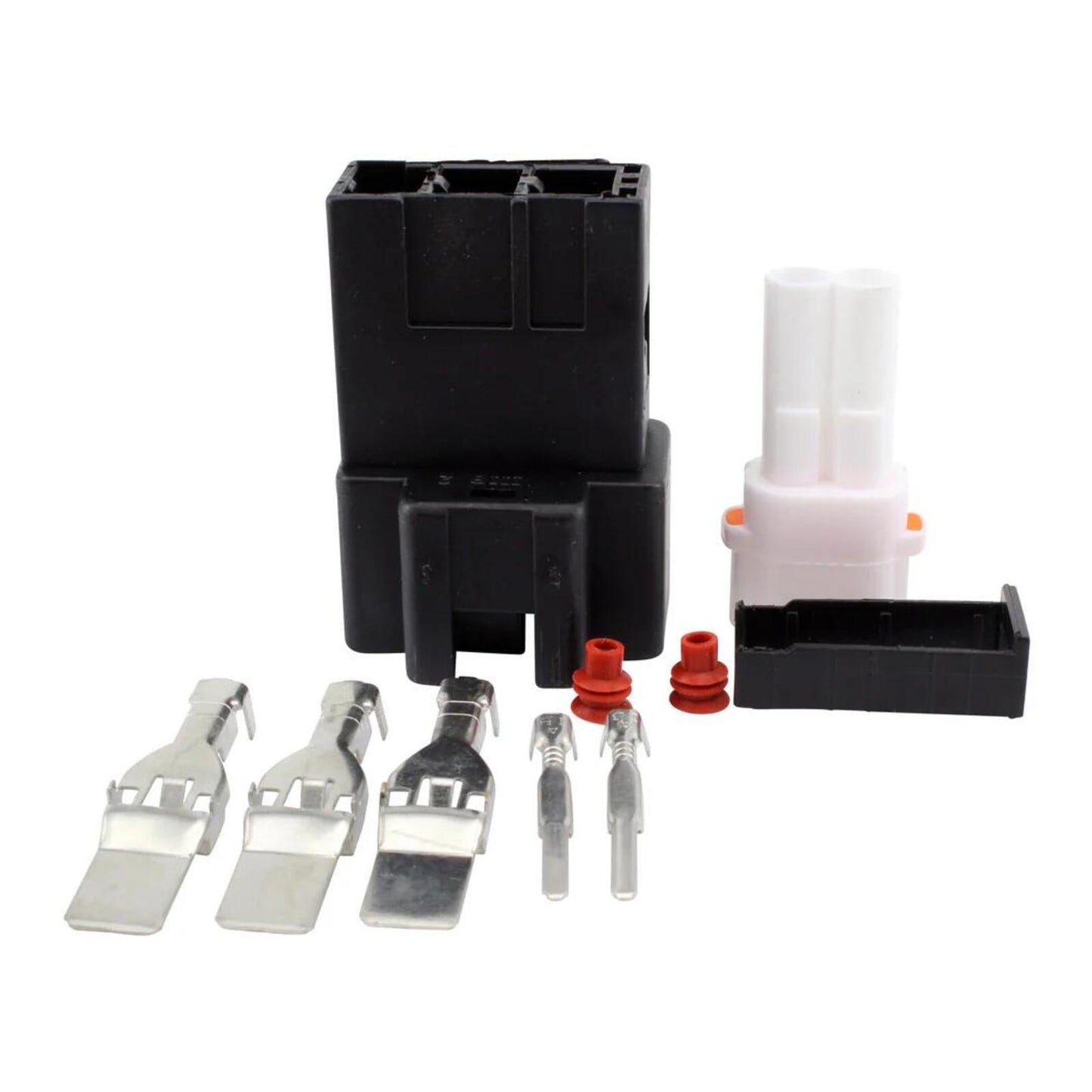

• Connectors included.

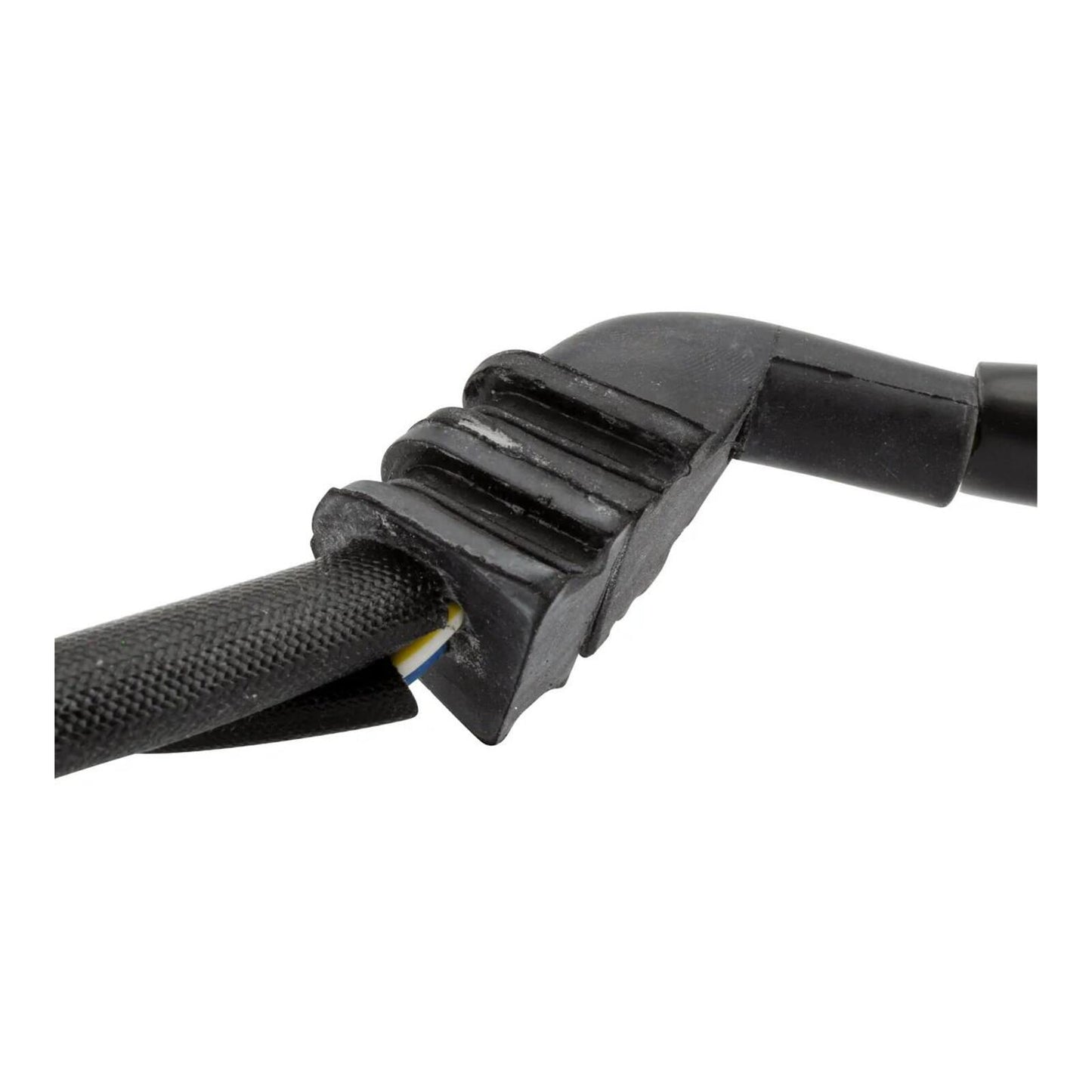

• Rubber grommet included.
• All units are tested before shipping.

Specifications:

• Interior Diameter: 54 mm
• Exterior Diameter: 118 mm

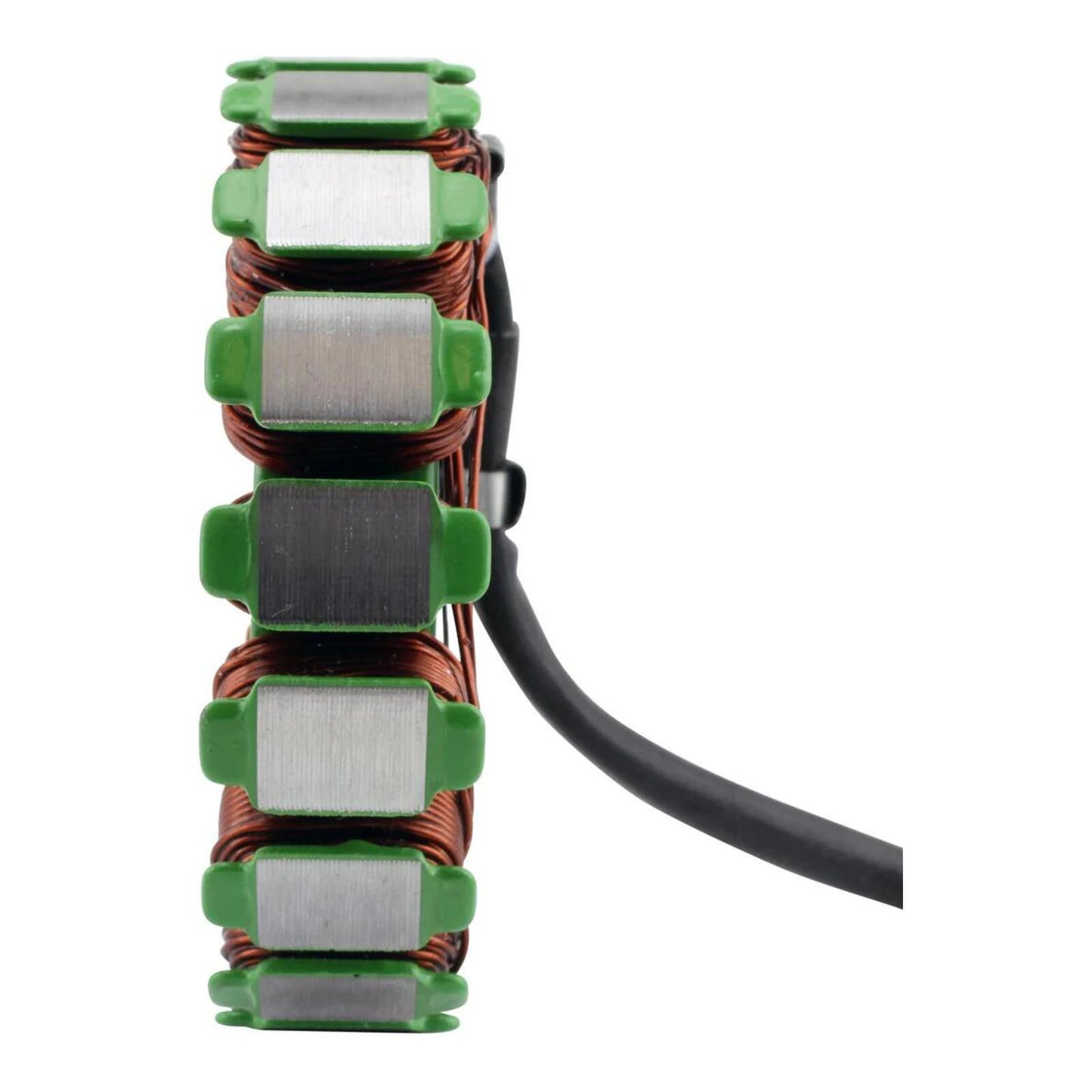

• Thickness: 19 mm
• Stator Wire Length (Stator to Grommet): 110 mm
• Stator Wire Length (Grommet to Plug): 520 mm
• Pickup Coil Wire Length (to Grommet): 10 mm
• Number of Wires: 5

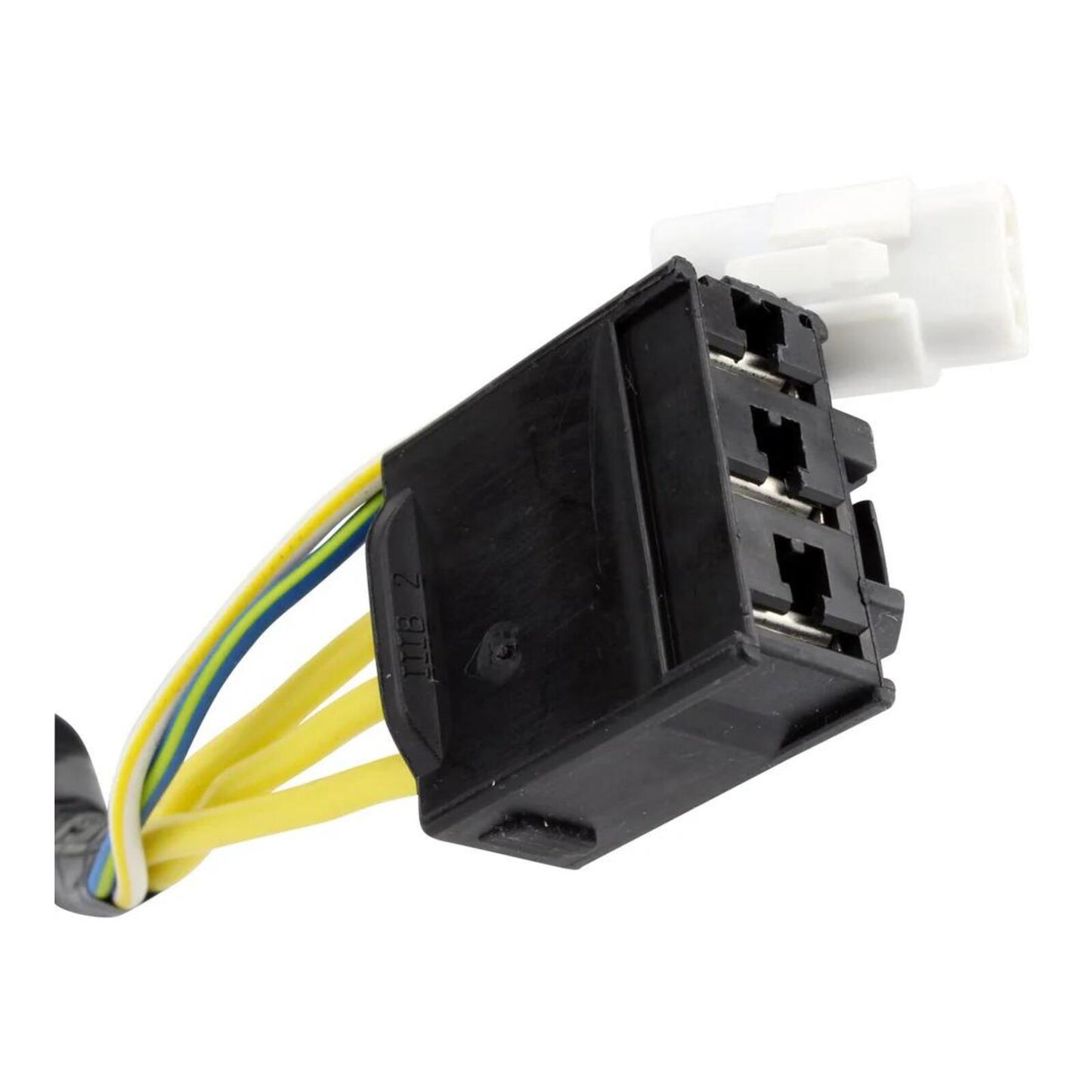

• Number of Plugs: 2
• Number of Pins: 5
• Number of Poles: 18

Resistance Values:

• Alternator Resistance: Between each yellow wire = 0.4 Ω ±20%
• Pickup Coil Resistance: Yellow/White to Yellow/Blue = 272 Ω ±20%
