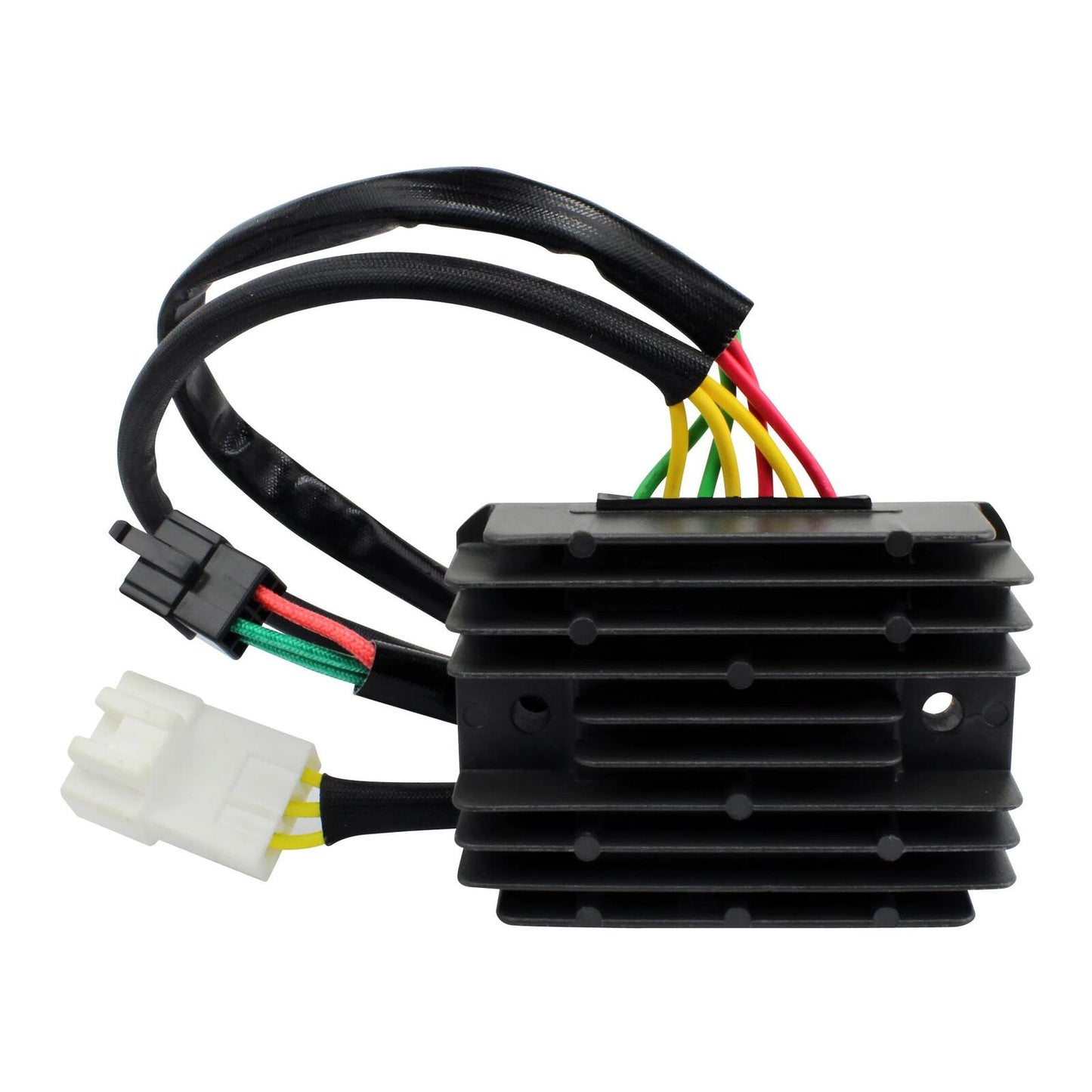

RM Stator Voltage Regulator Aprilia Piaggio Models

Direct replacement to your original unit.

Features:

• Plug-and-play, direct fit, easy installation.
• No assembly required.
• Higher grade of electric components.
• Improved heat sink and charging capabilities.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

Specifications:

• Width: 79 mm
• Length: 109 mm
• Height: 28 mm
• Wire Length: 540 mm
• Mounting Hole Centre-to-Centre Distance: 80 mm
• Number of Plugs: 2
• Number of Pins: 7
• Number of Wires: 7
• Minimum Charging Voltage: 14.5 V ± 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operating Temperature: -20°C to 85°C

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
