RM Surepower ECM Bypass Assorted Pol (Refer to Fitments) (RMS900-108112)

This replacement kit is only meant to the bypass the internal voltage regulator on Polaris ATV/UTVs that use the large silver SurePower ECM module with 2 large wiring connectors on opposite sides of the unit. Please confirm your OEM part number on your unit matches the list below.

Replaces these OEM Numbers :

• 4011089
• 4011090
• 4011598
• 4011375
• 4011657
• 4011226
• 4011517
4011240

Specifications:

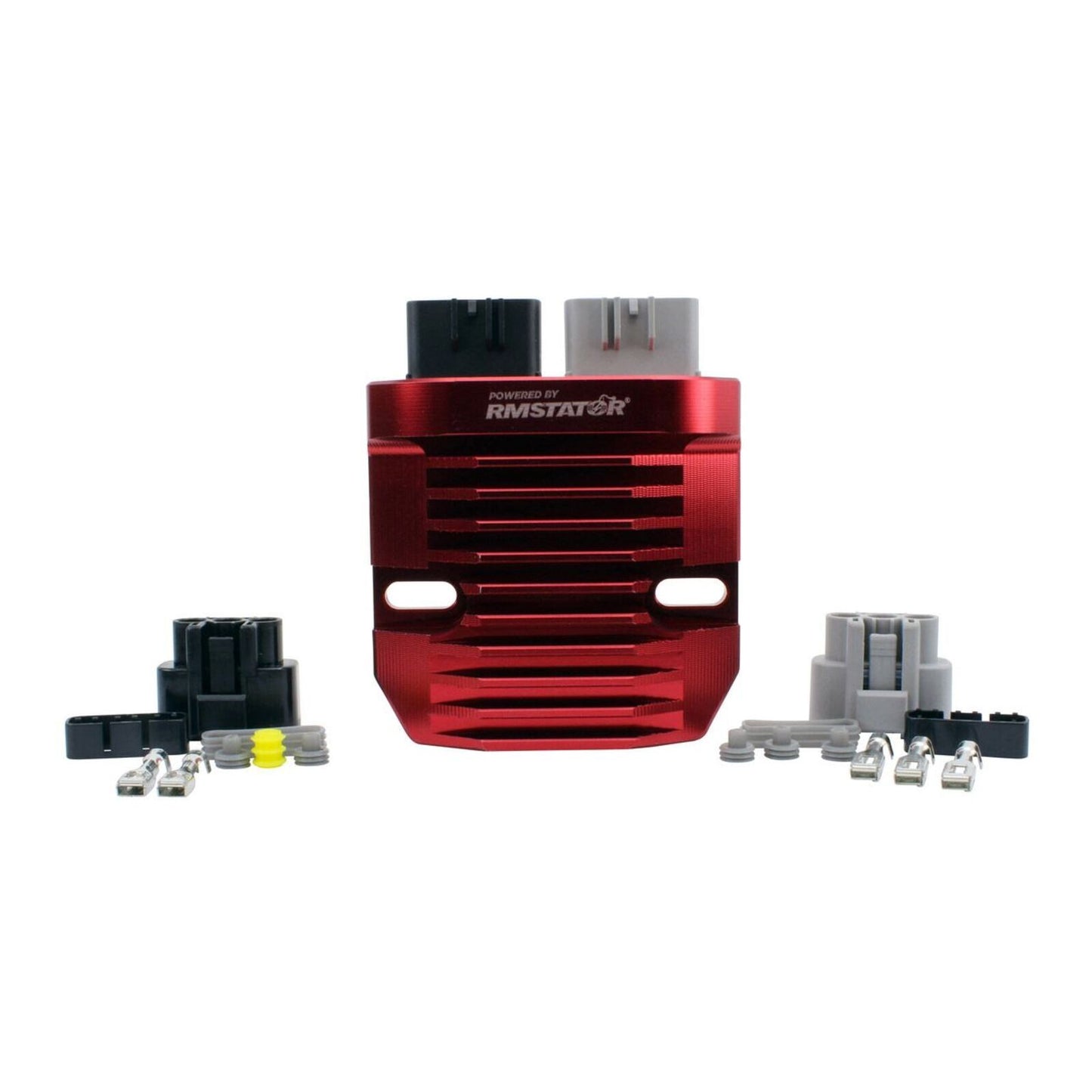

Red Machined Aluminum Mosfet Regulator:

• Dimensions:
  • Width: 103 mm
  • Length: 103 mm
  • Height: 28 mm
  • Fixation holes center to center: 80 mm
• Other specifications:
  • Number of plugs: 2
  • Number of pins: 5
  • Minimum Charging Voltage: 14.5 V +/- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C

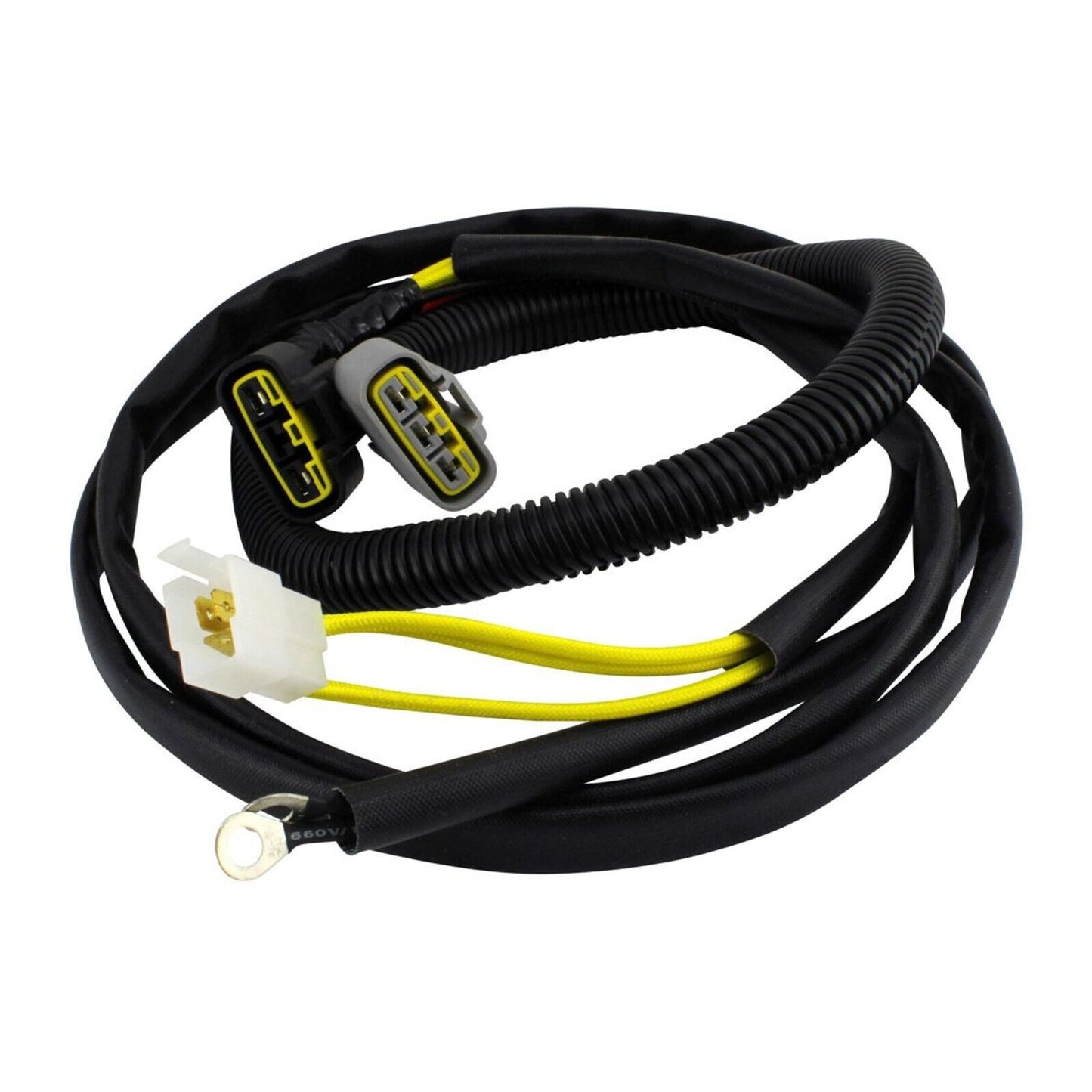

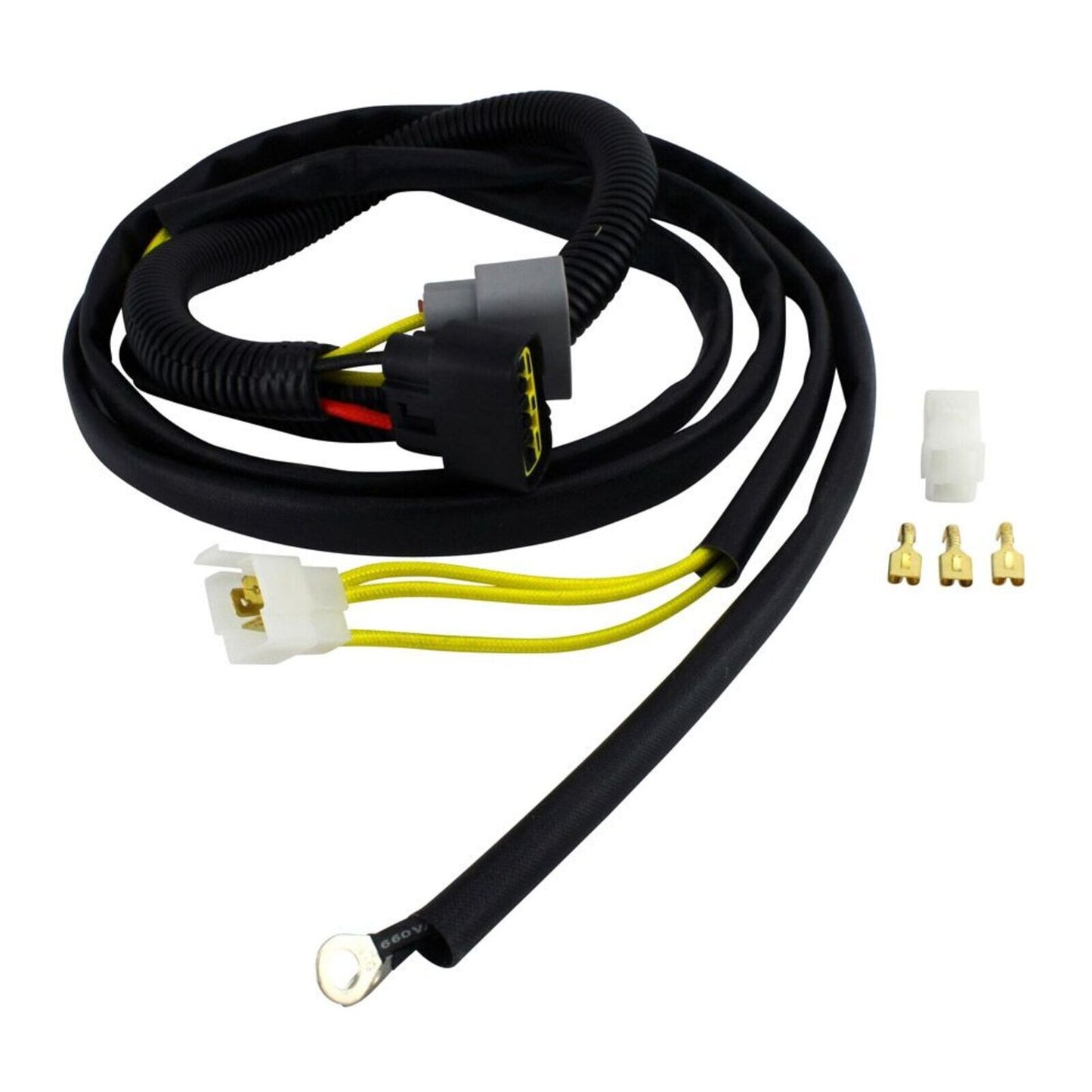

Polaris Surepower Module Regulator bypass Harness:

• Specifications:
  Wires length: 1000 mm
• Number of yellow wires: 3
• Number of red wires: 1
• Number of black wires: 1
• Number of plugs: 3

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
