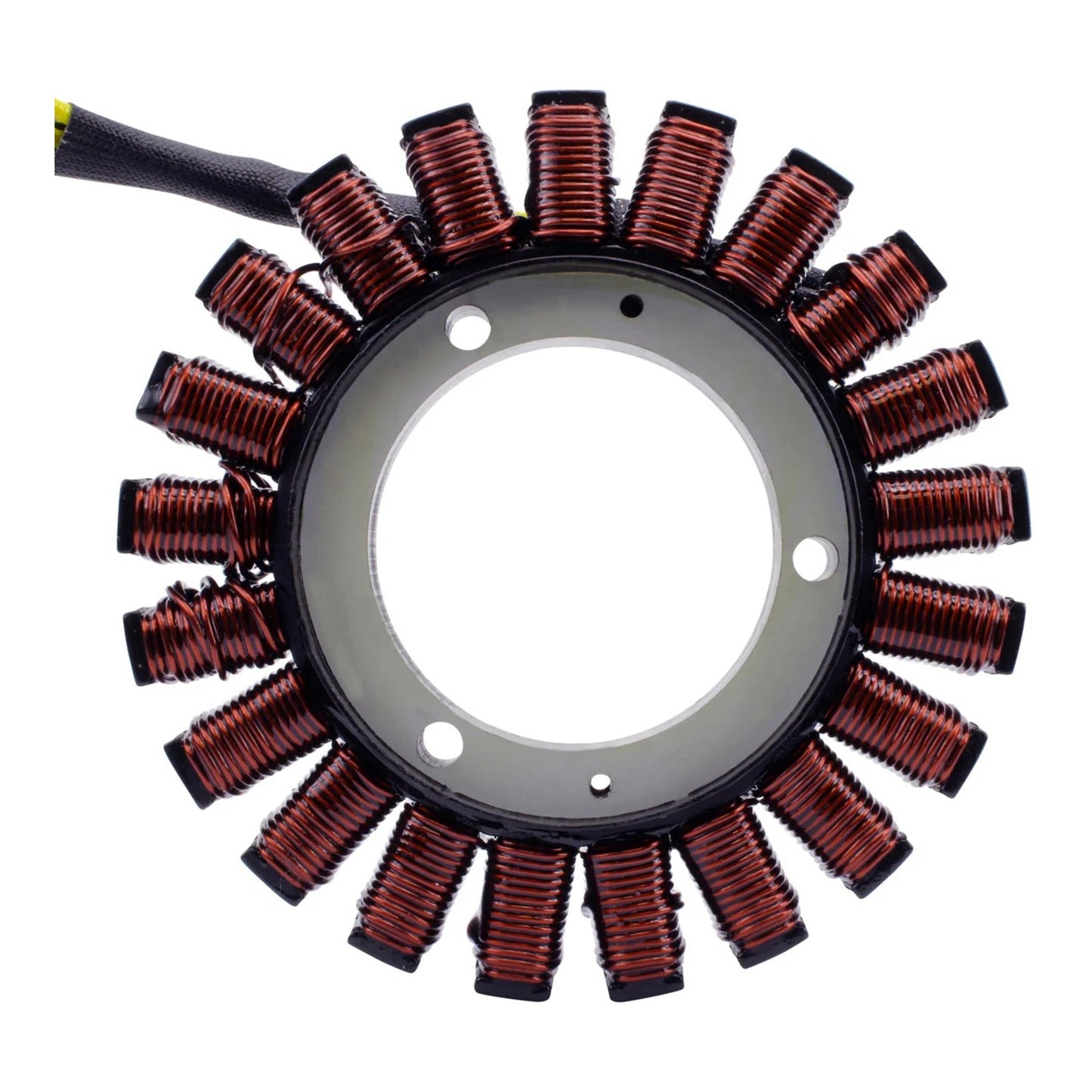

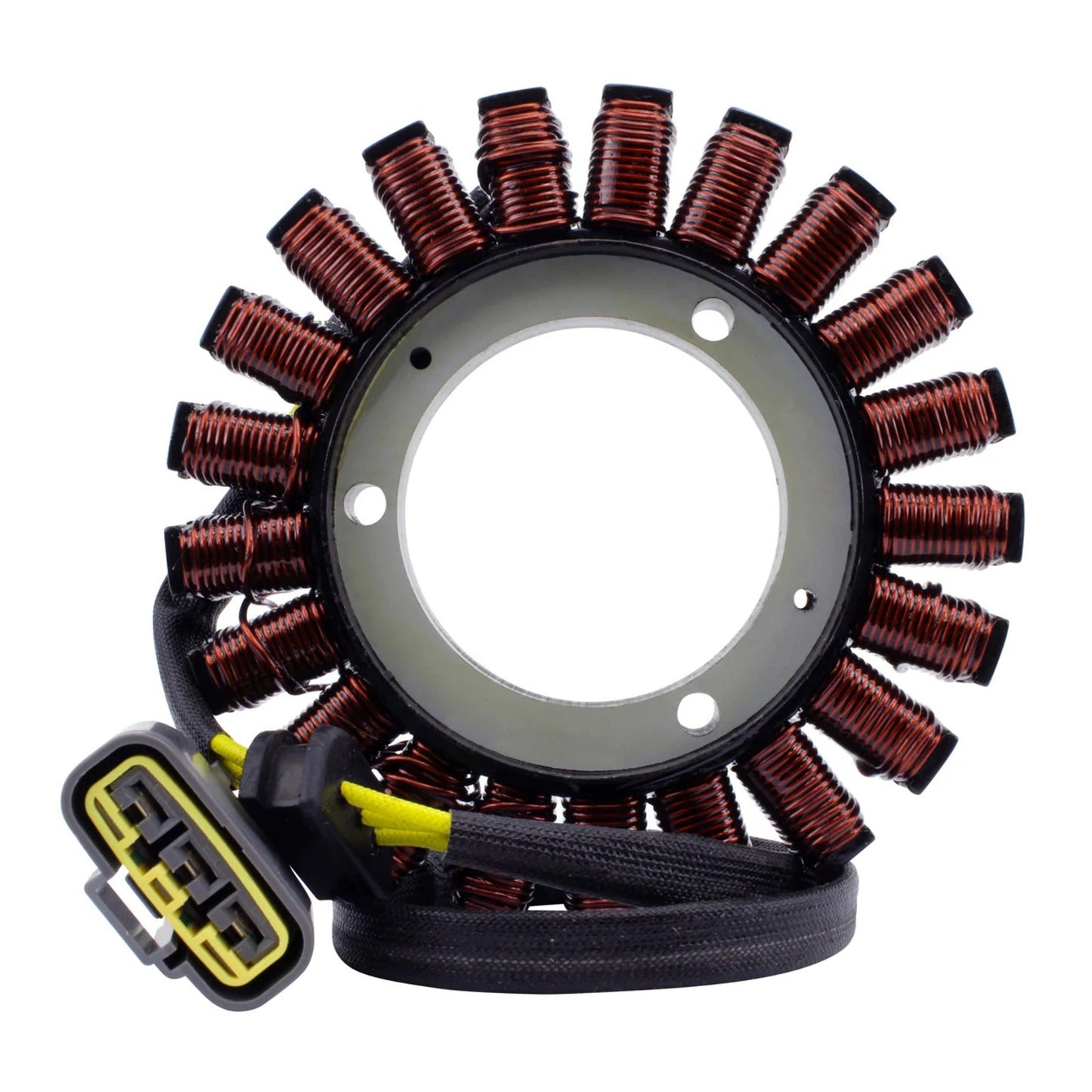

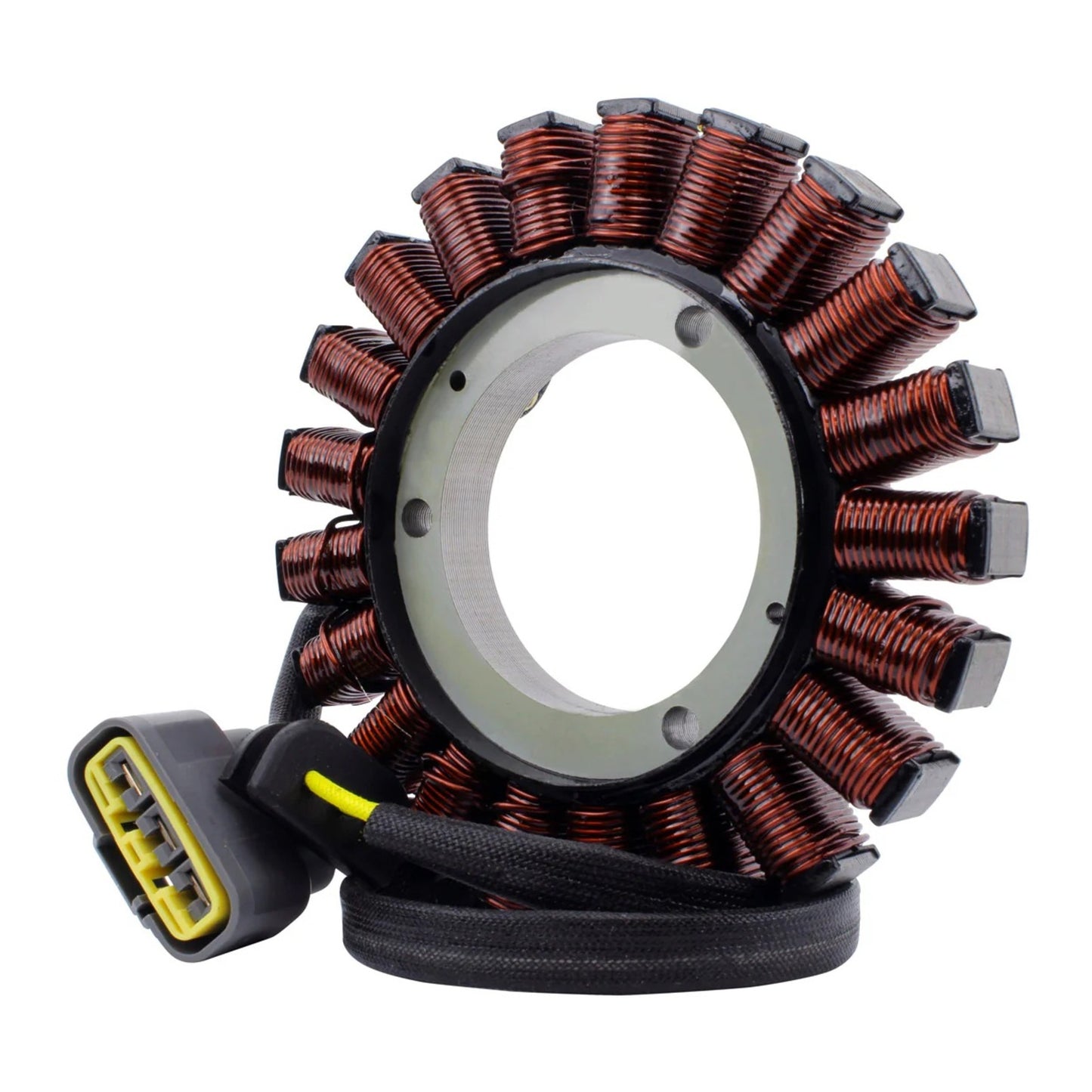

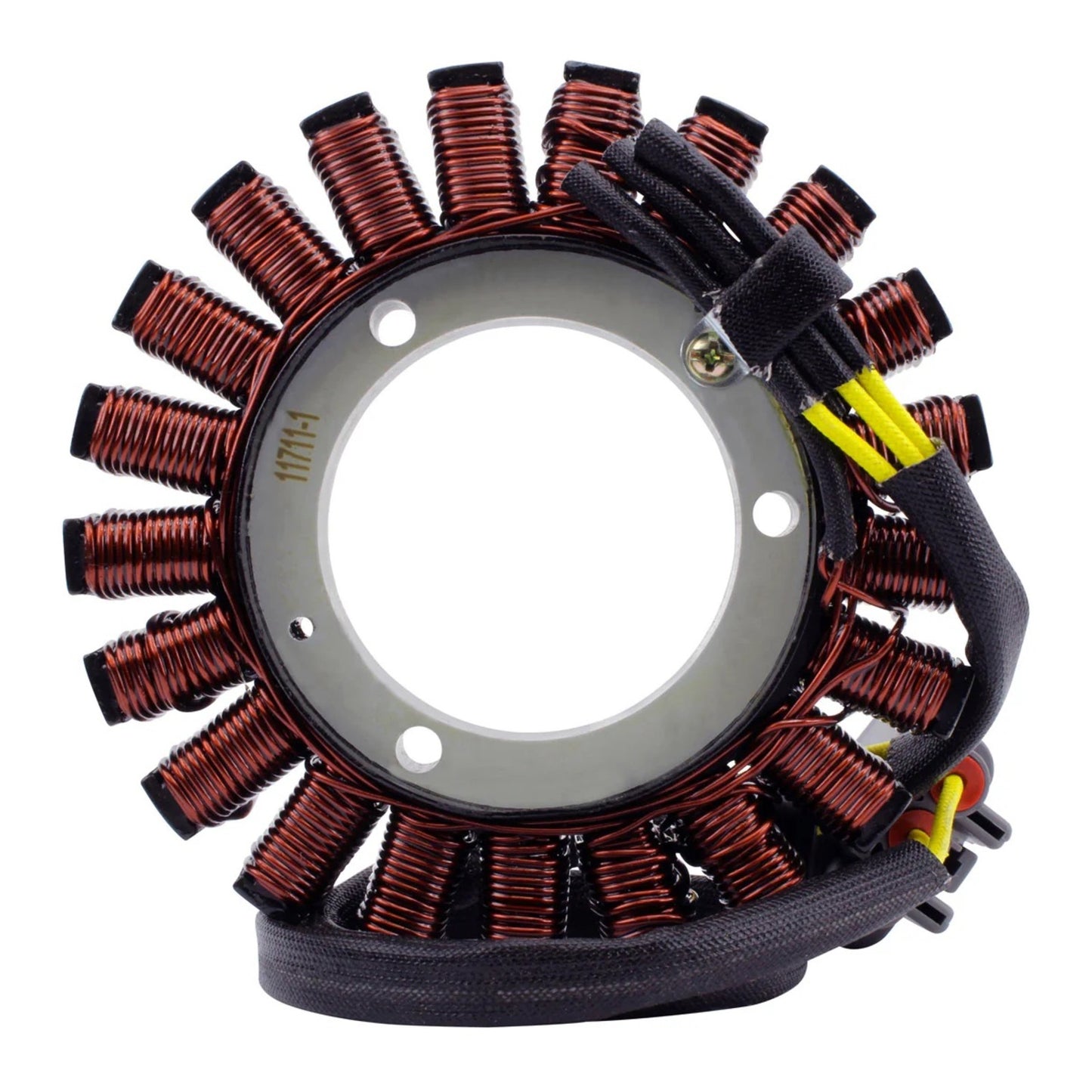

RMStator Stator BMW R1200 Models \'12-\'18 (RMS010-105024)

Brand new aftermarket Stator.

Features:

• Direct replacement of your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connectors included.
• Rubber grommet included.
• All products shipped are tested.

Specifications:

• Dimensions:
  • Interior diameter: 60 mm
  • Exterior diameter:133 mm
  • Thickness: 18 mm
  • Length of wires stator to grommet: 68 mm
  • Length of wires grommet to plug: 470 mm
• Other specifications:
  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Number of poles: 21
• Wire-to-wire resistance:
  • Alternator 3p: Between each Yellow = 0.4 ohms +-20%
