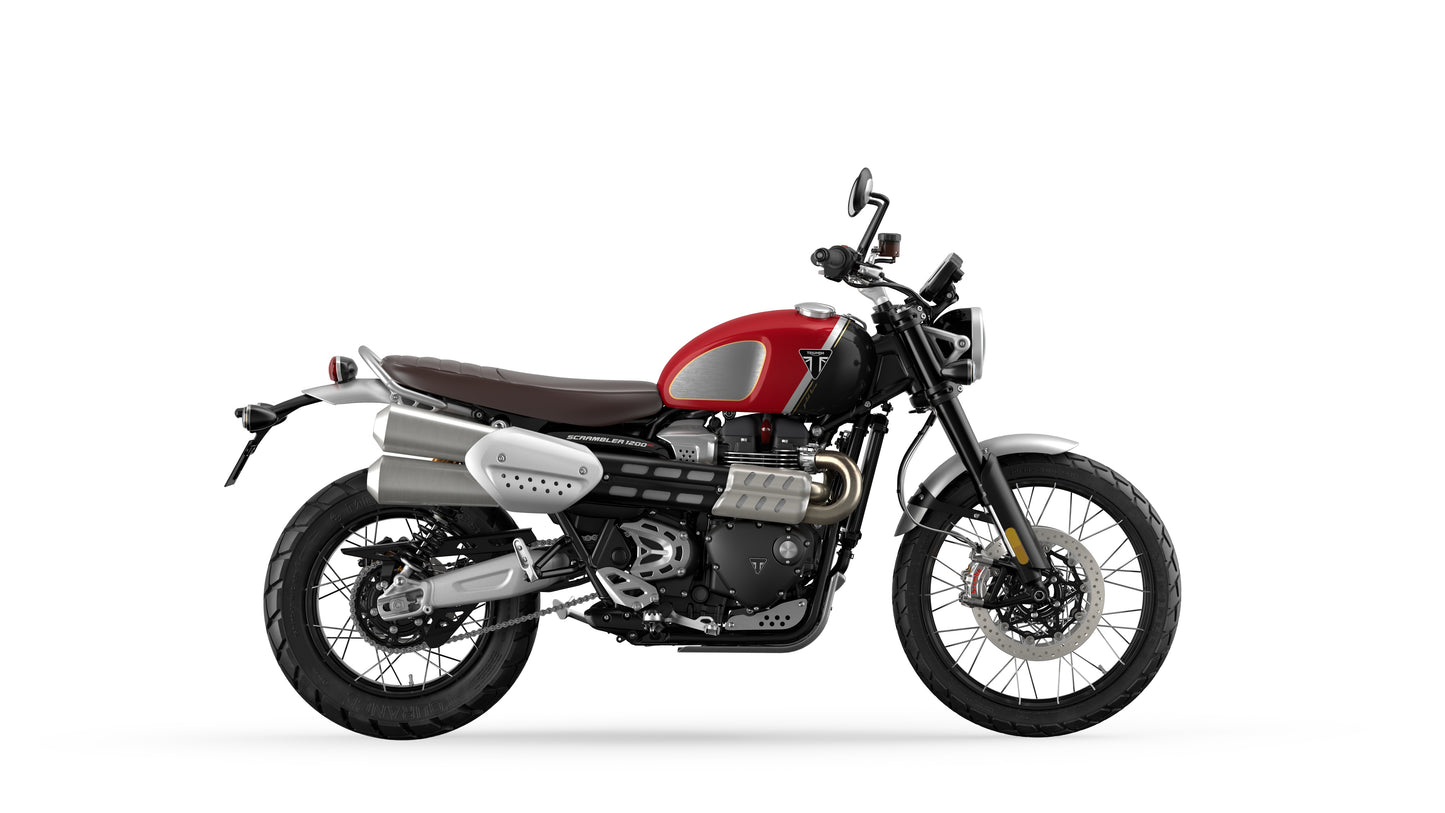

SCRAMBLER 1200 XC GOLD LINE EDITION
SCRAMBLER 1200 XC GOLD LINE EDITION
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
The benchmark classic crossover adventure bike; incredible capability combined with hand-painted, gold-lined exclusivity.
MODEL
YEAR
TECHNICAL SPECIFICATION
| TypeLiquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
| Capacity1200 cc |
| Bore97.6 mm |
| Stroke80 mm |
| Compression11.0:1 |
| Max Power EC90 PS / 89 bhp (66.2 kW) @ 7,250 rpm |
| Max Torque EC110 Nm @ 4500 rpm |
| FrameTubular steel |
| SwingarmTwin-sided, aluminium, 547mm |
| Front WheelTubeless 36-spoke 21 x 2.15in, aluminium rims |
| Rear WheelTubeless 32-spoke 17 x 4.25in, aluminium rims |
| Front Tyre90/90-21 |
| Rear Tyre150/70 R17 |
| Front SuspensionShowa 45mm fully adjustable upside down forks, 200mm travel |
| Rear SuspensionÖhlins fully adjustable piggy-back RSUs with twin springs. 200mm rear wheel travel |
| Front BrakesTwin 320mm discs, Brembo M50 monobloc calipers. Radial master cylinder |
| Rear BrakesSingle 255mm disc, Brembo 2-piston floating caliper, ABS |
| Instrument Display and FunctionsFull-colour TFT instruments |
| Fuel Consumption4.6 litres / 100 km |
| CO2 Figures105 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
| Service Interval10,000 miles / 16,000 km or 12 months, whichever comes first |
| Width Handlebars840 mm |
| Height Without Mirror1200 mm |
| Seat Height840 mm |
| Wheelbase1530 mm |
| Rake25.8 º |
| Trail121 mm |
| Tank Capacity16 L |
| Wet Weight230 kg |
